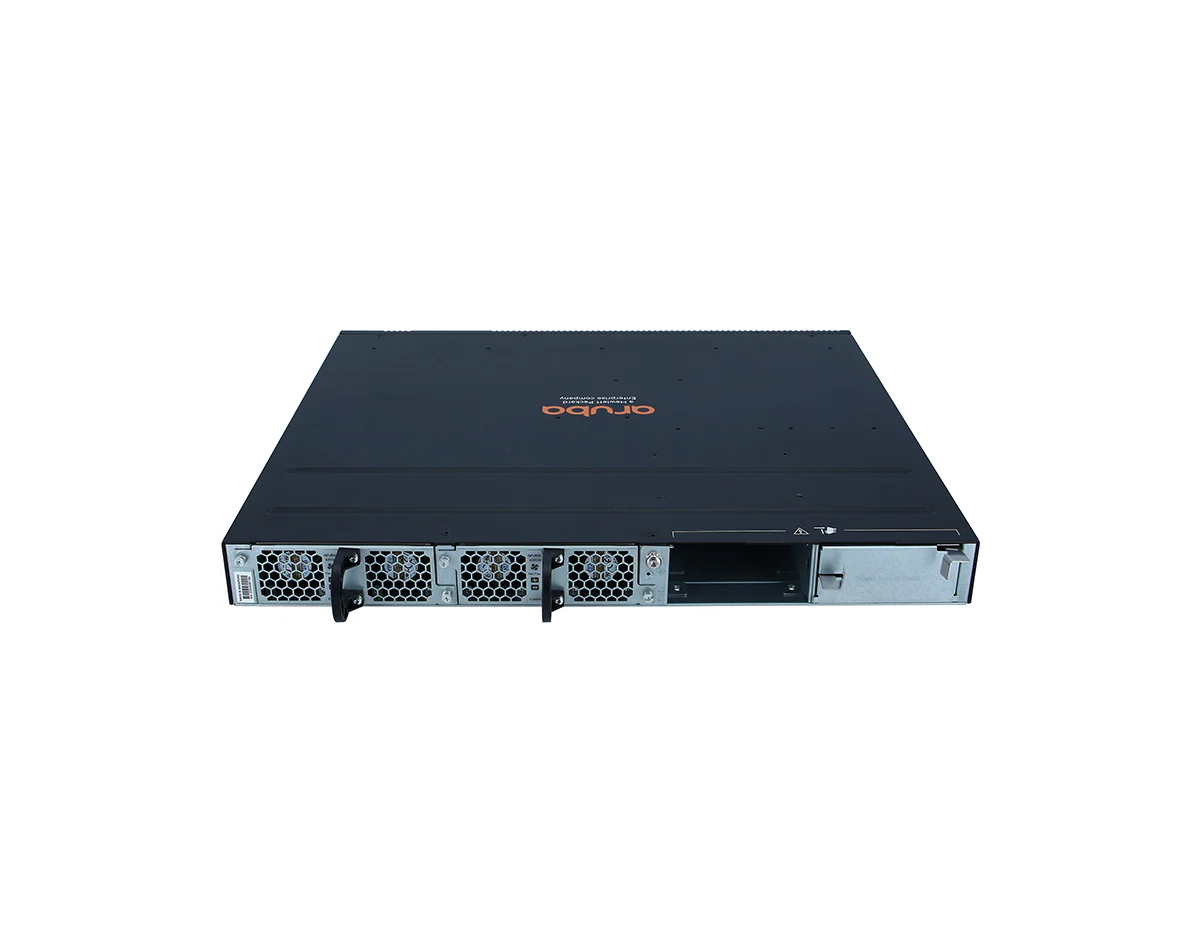

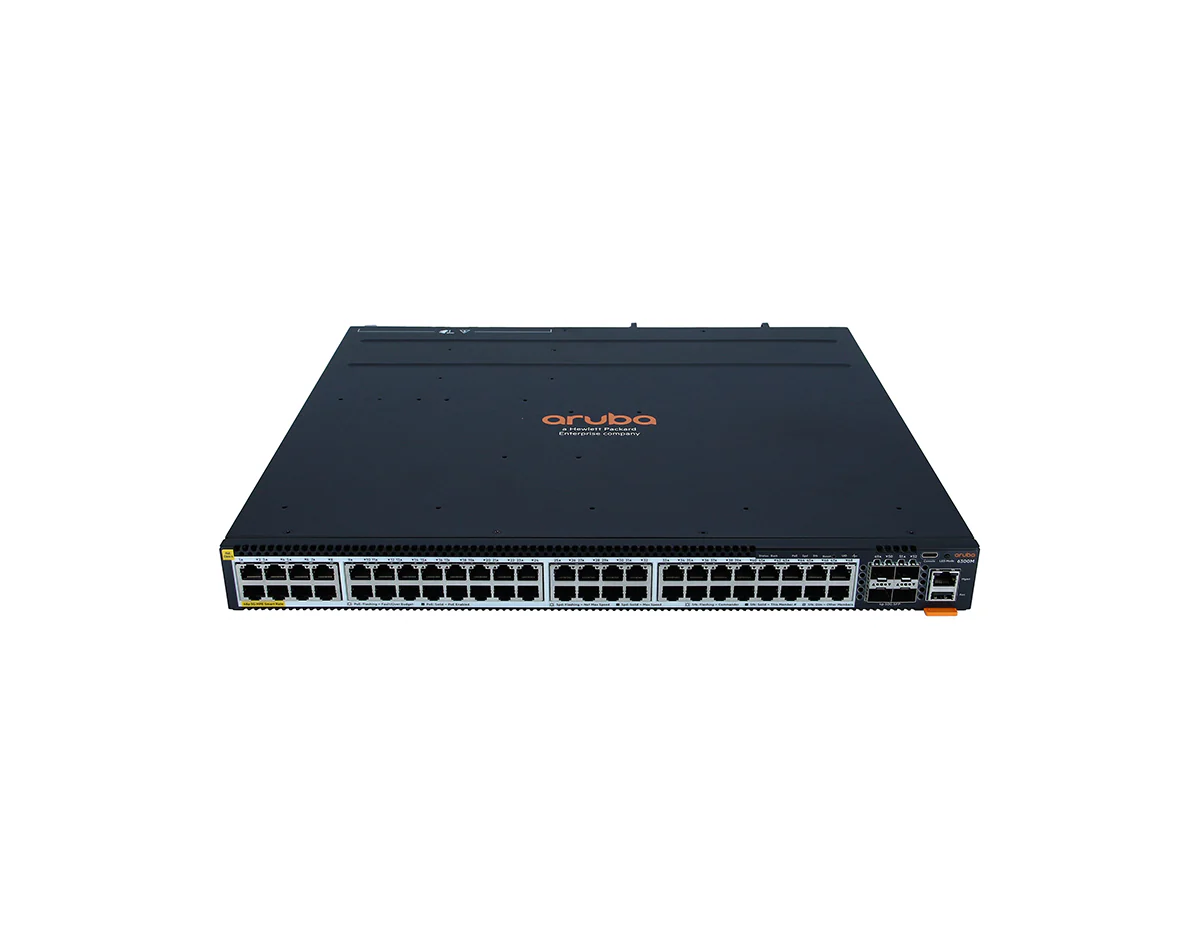

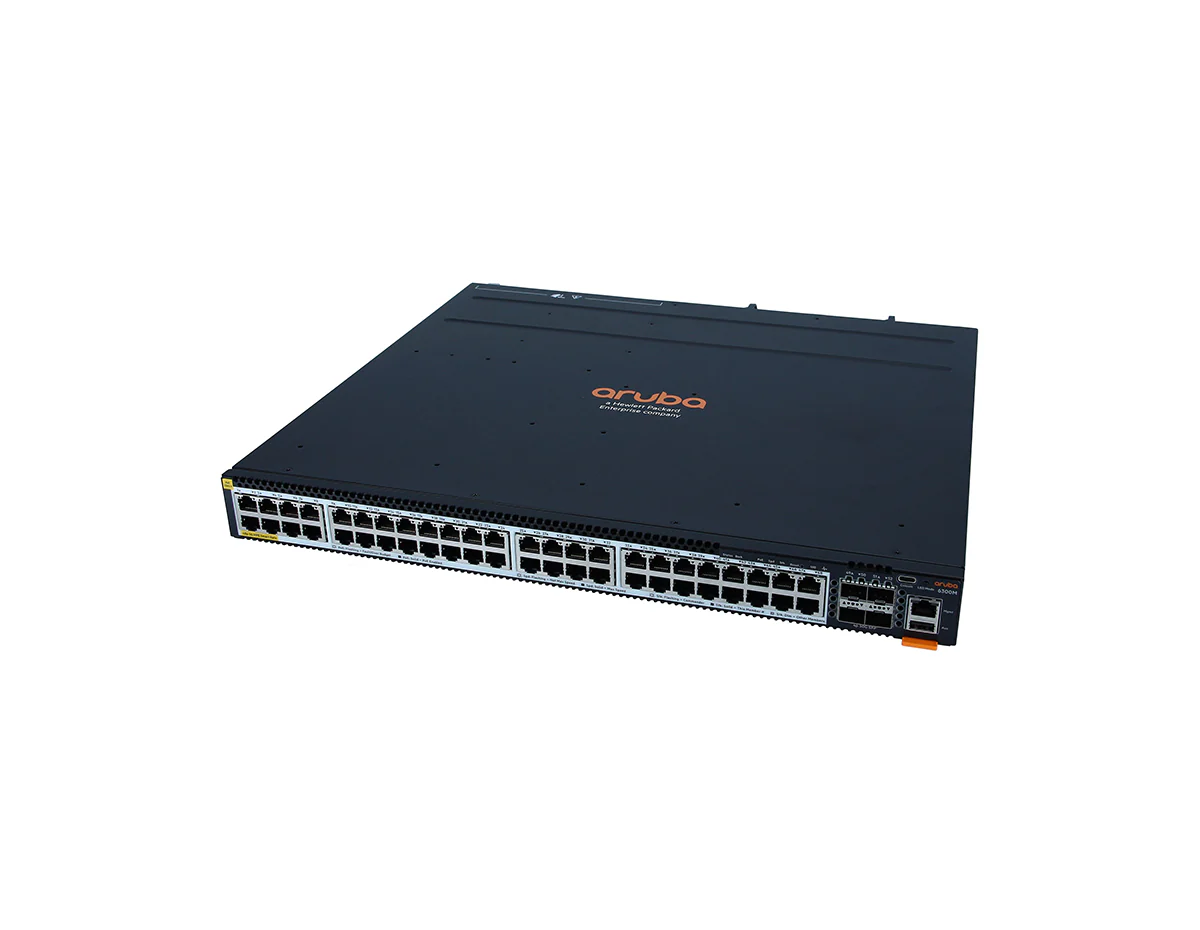

HPE Aruba Networking JL659A 6300M 48-Port Smart Rate PoE++ Switch
[shortdesc]
- Managed, rack-mountable, 48 x Smart Rate 100M/1/2.5/5GbE ports, 4 x SFP56 (1/10/25/50GbE) uplinks, Class 6 PoE (802.3bt) up to 60W/port, 2880W PoE budget, Layer 3
[properties]
| Properties | JL659A |
| Description | Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch JL659A • 48x ports SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port • 4x SFP56 uplinks supporting 1/10/25/50GbE (*50G via DAC for VSF/interconnect*) • Supports IEEE 802.3af/at and Class 6 (802.3bt, up to 60W per port) • Must select PSU Min1 / Max2 (680W JL086A, 1050W JL087A, 1600W JL670A, 1050W JL758A) — mix OK • Includes Fantrays Min2 / Max 2 (JL669B) • Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceiver • 1U - Height |
| Product Family | Aruba CX 6300 Switch Series |
| Product Type | Switch |
| Notes: | Compatible with this PSU System (std 2 // max 2) User Selection (min 0 // max 0) per enclosure (Note: includes 2 Fan Trays. No additional Fan Trays necessary) |
[/properties] [specifications]
| Specifications | |
| Additional Ports and Slots | 1x USB‑C console port 1x OOBM 1x USB Type A host port 1x Bluetooth dongle to be used with CX Mobile App |
| Power Supplies | 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs: JL086A, JL087A, JL670A Max PoE power: 2880W |
| Fan Tray | Switch has two fan tray slots and comes with two fan trays installed. Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required. Each fan tray is comprised of two fans. |
| Physical Characteristics | |
| Dimensions | 17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm) |
| Weight | 13.27 lbs (6.02 kg) |
| Mounting and Enclosure | Mounts in an EIA- standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory and Flash | 8 GBytes DDR4 32 GBytes eMMC |
| Packet Buffer | Packet Buffer Shared 8/16/32 MB (model/config dependent) |
| Performance | |
| System switching capacity | 880 Gbps |
| System throughput capacity | 660 Mpps |
| Model switching capacity | 880 Gbps |
| Model throughput capacity | 654 Mpps |
| Average latency (LIFO, 64-byte packets) |
1Gbps: 4.24μSec 10Gbps: 1.50μSec 25Gbps: 2.91μSec 50Gbps: 3.49μSec |
| Stack size | 10 members |
| Max stacking distance | Up to 10 kms with long range transceivers |
| Stacking bandwidth | 200 Gbps (400 Gbps at full duplex) |
| Switched virtual interfaces (dual stack) | 1,024 |
| IPv4 host table (ARP) | 49,152 |
| IPv6 host table (ND) | 49,152 |
| IPv4 unicast routes | 61,000 |
| IPv6 unicast routes | 61,000 |
| IPv4 multicast routes | 8,192 |
| IPv6 multicast routes | 8,192 |
| MAC table capacity | 32,768 |
| IGMP groups | 8,192 |
| MLD groups | 8,192 |
| IPv4/IPv6/MAC ACL entries (ingress) | 20,480/5,120/20,480 |
| IPv4/IPv6/MAC ACL entries (engress) | 8,192/2,048/8,192 |
| VRF | 256 |
| Environment | |
| Operating temperature | 32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de‑rating per 1,000 feet above 5,000 feet |
| Operating humidity | 15% to 95% relative humidity at 104°F (40°C), non‑condensing |
| Non-operating temperature | ‑40°F to 158°F ('‑40°C to 70°C) |
| Non-operating humidity | 15% to 95% relative humidity at 149°F(65°C), non‑condensing |
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Max non-operating altitude | Up to 15,000ft (4.572 Km) |
| Acoustic | Sound power, LWAd = 4.8 Bel Sound pressure, LpAm (bystander) = 30.6 dB |
| Primary airflow | Front and side-to-back |
| Electrical Characteristics | |
| Frequency | 50-60 Hz |
| AC voltage | JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V |
| Current (for voltages listed above) | JL670A PSU: 11A/8A JL086A PSU: 8A/3.5A JL087A PSU: 12A/5A |
| Power consumption (230VAC) | With JL086A PSU: Idle: 133W 100% traffic rate: 199W With JL087A PSU: Idle: 138W 100% traffic rate: 193W With JL670A PSU: Idle: 140W 100% traffic rate: 201W |
| Safety | Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 US: UL 60950-1 2nd Ed.. Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations |
| Emissions | Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014, EN 61000-3- 3:2013 US: FCC part 15 Class A Canada: ICES-003 Class A Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010 |
| Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | IEC 61000-3-2, EN 61000-3-2 |
| Flicker | IEC 61000-3-3, EN 61000-3-3 |
[/specifications] [accesories]
| Accessories | |
| USB Console Cables | USB Console Cables System (std 0 // max 99) User Selection (min 0 // max 99) per switch • Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable R8Z87A • Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable R9G48A • Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable R9J32A • Aruba USB-C to USB-C PC-to-Switch 3m Cable |
| Bluetooth Adapter | System (std 0 // max 99) User Selection (min 0 // max 99) per switch HPE Aruba Networking CX Switch Bluetooth Adapter |
[/accesories]
HPE Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL659A)
The HPE Aruba 6300M 48-port Smart Rate Switch (JL659A) delivers versatile, high-performance networking for demanding enterprise environments. Featuring 48 HPE Smart Rate ports with speeds of 1Gbps, 2.5Gbps, and 5Gbps, and 4 high-speed SFP56 uplink ports supporting up to 50Gbps, this switch is ideal for powering advanced devices while delivering exceptional network performance and scalability.
Key Features:
- 48 x 1/2.5/5GbE HPE Smart Rate Ports: Provides flexible connectivity for advanced devices requiring high-speed data transfer and efficient power delivery through Class 6 PoE.
- 4 x 50Gbps SFP56 Uplinks: Supports high-bandwidth uplinks for data-intensive workloads and seamless inter-switch communication.
- Layer 3 Routing: Includes advanced routing protocols like OSPF and BGP, enabling efficient network traffic segmentation and routing.
- Power over Ethernet (PoE): Provides Class 6 PoE power to connected devices, offering up to 60W per port.
- Energy Efficiency: Compliant with IEEE 802.3az standards, reducing energy consumption while maintaining top performance.
Technical Overview:
- Recommended for: Enterprise data centers, large branch offices, and educational institutions.
- Ports: 48 x 1GbE/2.5GbE/5GbE Smart Rate ports, 4 x 50Gbps SFP56 uplink ports.
- Switching Capacity: 880 Gbps.
- Forwarding Rate: 654 Mpps.
- Layer 3 Features: OSPF, BGP, VLAN, and VRF for robust network control.
- PoE Power: Supports up to 60W per port via Class 6 PoE.
- Management: Managed through Web GUI, CLI, SNMP, and Aruba Central.
- Energy Efficiency: Complies with IEEE 802.3az for reduced power usage.
- Stacking: Supports Virtual Switching Framework (VSF) with stacking up to 10 switches.
You can check the related tab for the JL659A datasheet.
