[properties]

Properties	JL658A
Description	Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch JL658A • 24x 1/10G SFP+ ports; 4x SFP56 1/10/25/50G uplinks (*50G via DAC for VSF/interconnect) • Must Select PSU Min1 / Max2 (250W JL085A, 250W JL757A) Mix OK • Includes Fantrays Min2 / Max 2 (JL669B) • Min=0 \ Max= 24 SFP/SFP+ 100M/1/10G Transceivers • Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50G Transceiver • 1U – Height
Product Family	Aruba CX 6300 Switch Series
Product Type	Switch

 [/properties] [specifications]

Specifications
Additional Ports and Slots	1x USB‑C console port 1x OOBM 1x USB Type A host port 1x Bluetooth dongle to be used with CX Mobile App
Power Supplies	2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (ordered separately) Supports JL085A PSU
Fan Tray	Switch has two fan tray slots and comes with two fan trays installed. Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required. Each fan tray is comprised of two fans.
Physical Characteristics
Dimensions	17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm)
Weight	12.78 lbs (5.8 Kg)
Mounting and Enclosure	Mounts in an EIA- standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
CPU	Quad Core ARM Cortex™ A72 @ 1.8GHz
Memory and Flash	8 GBytes DDR4 32 GBytes eMMC
Packet Buffer	8 MB packet buffer memory
Performance
System switching capacity	880 Gbps
System throughput capacity	660 Mpps
Model switching capacity	880 Gbps
Model throughput capacity	654 Mpps
Average latency (LIFO, 64-byte packets)	1Gbps: 1.99μSec 10Gbps: 1.49μSec 25Gbps: 2.85μSec 50Gbps: 2.82μSec
Stack size	10 members
Max stacking distance	Up to 10 kms with long range transceivers
Stacking bandwidth	200 Gbps (400 Gbps at full duplex)
Switched virtual interfaces (dual stack)	1,024
IPv4 host table (ARP)	49,152
IPv6 host table (ND)	49,152
IPv4 unicast routes	61,000
IPv6 unicast routes	61,000
IPv4 multicast routes	8,192
IPv6 multicast routes	8,192
MAC table capacity	32,768
IGMP groups	8,192
MLD groups	8,192
IPv4/IPv6/MAC ACL entries (ingress)	20,480/5,120/20,480
IPv4/IPv6/MAC ACL entries (engress)	8,192/2,048/8,192
VRF	256
Environment
Operating temperature	32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de‑rating per 1,000 feet above 5,000 feet Can support excursion to 131°F (55°C) for short periods of time. Operating temperature is reduced to 32°F (0°C) to 104°F (40°C) up to 5000ft when 10G SFP+ LR or ER Transceivers are installed. (Not more than 96 consecutive hours or 360 hours total or 15 occurrences in a 1-year period.)
Operating humidity	15% to 95% relative humidity at 104°F (40°C), non‑condensing
Non-operating temperature	‑40°F to 158°F ('‑40°C to 70°C)
Non-operating humidity	15% to 95% relative humidity at 149°F(65°C), non‑condensing
Max operating altitude	Up to 10,000ft (3.048 Km)
Max non-operating altitude	Up to 15,000ft (4.572 Km)
Acoustic	Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 31.0 dB
Primary airflow	Front and side-to-back
Electrical Characteristics
Frequency	50-60 Hz
AC voltage	JL085A PSU: 100V-240V
Current (for voltages listed above)	JL085A PSU: 3A/1.2A
Power consumption (230VAC)	Idle: 51W 100% traffic rate: 85W
Safety	Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 US: UL 60950-1 2nd Ed Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations
Emissions	Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013 US: FCC part 15 Class A Canada: ICES-003 Class A Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010
Lasers	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic	CISPR 24 / CISPR 35
EN	EN 55024:2010 / EN 55035:2017
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	IEC 61000-3-2, EN 61000-3-2
Flicker	IEC 61000-3-3, EN 61000-3-3

[/specifications] [accesories]

Accessories
Fan Trays	System (std 2 // max 2) User Selection (min 0 // max 0) per enclosure Note: This switch includes 2 Fan Trays. No additional Fan Trays necessary
JL669B	Aruba X751 Front to Back Fan Tray
JL761A	Aruba 6300M Power-to-Port Fan Tray
USB Console Cables	System (std 0 // max 99) User Selection (min 0 // max 99) per switch
R8Z87A	Aruba USBA-RJ45 PIN3TX-6RX 2.5m Cable
R9G48A	Aruba USBA-RJ45 PC-to-Switch PIN6TX-3RX 2.5m Cable
R9J32A	Aruba USB-A reversible to USB-C PC-to-Switch 3m Cable
R9J33A	Aruba USB-C to USB-C PC-to-Switch 3m Cable
Bluetooth Adapter	System (std 0 // max 99) User Selection (min 0 // max 99) per switch
S1H23A	HPE Aruba Networking CX Switch Bluetooth Adapter

[/accesories]

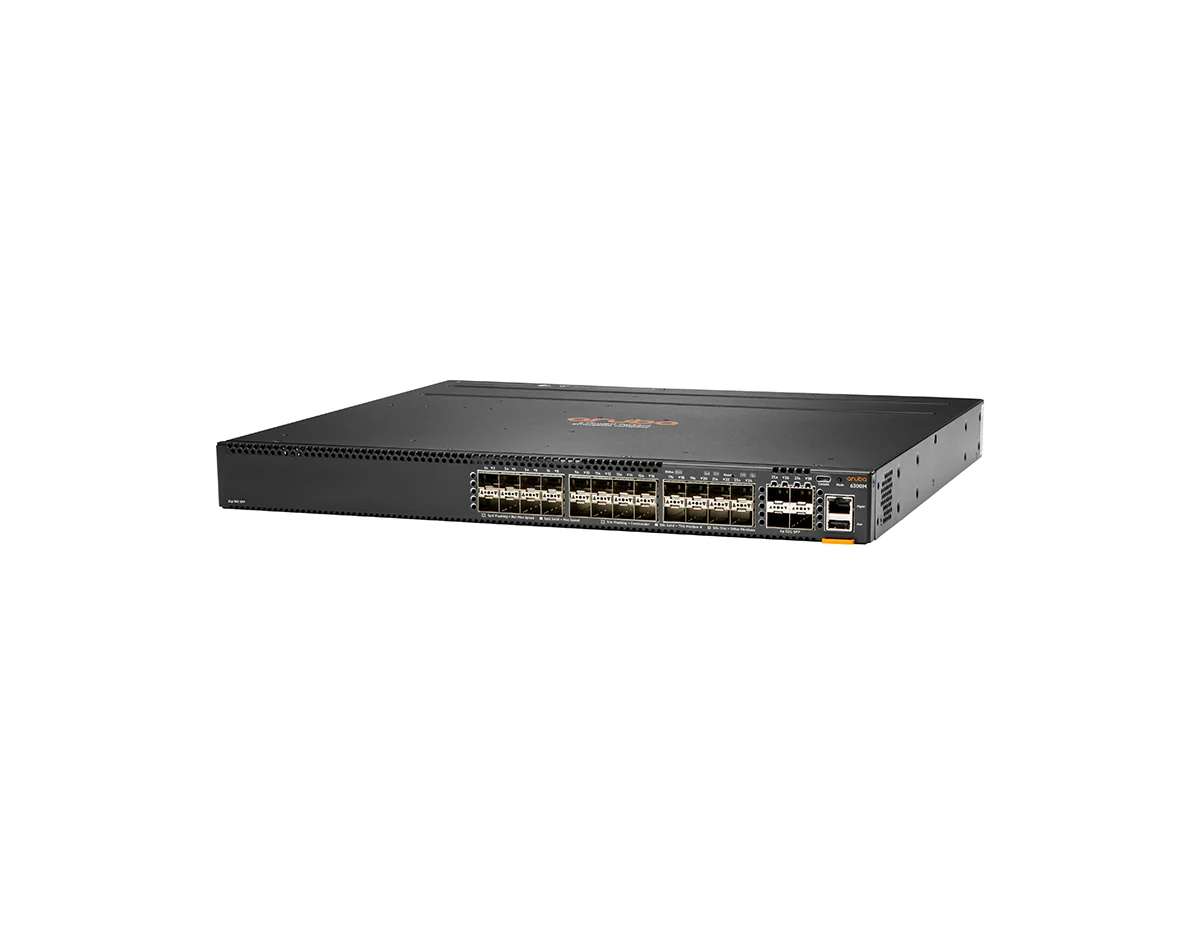

HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)

The HPE Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A) is designed for high-performance enterprise networks. Featuring 24 SFP+ ports for 1G/10G connectivity and four high-speed SFP56 uplinks, this switch ensures exceptional bandwidth and scalability for modern networks. With a compact design and robust feature set, it is ideal for data center top-of-rack (ToR) and aggregation layer deployments, providing flexibility, security, and high availability for critical applications.

Key Features:

• 24 x 1G/10G SFP+ Ports: Supports high-speed connections for improved network performance and future growth.
• 4 x SFP56 Uplinks: Enables uplink speeds of up to 50Gbps, providing high bandwidth for inter-switch communication and network expansion.
• Advanced Layer 3 Capabilities: Includes robust routing protocols such as OSPF and BGP, offering efficient traffic management and segmentation.
• Energy-Efficient Design: Optimizes power usage in compliance with IEEE 802.3az standards, lowering operational costs.
• Stackable Architecture: Supports HPE Virtual Switching Framework (VSF) for stacking up to 10 switches, simplifying network management and scaling.

Technical Overview:

• Recommended for: Enterprise networks, data centers, and branch offices.
• Ports: 24 x 1G/10G SFP+ ports, 4 x 50G SFP56 uplink ports.
• Switching Capacity: 880 Gbps.
• Throughput: 654 Mpps.
• Layer 3 Features: OSPF, BGP, VRF, and VLAN for advanced traffic routing.
• Management: Web GUI, CLI, SNMP, and Aruba Central.
• Energy Efficiency: IEEE 802.3az compliant for reduced power consumption.
• Stacking: Supports up to 10 switches with VSF for simplified management.

You can check the related tab for the JL658A datasheet.
