[shortdesc]

• Type: HP X120 1G SFP LC SX Transceiver, Ports: 1 LC 1000BASE-SX port, Connector Type: LC

[/shortdesc]

[properties]

Product Name	JD118B
Description	HPE JD118B, an SFP Gigabit LX transceiver module for extending network connectivity over single-mode fiber.
Transceiver Type	SFP (Small Form-Factor Pluggable)
Data Rate	1 Gbps
Connector Type	LC Duplex
Wavelength	1310 nm
Maximum Distance	10 km (6.2 miles)
Fiber Type	Single-mode fiber
Digital Diagnostic Monitoring	No
Hot-Swappable	Yes
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Power Consumption	<1W
Dimensions	5.6 cm x 1.3 cm x 1.2 cm (2.2 in x 0.51 in x 0.47 in)
Weight	0.018 kg (0.04 lb)
Compatibility	Compatible with HPE networking equipment
Usage	Suitable for enterprise networks, data centers, and campus environments
Durability	Designed for reliable long-distance data transmission

[/properties]

[specifications]

Form Factor	SFP MSA compliant
Supported Standards	IEEE 802.3z (1000BASE-LX)
Certifications	CE, FCC, RoHS compliant
Environmental Safety	Complies with environmental standards for electronic products
EMC Compliance	Meets international EMC standards for networking equipment
Transmission Media	Single-mode optical fiber
Signal Integrity	Ensures stable data transmission over long distances
Hot-Swappable	Yes, supports hot-swapping without network downtime
MTBF	1,000,000 hours
Security	Supports secure connections with compatible devices
Power Supply	3.3V DC
Monitoring	Not supported
Latency	Low latency for Gigabit data transmission
Installation	Easy plug-and-play installation
Deployment	Ideal for extending network reach in large-scale enterprise or service provider networks
Firmware Compatibility	Firmware updates supported when needed

[/specifications]

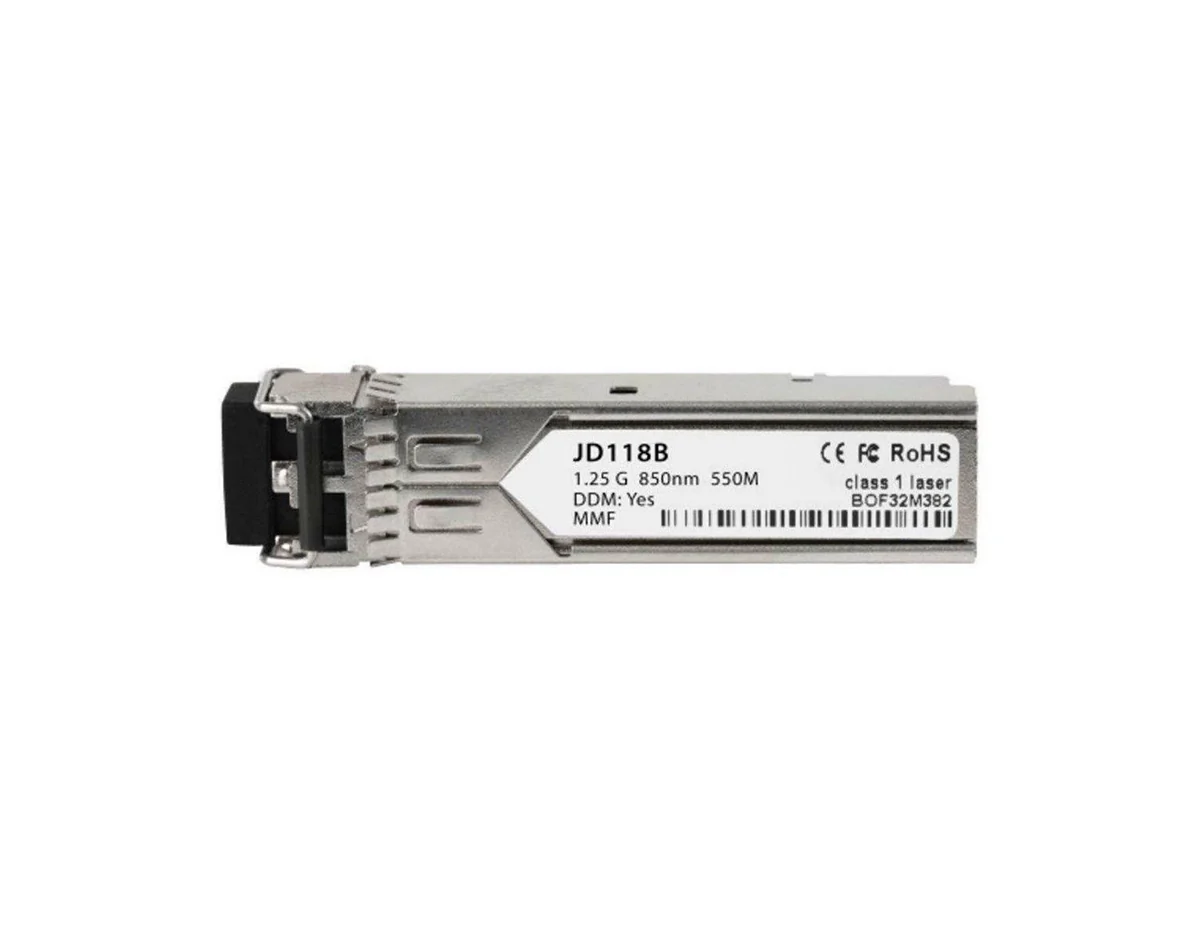

HPE JD118B HP X120 1G SFP LC SX Transceiver

The HPE JD118B is a HP X120 1G SFP LC SX Transceiver, offering a small form-factor pluggable (SFP) Gigabit SX solution. It provides a full-duplex Gigabit solution up to 550m on a Multimode fiber, making it ideal for high-speed networking needs.

Quick Specs:

• Product Number: JD118B
• Type: HP X120 1G SFP LC SX Transceiver
• Ports: 1 LC 1000BASE-SX port
• Connector Type: LC
• Wavelength: 850 nm
• Cabling Distance (maximum):
  • FDDI Grade distance: 220m
  • OM1: 275m
  • OM2: 500m
  • OM3: Not Specified by standard
• Dimensions: 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
• Weight: 0.04 lb.
• Power Consumption Typical: 0.8 W
• Power Consumption Maximum: 1.0 W
• Fiber Type: Multi Mode
• Cable Length: Up to 550m
