[shortdesc]

• Media Type: Twinax Cable, Maximum Distance: 1m, Supported Data Rate: 1.0625-10.52 Gbps

[/shortdesc]

[properties]

Product Name	HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable (J9281D)
Description	ATGBICS HP Aruba J9281D compatible 10GBase-CU SFP+ to SFP+ direct attach cable operates over passive copper with a cable length of 1m. It is suitable for short-reach connections between two SFP+ ports in 10G interconnecting networking applications. The cable is designed to the exact specification of HP Aruba J9281D and comes with a compatibility guarantee.
Brand	HPE Aruba Networking
Product Code	J9281D-C
Cable Length	1m
Connector 1	SFP+
Connector 2	SFP+
Connector 1 Gender	Male
Connector 2 Gender	Male
Jacket Material	Polyvinyl chloride (PVC)
Conductor Material	Copper
Plug and Play	Yes
Color	Black
Country of Origin	China
Quantity per Pack	1 pc(s)
Certification	CE, FCC, RoHS
Compliance	SFP+ Multi-Source Agreement (MSA), SFF-8431, SFF-8432, SFF-8472

[/properties]

[specifications]

Media Type	Twinax Cable
DAC Copper Type	AWG30
Maximum Distance	1m
Supported Data Rates	1.0625-10.52 Gbps
Supported Applications	10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps), CPRI option 3 (2.458 Gbps)
Networking Standards	IEEE 802.3ae
DDM/DOM	Supported
Power Supply	+3.3V single power supply
Power Consumption	0.5W
MTBF	1,000,000 Hours
Environmental Conditions	Operating Temperature: 0°-70°C; Storage Temperature: -40°-80°C; Operating Humidity: 10%-90%; Storage Humidity: 10%-85%

[/specifications]

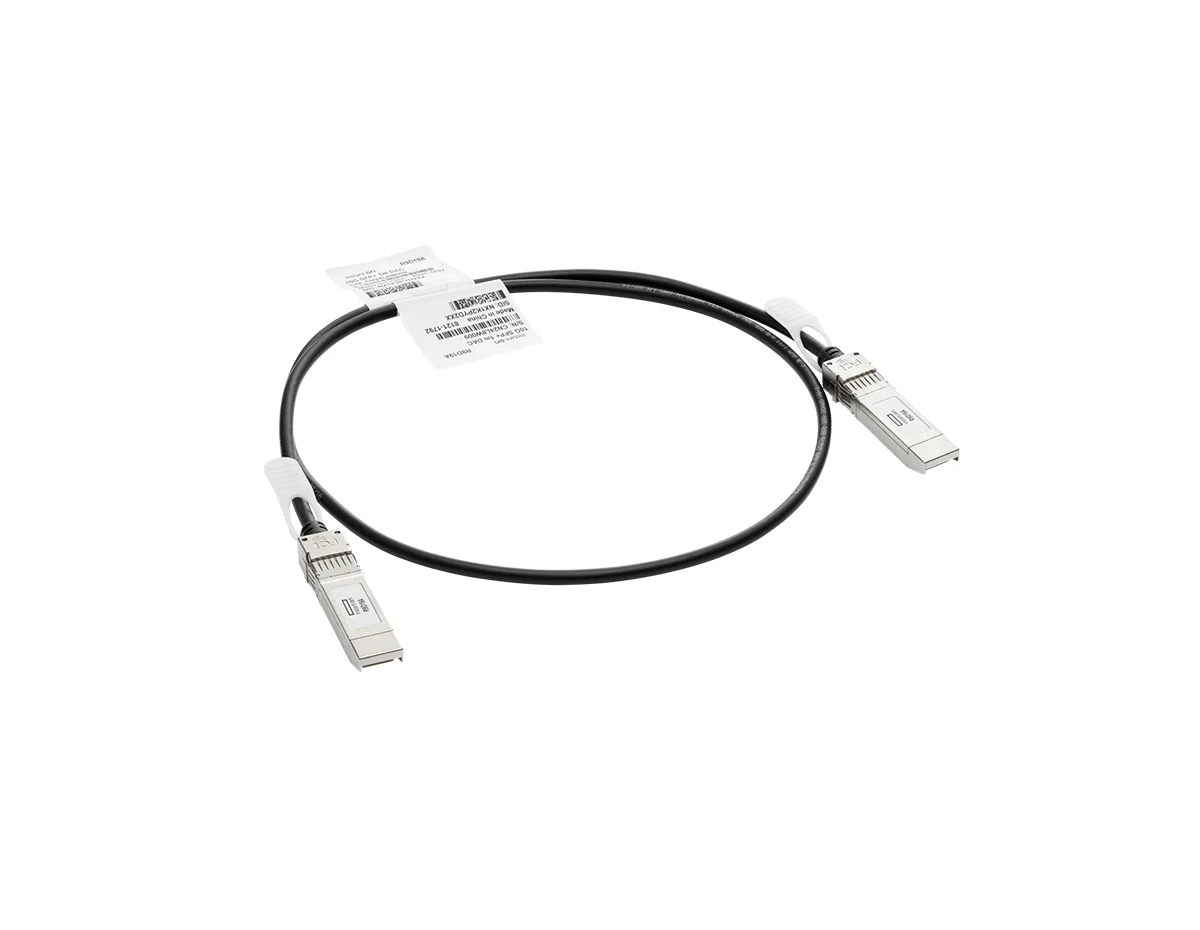

HPE Aruba J9281D Passive Direct Attach Copper Twinax Cable

Our HPE Aruba J9281D Passive Direct Attach Copper Twinax Cable price and datasheet are based on our 10G-PDAC-SFP-1 product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our HP J9281D Aruba 10G SFP+ to SFP+ 1m DAC Cable is equipped with MSA standard SFP+ compatible transceiver assembly at each end of the cable and uses Copper Twinax Cable in between the assembly unit. Our Aruba 10G SFP+ to SFP+ 1m DAC Cable is designed for operation in standard temperature networking environments ranging from 0°-70°C. According to our Aruba HP J9281D compatibility datasheet, this cable chipset supports data rates ranging from 1.25-10.31 Gbps and such applications as 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps). It is important to note that the mentioned application support will vary depending on the port where the cable will be used, and it supported applications as well as cable speed configuration during the ordering process, but we can ensure that our cable will support at least the same functionality as its OEM counterpart. This is a multi-purpose cable that can be used in a variety of different places in today’s networking. As a result, cost-effective, high-speed, and close-range interconnections within equipment rooms of telecom operators, data centers, or enterprise networks are the most popular applications for this product.

Our HPE Aruba J9281D DAC cable is CE/RoHS certified, meets product safety standards, and is compliant with SFP+ Multi-Source Agreement (MSA) SFF-8432 industry standard. To ensure smooth operation, we have completed compatibility tests for this cable with the most recent platforms of HPE Aruba networking equipment, allowing us to encode cable EEPROM memory to be compatible with and work seamlessly in HPE Aruba platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. If you have any questions, please contact us. We will gladly learn about your needs and recommend the best compatible products from our portfolio.

Specifications

• Media Type: Twinax Cable
• DAC Copper Type: AWG30
• Maximum Distance: 1m
• Supported Data Rate: 1.0625-10.52 Gbps
• Supported Applications: CPRI option 3 (2.458 Gbp, 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps)
• DDM/DOM: Supported
• Temperature Range: Standard 0°-70°C
• Connectors: SFP+
• Power: +3.3V single power supply
• Power Consumption: 0.5W
• MTBF: 1,000,000 Hours
• Compliance: CE, RoHS, SFF-8431, SFP+ MSA
• Transceiver Type: DAC
• Dimensions/Weight: 30.5 x 30.5 x 1.3 cm; 95.3 g (0.2 lb)
