[shortdesc]

• Expansion module, Managed (inherits L2/L3), 16 × 10/100/1000, IP30 rugged, fanless, DIN-rail, powered by base switch

[/shortdesc]

[properties]

Property	Details
Product Line	Cisco Catalyst IE3500 Expansion Module
Use Case	Port expansion for IE3500 series (industrial/harsh environments)
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
PoE Support	No PoE
Layer Support	Inherits Layer 2 & Layer 3 from base switch
Scalability	Expands total system ports up to 27 (with compatible base)
Operating System	Inherits Cisco IOS XE from base switch
Software Licence	Inherits from base switch
Form Factor	Ruggedized, fanless, DIN-rail module (IP30)
Default Power Supply	Powered by base switch

[/properties]

[specifications]

Specification	Details
Model Number	IEM-3500-16T
Port Count	16 (16 × 10/100/1000)
Downlink Ports & Speeds	16 × 10/100/1000 Mbps RJ45
Uplink Ports & Speeds	—
PoE Power Budget	No PoE
Switching Capacity	—
Forwarding Rate	Line-rate on all ports (all packet sizes)
Stacking Bandwidth	—
DRAM	8 GB
Flash Memory	5.1 GB
MAC Address Table Size	24,000 entries
VLAN Support	4096 VLAN IDs (up to 1024 active)
Power Requirements	Powered by base switch; module power consumption 11 W
Dimensions (H × W × D)	6.00 × 3.26 × 5.29 in (15.24 × 8.28 × 13.44 cm)
Weight	2.45 lb (1.11 kg)
MTBF	1,649,967 hours

[/specifications]

[accesories]

Cabling & connectors

Item	Details
Cat5e/Cat6/Cat6A RJ-45 patch cable	Data cable for 16× copper downlink ports (1G)

[/accesories]

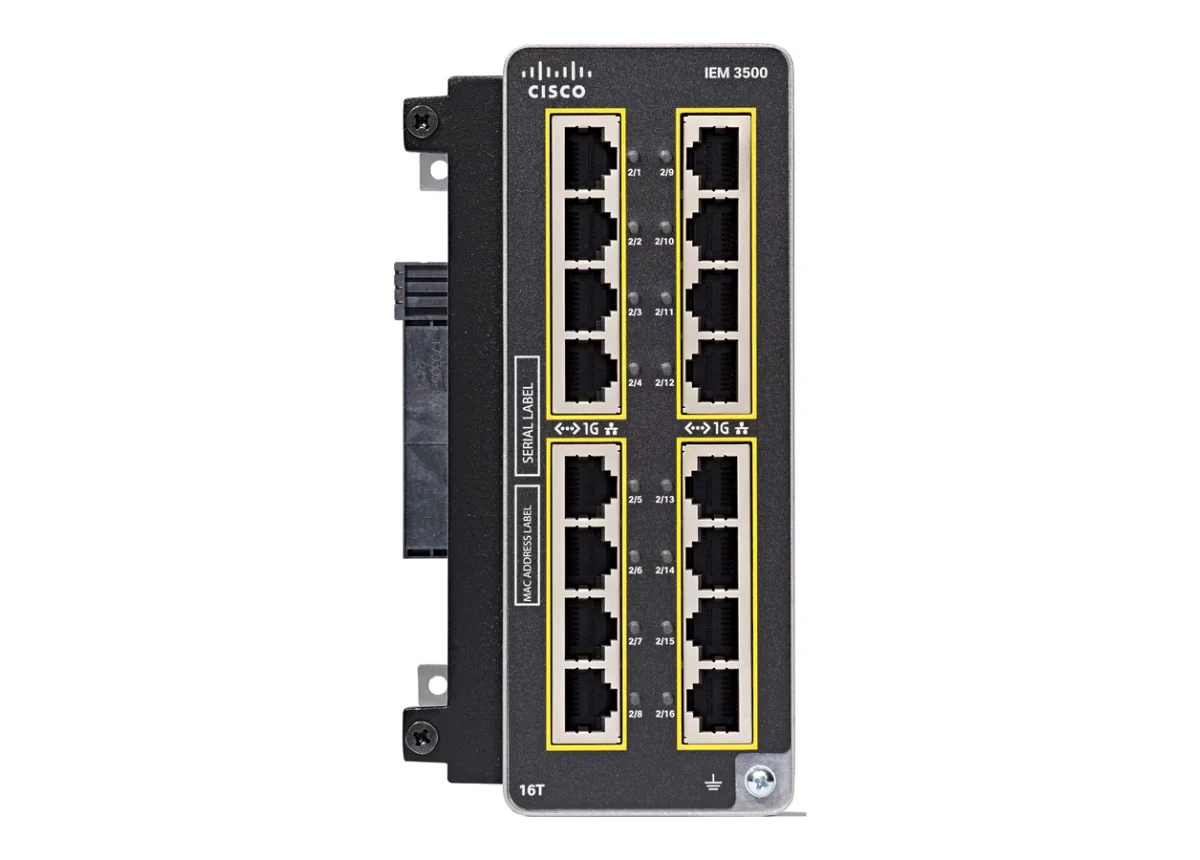

Cisco Catalyst IEM-3500-16T Expansion Module

The Cisco Catalyst IEM-3500-16T Expansion Module adds high-density non-PoE Gigabit access to IE3500 base switches for industrial and harsh environments. Providing 16 Gigabit RJ45 downlinks, it delivers reliable line-rate performance in a rugged, fanless IP30 DIN-rail form factor. The module is powered by the host switch (11 W module consumption) and inherits IOS XE features, licensing, and management for seamless, unified operation—ideal for scaling device connectivity where endpoints are externally powered.

Key Features:

• 16 × Gigabit Ethernet Downlinks (Non-PoE): Cost-efficient port expansion for sensors, controllers, and gateways that don’t require inline power.
• Ruggedized, Fanless Design (IP30): Built for space-constrained industrial sites with DIN-rail mounting.
• Seamless System Integration: Inherits Cisco IOS XE features and licensing from the base IE3500 switch.
• Simple Operations: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
• Scalable Architecture: Helps expand total system ports up to 27 with compatible IE3500 bases.

Technical Overview:

• Recommended for: Port-density expansion on Cisco IE3500 deployments in industrial/harsh environments.
• Ports: 16 × 10/100/1000 Mbps RJ45 downlinks (non-PoE).
• PoE Budget: No PoE.
• Switching Capacity: —
• Forwarding Rate: Line-rate on all ports (all packet sizes).
• Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
• Security: Inherits features and license tier from the base IE3500 switch.
• Energy Efficiency: Fanless operation; powered by base switch (module consumption 11 W).
