[shortdesc]

• Expansion module, Managed (inherits L2/L3), 14 × 10/100/1000 + 2 × 1G SFP uplinks, IP30 rugged, fanless, DIN-rail, powered by base switch

[/shortdesc]

[properties]

Property	Details
Product Line	Cisco Catalyst IE3500 Expansion Module
Use Case	Port expansion for IE3500 series (industrial/harsh environments)
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
PoE Support	No PoE
Layer Support	Inherits Layer 2 & Layer 3 from base switch
Scalability	Expands total system ports up to 27 (with compatible base)
Operating System	Inherits Cisco IOS XE from base switch
Software Licence	Inherits from base switch
Form Factor	Ruggedized, fanless, DIN-rail module (IP30)
Default Power Supply	Powered by base switch

[/properties]

[specifications]

Specification	Details
Model Number	IEM-3500-14T2S
Port Count	16 (14 × 10/100/1000 + 2 × 1G/100M SFP)
Downlink Ports & Speeds	14 × 10/100/1000 Mbps RJ45
Uplink Ports & Speeds	2 × 1G/100M SFP
PoE Power Budget	No PoE
Switching Capacity	—
Forwarding Rate	Line-rate on all ports (all packet sizes)
Stacking Bandwidth	—
DRAM	8 GB
Flash Memory	5.1 GB
MAC Address Table Size	24,000 entries
VLAN Support	4096 VLAN IDs (up to 1024 active)
Power Requirements	Powered by base switch; module power consumption 16 W
Dimensions (H × W × D)	6.00 × 3.26 × 5.29 in (15.24 × 8.28 × 13.44 cm)
Weight	2.50 lb (1.13 kg)
MTBF	1,590,095 hours

[/specifications]

[accesories]

Cabling & connectors

Item	Details
Cat5e/Cat6/Cat6A RJ-45 patch cable	Data cable for 14× copper downlink ports (1G)
SFP fiber patch cord (LC)	Data cable for 2× 1G/100M SFP ports

SFP transceivers (1G / 100M only)

SKU / Part Number	Description
GLC-FE-100FX-RGD= / GLC-FE-100LX-RGD=	Industrial FE SFPs (100BASE-FX, 100BASE-LX10)
GLC-FE-100FX= / GLC-FE-100LX= / GLC-FE-100EX= / GLC-FE-100ZX= / GLC-FE-100BX-U= / GLC-FE-100BX-D=	Commercial/EXT FE SFPs
GLC-SX-MM-RGD= / GLC-LX-SM-RGD= / GLC-ZX-SM-RGD=	Industrial GE SFPs (SX/LX/ZX)
SFP-GE-S / SFP-GE-L / SFP-GE-Z / GLC-BX-U= / GLC-BX-D= / GLC-EX-SMD= / GLC-ZX-SMD=	GE SFPs (SX/LX/ZX/BiDi/EX)
GLC-TE= / GLC-T= / GLC-T-RGD=	1G copper SFPs (note: may reduce PTP performance)
CWDM-SFP-xxxx= / DWDM-SFP-xxxx=	CWDM/DWDM 1G SFP optics (various wavelengths)

[/accesories]

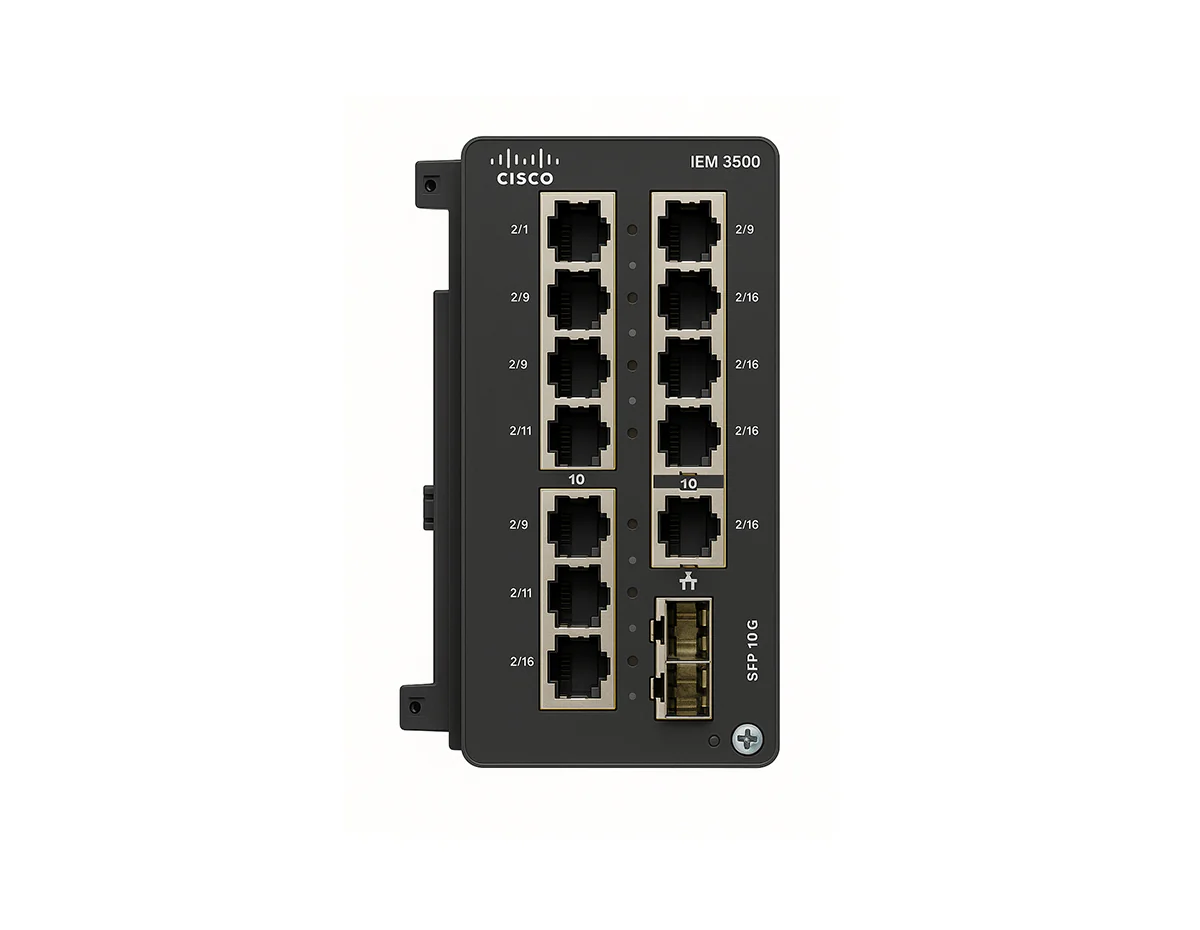

Cisco Catalyst IEM-3500-14T2S Expansion Module

The Cisco Catalyst IEM-3500-14T2S Expansion Module adds high-density gigabit connectivity to IE3500 base switches for industrial and harsh environments. Providing 14 Gigabit RJ45 downlinks and 2 fixed 1G/100M SFP uplinks, it delivers reliable line-rate performance in a rugged, fanless IP30 DIN-rail form factor. The module is powered by the host switch (16 W module consumption) and inherits IOS XE features, licensing, and management for seamless integration.

Key Features:

• 14 × Gigabit Ethernet Downlinks (Non-PoE): Cost-efficient expansion for endpoints that have external power.
• 2 × 1G/100M SFP Uplinks: Flexible fiber connectivity for resilient aggregation/backbone links.
• Ruggedized, Fanless Design (IP30): Designed for space-constrained industrial sites with DIN-rail mounting.
• Inherits IOS XE Features & Licensing: Operates as part of the IE3500 system for consistent L2/L3 capabilities.
• Easy Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).

Technical Overview:

• Recommended for: Port density expansion on Cisco IE3500 deployments in industrial/harsh environments.
• Ports: 14 × 10/100/1000 Mbps RJ45 downlinks with 2 × 1G/100M SFP uplinks.
• PoE Budget: No PoE.
• Switching Capacity: —
• Forwarding Rate: Line-rate on all ports (all packet sizes).
• Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
• Security: Inherits features and license tier from the base IE3500 switch.
• Energy Efficiency: Fanless operation; powered by base switch (module consumption 16 W).
