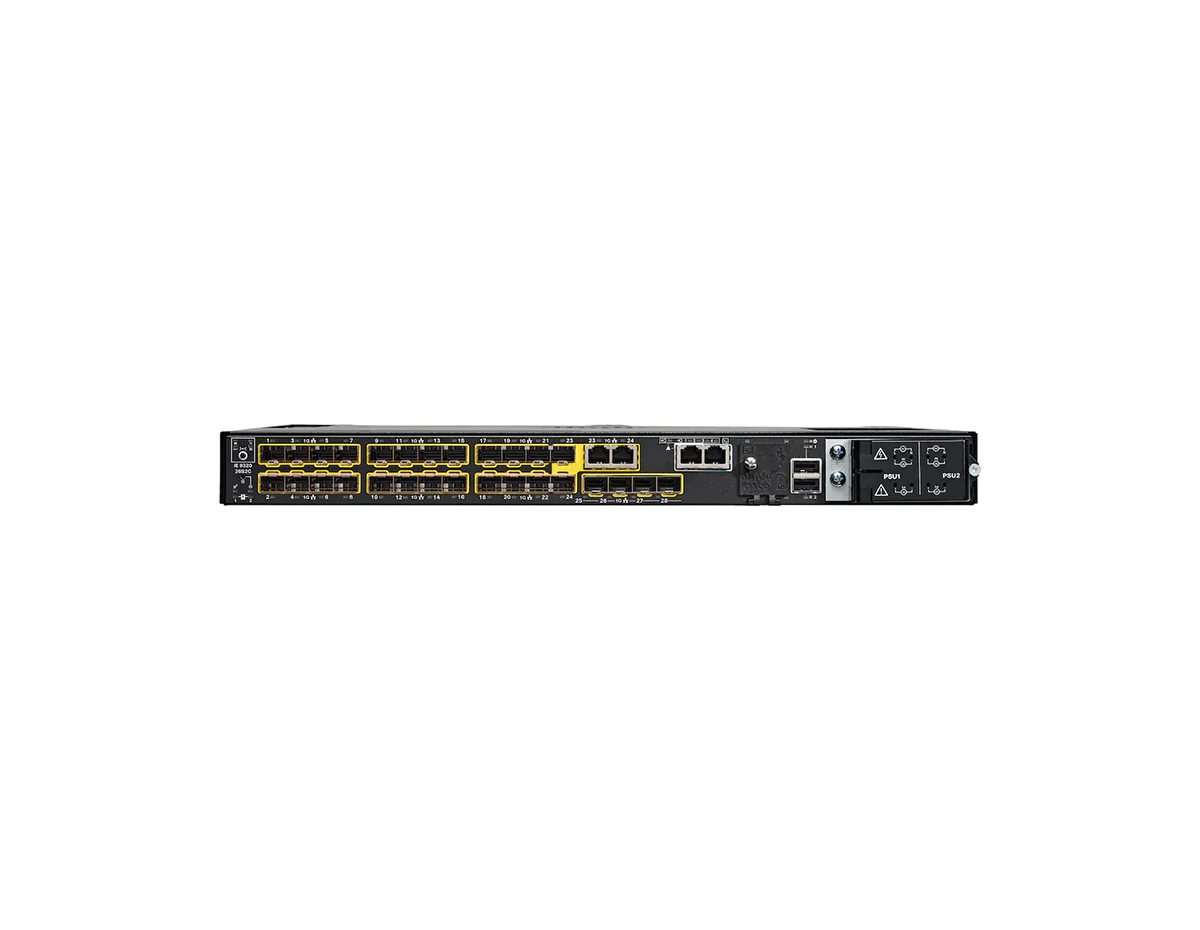

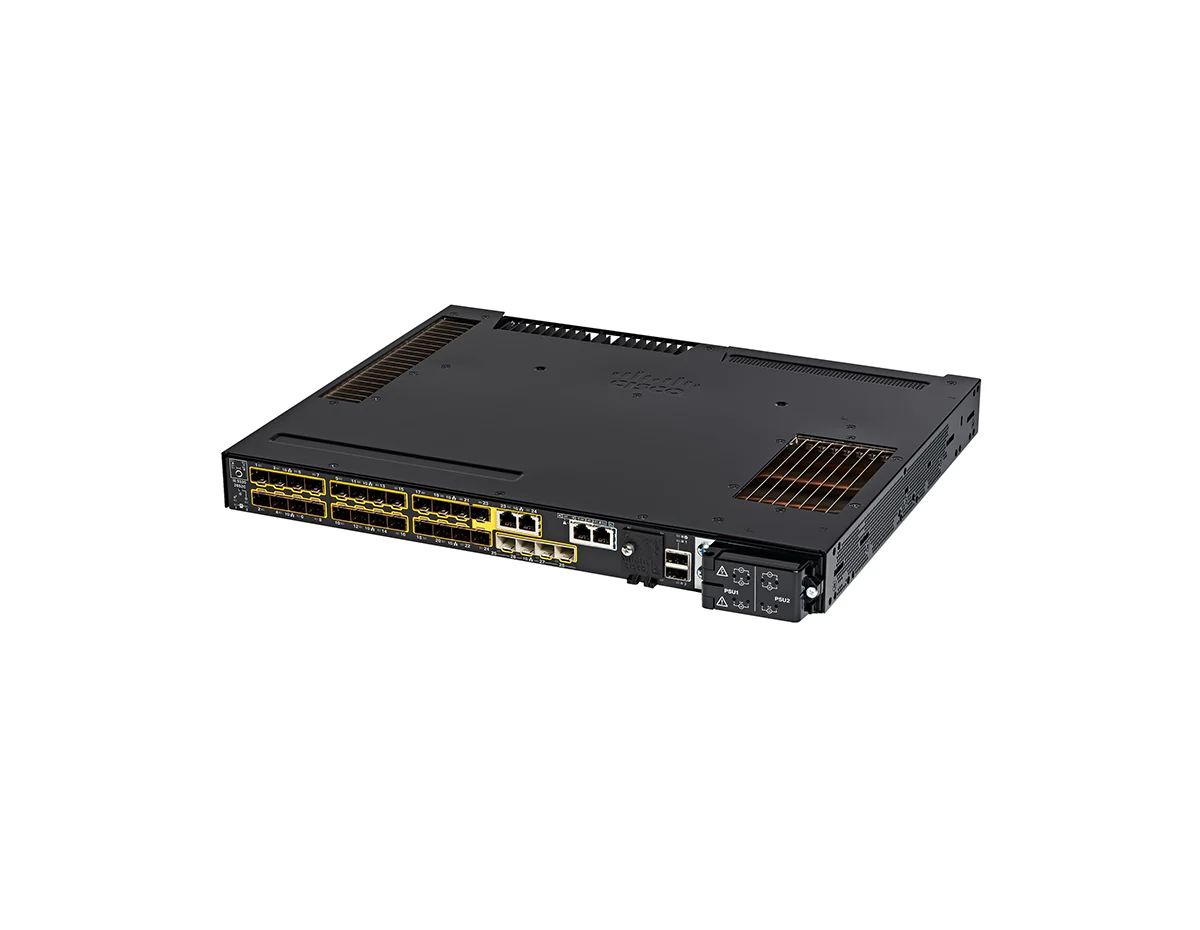

Cisco IE-9320-26S2C-A Switch
[shortdesc]
- Switch, 22 x Gigabit SFP + 2 x combo 10/100/1000Base-T / 100/1000Base-FX SFP + 4 x Gigabit SFP (uplink), Managed, Rack-mountable
[properties]
| Properties | IE-9320-26S2C-A |
| Description | Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NA |
| Product Family | Cisco Catalyst IE9300 Rugged Series |
| Product Type | Ethernet Switch |
| Number of Ports | 28 |
| Downlinks | 22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
| Uplinks (SFP/SFP+) | 4 ports 100/1000M |
| Cisco IOS Software | Network Advantage |
| Optional Removable Storage | USB, SD Card |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB |
| Power inputs | Dual AC/DC power inputs |
| Power consumption | 64W |
| Fans | Fanless |
| Dimensions W/ Default Power Supply | 1.73 X 17.5 X 14 (with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H) |
| Rack Mountable | Yes |
[/properties][specifications]
| Specifications | IE-9320-26S2C-A |
| DRAM | 4 GB |
| Flash Memory | 8 GB |
| Flash (user accessible) | 2.5 GB |
| Switching capacity | 56 Gbps |
| Forwarding rate | 28 Mpps |
| MAC addresses | 16000 |
| Number of queues / port | 8 egress |
| MTBF (hours) | 413,687 |
| Internet Group Management Protocol (IGMP) multicast groups | 1000 |
| VLANs | 1024 |
| Cisco StackWise ports | 2 stacking ports |
| Operating Temperature | -40° to 70°C |
| Safety | Information technology equipment: UL/CSA 60950-1 EN 60950-1, CB to IEC 60950-1 with all country deviations UL/CUL 62368-1, CB to IEC62368-1 with country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): CB report and certificate to IEC 61010-2-201 UL/CSA 61010-2-201 CSA C22.2, No.142 Hazardous locations: UL 121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -7 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC, ec) EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC, ec) |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A CNS159366 EN 300 386 EN 61000-3-2 Harmonic Current Emissions EN 61000-3-3 Voltage Fluctuations and Flicker KS C9832 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications][accesories]
| SD-IE-4GB= | 4GB SD memory card for IE |
| CAB-STK-0.5M= | Cisco 0.5M stack cable |
| CAB-STK-1M= | Cisco 1M stack cable |
| RM-RGD-19IN= | Spare 19IN rack-mount kit |
| RM-RGD-23IN= | 23IN NEBS rack-mount kit |
| RM-RGD-ETSI= | ETSI rack-mount kit |
| PWR-RGD-AC-DC-H | Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC |
| PWR-RGD-LOW-DC-H | Hazloc Power Supply Low DC 24-60V/10A |
| PWR-RGD-AC-DC-250 | Hazloc Power Supply 100-240VAC/100-250VDC |
| PWR-RGD-AC-DC-400 | Hazloc Power Supply 100-240VAC/100-250VDC, 400W |
[/accesories]
Cisco IE-9320-26S2C-A Industrial Ethernet Switch
The Cisco IE-9320-26S2C-A is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh and mission-critical environments. This switch features 26 SFP ports and 2 combination SFP+ ports, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-9320-26S2C-A is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control. As a part of the Cisco Catalyst IE9300 Rugged Series, it comes with the Network Advantage license, providing enhanced capabilities for industrial applications.
Key Features:
- 26 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
- 2 x Combination SFP+ Ports: Offers additional uplink options with high-speed 10 Gigabit connectivity, supporting bandwidth-intensive applications.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Technical Overview:
- Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with advanced management and high availability.
- Ports: 26 x SFP ports, 2 x combination SFP+ ports.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, rack-mountable design suitable for space-constrained industrial environments.
- Licensing: Includes Network Advantage for enhanced capabilities and features.
You can check the related tab for the Cisco IE-9320-26S2C-A datasheet.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Cisco IE-9320-26S2C-A Switch
Cisco IE-9320-26S2C-A Switch
[shortdesc]
- Switch, 22 x Gigabit SFP + 2 x combo 10/100/1000Base-T / 100/1000Base-FX SFP + 4 x Gigabit SFP (uplink), Managed, Rack-mountable
[properties]
| Properties | IE-9320-26S2C-A |
| Description | Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NA |
| Product Family | Cisco Catalyst IE9300 Rugged Series |
| Product Type | Ethernet Switch |
| Number of Ports | 28 |
| Downlinks | 22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
| Uplinks (SFP/SFP+) | 4 ports 100/1000M |
| Cisco IOS Software | Network Advantage |
| Optional Removable Storage | USB, SD Card |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB |
| Power inputs | Dual AC/DC power inputs |
| Power consumption | 64W |
| Fans | Fanless |
| Dimensions W/ Default Power Supply | 1.73 X 17.5 X 14 (with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H) |
| Rack Mountable | Yes |
[/properties][specifications]
| Specifications | IE-9320-26S2C-A |
| DRAM | 4 GB |
| Flash Memory | 8 GB |
| Flash (user accessible) | 2.5 GB |
| Switching capacity | 56 Gbps |
| Forwarding rate | 28 Mpps |
| MAC addresses | 16000 |
| Number of queues / port | 8 egress |
| MTBF (hours) | 413,687 |
| Internet Group Management Protocol (IGMP) multicast groups | 1000 |
| VLANs | 1024 |
| Cisco StackWise ports | 2 stacking ports |
| Operating Temperature | -40° to 70°C |
| Safety | Information technology equipment: UL/CSA 60950-1 EN 60950-1, CB to IEC 60950-1 with all country deviations UL/CUL 62368-1, CB to IEC62368-1 with country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): CB report and certificate to IEC 61010-2-201 UL/CSA 61010-2-201 CSA C22.2, No.142 Hazardous locations: UL 121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -7 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC, ec) EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC, ec) |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A CNS159366 EN 300 386 EN 61000-3-2 Harmonic Current Emissions EN 61000-3-3 Voltage Fluctuations and Flicker KS C9832 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications][accesories]
| SD-IE-4GB= | 4GB SD memory card for IE |
| CAB-STK-0.5M= | Cisco 0.5M stack cable |
| CAB-STK-1M= | Cisco 1M stack cable |
| RM-RGD-19IN= | Spare 19IN rack-mount kit |
| RM-RGD-23IN= | 23IN NEBS rack-mount kit |
| RM-RGD-ETSI= | ETSI rack-mount kit |
| PWR-RGD-AC-DC-H | Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC |
| PWR-RGD-LOW-DC-H | Hazloc Power Supply Low DC 24-60V/10A |
| PWR-RGD-AC-DC-250 | Hazloc Power Supply 100-240VAC/100-250VDC |
| PWR-RGD-AC-DC-400 | Hazloc Power Supply 100-240VAC/100-250VDC, 400W |
[/accesories]
Cisco IE-9320-26S2C-A Industrial Ethernet Switch
The Cisco IE-9320-26S2C-A is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh and mission-critical environments. This switch features 26 SFP ports and 2 combination SFP+ ports, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-9320-26S2C-A is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control. As a part of the Cisco Catalyst IE9300 Rugged Series, it comes with the Network Advantage license, providing enhanced capabilities for industrial applications.
Key Features:
- 26 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
- 2 x Combination SFP+ Ports: Offers additional uplink options with high-speed 10 Gigabit connectivity, supporting bandwidth-intensive applications.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Technical Overview:
- Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with advanced management and high availability.
- Ports: 26 x SFP ports, 2 x combination SFP+ ports.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, rack-mountable design suitable for space-constrained industrial environments.
- Licensing: Includes Network Advantage for enhanced capabilities and features.
You can check the related tab for the Cisco IE-9320-26S2C-A datasheet.
