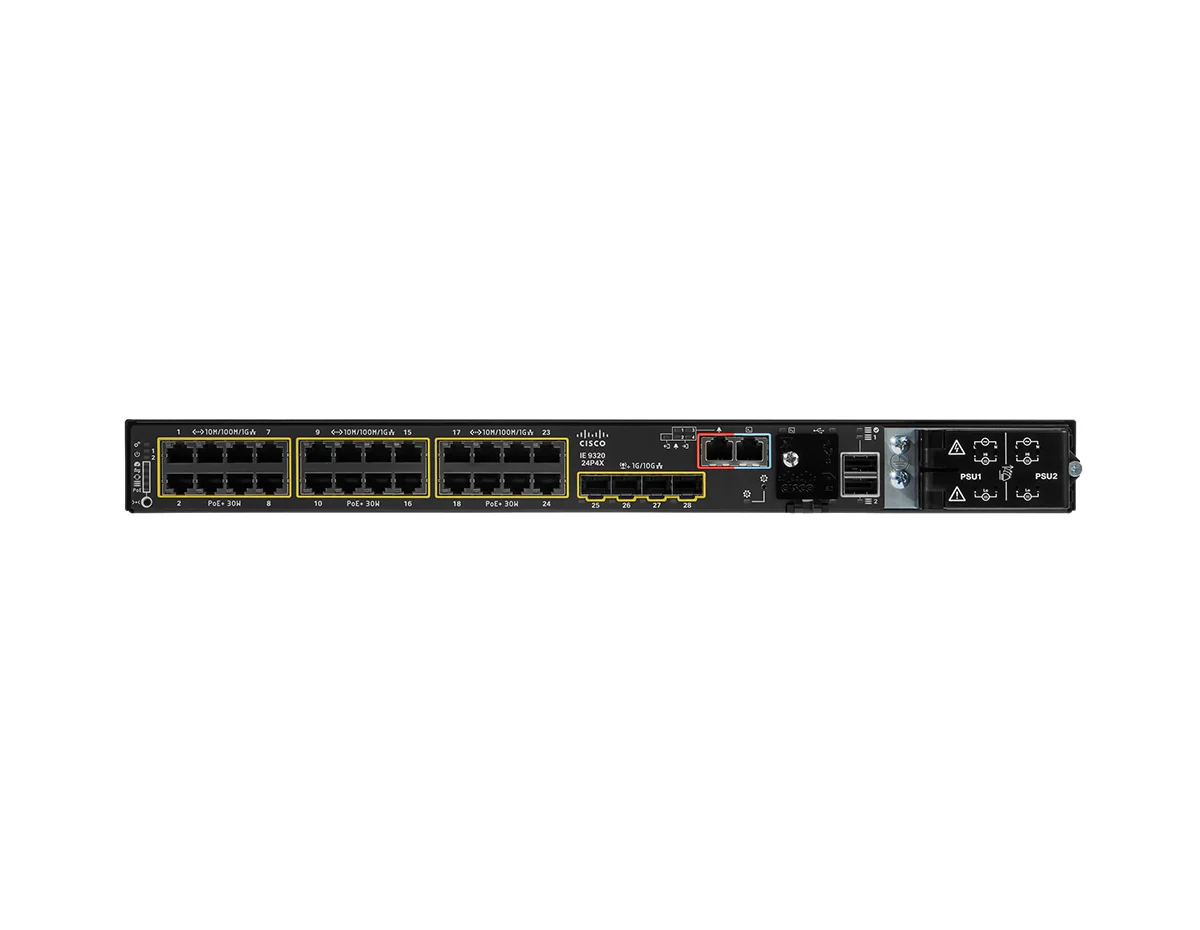

Cisco Catalyst IE-9320-24P4X-E Rugged Ethernet Switch 24-Port PoE+
[shortdesc]24x 1G PoE+ ports, 4x 10G SFP+ uplinks, Layer 2/3 managed, 128 Gbps switching, -40Ā°C to 75Ā°C rugged[/shortdesc]
[properties]
| Model | Cisco Catalyst IE-9320-24P4X-E |
| Product Type | Managed Industrial Ethernet Switch |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1/10 Gigabit SFP+ uplink |
| Switching Bandwidth | 128 Gbps (full duplex) |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table Size | 24,000 entries |
| PoE Capability | IEEE 802.3af/at/bt, Perpetual and Fast PoE support |
| PoE Power Budget | Up to 720 W with dual 400 W PSUs |
| Memory | 4 GB DRAM; 8 GB Flash |
| Removable Storage | USB 2.0, SD card slot |
| Redundant Power Supply | Supported (1+1) |
| Operating Temperature | -40 Ā°C to 75 Ā°C (-40 Ā°F to 167 Ā°F) |
| MTBF | 489,710 hours |
| Dimensions (H Ć W Ć D) | 1.72 Ć 17.5 Ć 14.0 in (43.7 Ć 444.5 Ć 355.6 mm) with 150 W PSUs; 15.18 in depth with 250 W PSU; 15.57 in with 400 W PSU |
| Weight | 9.7 lb (4.4 kg) |
| Form Factor | Rack-mountable, 1 RU |
| Compliance | EN 50121-4, IEC 61850-3, IEEE 1613, UL/CSA 61010-2-201 |
[/properties]
[specifications]
| Switching Type | Gigabit Ethernet with 10G uplinks |
| Software Image | Cisco IOS XE; Network Essentials (default), Network Advantage (optional) |
| Layer Support | Layer 2 and Layer 3 |
| Routing Protocols | Static, OSPF/OSPFv3, RIP, Policy-Based Routing; Network Advantage adds BGP, EIGRP, IS-IS, HSRP |
| Security Features | 802.1X, MACsec-128 (Adv: MACsec-256), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, AAA, RADIUS, TACACS+, TrustSec |
| Quality of Service | 802.1p, DSCP, priority queuing, policing, shaping, AutoQoS |
| High Availability | REP, EtherChannel, StackWise support (up to 4 members) |
| Industrial Protocols | PROFINET, EtherNet/IP (CIP), PTP (IEEE 1588v2) |
| Management | WebUI, CLI, SNMPv1/v2/v3, NETCONF, RESTCONF, Cisco Catalyst Center |
| Certifications | EN 55032 Class A, FCC Part 15 Class A, UL 121201, IEC 61850-3, IEEE 1613 |
| Ingress Protection | IP30 (EN 60529) |
| Relative Humidity | 5% ā 95% non-condensing |
[/specifications]
[accesories]
| Included | Documentation |
| Optional ā Power Supplies | PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W), PWR-RGD-LOW-DC-H (150W DC) |
| Optional ā Memory | SD-IE-16GB= (16 GB SD card) |
| Optional ā Cables | CAB-STK-0.5M= (0.5 m Stack cable); CAB-STK-1M= (1 m Stack cable) |
| Optional ā Mounting Kits | RM-RGD-19IN= (19ā rack-mount kit); RM-RGD-23IN= (23ā NEBS rack-mount kit); RM-RGD-ETSI= (ETSI rack-mount kit) |
[/accesories]
Rugged Performance for Demanding Industrial Networks
The Cisco Catalyst IE-9320-24P4X-E is a high-density rugged Ethernet switch purpose-built for critical industrial and extended enterprise deployments. With 24 PoE+ ports and four 10G SFP+ uplinks, it delivers secure, resilient connectivity in environments ranging from manufacturing and energy to transportation and smart cities. Designed to operate between -40Ā°C and 75Ā°C, it ensures reliability even in the harshest conditions.
Key Benefits & Features
- High-density connectivity: 24 Gigabit PoE+ ports and 4x 10G SFP+ uplinks support high-bandwidth devices and traffic aggregation.
- Industrial-grade resilience: Fanless, shock and vibration hardened design with redundant power options for nonstop operation.
- Advanced security: Cisco Trust Anchor, MACsec-128 (Adv: 256) and Cisco Cyber Vision support for real-time asset visibility.
- Optimized PoE support: Up to 720W PoE budget with perpetual and fast PoE for uninterrupted power to critical endpoints.
- Flexible management: Managed via Cisco IOS XE, Catalyst Center, and a simplified WebUI for streamlined deployment.
Ideal Use Cases
- Smart city and transportation infrastructure requiring ruggedized PoE switches
- Energy and utility substations with strict reliability and compliance needs
- Industrial automation, mining, and manufacturing environments
- Outdoor surveillance with PoE-powered UHD IP cameras
- Secure OT/IT network convergence with advanced segmentation
Technical Specifications
- Ports: 24x 10/100/1000 PoE+ RJ-45, 4x 1/10G SFP+ uplinks
- Switching Capacity: 128 Gbps; Forwarding bandwidth: 64 Gbps; Forwarding rate: 95.23 Mpps
- PoE Budget: Up to 720W with dual 400W supplies
- Memory: 4 GB DRAM, 8 GB flash
- MTBF: 489,710 hours
- Operating Temp: -40Ā°C to 75Ā°C (-40Ā°F to 167Ā°F)
- Redundancy: Dual AC/DC PSU support (1+1)
- Form Factor: 1RU rack-mountable, fanless design
- Software: Cisco IOS XE with Network Essentials
Deploy Industrial-Grade Switching Today
Upgrade your industrial network with the Cisco IE-9320-24P4X-E for resilient, high-performance connectivity. Order now to secure your infrastructure.
