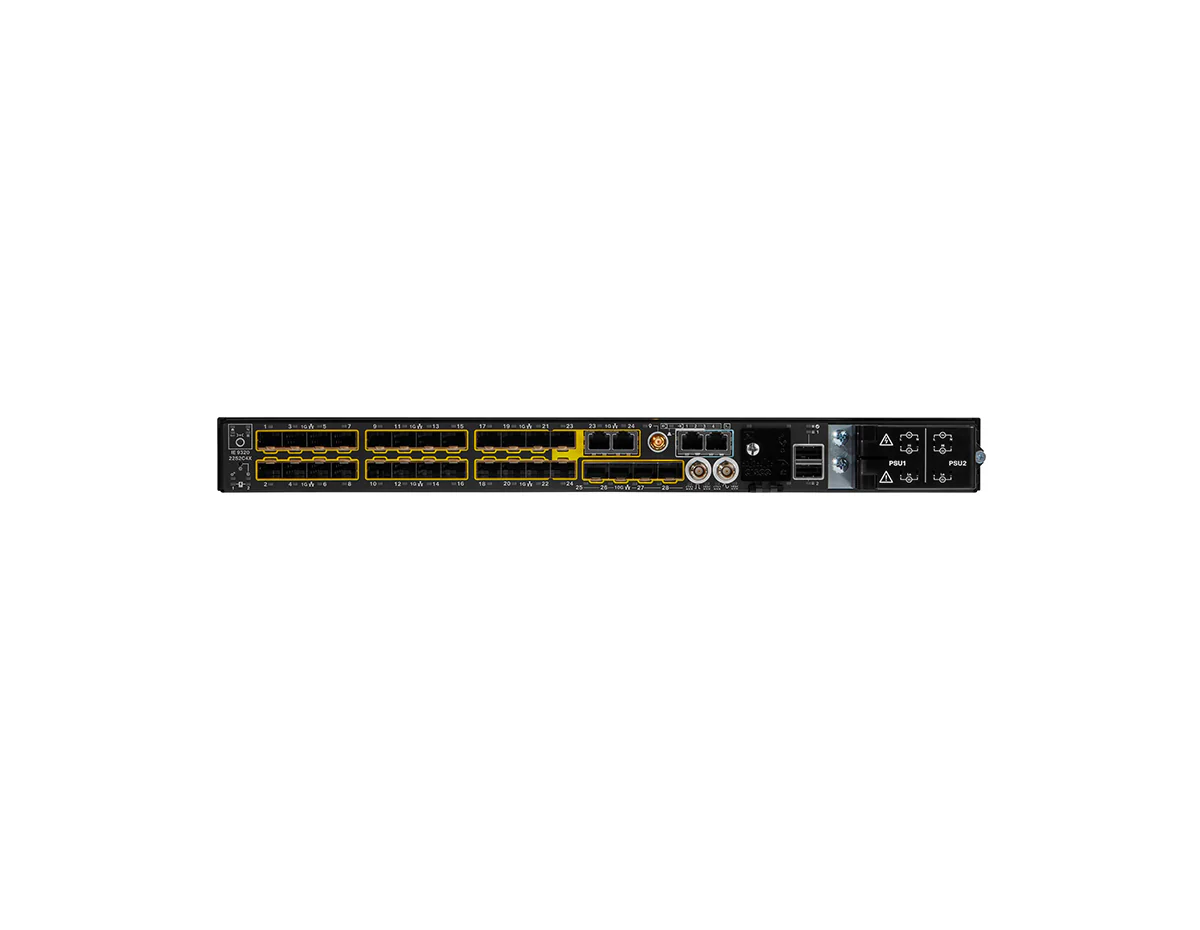

Cisco Catalyst IE-9320-22S2C4X-A Rugged Ethernet Switch
[shortdesc] 28 ports, 22 SFP, 2 dual-media, 4x 1/10G uplinks, Network Advantage, rugged 1RU design [/shortdesc]
[properties]
| Model | Cisco Catalyst IE-9320-22S2C4X-A |
| Product Type | Industrial Ethernet Switch (Rugged Series) |
| Total Ports | 28 |
| Downlink Ports | 22 × 100/1000M SFP + 2 × Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
| Uplink Ports | 4 × 1/10G SFP+ |
| Default Software License | Network Advantage |
| Switching Bandwidth | 152 Gbps (full duplex) |
| Forwarding Rate | 113.09 Mpps |
| MAC Address Table | 24,000 entries |
| VLANs | 4096 VLAN IDs, 1024 active VLANs |
| Operating System | Cisco IOS XE |
| Stacking Support | Up to 4 members |
| Management Options | Cisco Catalyst Center, WebUI, CLI, SNMP |
| Power Input | Dual AC/DC power inputs supported |
| Dimensions (H × W × D) | 1.72 × 17.5 × 14.0 in. (with PWR-RGD-AC-DC-H) |
| Weight | 12.7 lb (5.76 kg) |
| Typical Power Consumption | 73 W |
| Operating Temperature | -40 °C to 75 °C (blower cabinet); -40 °C to 60 °C (sealed cabinet) |
| Ingress Protection | IP30 |
| MTBF | 323,733 hours |
[/properties]
[specifications]
| DRAM / Flash | 8 GB DRAM / 8 GB onboard flash (2.5 GB user accessible) |
| Storage Options | USB 2.0, SD card slot (16 GB optional) |
| Resiliency Features | REP, PRP, MRP, HSR, EtherChannel, redundant power, zero-touch replacement |
| Security | Secure Boot, Trust Anchor, MACsec-256, TrustSec segmentation, Cyber Vision, Zero-Trust Remote Access |
| Layer 2 Features | 802.1Q VLAN, STP, RSTP, MSTP, EtherChannel, VLAN tunneling (Q-in-Q), L2 Protocol Tunneling |
| Layer 3 Features | Static Routing, RIP, OSPF, Policy-Based Routing, BGP, EIGRP, IS-IS, VRF-lite (Advantage license) |
| Multicast | IGMP v1/v2/v3, MLD snooping, PIM-SM, Auto-RP, MSDP |
| QoS | 8 egress queues per port, Auto-QoS, DSCP mapping, LLQ, traffic shaping & policing |
| Industrial Protocols | PROFINET, EtherNet/IP (CIP), Modbus TCP, GOOSE, PTP (IEEE 1588v2) |
| Compliance | EN 61000-6-2/4, IEEE 1613, IEC 61850-3, UL/CSA 62368-1, ATEX & IECEx (Hazloc) |
| Operating Altitude | Up to 4572 m (no derating); up to 12,192 m with derating |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | FIPS 140-2, Common Criteria, USGv6, ODVA EtherNet/IP, NEMA TS2 |
[/specifications]
[accesories]
| Included | Rack-mount kit (19"), user documentation |
| Optional – Rack Kits | 23" NEBS rack-mount kit (RM-RGD-23IN); ETSI rack-mount kit (RM-RGD-ETSI) |
| Optional – Power Supplies | PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W) |
| Optional – Accessories | SD-IE-16GB (16GB SD card); Cisco stacking cables (CAB-STK-0.5M, CAB-STK-1M) |
[/accesories]
Industrial-Grade Performance with Advanced Security
The Cisco Catalyst IE-9320-22S2C4X-A delivers enterprise-class networking in a ruggedized 1RU form factor. Built for harsh environments, this 28-port switch combines 22 SFP downlinks, 2 dual-media ports, and 4 high-speed 1/10G SFP+ uplinks. With Network Advantage licensing, it provides advanced Layer 3 routing, segmentation, and zero-trust security to safeguard critical industrial operations.
Key Benefits & Features
- Ruggedized Design: Operates reliably in extreme conditions (-40°C to 75°C) with fanless cooling and shock resistance.
- High-Speed Uplinks: Four 1/10G SFP+ uplinks support scalable, low-latency connectivity for industrial automation and IoT.
- Advanced Security: Includes Cisco TrustSec, MACsec-256 encryption, and Cisco Cyber Vision for asset visibility.
- Flexible Management: Supports Cisco Catalyst Center, WebUI, and API-driven automation for simplified deployment.
- Industrial Protocol Support: Native support for PROFINET, EtherNet/IP (CIP), and IEEE 1588 PTP precision timing.
Ideal Use Cases
- Industrial automation networks in manufacturing and energy sectors
- Transportation and smart city infrastructure requiring hardened switching
- Oil, gas, and mining operations with harsh environmental demands
- Secure OT/IT convergence with zero-trust remote access
- Extended enterprise deployments needing long-distance fiber connectivity
Technical Specifications
- Total Ports: 28 (22x 100/1000 SFP, 2x dual-media SFP/RJ-45, 4x 1/10G SFP+)
- Software License: Network Advantage
- Forwarding Bandwidth: 76 Gbps
- Switching Capacity: 152 Gbps full-duplex
- Performance: 113.09 Mpps forwarding rate
- Memory: 8 GB DRAM, 8 GB flash
- Operating Temperature: -40°C to 75°C
- Form Factor: 1RU rack-mountable, fanless design
- Weight: 12.7 lb (5.76 kg)
- Compliance: IEC 61850-3, IEEE 1613, hazardous location certifications
Deploy Industrial Networks with Confidence
Empower your critical operations with secure, resilient, and scalable connectivity. Order the Cisco Catalyst IE-9320-22S2C4X-A today.
