[shortdesc] 28 ports, 16x PoE+, 8x 2.5G 4PPoE, 4x 1/10G SFP+, fanless, -40°C to 75°C [/shortdesc]

[properties]

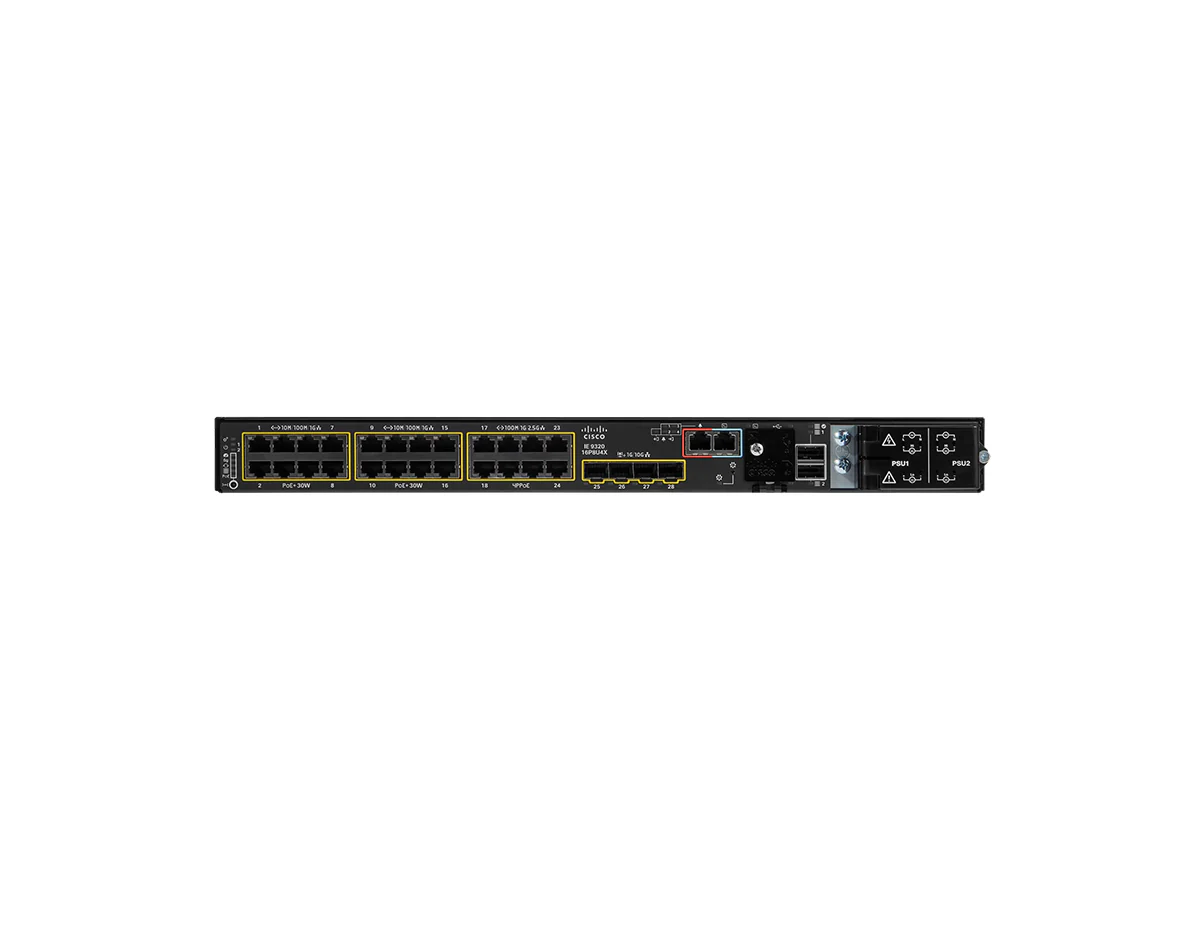

Model	Cisco IE-9320-16P8U4X-E
Product Type	Managed Rugged Ethernet Switch
Total Ports	28
Downlink Ports	16 × 10/100/1000M PoE+ and 8 × 100/1000/2500M 4PPoE (up to 90W/port)
Uplink Ports	4 × 1/10G SFP+
Mounting	Rack-mountable, 1RU
Software License (Default)	Network Essentials
Forwarding Bandwidth	76 Gbps
Switching Bandwidth	152 Gbps (full duplex)
Operating System	Cisco IOS XE
Power Supply Options	150W, 250W, 400W AC/DC options (HazLoc rated)
PoE Power Budget	Up to 720W with dual 400W PSUs
Mean Time Between Failures (MTBF)	472,070 hours
Compliance	IEC 61850-3, IEEE 1613, EN 61000-6-2/6-4, UL/CSA 60950-1, UL/CSA 62368-1, ATEX Class I Zone 2
Operating Temperature	-40 °C to 75 °C (cabinet dependent)
Dimensions (H × W × D)	1.72 × 17.5 × 14.0 in / 4.37 × 44.45 × 35.56 cm
Weight	9.9 lb (4.5 kg)

[/properties]

[specifications]

Forwarding Rate	113.09 Mpps
MAC Address Table	24,000 entries
VLAN IDs / Active VLANs	4096 / 1024
IPv4 Routes	8192 direct, 7000 indirect
IPv6 Routes	3500 indirect
ACL Entries	1536 (PACL, VACL, RACL)
DRAM / Flash	8 GB / 2.5 GB user-accessible
SD Card Capacity	16 GB (optional)
Resiliency Protocols	REP, MRP, PRP, HSR, EtherChannel
PoE Standards	IEEE 802.3af, 802.3at, 802.3bt Type 4 (up to 90W)
Relative Humidity	5%–95% non-condensing
Altitude (Operating)	Up to 4572 m (15,000 ft) without derating
Ingress Protection	IP30

[/specifications]

[accesories]

Rack-mount Kits	RM-RGD-19IN (19"), RM-RGD-23IN (23" NEBS), RM-RGD-ETSI (ETSI)
Power Supply Options	PWR-RGD-LOW-DC-H (150W DC), PWR-RGD-AC-DC-H (150W AC/DC), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Stacking Cables	CAB-STK-0.5M, CAB-STK-1M
Memory Options	SD-IE-16GB (16 GB SD memory card)

[/accesories]

High-Performance Rugged Switching for Industrial Networks

The Cisco Catalyst IE-9320-16P8U4X-E delivers enterprise-grade switching in a compact, ruggedized form factor. Designed for harsh environments, it combines multi-gigabit PoE+ with ultra-high power 4PPoE, ensuring reliable connectivity for industrial IoT, automation, and mission-critical applications.

Key Benefits & Features

• Ruggedized Design: Built to withstand -40°C to 75°C, vibration, and electrical noise for dependable field deployment.
• Flexible Power Options: Supports PoE+, 802.3bt 4PPoE up to 90W/port, with a maximum PoE budget of 720W using dual 400W supplies.
• High-Speed Connectivity: 28 total ports including 16x Gigabit PoE+, 8x 2.5G 4PPoE, and 4x 1/10G SFP+ uplinks for scalable bandwidth.
• Advanced Security: Integrated Cisco Trust Anchor, MACsec-256 encryption, and zero-trust remote access via Secure Equipment Access.
• Industrial Protocol Support: Native compatibility with EtherNet/IP, PROFINET, and IEEE 1588v2 for precision automation.

Ideal Use Cases

• Smart manufacturing and process automation
• Transportation and intelligent traffic systems
• Energy and utility substation networks
• Smart city and outdoor industrial deployments
• Oil, gas, and mining operations requiring secure rugged connectivity

Technical Specifications

• Total Ports: 28
• Downlinks: 16x 10/100/1000 PoE+, 8x 100/1000/2500 Mbps 4PPoE (up to 90W/port)
• Uplinks: 4x 1/10G SFP+
• Switching Bandwidth: 128 Gbps full-duplex
• Forwarding Rate: 95.23 Mpps
• PoE Budget: Up to 720W with dual 400W PSUs
• Operating Temperature: -40°C to 75°C
• Form Factor: 1RU rack-mount, fanless design
• MTBF: 472,070 hours
• Software: Cisco IOS XE, Network Essentials

Power Your Network with Rugged Reliability

Ensure maximum uptime and security in extreme environments with the Cisco IE-9320-16P8U4X-E. Order today to upgrade your industrial network.
