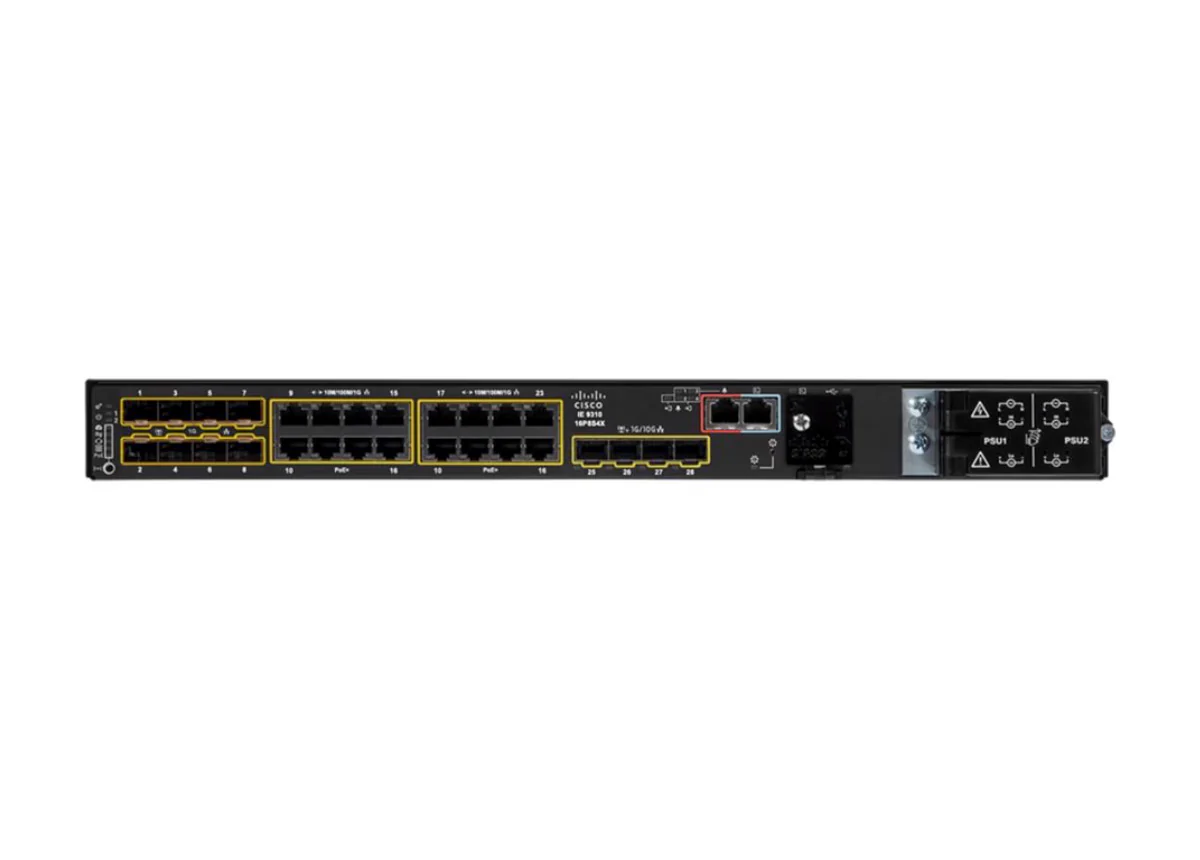

Cisco Catalyst IE-9310-16P8S4X-A Rugged Ethernet Switch 16 port PoE+
[shortdesc]16x PoE+ GE ports, 8x GE SFP, 4x 1/10G SFP+ uplinks, Network Advantage, rack-mountable[/shortdesc]
[properties]
| Model | Cisco Catalyst IE-9310-16P8S4X-A |
| Product Type | Rugged Managed Ethernet Switch |
| Ports | 28 total (16x 10/100/1000 PoE+, 8x 100/1000 SFP, 4x 1/10G SFP+) |
| Software License | Network Advantage |
| PoE Budget | Up to 480W (with dual 400W power supplies) |
| Forwarding Rate | 95.23 Mpps |
| Switching Capacity | 128 Gbps full-duplex |
| DRAM / Flash | 4 GB DRAM / 8 GB onboard flash |
| Form Factor | 1RU rack-mountable, fanless design |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Dimensions (H × W × D) | 1.72 × 17.5 × 14.0 in (with PWR-RGD-AC-DC-H or PWR-RGD-LOW-DC-H); 1.72 × 17.5 × 15.18 in (with PWR-RGD-AC-DC-250); 1.72 × 17.5 × 15.57 in (with PWR-RGD-AC-DC-400) |
| Weight | 10.6 lb (4.81 kg) |
| Power Consumption | 105W (system) |
| Mean Time Between Failures (MTBF) | 265,827 hours |
[/properties]
[specifications]
| Layer Support | Layer 2 and Layer 3 (static, RIP, OSPF, BGP, IS-IS, EIGRP with Network Advantage) |
| Redundancy | REP, PRP, HSR, MRP, dual redundant PSU support |
| Security | MACsec-256 encryption, Cisco TrustSec, Cisco Trust Anchor, Cisco Cyber Vision |
| Management | Cisco Catalyst Center, WebUI, RESTCONF, NETCONF, SNMP, CLI |
| Industrial Standards | EN 61000-6-2, EN 61000-6-4, IEC 61850-3, IEEE 1613, UL/CSA 62368-1 |
| Environmental Rating | IP30, fanless convection cooling |
| Altitude | Up to 15,000 ft (no derating), 40,000 ft with derating |
| Relative Humidity | 5% to 95% non-condensing |
| Shock & Vibration | IEC 60068-2-6, -27, -31, -32, -64 |
| Certifications | IEC/ANSI/ISA-62443, FIPS 140-2, Common Criteria, NEMA TS2:2021 |
[/specifications]
[accesories]
| Included | Rack-mount kit (standard), User documentation |
| Optional – Power Supplies | PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W) |
| Optional – Rack Kits | RM-RGD-19IN (19” rack), RM-RGD-23IN (23” NEBS), RM-RGD-ETSI (ETSI rack) |
| Optional – Memory | SD-IE-16GB (16 GB SD card) |
| Optional – Cables | Not applicable (stacking not supported on IE-9310) |
[/accesories]
High-Performance Rugged Switching for Demanding Industrial Networks
The Cisco Catalyst IE-9310-16P8S4X-A is a ruggedized 28-port Layer 3 switch built for mission-critical industrial and extended enterprise environments. With 16 PoE+ Gigabit Ethernet ports, 8 Gigabit SFP downlinks, and 4 high-speed 1/10G SFP+ uplinks, it delivers reliable connectivity and advanced security in a compact 1RU rack-mountable form factor. Powered by Cisco IOS XE with Network Advantage, it enables advanced routing, segmentation, and automation capabilities essential for modern OT/IT convergence.
Key Benefits & Features
- Industrial-Grade Design: Operates in harsh environments (-40°C to 75°C) with fanless convection cooling and resistance to shock, vibration, and electrical noise.
- High PoE Power: Supports up to 480W PoE budget for IP cameras, Wi-Fi 6 access points, and IoT devices with Perpetual and Fast PoE functionality.
- Advanced Security: Built-in Cisco Trust Anchor, MACsec-256 encryption, Cisco Cyber Vision, and TrustSec segmentation for zero-trust industrial networks.
- Flexible Management: Cisco Catalyst Center, intuitive WebUI, and API-driven automation for simplified deployment and visibility.
- High Availability: Supports REP, MRP, HSR, PRP, and dual redundant power supplies for maximum resiliency.
Ideal Use Cases
- Industrial automation and control networks in manufacturing and utilities
- Smart cities, transportation, and energy infrastructure
- Outdoor and hazardous environments requiring ruggedized design
- Secure OT/IT convergence for critical infrastructure
- High-bandwidth deployments requiring PoE+ and 10G uplinks
Technical Specifications
- Total Ports: 28 (16x 10/100/1000 PoE+, 8x 100/1000 SFP, 4x 1/10G SFP+)
- Software License: Network Advantage
- PoE Budget: Up to 480W with dual 400W supplies
- Performance: 95.23 Mpps forwarding, 128 Gbps switching capacity
- Memory: 4 GB DRAM, 8 GB flash
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Form Factor: 1RU rack-mount, fanless design
- Dimensions: 1.72 × 17.5 × 14.0 in (150W PSUs); 15.18 in (250W PSU); 15.57 in (400W PSU)
- Weight: 10.6 lb (4.81 kg)
- Resiliency: Dual AC/DC inputs, REP, PRP, HSR, MRP support
Upgrade Your Network with Rugged Reliability
Built for the most demanding environments, the Cisco Catalyst IE-9310-16P8S4X-A combines industrial durability with enterprise-grade performance. Buy now to secure and scale your critical infrastructure.
