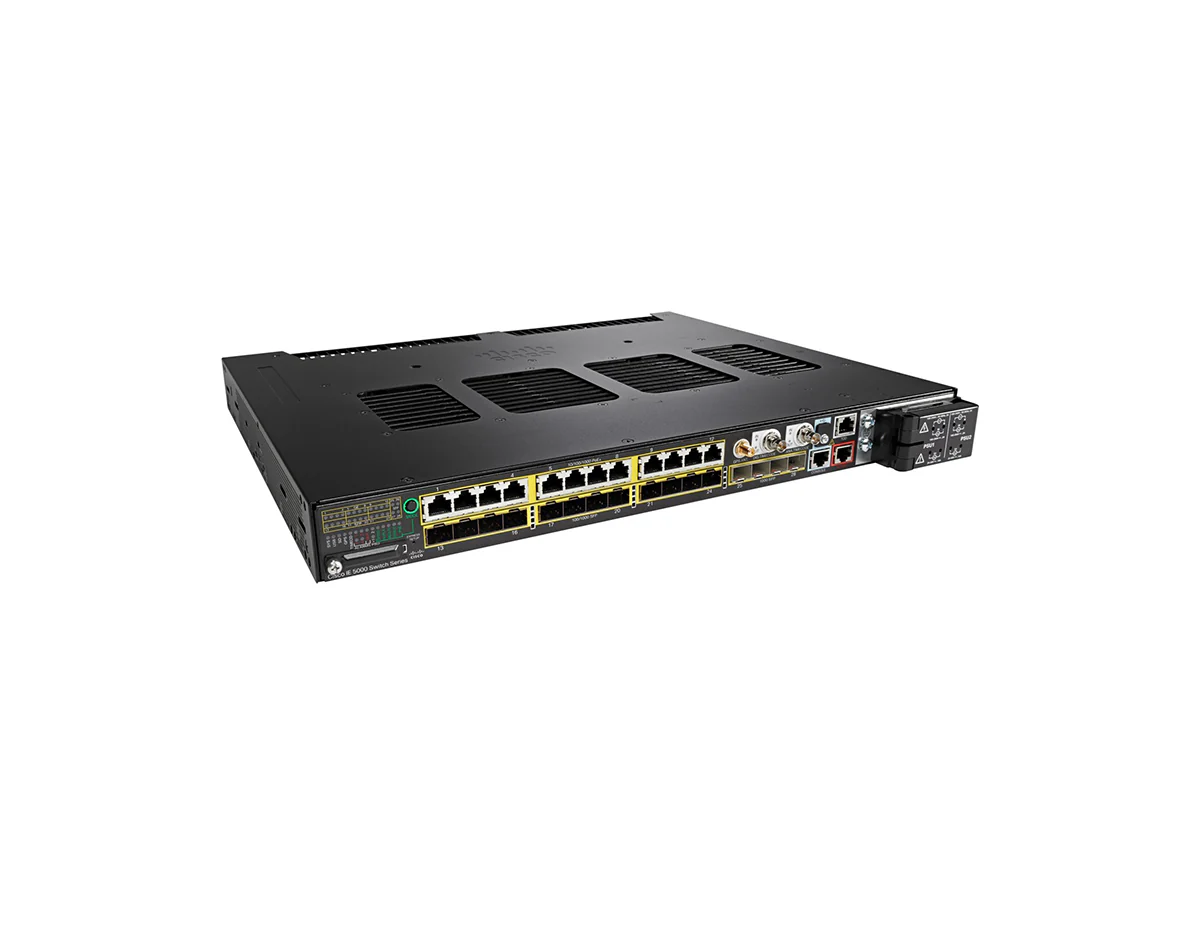

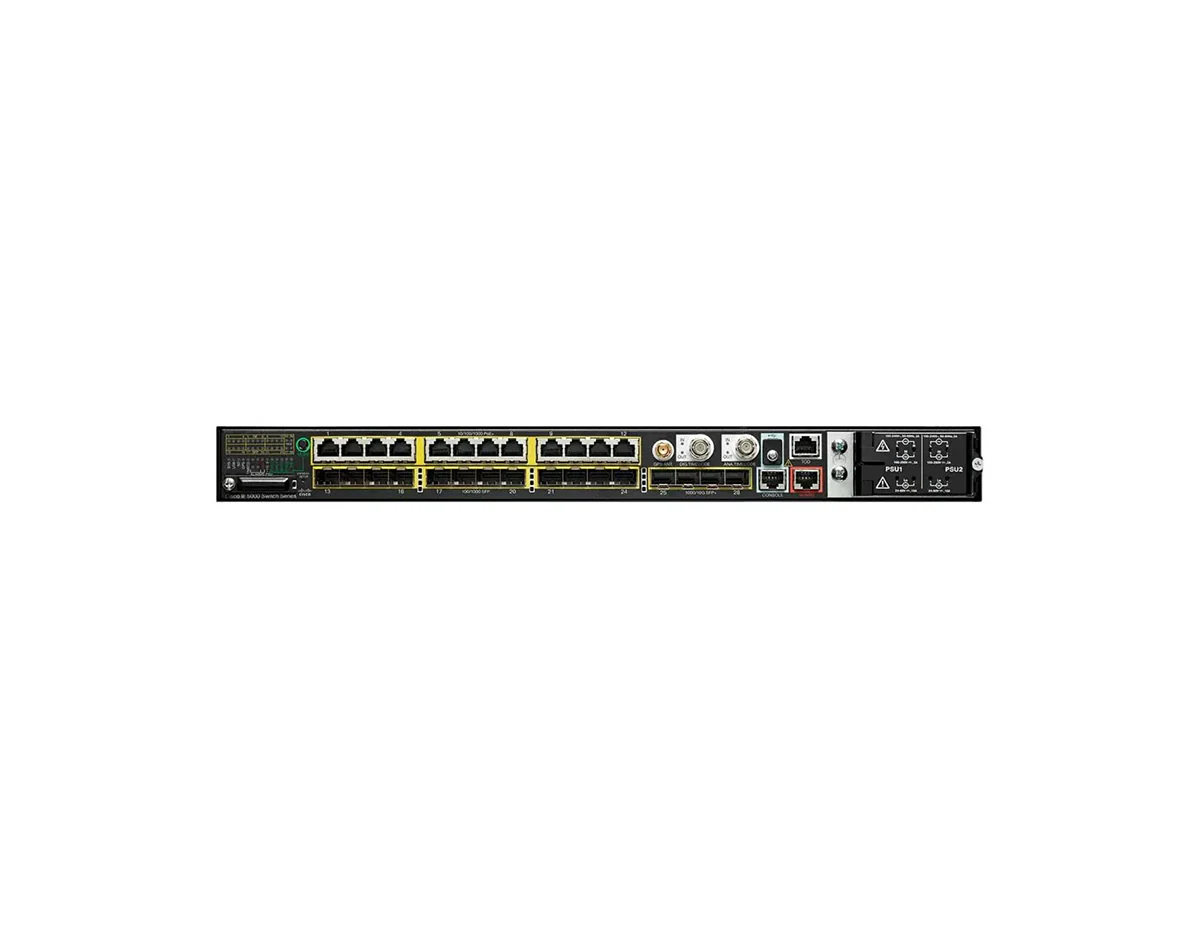

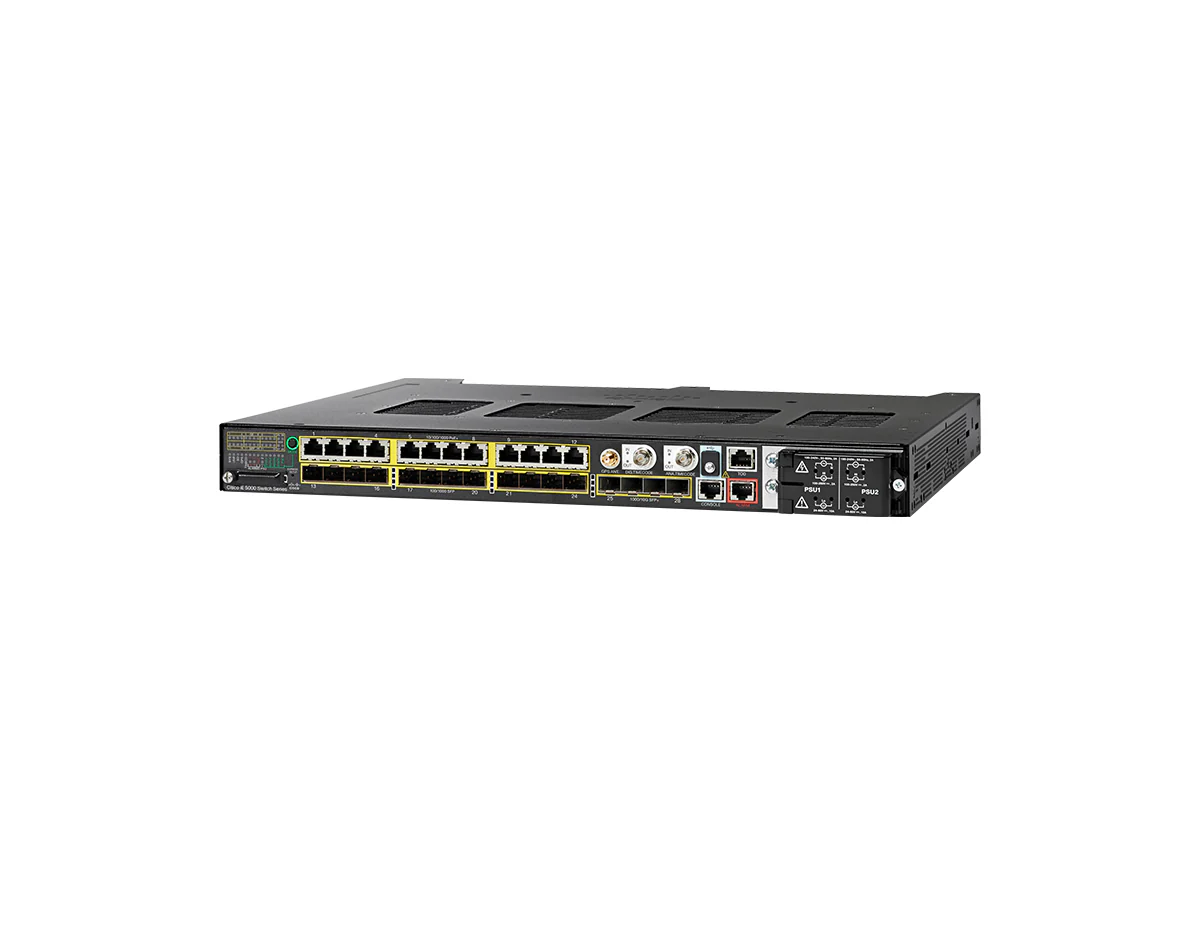

Cisco IE-5000-16S12P Switch
[shortdesc]
- Switch
- Managed
- 16 x Gigabit SFP + 12 x 10/100/1000 (PoE+)
- Rack-mountable
- PoE
[properties]
| Properties | Cisco IE-5000-16S12P |
| Description | IE5000 with 12GE Copper PoE+, 12FE/GE SFP and 4 1G SFP uplinks |
| Product Family | Industrial Ethernet 5000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 28 |
| SFP Uplinks | 4 1GE |
| SFP fiber ports (S) | 12 FE/GE |
| Copper PoE/PoE+ ports (P) | 12 FE/GE |
| Default software | LAN Base |
| Software Features | |
| LAN Base License (Default) | Features |
| Layer 2 Switching |
IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flex links, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Managament | Fast Boot, Express Setup, Web Device Manager, Cisco Network Assistant, Cisco Prime„ Infrastructure, MIB, SmartPort, SNMP, syslog, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM size configuration, DOM (digital optical management), Hardware Watchdog, Port-based DHCP |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port -Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, ACT2, Secure boot, Full flexible Netflow |
| Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queuing/shaping, AutoQoS, QOS, PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 Routing | IPv4 Static Routing |
| Utility | IEEE 1588 v2 PTP Power Profile 2011 & 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag), PTP over Port Channel |
| Industrial Ethernet | CIP Ethernet/IP, PROFINET v2, IEEE1588 PTP v2 Modbus TCP, Default Profile, CIP Time Sync, NTP to PTP Translation, SPAN Traffic Time Stamping |
| Redundancy |
Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox) |
| Industrial Management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Horizontal stacking | Horizontal Stacking supports Layer 2 switching, ARP, Spanning Tree, port channel (up to 48), Power over Ethernet, static routing, L3 host routing (via two 10GE uplink stack ports), BGP, EIGRP, OSPF, VRF, PBR, PIM, PTP |
| Timing interface | IRIG-B Input and Output interface (B002, B003, B006, B007, B122, B123, B126, B127 timecode), GNSS/GPS Support |
| Dimensions (HxWxD) Inches | 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250 |
| Weight (without power supply) | 13.7 lb (6.21 kg) |
| Power Supply Weight | PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg) PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg) PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
[/properties][specifications]
| Specifications | IE-5000-16S12P |
| DRAM | 1 GB |
| Flash Memory | 256 MB |
| Hardware | |
| PoE power budget | Not applicable |
| Removable storage | 1-GB removable SD flash memory card (Included) Mini-USB connector |
| Alarms | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Console ports | RJ-45 traditional connector connector |
| GPS antenna interface - GPS antenna input Analog Timing I/O interface - For analog IRIG support Digital Timing I/O interface - For digital timing such as IRIG-B TTL |
|
| Available power budget for PoE/PoE+ with different power supply wattage | |
| 150W | 65 |
| 150W (dual) | 185 |
| 250W | 165 |
| 250W + 150W | 270 |
| 250W (dual) | 360 |
| Number of Queues | 4 egress |
| Forwarding bandwidth | 28Gbps - Line rate/Non-blocking |
| Forwarding Rate | 41.67Mpps with 64 byte packets (Line rate) |
| Unicast MAC addresses | 16,000 |
| Switching bandwidth | 56Gbps |
| No. of VLANs | 1,005 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 1000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
| Power Consumption | Maximum of 90W not including PoE consumption |
| Operating Temperature | Operating Temperature: -40°C to +75°C -40°C to +70°C (vented enclosure 40 LFM Air Flow) -40°C to +60°C (sealed enclosure 0 LFM Air Flow) -34°C to +75°C (fan or blower equipped enclosure 200 LFM air flow) -40°C to +85°C (IEC 60068-2-2 Environmental Type Testing 16 hours) EN 60068-2-21 EN 61163 |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 13,800 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 390,190 hours |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A CNS13438 Class A KN22 EN 300 386 |
| Electromagnetic immunity | EN 55024 CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-11 AC Voltage Dips and Interruptions EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips and Interruptions |
| Industry standards | EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emission Standard for Industrial Environments EN 61326 Industrial Control EN 61131-2 Programmable Controllers IEEE 1613 Class 2 Electric Power Stations Communications Networking IEC 61850-3 Electric Substations Communications Networking EN 50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech) EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50121-3-2 Railway - Apparatus for Rolling Stock ODVA Industrial EtherNet/IP PROFINET conformance B IP30 (per EN60529) Marine DNV GL Ships* NEMA TS-2 (EMC, environmental, mechanical) |
| Safety standards and certifications |
Information technology equipment: UL/CSA 60950-1 UL/CSA 62368-1 IEC 62368-1 CB with all country deviations EN 60950-1 IEC 60950-1 CB with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): UL 508 CSA C22.2, No 142 Hazardous Locations, Class I, Div/Zone 2, gas groups IIC: ANSI/ISA 12.12.01 CSA 213 UL/CSA 60079-0, -15 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Cabinet enclosure required) |
| Humidity | Relative humidity of 0% to 95% non-condensing. IEC 60068-2-3 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Nonoperational Vibration) |
| Corrosion | ISO 9223: Corrosion class C3-Medium class C4-High IEC 60068-2-52 (Salt Fog) IEC 60068-2-60 (Flowing Mixed Gas) |
| Others | RoHS Compliance China RoHS Compliance TAA (Government) CE (Europe) |
[/specifications][accesories]
| Accessories and License Upgrade PIDs | |
| L-IE5000-RTU= | IE5000 electronic software license upgrade from LAN base to IP service Layer 3 features |
| LIC-MRP Manager= | MRP ring manager license |
| LIC-MRP-Client= | MRP ring client license |
| SD-IE-1GB= | IE 1GB SD Memory Card - Spare |
| C1F1PIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engine - Base |
| C1A1PIE40001K9 | Cisco ONE Advanced Perpetual Includes IP Services |
| C1-FLOW-IE5K | Cisco ONE Netflow IE 5000 |
| C1A1AIE50001K9 | Cisco ONE Advanced Perpetual - IE 5000 |
| C1F1AIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual - IE 4000/5000 |
| C1F1AIE50001K9 | Cisco ONE Foundation Perpetual - IE 5000, Brown field |
| C1F1PIE50001K9 | Cisco ONE Foundation Perpetual - IE 5000 |
| IE5000-DNA-E-H | DNA Essentials license |
| IE5000-DNA-E-H-3Y | DNA Essentials 3-year term license option |
| IE5000-DNA-E-H-5Y | DNA Essentials 5-year term license option |
| IE5000-DNA-A-H | DNA Advantage license |
| IE5000-DNA-A-H-3Y | DNA Advantage 3-year term license option |
| IE5000-DNA-A-H-5Y | DNA Advantage 5-year term license option |
| IE5000-DNA-E-H-7Y | DNA Essentials 7-year term license option |
| IE5000-DNA-A-H-7Y | DNA Advantage 7-year term license option |
| IE 5000 Series Power Supplies | |
| PWR-RGD-AC-DC-H | Hazloc grade power supply high voltage (88-300VDC/85-264VAC), 150W |
| PWR-RGD-LOW-DC-H | Hazloc grade power supply low voltage (24/48VDC), 150W |
| PWR-RGD-AC-DC-250 |
Higher PoE, 250W PSU for IE4010/5000, 100-240VAC/100-250VDC |
| SFPs | |
| GLC-FE-100FX-RGD= | 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX-RGD | 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100FX= | 100BASE-FX SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX= | 100BASE-LX10 SFP for Fast Ethernet SFP Ports |
| GLC-FE-100EX= | 100BASE-EX for Fast Ethernet SFP Ports |
| GLC-FE-100ZX= | 100BASE-ZX for Fast Ethernet SFP Ports |
| GLC-FE-100BX-D= | 100BASE-BX10-D SFP for Fast Ethernet SFP Ports |
| GLC-FE-100BX-U= | 100BASE-BX10-U SFP for Fast Ethernet SFP Ports |
| GLC-SX-MM-RGD= | 1000BASE-SX short wavelength; rugged |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH long wavelength; rugged |
| GLC-ZX-SM-RGD= | 1000BASE-ZX extended distance; rugged |
| GLC-BX40-U-I= | 1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-D-I= | 1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-DA-I= | 1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-U-I= | 1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-D-I= | 1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-SX-MMD= | 1000BASE-SX short wavelength; with DOM |
| GLC-LH-SMD= | 1000BASE-LX/LH long-wavelength; with DOM |
| GLC-EX-SMD= | 1000BASE-EX long-wavelength; with DOM |
| GLC-ZX-SMD= | 1000BASE-ZX extended distance; with DOM |
| GLC-BX-D= | 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| GLC-BX-U= | 1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
| GLC-BX-D-I= | 1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM |
| GLC-BX-U-I= | 1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM |
| SFP-GE-S= | Cisco SFP-GE-S Duplex SFP 1Gbps 500m MMF DDM 850nm |
| SFP-GE-L= | 1000BASE-LX/LH SFP (DOM) |
| SFP-GE-Z= | Cisco 1000BASE-ZX SFP transceiver module for SMF |
| GLC-SX-MM= | Cisco GLCSXMM SFP, Duplex, 1Gbps, 500m, 7.5dB, MMF, 850nm |
| GLC-LH-SM= | Cisco Glc Lh Sm 1000Base Lh Sm Sfp Transceiver Module |
| GLC-ZX-SM= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range. |
| GLC-TE= | 1000BASE-T standard |
| GLC-T-RGD= | 1000BASE-T standard |
| CWDM-SFP-xxxx= (8 freq) | Longwave xxxx-nm laser, single mode |
| DWDM-SFP-xxxx= (40 freq) | 1000BASE-DWDM SFP |
| GLC-T= | 1000BASE-T standard |
| SFP-10G-BXD-I= | 10GBASE-BX10-D Bidirectional for 10km |
| SFP-10G-BXU-I= | 10GBASE-BX10-U Bidirectional for 10km |
| SFP-10G-BX40D-I= | 10GBASE-BX40-D Bidirectional for 40km |
| SFP-10G-BX40U-I= | 10GBASE-BX40-U Bidirectional for 40km |
| SFP-10G-SR-X= | Multirate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range |
| SFP-10G-LR-X= | Multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range |
| SFP-10G-SR= | 10GBASE-SR SFP+ Module for MMF |
| SFP-10G-LRM= | 10GBASE-LRM SFP+ Module for MMF and SMF |
| SFP-10G-LR= | 10GBASE-LR SFP+ Module for SMF |
| SFP-10G-ER= | 10GBASE-ER SFP+ Module for SMF |
| SFP-10G-ZR= | Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
| SFP-H10GB-CUxM= | 10GBASE-CU SFP+ Cable x Meter, passive |
| SFP-H10GB-ACUxM= | Twinax cable, active, 30 (for 7M) / 28 (for 10M) AWG cable assembly |
| SFP-10G-ER-I= | Multirate 10GBASE-ER, 10GBASE-EW and OTU2e SFP+ Module for SMF, Industrial Temperature range |
| SFP-10G-ZR-I= | Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
[/accesories]
Cisco IE-5000-16S12P Industrial Ethernet Switch
The Cisco IE-5000-16S12P is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh and mission-critical environments. This switch features 16 SFP ports and 12 PoE+ Gigabit Ethernet ports, making it an ideal solution for connecting and powering critical industrial devices such as IP cameras, sensors, and controllers. The IE-5000-16S12P is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 16 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
- 12 x Gigabit PoE+ Ports: Delivers power and high-speed data connectivity to PoE-enabled devices, reducing the need for additional power supplies.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.
Technical Overview:
- Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with PoE+ support, advanced management, and high availability.
- Ports: 16 x SFP ports, 12 x Gigabit PoE+ ports.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, rack-mountable design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-5000-16S12P datasheet.
