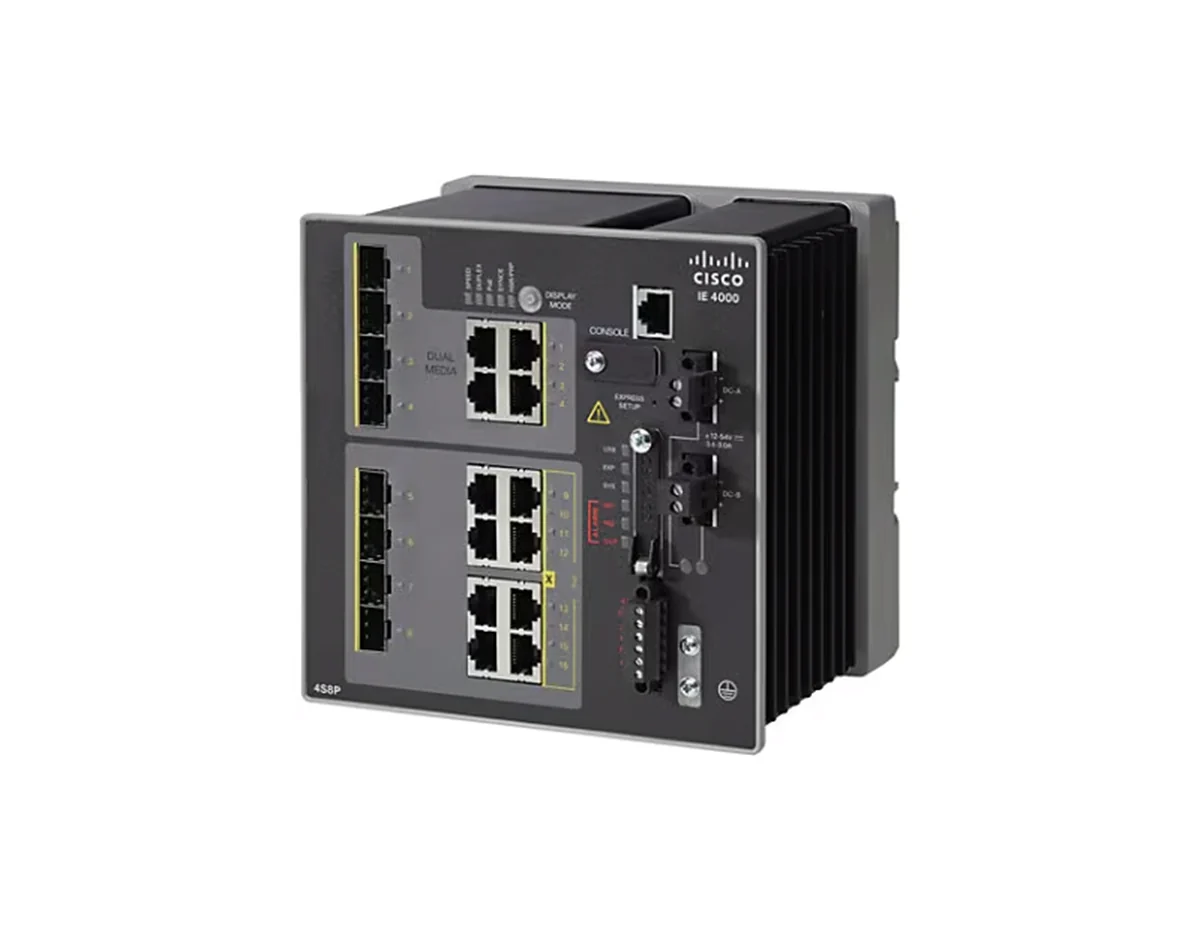

Cisco IE-4000-4S8P4G-E Switch
[shortdesc]
- Industrial Ethernet switch
- Managed
- 4 x Fast Ethernet SFP + 8 x Fast Ethernet (PoE+) + 4 x Gigabit combo uplinks
- DIN rail mountable
- PoE+ (125W max budget)
- Dual DC power inputs
[properties]
| Properties | Cisco IE-4000-4S8P4G-E |
| Description | IE4000 switch with 4 FE SFP, 8 FE PoE+ and 4 GE combo uplink ports |
| Product Family | Industrial Ethernet 4000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 16 |
| GE combo (SFP or RJ45) uplinks (4G) | All models have 4 GE combo uplink ports |
| Additional combo (SFP or RJ45) ports | - |
| RJ45 copper ports (T) | - |
| SFP fiber ports (S) | 4 FE |
| PoE/PoE+ ports (P, GP), Maximum PoE power budget | 8 FE, 125W |
| Default software License | All models ship with LAN Base feature set |
| Software Features | |
| LAN Base License (Default) | Features |
| Layer 2 Switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Flexlink, Resilient Ethernet Protocol (REP), VTPv3, EtherChannel, Voice VLAN, QinQ tunneling, Industrial macro configuration |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Fast Boot, Express setup, Web Device Manager, Industrial Network Director (IND), MIB, Smartport, SNMP, syslog, storm control, unicast, multicast, broadcast, SPAN sessions, RSPAN, DHCP server, customized DOM (digital optical management), Embedded Event Manager (EEM), Plug-n-Play Agent, Port-based DHCP |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, FIPS 140-2, ACT2, Secure boot, Full flexible Netflow |
| Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, QoS, PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 Routing | IPv4 Static Routing |
| Utility | Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag) |
| Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2, NTP to PTP translation, CIP Time Sync |
| Redundancy | Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox) |
| Industrial Management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Dimensions (HxWxD) Inches | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
| Weight | 6.35 pounds (2.88 kg) |
[/properties]
[specifications]
| Specifications | IE-4000-4S8P4G-E |
| DRAM | 1 GB |
| Flash Memory | 128 MB onboard |
| Hardware | |
| Removable storage | 1-GB removable SD flash memory card (Included) Mini-USB connector |
| Alarms | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
| Console ports | RJ-45 connector |
| Power inputs | Dual DC power inputs |
| Input Voltage Range | Redundant DC input voltage: nominal 9.6 to 60VDC |
| Maximum Input Current | 4.3A |
| Power Consumption | 40W (does not include PoE power consumption) |
| Performance & Scalability | |
| Forwarding Rate | Line rate for all ports and all packet sizes |
| Number of Queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| No. of VLANs | 1,000 |
| IGMP Multicast Groups | 1,000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries (expandable with proper design) |
| Environmental | |
| Operating Temperature | -40C to +75C |
| Storage Temperature | -40C to +85C |
| Operating Altitude | Up to 15,000 feet |
| Humidity | Relative humidity of 5% to 95% non-condensing |
| Mean Time Between Failures (MTBF) | 535,880 Hours |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB= | IE 1GB SD Memory Card - Spare |
| STK-RACK-DINRAIL= | 19 in. DIN Rail mount kit |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features or MRP protocols) |
| L-IE4000-RTU= | IE4000 Electronic software license upgrade from LAN base L2 to IP Services L3 features |
| LIC-MRP-Manager= | MRP Ring Manager license |
| LIC-MRP-Client= | MRP Ring Client license |
[/accesories]
Cisco IE-4000-4S8P4G-E Industrial Ethernet Switch
The Cisco IE-4000-4S8P4G-E is a rugged industrial Ethernet switch designed for dependable operation in harsh environments. It combines 4 Fast Ethernet SFP ports, 8 Fast Ethernet PoE+ ports, and 4 Gigabit combo uplink ports to connect and power industrial endpoints such as cameras, sensors, controllers, and access devices. Built on proven Cisco IOS Software, it delivers secure, resilient switching with industrial-focused management and redundancy features for scalable deployments.
Key Features:
- 4 x Fast Ethernet SFP Ports: Flexible fiber connectivity for industrial edge devices and segmented networks.
- 8 x Fast Ethernet PoE+ Ports: Powers PoE-capable devices while providing data connectivity (up to 125W PoE budget).
- 4 x Gigabit Combo Uplinks: Copper/fiber uplink flexibility for ring topologies, aggregation, and redundancy.
- DIN Rail Form Factor: Compact, industrial-ready design for control cabinets and constrained spaces.
- Dual DC Power Inputs: Redundant power capability for higher availability in critical environments.
- Industrial Resiliency & Security: Supports REP/PRP/MRP/HSR options and strong security controls for industrial networks.
Technical Overview:
- Recommended for: Industrial networks requiring hardened switching with PoE+, secure management, and resilient uplinks.
- Ports: 4 x FE SFP, 8 x FE PoE+, 4 x GE combo uplinks.
- Memory: 1 GB DRAM, 128 MB onboard flash, included 1-GB removable SD flash memory card.
- Operating Temperature: -40C to +75C for harsh industrial deployments.
- Management: Web Device Manager, SNMP, syslog, SPAN/RSPAN, and industrial-oriented tooling support.
You can check the related tab for the Cisco IE-4000 Series datasheet.
