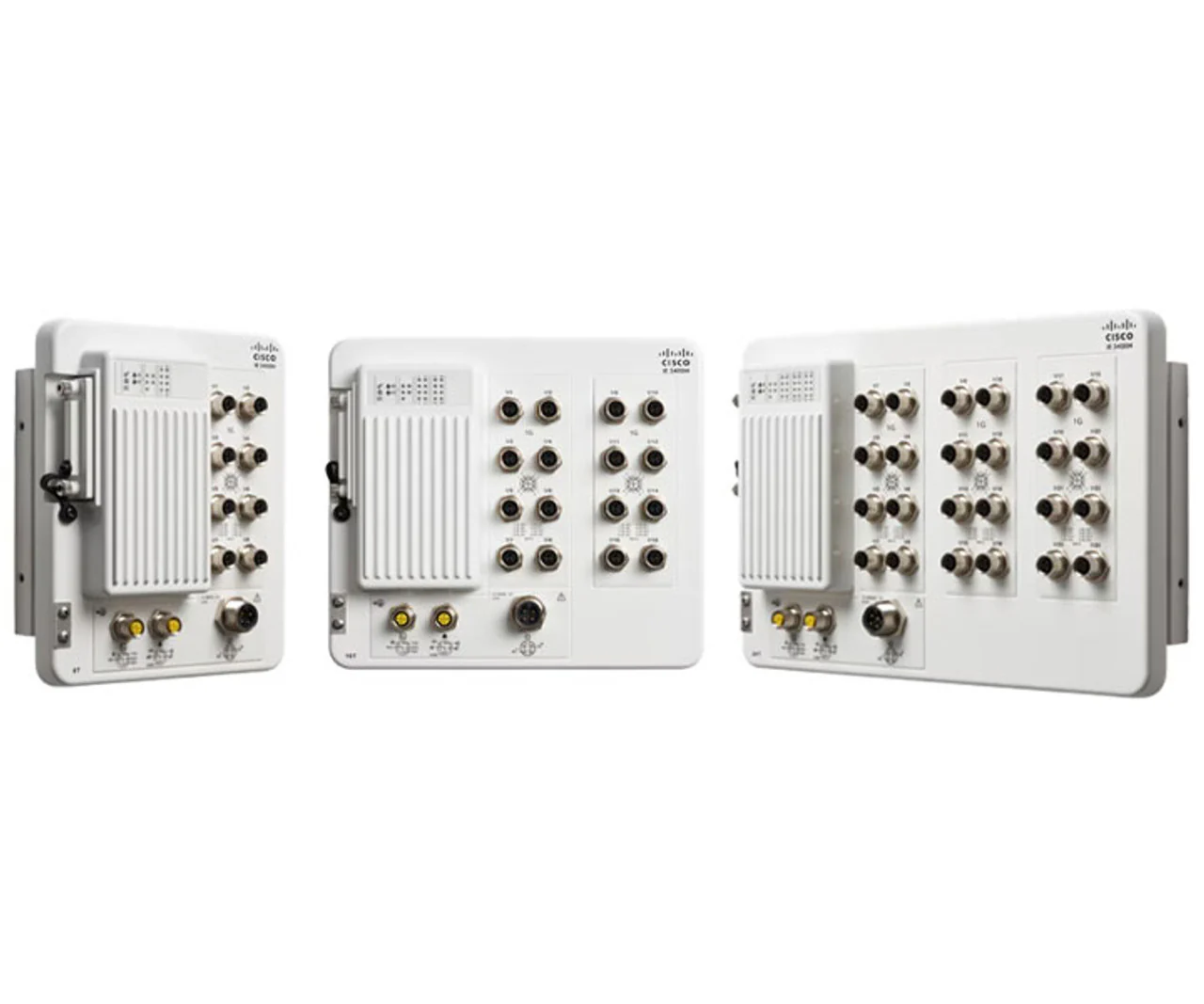

Cisco Catalyst IE-3500H-16T-A Switch
[shortdesc]
- Switch, L3, Managed, 16 × 10/100/1000 (M12 X-Code), IP66/IP67 rugged, fanless, wall-mount, no PoE
[/shortdesc]
[properties]
| Property | Details |
|---|---|
| Product Line | Cisco Catalyst IE3500 Heavy Duty Series |
| Use Case | Industrial / harsh environments (IP66/IP67; OT edge) |
| Management | Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center) |
| PoE Support | No PoE |
| Layer Support | Layer 2 & Layer 3 |
| Scalability | — |
| Operating System | Cisco IOS XE |
| Software Licence | Network Advantage |
| Form Factor | Ruggedized IP66/IP67, wall-mount, fanless |
| Default Power Supply | DC power input (12–48 VDC), Mini-Change single power source |
[/properties]
[specifications]
| Specification | Details |
|---|---|
| Model Number | IE-3500H-16T-A |
| Port Count | 16 (16 × 10/100/1000) |
| Downlink Ports & Speeds | 16 × 10/100/1000 Mbps M12 X-Code |
| Uplink Ports & Speeds | — |
| PoE Power Budget | — |
| Switching Capacity | — |
| Forwarding Rate | Line-rate on all ports (all packet sizes) |
| Stacking Bandwidth | — |
| DRAM | 8 GB |
| Flash Memory | 5.1 GB |
| MAC Address Table Size | 24,000 entries |
| VLAN Support | 4096 VLAN IDs (up to 1024 active) |
| Power Requirements | DC input 12–48 VDC; power consumption ~41 W (excl. PoE) |
| Dimensions (H × W × D) | 9.58 × 10.90 × 3.16 in (24.33 × 27.69 × 8.03 cm) |
| Weight | 11.25 lb (5.10 kg) |
| MTBF | 406,109 hours |
[/specifications]
[accesories]
Management & storage
| SKU / Part Number | Description |
|---|---|
| SD-IE-16GB | IE 16GB SD memory card for configs/logs/firmware |
| CAB-CONSOLE-M12= | Console cable 1.8 m, M12 A-coded ↔ DB9F |
Licenses & subscriptions
| SKU / Part Number | Description |
|---|---|
| IE3500-DNA-A-3Y | Cisco DNA Advantage 3-Year term |
| IE3500-DNA-A-5Y | Cisco DNA Advantage 5-Year term |
| IE3500-DNA-A-7Y | Cisco DNA Advantage 7-Year term |
Cabling & connectors
| Item | Details |
|---|---|
| M12 X-coded industrial Ethernet cable | Data cable for 1G GE ports (8-pin, Cat6A, IP67) |
| Alarm cable (field) | M12 A-coded 5-pin connector |
| Console connector | M12 A-coded 5-pin (use CAB-CONSOLE-M12=) |
Power cables (IP67 Mini-Change A-size)
| SKU / Part Number | Description |
|---|---|
| 130006-0737 | 4-pin female → pigtail, 16 AWG, PVC (switch DC power input) |
| 130010-0863 | 4-pin male ↔ female, 16 AWG, TPE (PSU output ↔ switch input) |
| 130006-0223 | 3-pin female → pigtail, 16 AWG, PVC (AC power supply input) |
| 130006-0091 | 2-pin female → open end (DC power supply input) |
[/accesories]
Cisco Catalyst IE-3500H-16T-A Switch
The Cisco Catalyst IE-3500H-16T-A Switch is a rugged, heavy-duty industrial Ethernet solution engineered for harsh OT edge environments. Featuring 16 Gigabit M12 X-Code downlink ports in an IP66/IP67-rated, fanless enclosure, it delivers reliable, line-rate performance across all ports. Running Cisco IOS XE with Layer 2 and Layer 3 capabilities and manageable via WebUI/CLI or optional Cisco Catalyst Center, the IE-3500H-16T-A provides resilient connectivity for transportation, manufacturing, and outdoor cabinet deployments. This model does not support PoE or dedicated uplink modules.
Key Features:
- 16 x 10/100/1000 Mbps M12 X-Code Ports: Industrial-grade, vibration-resistant connectors delivering line-rate forwarding for all packet sizes.
- Ruggedized IP66/IP67 Design: Sealed, fanless hardware engineered for harsh environments and outdoor installations.
- Layer 2 & Layer 3 Capabilities: Switching and basic routing on Cisco IOS XE for efficient segmentation and inter-VLAN connectivity.
- Flexible DC Power: 12–48 VDC input with Mini-Change single power source; typical consumption ~41 W (excluding PoE).
- Easy Management: Managed through Cisco IOS XE WebUI and CLI, with optional Cisco Catalyst Center for centralized operations.
- High Reliability: MTBF of approximately 406,109 hours to help minimize downtime.
Technical Overview:
- Recommended for: Industrial / harsh environments (IP66/IP67), OT edge, transportation, and manufacturing deployments.
- Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet M12 X-Code downlink ports; no dedicated uplink ports.
- PoE Budget: Not supported.
- Switching Capacity: —
- Forwarding Rate: Line-rate on all ports (all packet sizes).
- Management: Cisco IOS XE WebUI, CLI, and optional Cisco Catalyst Center.
- Security: Supports VLAN segmentation and ACLs; features vary by software license (Network Advantage).
- Energy Efficiency: Fanless operation with low typical power draw (~41 W).
