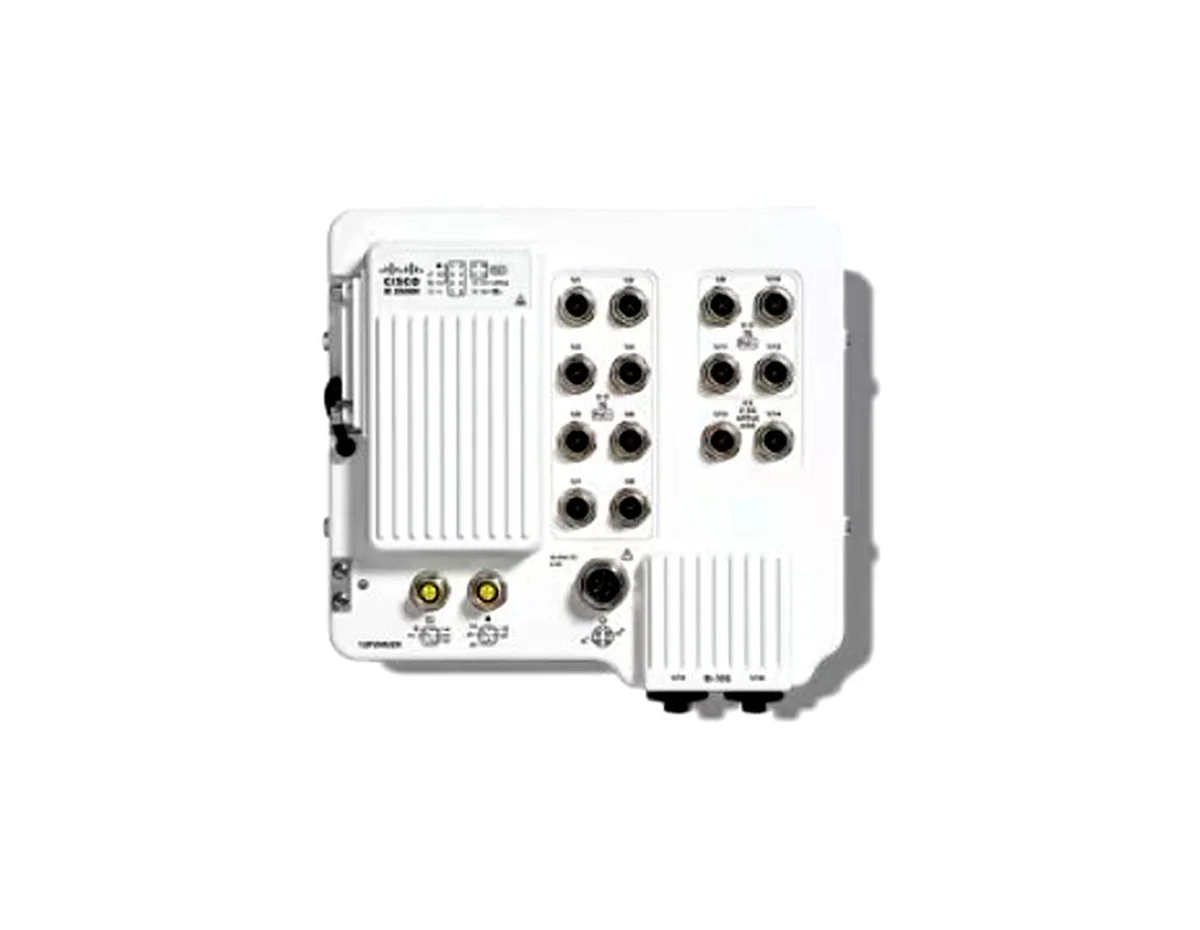

Cisco Catalyst IE-3500H-12P2MU2XE Switch
[shortdesc]
- Switch, L3, Managed, 12 × 10/100/1000 (PoE/PoE+) + 2 × mGig UPoE (M12 X-Code), 2 × 10G SFP+ uplinks, 240 W PoE, IP66/IP67 rugged, fanless, wall-mount
[/shortdesc]
[properties]
| Property | Details |
|---|---|
| Product Line | Cisco Catalyst IE3500 Heavy Duty Series |
| Use Case | Industrial / harsh environments (IP66/IP67; OT edge) |
| Management | Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center) |
| PoE Support | 12 × PoE/PoE+ + 2 × UPoE (mGig) ports |
| Layer Support | Layer 2 & Layer 3 |
| Scalability | — |
| Operating System | Cisco IOS XE |
| Software Licence | Network Essentials |
| Form Factor | Ruggedized IP66/IP67, wall-mount, fanless |
| Default Power Supply | DC power input (12–54 VDC), Mini-Change single power source |
[/properties]
[specifications]
| Specification | Details |
|---|---|
| Model Number | IE-3500H-12P2MU2XE |
| Port Count | 16 (12 × 10/100/1000 PoE/PoE+ + 2 × mGig UPoE + 2 × 10G SFP+) |
| Downlink Ports & Speeds | 12 × 10/100/1000 Mbps M12 X-Code (PoE/PoE+) + 2 × mGig (UPoE/4PPoE) M12 X-Code |
| Uplink Ports & Speeds | 2 × 10G SFP+ (backward-compatible 1G SFP) |
| PoE Power Budget | 240 W |
| Switching Capacity | — |
| Forwarding Rate | Line-rate on all ports (all packet sizes) |
| Stacking Bandwidth | — |
| DRAM | 8 GB |
| Flash Memory | 5.1 GB |
| MAC Address Table Size | 24,000 entries |
| VLAN Support | 4096 VLAN IDs (up to 1024 active) |
| Power Requirements | DC input 12–54 VDC; power consumption ~45 W (excl. PoE) |
| Dimensions (H × W × D) | 10.46 × 10.90 × 3.36 in (26.57 × 27.69 × 8.53 cm) |
| Weight | 11.40 lb (5.17 kg) |
| MTBF | 352,809 hours |
[/specifications]
[accesories]
Management & storage
| SKU / Part Number | Description |
|---|---|
| SD-IE-16GB | IE 16GB SD memory card for configs/logs/firmware |
| CAB-CONSOLE-M12= | Console cable 1.8 m, M12 A-coded ↔ DB9F |
Licenses & subscriptions
| SKU / Part Number | Description |
|---|---|
| IE3500-NW-A= | Network Advantage perpetual license (feature upgrade) |
| IE3500-DNA-E-3Y | Cisco DNA Essentials 3-Year term |
| IE3500-DNA-E-5Y | Cisco DNA Essentials 5-Year term |
| IE3500-DNA-E-7Y | Cisco DNA Essentials 7-Year term |
| IE3500-DNA-A-3Y | Cisco DNA Advantage 3-Year term |
| IE3500-DNA-A-5Y | Cisco DNA Advantage 5-Year term |
| IE3500-DNA-A-7Y | Cisco DNA Advantage 7-Year term |
Cabling & connectors
| Item | Details |
|---|---|
| M12 X-coded industrial Ethernet cable | Data cable for GE/mGig ports (8-pin, Cat6A, IP67, PoE/UPoE) |
| Alarm cable (field) | M12 A-coded 5-pin connector |
| Console connector | M12 A-coded 5-pin (use CAB-CONSOLE-M12=) |
| M25 SFP/SFP+ port adapter | IP67 sealing adapter for populated SFP/SFP+ cages |
SFP/SFP+ transceivers & DAC
| SKU / Part Number | Description |
|---|---|
| GLC-SX-MM / GLC-LH-SM / GLC-EX-SMD / GLC-ZX-SM | 1G SFP optics (SX/LX/EX/ZX classes) |
| GLC-TE | 1G copper SFP (may reduce PTP performance) |
| SFP-10G-SR / SFP-10G-LR / SFP-10G-LRM / SFP-10G-ER / SFP-10G-ZR | 10G SFP+ optics |
| SFP-H10G-CU1M / SFP-H10G-CU3M / SFP-H10G-CU5M | Passive 10G DAC cables |
| SFP-10G-T-X | 10GBASE-T SFP+ (may reduce PTP performance) |
Power cables (IP67 Mini-Change A-size)
| SKU / Part Number | Description |
|---|---|
| 130006-0737 | 4-pin female → pigtail, 16 AWG, PVC (switch DC power input) |
| 130010-0863 | 4-pin male ↔ female, 16 AWG, TPE (PSU output ↔ switch input) |
| 130006-0223 | 3-pin female → pigtail, 16 AWG, PVC (AC power supply input) |
| 130006-0091 | 2-pin female → open end (DC power supply input) |
[/accesories]
Cisco Catalyst IE-3500H-12P2MU2XE Switch
The Cisco Catalyst IE-3500H-12P2MU2XE Switch is a rugged, heavy-duty industrial Ethernet solution engineered for harsh OT edge environments. Combining 12 PoE/PoE+ M12 X-Code downlinks, 2 multigigabit (mGig) UPoE/4PPoE M12 X-Code downlinks, and 2 fixed 10G SFP+ uplinks (backward-compatible with 1G SFP), it delivers reliable, line-rate performance across all ports. Housed in an IP66/IP67-rated, fanless enclosure and powered by Cisco IOS XE, it brings Layer 2 and Layer 3 capabilities with simple management via WebUI/CLI or optional Cisco Catalyst Center—ideal for transportation, manufacturing, and outdoor cabinet deployments.
Key Features:
- 12 × PoE/PoE+ + 2 × mGig UPoE: Power cameras, APs, and industrial endpoints with a 240 W PoE budget over robust M12 X-Code connectors.
- Dual 10G SFP+ Uplinks: High-speed fiber uplinks (1G fallback supported) for aggregation and backbone connectivity.
- Ruggedized IP66/IP67 Design: Sealed, fanless hardware engineered for harsh, vibration-prone, and outdoor installations.
- Layer 2 & Layer 3 Capabilities: Efficient segmentation and inter-VLAN routing on Cisco IOS XE.
- Easy Management: Operate via Cisco IOS XE WebUI and CLI, with optional Cisco Catalyst Center for centralized operations.
- High Reliability: MTBF of approximately 352,809 hours helps minimize downtime.
Technical Overview:
- Recommended for: Industrial / harsh environments (IP66/IP67), OT edge, transportation, and manufacturing deployments.
- Ports: 12 × 10/100/1000 Mbps M12 X-Code (PoE/PoE+) + 2 × mGig M12 X-Code (UPoE/4PPoE) downlinks; 2 × 10G SFP+ uplinks (backward-compatible 1G SFP).
- PoE Budget: 240 W.
- Switching Capacity: —
- Forwarding Rate: Line-rate on all ports (all packet sizes).
- Management: Cisco IOS XE WebUI, CLI, and optional Cisco Catalyst Center.
- Security: Supports VLAN segmentation and ACLs; features vary by software license (Network Essentials).
- Energy Efficiency: Fanless operation with typical system draw ~45 W (excluding PoE).
