[shortdesc]

• Network Advantage
• Switch
• Managed
• 8 x 10/100/1000 + 2 x Gigabit SFP
• DIN rail mountable
• DC power

[/shortdesc]

[properties]

Properties	Cisco IE-3400-8T2S-A
Description	Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Advantage
Product Family	Industrial Ethernet 3400
Product Type	Ethernet Switch
Switches
Total Ports	10
10/100/1000 RJ45 Copper Ports	8
100/1000 SFP Ports	2
1GE/2.5G RJ45 Copper ports	-
Software License (Default)	Network Advantage
PoE/PoE (+) budget	N/A
Software Features
Network Essentials License (Perpetual)	Features
Layer 2 Switching	IEEE 802.1Q, 802.1w, 802.1s, 802.1AB, 802.3ad, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, Selective Q-in-Q, Layer-2 tunneling, voice VLAN, PVST+, MSTP, RSTP
Multicast	IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Management	WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN, RSPAN, FSPAN, FRSPAN, Express Setup, Delayless IPDT
Security	Port security, 802.1X, DHCP snooping, Dynamic ARP Inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1X multi-domain authentication, storm control (unicast/multicast/broadcast), SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, ACLs (PACL/VACL/RACL), SUDI 2099, Full Flexible NetFlow (FNF), MACsec-128; FIPS 140-2
Quality of Service (QoS)	Ingress policing, rate limit, egress queuing/shaping, Auto-QoS
IPv6	IPv6 host support, SNMP over IPv6, HTTP/HTTPS over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless autoconfig, SCP/SSH, RADIUS, TACACS+, NTP over IPv6, IPv6 VRF-aware BGPv6, IPv6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard
Layer 3 Routing	Inter-VLAN routing, Static routing
Utility	Dying gasp, SCADA protocol classification – GOOSE messaging, MODBUS TCP/IP
Industrial Ethernet	CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET
Redundancy	Resilient Ethernet Protocol (REP) ring, PROFINET-MRP, REP Negotiated, Fast REP, REP Autodiscovery, REP ZTP Support, Parallel Redundancy Protocol (PRP), PTP over PRP, High-Availability Seamless Redundancy (HSR-SAN), Device Level Ring (DLR), HSR-PRP Dual Redbox
Automation	YANG, NETCONF, RESTCONF
Industrial Management	Layer-2 switching with 1:1 switch Network Address Translation (L2NAT)
IOx	Container (Native Docker), Cyber Vision, Secure Equipment Access
Network Advantage License (Perpetual)	Features
IP routing Protocols	OSPF (IPv4 and IPv6), BGP (v4 and v6), RIP (v1 and v2), ISIS (v4 and v6), EIGRP (v4 and v6), Policy-based routing (PBR), VRRP (v4 and v6), HSRP (v4 and v6), BFD Echo Mode for OSPFv3
Virtualization	VRF-Lite, VRF-Aware SGT
IP Multicast	PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP (IPv4), Embedded RP (IPv6)
(Network Advantage License includes all Network Essentials Features.)
Dimensions (HxWxD) Inches	6 in. x 3.6 in. x 5.3 in. 15.2 cm x 9.1 cm x 13.5 cm
Weight	3.8 lbs (1.7 kg)
Mounting	DIN Rail

[/properties]

[specifications]

Specifications	IE-3400-8T2S-A
DRAM	4 GB
Flash Memory	1.5 GB
Hardware
PoE power budget	Not applicable
Removable storage	USB (optional), SD card (optional)
Alarms	2 alarms in, 1 alarm out
Console ports	1 RS-232 (via RJ-45), 1 USB Mini Type-B
Power inputs	Dual DC power inputs
Number of Queues	8
Forwarding Rate	Line rate for all ports and all packet sizes
Unicast MAC addresses	16,000
Jumbo Frames	8996 bytes
No. of VLANs	256
IPv4 Indirect routes	3000
IPv6 Indirect routes	512
Internet Group Management Protocol (IGMP) Multicast Groups	1000
Spanning Tree Protocol (STP) instances	128
Access Control Entries (PACL/VACL/RACL)	3000
SD card capacity (Optional)	4 GB, 16 GB
Input Voltage Range	Redundant DC input voltage: 9.6 to 60 VDC
Maximum Input Current	6.3A
Power Consumption	36W
Operating Temperature	-40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	549,808 hours
Industrial Automation Control System	IEC 62443-4-1; IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 Subpart B Class A; EN 55032/CISPR 32 Class A; VCCI Class A; AS/NZS CISPR 32 Class A; CISPR 11 Class A; ICES-003 Class A; CNS 13438 Class A; KN 32 Class A; EN 300 386
Electromagnetic immunity	CISPR 24 / EN 55024 / KN 35; EN 61000-4-2 (ESD: air 15 kV, contact 8 kV); EN 61000-4-3 (Radiated RF: 10 V/m UTP, 20 V/m STP); EN 61000-4-4 (EFT 4 kV); EN 61000-4-5 (Surge 2 kV/1 kV Power, 4 kV STP); EN 61000-4-6 (Conducted RF 10 Vrms UTP); EN 61000-4-10 (Damped oscillatory magnetic field 100 A/m); EN 61000-4-16 (Conducted CM Disturbances 30 V cont./300 V 1 s); EN 61000-4-17 (Ripple immunity DC power 10%); EN 61000-4-18 (Damped oscillatory wave 2.5 kV, 1 MHz); EN 61000-4-29 (DC voltage dips and interruptions)
Industry standards	EN 61000-6-2 Industrial Immunity; EN 61000-6-4 Industrial Emissions; EN 61000-6-1 Light Industrial Immunity; EN 61326-1 Measurement, Control and Laboratory Equipment; EN61131-2; IEEE 1613; EN/IEC 61850-3; ODVA Industrial EtherNet/IP; NEMA TS 2-2016; AREMA C&S section 11/19; IP30
Marine I	DNV Certification according to class guideline DNV-CG-0339; Additional standards: IEC 60945, IACS UR E10
Safety standards and certifications	UL/CSA 60950-1, IEC 60950-1 CB; UL/CSA 62368-1, IEC 62368-1 CB; UL/CSA 61010-2-201; IEC/EN 61010-2-201 CB; Hazardous locations: UL121201 (Class I, Div 2, groups A-D); CSA 213 (Class I, Div 2, groups A-D); UL/CSA 60079-0, -15 (Class I, Zone 2, Gc/IIC); IEC 60079-0, -15 IECEx (Class I, Zone 2, Gc/IIC); EN 60079-0, -15 ATEX (Class I, Zone 2, Gc/IIC) — cabinet enclosure required
Humidity	Relative humidity of 5% to 95% non-condensing; IEC 60068-2-78; IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50 G, 3 ms, half-sine); IEC 60068-2-27 (non-operational shock, 65–80 G, 9 ms, trapezoidal); IEC 60068-2-6 (vibration, 5–150 Hz)
Corrosion	IEC 60068-2-52 (salt fog); IEC 60068-2-60 (flowing mixed gas)

[/specifications]

[accesories]

Accessories and License Upgrade PIDs
SD-IE-16GB=	IE 16GB SD memory card for IE
STK-RACK-DINRAIL=	19" DIN Rail mount kit
IE3400-NW-A=	Network Advantage License for IE3400, Perpetual
IE3400-DNA-E	Cisco Catalyst Center Essentials license for IE3400 Series
IE3400-DNA-E-3Y	IE 3400 Cisco Catalyst Center Essentials, 3 Year Term license
IE3400-DNA-E-5Y	IE 3400 Cisco Catalyst Center Essentials, 5 Year Term license
IE3400-DNA-E-7Y	IE 3400 Cisco Catalyst Center Essentials, 7 Year Term license
IE3400-DNA-A	Cisco Catalyst Center Advantage license for IE3400 Series
IE3400-DNA-A-3Y	IE 3400 Cisco Catalyst Center Advantage, 3 Year Term license
IE3400-DNA-A-5Y	IE 3400 Cisco Catalyst Center Advantage, 5 Year Term license
IE3400-DNA-A-7Y	IE 3400 Cisco Catalyst Center Advantage, 7 Year Term license
LIC-MRP-MGR-XE=	MRP Ring Manager License
LIC-MRP-CLIENT-XE=	MRP Ring Client License
IE 3400 Series Power Supplies
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC-IEC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W PC-AC Power Supply
PWR-IE65W-PC-DC=	65W PC-DC Power Supply
PWR-IE170W-PC-AC=	170W PC-AC Power Supply
PWR-IE170W-PC-DC=	170W PC-DC Power Supply
PWR-IE240W-PCAC-L=	240W PCAC-L Power Supply
PWR-IE480W-PCAC-L=	480W PCAC-L Power Supply
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD=	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
GLC-BX-D-I=	1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM
GLC-BX-U-I=	1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM
SFP-GE-S=	1000BASE-SX SFP (DOM)
SFP-GE-L=	1000BASE-LX/LH SFP (DOM)
SFP-GE-Z=	1000BASE-ZX SFP for SMF
GLC-SX-MM=	1000BASE-SX SFP, 220–550 m over MMF, with DOM
GLC-LH-SM=	1000BASE-LX/LH SFP, 550 m/10 km over MMF/SMF, with DOM
GLC-ZX-SM=	1000BASE-ZX SFP for SMF, 1550-nm wavelength, commercial temp
GLC-TE=	1000BASE-T SFP
GLC-T-RGD=	1000BASE-T SFP, rugged
CWDM-SFP-1470=	CWDM 1470-nm SFP (GigE / 1–2G FC)
CWDM-SFP-1610=	CWDM 1610-nm SFP (GigE / 1–2G FC)
CWDM-SFP-1530=	CWDM 1530-nm SFP (GigE / 1–2G FC)
CWDM-SFP-1490=	CWDM 1490-nm SFP (GigE / 1–2G FC)
DWDM-SFP-3033=	1000BASE-DWDM 1530.33-nm SFP (100-GHz ITU grid)
DWDM-SFP-3112=	1000BASE-DWDM 1531.12-nm SFP (100-GHz ITU grid)

[/accesories]

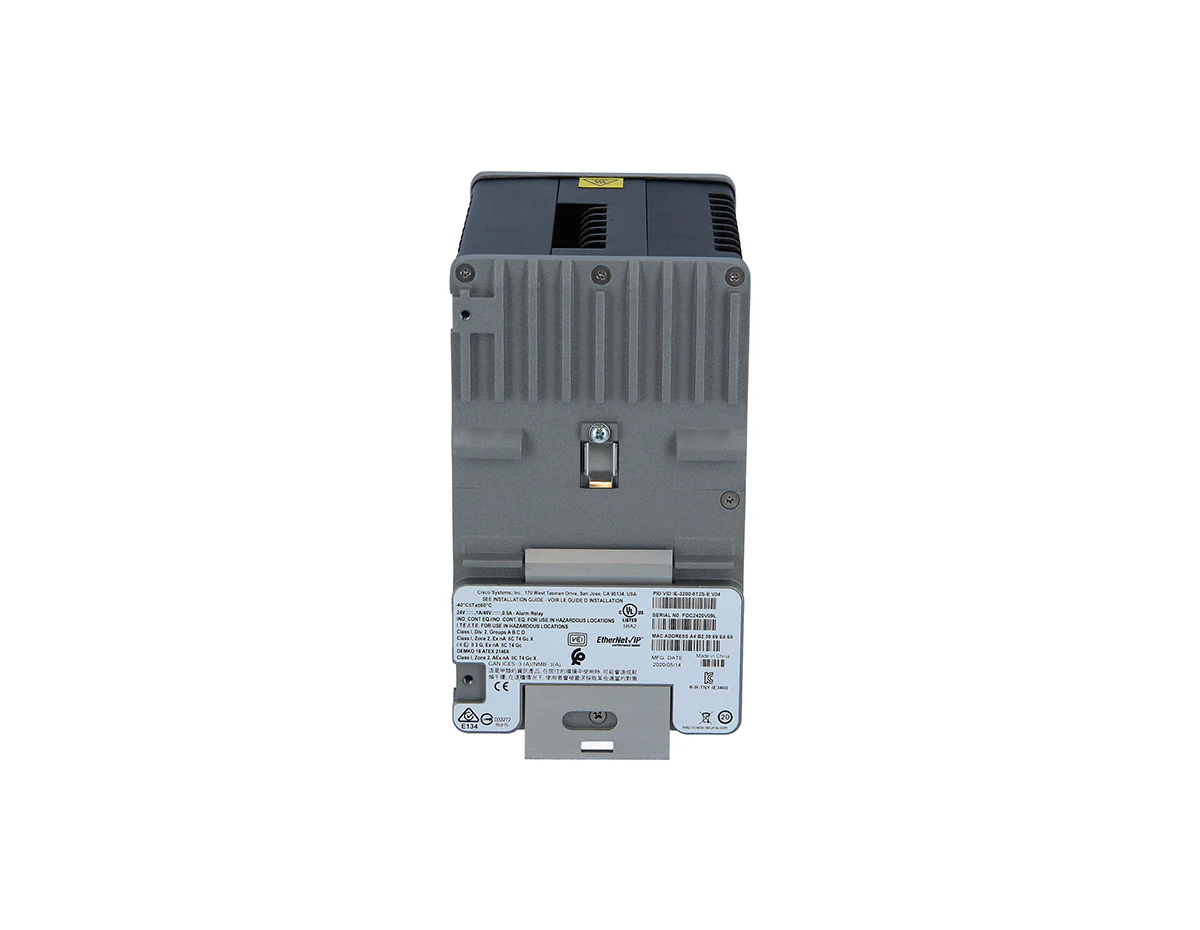

Cisco IE-3400-8T2S-A Industrial Ethernet Switch

The Cisco IE-3400-8T2S-A is a high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports and 2 SFP slots, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3400-8T2S-A is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

• 8 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
• 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
• Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for demanding industrial environments.
• Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
• Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.

Technical Overview:

• Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
• Ports: 8 x Gigabit Ethernet ports, 2 x SFP slots.
• Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
• Management: Managed through a web interface, CLI, SNMP, and Cisco Catalyst Center for comprehensive network setup and monitoring.
• Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-3400-8T2S-A datasheet.
