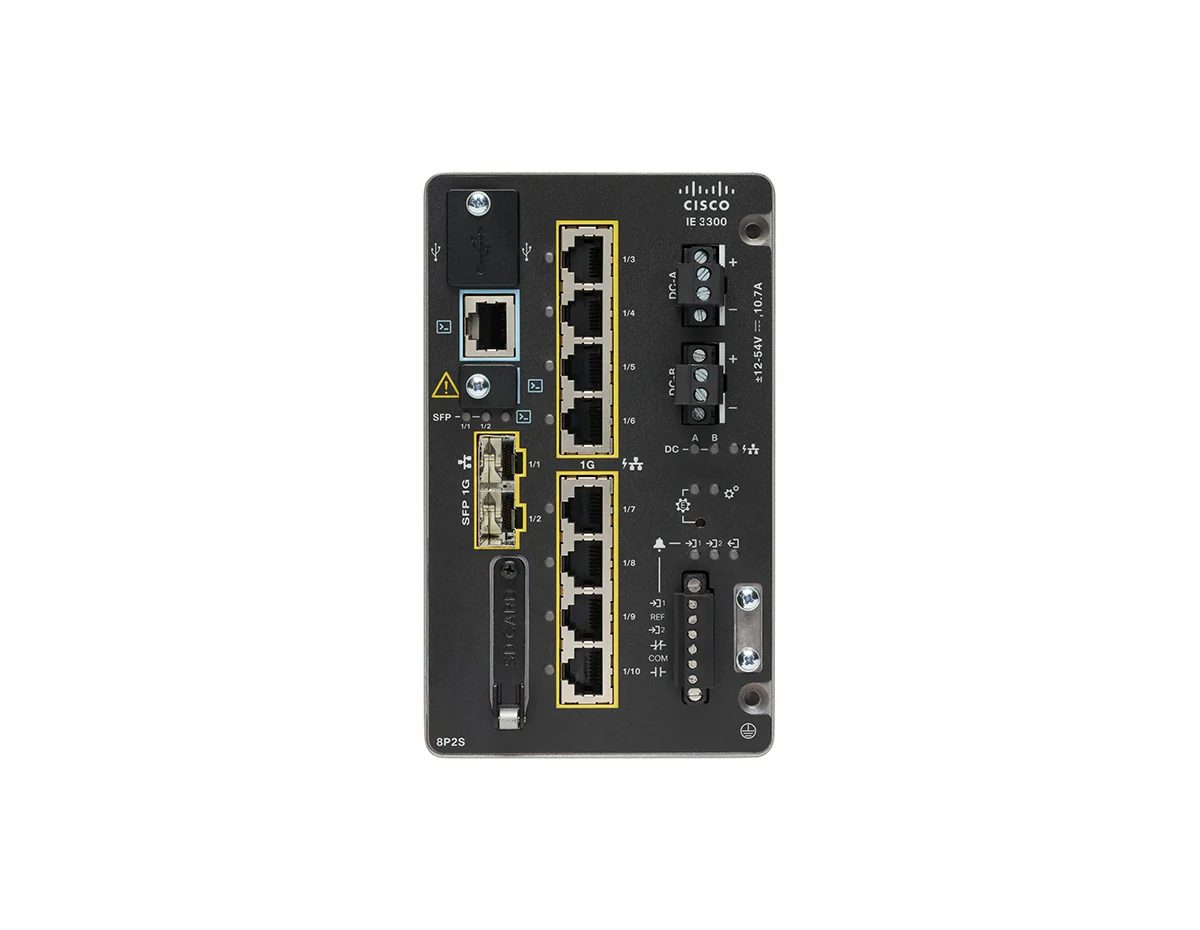

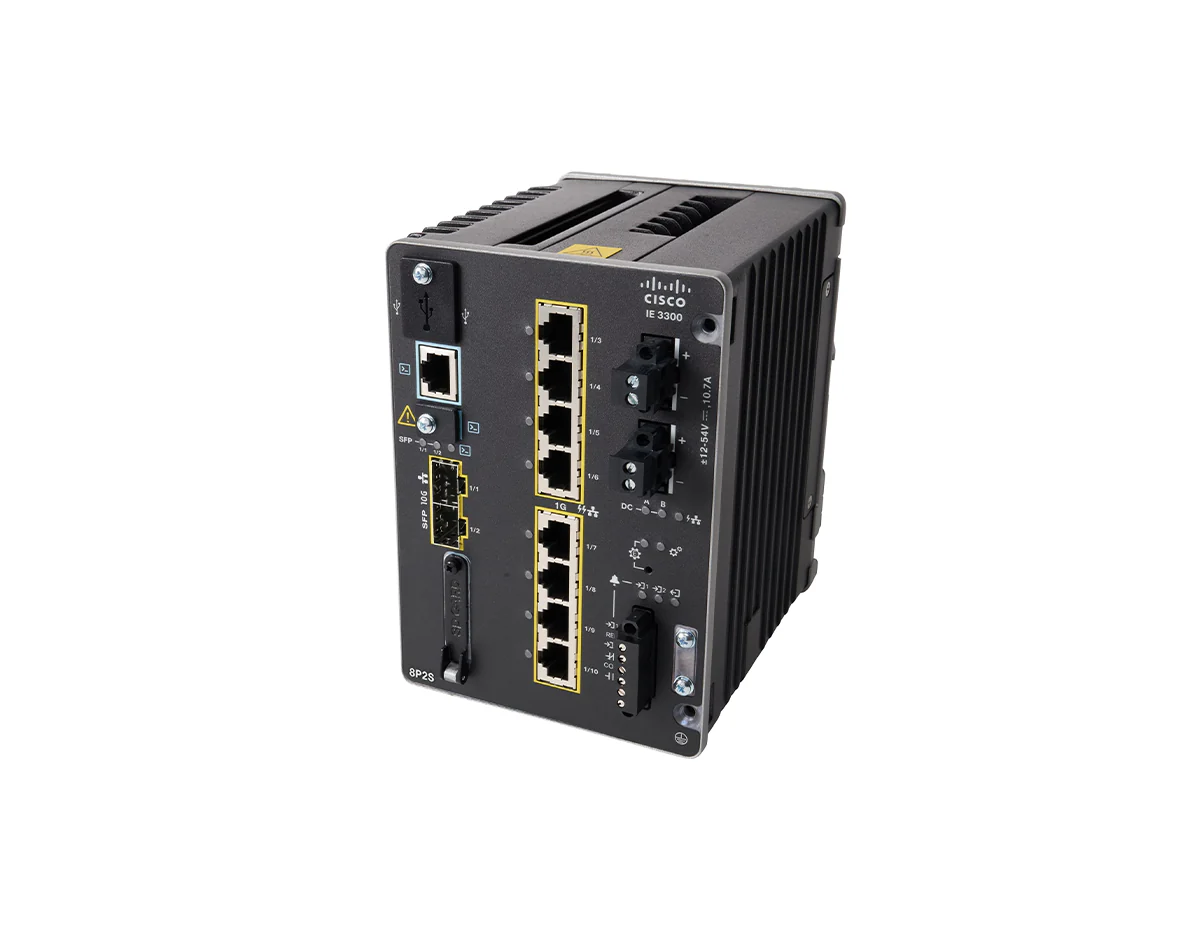

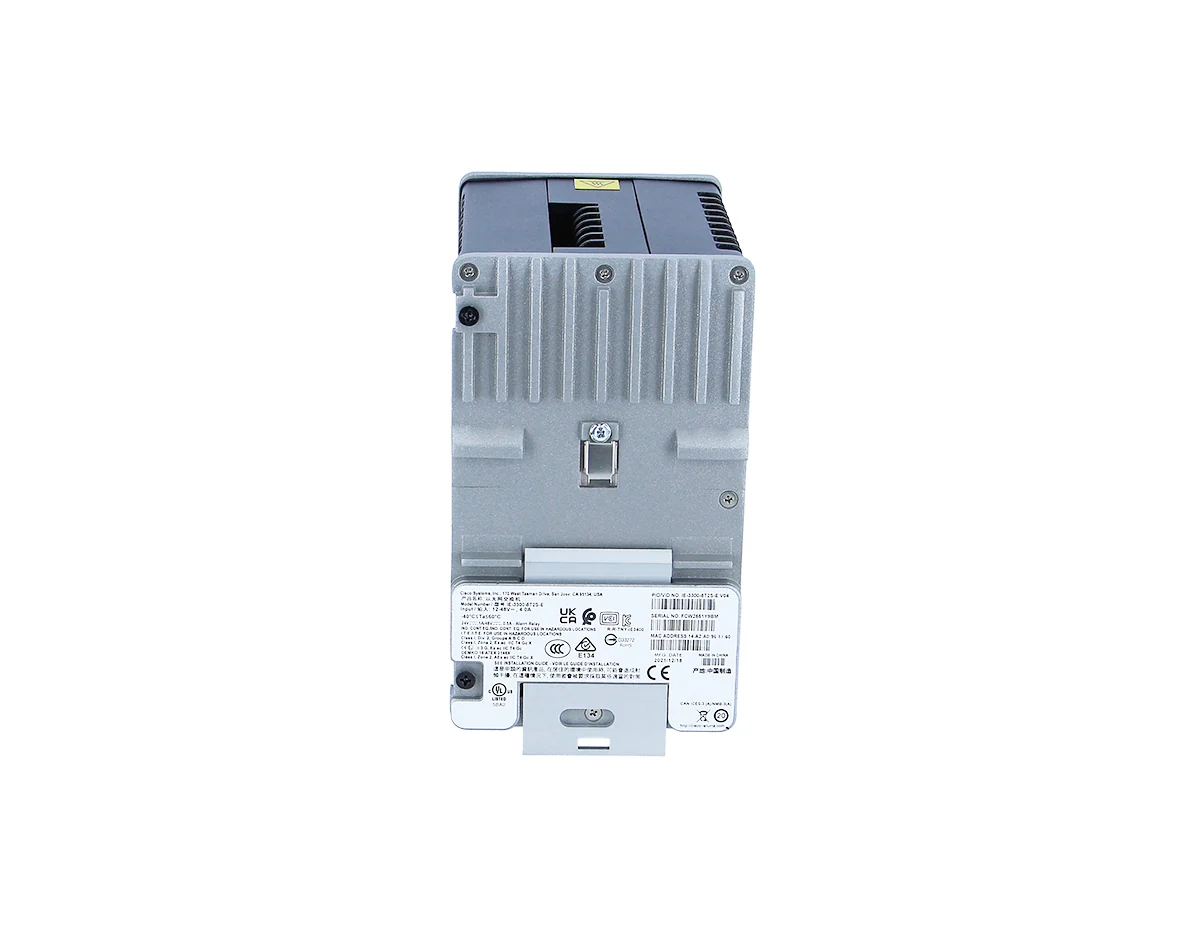

Cisco IE-3300-8P2S-E Switch
[shortdesc]
- Switch, Managed, 8 x 10/100/1000 (PoE+) + 2 x SFP, DIN rail mountable, PoE+ (240 W base, 360 W with module), DC power
[properties]
| Properties | Cisco IE-3300-8P2S-E |
| Description | Catalyst IE3300 with 8 GE PoE+ and 2 GE SFP, Modular, Network Essentials |
| Product Family | Industrial Ethernet 3300 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 10 |
| 10/100/1000 RJ45 Copper Ports | 8 |
| 100/1000 SFP Ports | 2 |
| 1GE/2.5G RJ45 Copper ports | - |
| 1GE/10G SFP+ Ports | - |
| Software License (Default) | Network Essentials |
| PoE/PoE (+) budget | 240W (base), 360W (with module) |
| Software Features | |
| Network Essentials License (Perpetual) |
Features |
| Layer 2 Switching | IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP |
| Multicast | IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Management | WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF |
| Security | Port security, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control (unicast/multicast/broadcast), SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099, Full Flexible NetFlow (FNF), MACsec-128 |
| Quality of Service (QoS) | Ingress policing, rate limit, egress queuing and shaping, auto QoS |
| IPv6 | IPv6 host support, HTTP/HTTPS over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless autoconfig, Radius, TACACS+, NTP over IPv6, IPv6 VRF-aware BGPv6, IPv6 QoS, IPv6 FHS RA/DHCPv6 Guard |
| Layer 3 Routing | Inter-VLAN routing, Static routing |
| Utility | Dying gasp, SCADA protocol classification (GOOSE), MODBUS TCP/IP |
| Industrial Ethernet | CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET |
| Redundancy | Resilient Ethernet Protocol (REP) ring, PROFINET Media Redundancy Protocol (MRP), REP Preferred, Fast REP |
| Automation | YANG, NETCONF, RESTCONF |
| Industrial Management | Layer 2 switching with 1:1 switch Network Address Translation (L2NAT) |
| IOx | Container (Native Docker) |
| Dimensions (HxWxD) Inches | 6 in. x 3.6 in. x 5.3 in. 15.2 cm x 9.1 cm x 13.5 cm |
| Weight | 3.8 lbs (1.7 kg) |
| Mounting | DIN Rail |
| Cisco Catalyst Center Features | |
| Catalyst Center Essentials | Element Management (Discovery, Topology, Inventory, software image management), Basic Assurance, Basic Automation (Cisco Network Plug-and-Play) |
| Catalyst Center Advantage | Adds Assurance and Analytics (Compliance, Custom Reports, Device 360/Client 360), Patch/SMU, SD-Access Extended Node / REP Ring workflow |
[/properties] [specifications]
| Specifications | IE-3300-8P2S-E |
| DRAM | 4 GB |
| Flash Memory | 1.5 GB |
| Hardware | |
| PoE power budget | 360W (including expansion module) |
| Removable storage | USB (Optional), SD card (Optional) |
| Alarms | 2 alarms in, 1 alarm out |
| Console ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs | Dual DC power inputs |
| Number of Queues | 8 |
| Forwarding Rate | Line rate for all ports and all packet sizes |
| Unicast MAC addresses | 16K |
| Jumbo Frames | 8996 bytes |
| No. of VLANs | 256 |
| IPv4 Indirect routes | 3000 |
| IPv6 Indirect routes | 512 |
| SD card capacity (Optional) | 4 GB, 16 GB |
| Input Voltage Range | Redundant DC input voltage: 9.6 to 60VDC 48VDC is required for PoE and 54VDC is required for PoE+ |
| Maximum Input Current | 10.5A |
| Power Consumption | 32W |
| Operating Temperature | -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 611,350 |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A; EN 55032/CISPR 32 Class A; VCCI Class A; AS/NZS CISPR 32 Class A; CISPR 11 Class A; ICES 003 Class A; CNS 13438 Class A; KN 32 Class A; EN 300 386 |
| Electromagnetic immunity | CISPR 24/35; EN55024/55035; KN 35; EN 61000-4-2/3/4/5/6/8/10/16/17/18; EN-61000-4-29 |
| Industry standards | EN 61000-6-2; EN 61000-6-4; EN 61000-6-1; EN 61326-1; IEEE 1613; EN/IEC 61850-3; EN50121-4; EN50155 (EMC); ODVA EtherNet/IP; NEMA TS 2-2016; IP30 |
| Marine I | DNV per DNV-CG-0339; IEC 60945; IACS UR E10 |
| Safety standards and certifications |
UL/CSA 60950-1; IEC 60950-1; UL/CSA 62368-1; IEC 62368-1; UL/CSA 61010-2-201; IEC/EN 61010-2-201; UL121201 (Class I, Div 2, Groups A-D); CSA 213 (Class I, Div 2, Groups A-D); UL/CSA 60079-0,-15 (Class I, Zone 2, Gc/IIC); IEC 60079-0,-15 IECEx (Class I, Zone 2, Gc/IIC); EN 60079-0,-15 ATEX (Class I, Zone 2, Gc/IIC) — cabinet enclosure required |
| Humidity | 5% to 95% non-condensing (IEC 60068-2-78, -2-30) |
| Shock and vibration | IEC 60068-2-27 (operational 50G, 3ms, half sine); IEC 60068-2-27 (non-operational 65–80G, 9ms, trapezoidal); MIL-STD-810 Method 514.4; IEC 60068-2-6 (5–150 Hz) |
| Corrosion | IEC 60068-2-52 (salt fog); IEC 60068-2-60 (flowing mixed gas) |
[/specifications] [accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-4GB= / SD-IE-16GB= | IE 4GB or 16GB SD memory card |
| STK-RACK-DINRAIL= | 19 in. DIN Rail mount kit |
| IE3300-NW-A= | Network Advantage License for IE3300, Perpetual |
| IE3300-DNA-E | Cisco Catalyst Center Essentials license for IE3300 Series |
| IE3300-DNA-E-3Y/5Y/7Y | Catalyst Center Essentials, 3/5/7 Year Term license |
| IE3300-DNA-A | Cisco Catalyst Center Advantage license for IE3300 Series |
| IE3300-DNA-A-3Y/5Y/7Y | Catalyst Center Advantage, 3/5/7 Year Term license |
| LIC-MRP-MGR-XE= / LIC-MRP-CLIENT-XE= | MRP Ring Manager/Client License |
| IE 3300 Series Power Supplies | |
| PWR-IE50W-AC / -AC-IEC= / -AC-L= | 50W AC power supply options |
| PWR-IE65W-PC-AC / -DC | 65W PoE-capable power supplies |
| PWR-IE170W-PC-AC / -DC | 170W PoE-capable power supplies |
| PWR-IE240W-PCAC-L / PWR-IE480W-PCAC-L | 240W / 480W PoE-capable power supplies |
[/accesories]
Cisco IE-3300-8P2S-E Industrial Ethernet Switch
The Cisco IE-3300-8P2S-E is a rugged, high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports with Power over Ethernet (PoE) support and 2 SFP slots, making it an ideal solution for powering and connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3300-8P2S-E is engineered to operate in extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 8 x Gigabit Ethernet Ports with PoE: Provides reliable data connectivity while powering PoE-enabled devices, simplifying installation and reducing the need for additional power supplies.
- 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with PoE support and advanced management features.
- Ports: 8 x Gigabit Ethernet ports with PoE, 2 x SFP slots.
- PoE Budget: 240W base, up to 360W with supported expansion module.
- Operating Temperature: -40°C to +70°C (vented), -40°C to +60°C (sealed), up to +75°C with blower-equipped enclosure.
- Management: Managed via WebUI, CLI, SNMP, and Cisco Catalyst Center.
