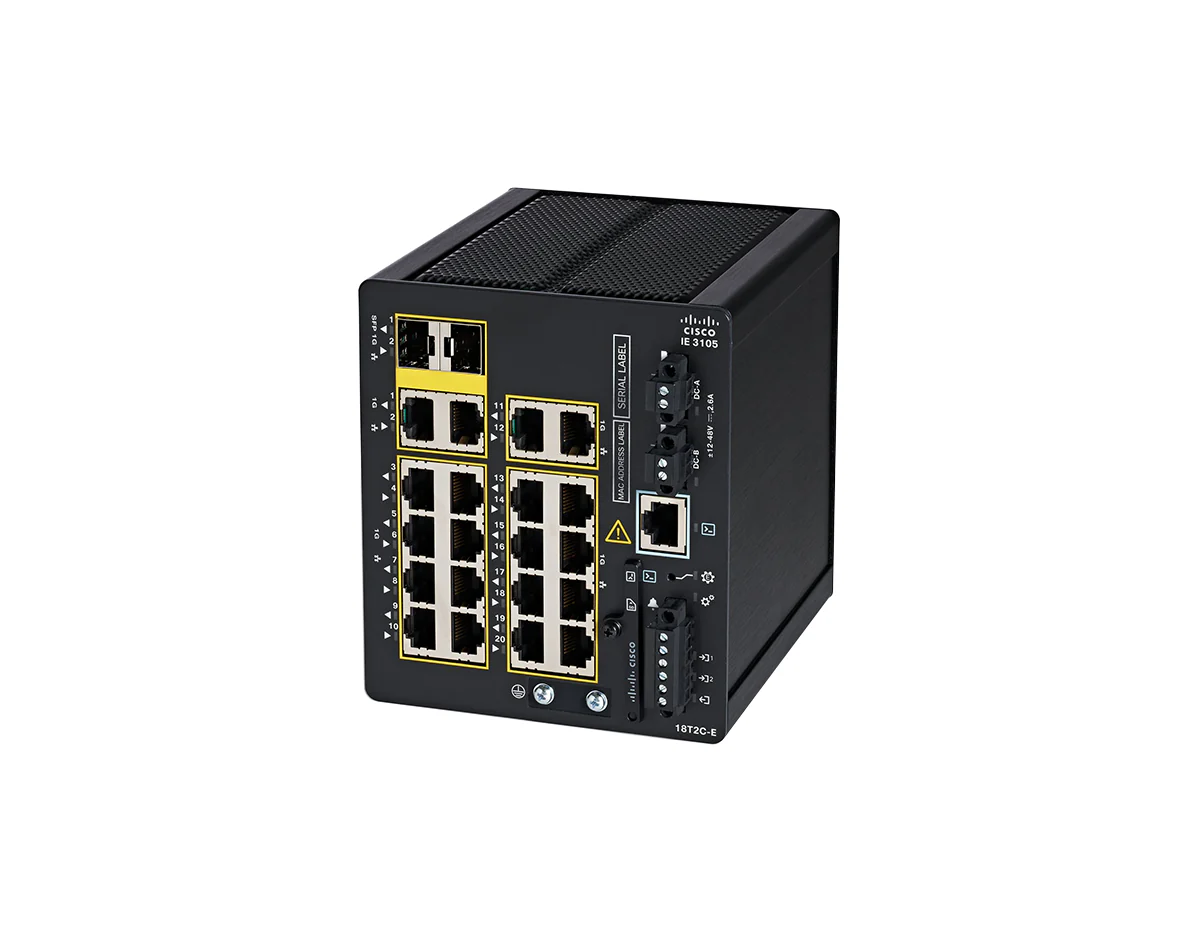

Cisco IE-3105-18T2C-E Switch
[shortdesc]
- Network Essentials, Managed, DIN rail mountable, Switch, 18 x 10/100/1000 + 2 x combo Gigabit
[properties]
| Properties | IE-3105-18T2C-E |
| Description | Catalyst IE3105 w/18 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NE |
| Product Family | Cisco Catalyst IE3100 Rugged Series |
| Product Type | Ethernet Switch |
| Number of Ports | 20 |
| Downlinks | 18Ā 10/100/1000M RJ45 ports |
| Uplinks (SFP/SFP+) | 2Ā 1GE Combo ports |
| Cisco IOS Software | Network Essentials |
| Optional Removable Storage | SD Card |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB |
| Power inputs | DC power inputs |
| Input Voltage Range | 12V to 48V nominal |
| 9.6V to 60V absolute | |
| Power consumption | 36.7W |
| Fans | Fanless |
| Dimensions W/ Default Power Supply | 5.00 x 4.30 x 5.08 in. (12.70 x 10.92 x 12.90 cm) |
| Mounting | DIN Rail |
[/properties][specifications]
| Specifications | IE-3105-18T2C-E |
| DRAM | 4 GB |
| MAC addresses | 8000 |
| Number of queues / port | 8 egress |
| MTBF (hours) | 642,05 |
| Internet Group Management Protocol (IGMP) multicast groups | 512 |
| VLANs | 256 |
| Cisco StackWiseĀ ports | Ā - |
| Operating Temperature | Ā -40Ā° to 75Ā°C (max) |
| Safety | Information Technology Equipment: āĀ UL/CSA 60950-1 āĀ UL/CSA 62368-1 āĀ CB report and certificate to IEC 62368-1 with all country deviations Industrial floor (control equipment): āĀ UL/CSA 61010-2-201 āĀ CB report and certificate to IEC/EN 61010-2-201 Hazardous Locations: āĀ UL121201(Class l, Div 2, groups A-D) āĀ CSA 22.2 No 213 (Class l, Div 2, groups A-D) āĀ UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) āĀ IEC 60079-0, -7, -15 IECEx test report (Class l, Zone 2, Gc/IIC) āĀ EN 60079-0, -7, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) |
| Emissions, immunity and regulatory compliance | FCC 47 CFR Part 15 Subpart B Class A EN 5032A Class A EN55024 VCCI Class A AS/NZS CISPR 32 Class A, AS/NZS CISPR 24 IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV air/8kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m with unshielded cables) IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 Vrms) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)1 IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)1 IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)1 IEC/EN 61000-4-29 (Voltage Dips Immunity)1 IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 (Emission for industrial Environments) EN 61326 |
[/specifications][accesories]
| SD-IE-1GB= | 1GB SD memory card for IE |
| SD-IE-4GB= | 4GB SD memory card for IE |
| PWR-IE50W-AC= | 50W AC to DC or High DC to DC Power Supply |
| PWR-IE50W-AC-L= | 50W AC to DC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC to DC Power Supply with IEC connector |
| PWR-IE65W-PC-AC= | 65W AC to DC or High DC to DC Power Supply |
| PWR-IE65W-PC-DC= | 65W Low DC to DC Power Supply |
| PWR-IE170W-PC- AC= | 170W AC to DC or High DC to DC Power Supply |
| PWR-IE170W-PC- DC= | 170W AC to DC or High DC to DC Power Supply |
| PWR-IE240W-PCAC-L= | 240W AC to DC Power Supply |
| PWR-IE480W-PCAC-L= | 480W AC to DC Power Supply |
| STK-RACK-DINRAIL= | 19" DIN Rail mount kit |
| SFP support | |
| GLC-FE-100FX-RGD= | 100BASE-FX FE 2km MMF |
| GLC-FE-100LX-RGD | 100BASE-LX10 FE 10km SMF |
| GLC-FE-100FX= | 100BASE-FX FEĀ 2km MMF |
| GLC-FE-100LX= | 100BASE-LX10 FE 10km SMF |
| GLC-FE-100EX= | 100BASE-EX FE 40km SMF |
| GLC-FE-100ZX= | 100BASE-ZX FE 80km SMF |
| GLC-FE-100BX-D= | 100BASE-BX10 FE 10km SMF |
| GLC-FE-100BX-U= | 100BASE-BX10 FEĀ 10km SMF |
| GLC-SX-MM-RGD= | 1000BASE-SX GE 550m MMF |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH GE 550m/10km MMF/SMF |
| GLC-ZX-SM-RGD= | 1000BASE-ZX GE 70km SMF |
| GLC-BX40-U-I= | 1000BASE-BX40 GE 40km SMF |
| GLC-BX40-D-I= | 1000BASE-BX40 GE 40km SMF |
| GLC-BX40-DA-I= | 1000BASE-BX40 GE 40km SMF |
| GLC-BX80-U-I= | 1000BASE-BX80 GE 80km SMF |
| GLC-BX80-D-I= | 1000BASE-BX80 GE 80km SMF |
| GLC-SX-MMD= | 1000BASE-SX GE 550m MMF |
| GLC-LH-SMD= | 1000BASE-LX/LH Ā GE 550m/10km MMF/SMF |
| GLC-EX-SMD= | 1000BASE-EX GE Ā 40km SMF |
| GLC-ZX-SMD= | 1000BASE-ZX GE Ā 70km SMF |
| GLC-BX-D= | 1000BASE-BX10 GE Ā 10km SMF |
| GLC-BX-U= | 1000BASE-BX10 GE Ā 10km SMF |
| CWDM-SFP-xxxx= (8Ā freq) | CWDM 1000BASE-XĀ GEĀ SMF |
| DWDM-SFP-xxxx= (40Ā freq) | DWDM 1000BASE-X GEĀ SMF |
| SFP-GE-S= | 1000BASE-SX GE 550m MMF |
| SFP-GE-L= | 1000BASE-LX/LHĀ GEĀ 550m/10kmĀ MMF/SMF |
| SFP-GE-Z= | 1000BASE-ZX GE Ā 70km SMF |
| GLC-SX-MM= | 1000BASE-SX GE Ā 550m MMF |
| GLC-LH-SM= | 1000BASE-LX/LH GE 550m/10kmĀ MMF/SMF |
| GLC-ZX-SM= | 1000BASE-ZX GEĀ 70km SMF |
| GLC-T= | 1000BASE-T Ā GE 100m Copper |
| GLC-TE= | 1000BASE-T Ā GE 100m Copper |
| GLC-T-RGD= | 1000BASE-T Ā GE 100m Copper |
[/accesories]
Cisco IE-3105-18T2C-E Industrial Ethernet Switch
The Cisco IE-3105-18T2C-E is a robust industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments. This switch features 18 Gigabit Ethernet ports and 2 combo ports (Ethernet/SFP), making it an ideal solution for connecting critical industrial devices such as sensors, controllers, and IP cameras. The IE-3105-18T2C-E is engineered to operate in extreme conditions, ensuring continuous operation while offering advanced Layer 2 management features for effective network segmentation, security, and traffic control.
Key Features:
- 18 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for various industrial devices, ensuring stable network communication.
- 2 x Combo Ports (Ethernet/SFP): Offers flexible uplink options with both Ethernet and SFP connectivity, enabling high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
- Layer 2 Management: Includes essential features such as VLANs, QoS, and security protocols to enhance network control and security.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management features.
- Ports: 18 x Gigabit Ethernet ports, 2 x Combo ports (Ethernet/SFP).
- Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3105-18T2C-E datasheet.
