[shortdesc] 12 ports (8x RJ45, 4x SFP), Network Essentials, fanless, DIN rail mount, -40° to 75°C, 17.8W [/shortdesc]

[properties]

Model	IE-3100-8T4S-E
Product Type	Managed Industrial Ethernet Switch
Series	Cisco Catalyst IE3100 Rugged Series
Mounting	DIN Rail
Total Ports	12 (8 x 10/100/1000 RJ-45 + 4 x 1G SFP)
Switching Capacity	12 Gbps
Forwarding Rate	17.856 Mpps
MAC Address Table	8,000 entries
VLANs Supported	256
Power Consumption	17.8 W (typical)
Input Voltage	DC 12–48V nominal (9.6–60V absolute)
Operating Temperature	-40°C to 75°C (-40°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	5%–95% non-condensing
Dimensions (H × W × D)	5.00 × 3.00 × 4.33 in (12.70 × 7.62 × 11.00 cm)
Weight	1.9 lb (0.86 kg)
Mean Time Between Failures (MTBF)	575,966 hours

[/properties]

[specifications]

Software License	Network Essentials
Memory	4 GB DRAM; 1.5 GB Flash (user accessible)
Removable Storage	1 SD slot (supports 1 GB, 4 GB, 16 GB SD cards; optional)
Console Ports	1 x RS-232 (RJ-45), 1 x Micro USB
Alarm I/O	2 dry-contact alarm inputs
Performance	Queues: 8; IPv4 indirect routes: 2000; IGMP groups: 512; STP instances: 128
Layer 2 Switching	802.1Q, STP, RSTP, MSTP, EtherChannel, Q-in-Q, VTP v2/v3
Layer 3 Routing	Static routing, Inter-VLAN routing
Security Features	802.1X, DHCP Snooping, IP Source Guard, DAI, AAA, TACACS+, RADIUS, SSH
Quality of Service (QoS)	802.1p, DSCP, Auto-QoS, low-latency queuing
Protocols Supported	EtherNet/IP (CIP), Modbus, PROFINET, SCADA, PTP (IEEE 1588v2)
Compliance	IEC 62443-4-1/-2, FCC Class A, EN 55032 Class A, UL/CSA 60950-1, IEC/EN 61010-2-201, ATEX (Class I, Zone 2)
IP Rating	IP30

[/specifications]

[accesories]

Optional Power Supplies	PWR-IE50W-AC=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L=
Optional Mounting	STK-RACK-DINRAIL (19" DIN rail mount kit)
Optional SD Cards	SD-IE-1GB=, SD-IE-16GB=
Compatible SFP Modules	GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-BX40-U-I=, GLC-BX40-D-I= and more

[/accesories]

Reliable Gigabit Switching for Harsh Industrial Environments

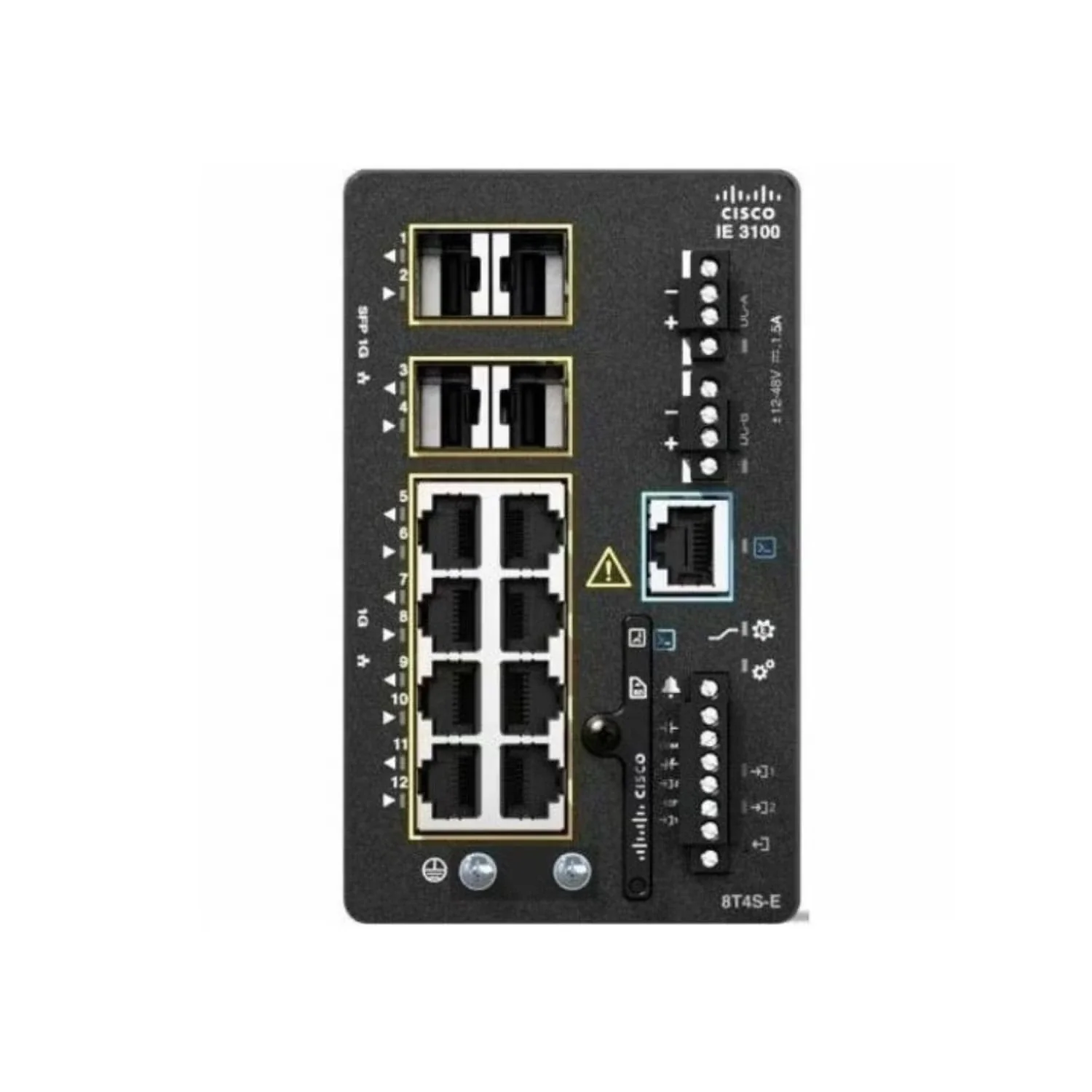

The Cisco Catalyst IE-3100-8T4S-E Rugged Switch delivers 12 Gigabit Ethernet ports in a compact DIN rail form factor, engineered to withstand extreme conditions in manufacturing, transportation, energy, and smart city applications. With Cisco IOS XE software, integrated security, and Zero Trust Network Access, it ensures robust and secure connectivity for industrial IoT deployments.

Key Benefits & Features

• Ruggedized Design: Operates in -40°C to 75°C with fanless cooling and vibration resistance for maximum durability.
• Full Gigabit Connectivity: 8 copper RJ45 ports and 4 SFP uplinks deliver resilient high-speed networking.
• Industrial Protocol Support: Seamless integration with EtherNet/IP, Modbus, PROFINET, and IEEE 1588v2 for automation systems.
• Secure Networking: Built-in Cisco Trust Anchor, Secure Boot, and advanced access control for Zero Trust deployments.
• Flexible Management: Configure via Cisco Catalyst Center, WebUI, CLI, or open APIs for efficient operations.

Ideal Use Cases

• Manufacturing plants and automated production lines
• Energy and utility substation networking
• Transportation and traffic control systems
• Outdoor smart city infrastructure
• Warehousing and logistics environments

Technical Specifications

• Ports: 8 x 10/100/1000 RJ45, 4 x 1GE SFP uplinks
• Switching Capacity: 12 Gbps
• Forwarding Rate: 17.856 Mpps
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Form Factor: Compact, DIN rail mountable
• Memory: 4 GB DRAM, 1.5 GB Flash
• MTBF: 575,966 hours
• Power Consumption: 17.8W typical
• Dimensions: 5.0 x 3.0 x 4.33 in (12.7 x 7.62 x 11 cm)
• Weight: 1.9 lb (0.86 kg)

Empower Your Network with Rugged Reliability.

Built to perform in the harshest environments, the Cisco IE-3100-8T4S-E ensures dependable industrial connectivity and seamless scalability.
