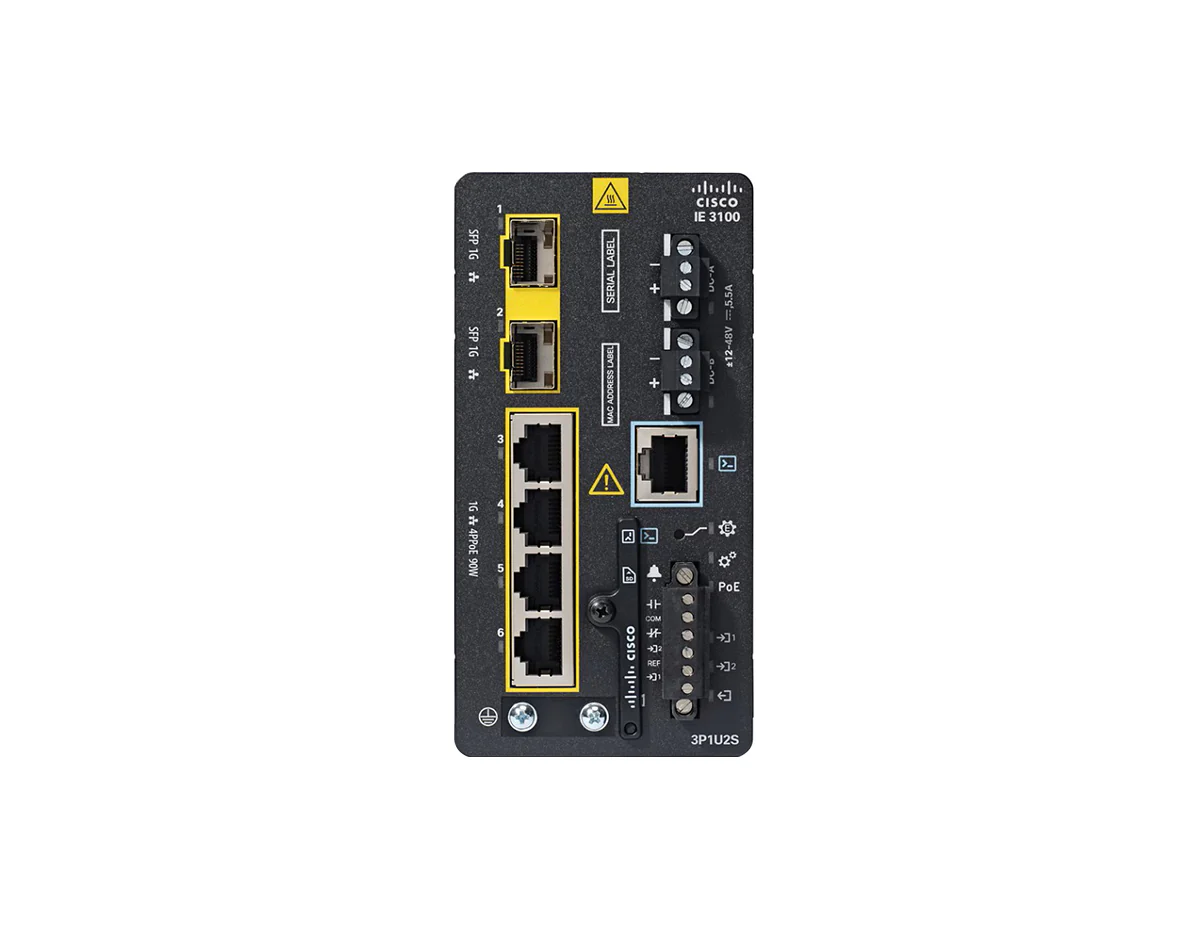

Cisco Catalyst IE-3100-3P1U2S-E Rugged PoE Switch
[shortdesc] 6 ports, 3 GE PoE+, 1 GE 4PPoE, 2 GE SFP uplinks, 120W PoE, DIN rail mountable, Rugged Industrial Ethernet Switch [/shortdesc]
[properties]
| Model | Cisco Catalyst IE3100 Rugged Series |
| SKU | IE-3100-3P1U2S-E |
| Product Type | Managed Industrial Ethernet Switch |
| Software License | Network Essentials |
| Total Ports | 6 |
| Copper Ports | 3 x 10/100/1000 Mbps RJ45 PoE/PoE+; 1 x 10/100/1000 Mbps RJ45 4PPoE |
| SFP Uplink Ports | 2 x 1GE SFP |
| PoE Power Budget | 120 W |
| PoE Output Support | Up to 30 W PoE+ on 3 downlink ports or up to 90 W 4PPoE on 1 downlink port |
| Management | Cisco IOS XE, WebUI, Cisco Catalyst Center |
| Hardware Memory | 4 GB DRAM |
| Flash Memory | 1.5 GB user-accessible flash |
| Removable Storage | Optional SD card support |
| Console Ports | 1 x RS-232 via RJ45; 1 x Micro USB |
| Alarm Inputs | 2 dry-contact alarm inputs |
| Power Input | Dual DC inputs |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 5.00 x 2.55 x 5.08 in. (12.70 x 6.48 x 12.90 cm) |
| Weight | 2.0 lb (0.91 kg) |
| IP Rating | IP30 |
| Operating Temperature | -40C to 75C (-40F to 167F) |
| Storage Temperature | -40C to 85C (-40F to 185F) |
[/properties]
[specifications]
| Input Voltage Range | 12 V to 54 V nominal; 9.6 V to 60 V absolute |
| Max Current (Normal) | 5.8 A at 12 V; 7.3 A at 24 V; 3.7 A at 54 V |
| Inrush Current | 80 A for 1 ms |
| Power Consumption | 22.5 W (excluding PoE) |
| Forwarding Rate | 8.928 Mpps |
| Forwarding Bandwidth | 6 Gbps |
| Number of Queues | 8 egress |
| Unicast MAC Addresses | 8000 |
| IGMP Multicast Groups | 512 |
| VLANs | 256 |
| IPv4 Indirect Routes | 2000 |
| STP Instances | 128 |
| Industrial Protocols | EtherNet/IP (CIP), Modbus, SCADA, GOOSE, PROFINET MRP, IEEE 1588v2 PTP |
| Redundancy Features | REP, MRP, G.8032 Ethernet Ring Protection |
| Layer 2 Features | 802.1Q, RSTP, LLDP, MSTP, LACP, PVRST+, PVST+, Rapid PVST, SPAN, RSPAN, FSPAN, Storm Control, VTP v2/v3, Q-in-Q, EtherChannel |
| Layer 3 Features | Inter-VLAN routing, static routing |
| Security Features | AAA, 802.1X, RADIUS, TACACS+, SSH, HTTPS, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 RA Guard, SCP, X.509v3 |
| QoS Features | 802.1p, priority queuing, MQC, class-based shaping, policing, Auto-QoS, DSCP mapping |
| Automation | YANG, NETCONF, RESTCONF |
| Operating Altitude | Up to 15,000 ft (4,572 m) |
| Humidity | 5% to 95% relative humidity, noncondensing |
| Shock and Vibration | IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373 |
| MTBF | 503,617 hours (Telcordia Issue 4) |
| Compliance | IEC 62443-4-1/4-2, FCC Part 15 Subpart B Class A, EN 55032 Class A, CE, RoHS, IEC/EN 61000, EN 61326 |
| Industry Standards | EN 61131-2, IEEE 1613, IEC 61850-3, EN50121-3-2, EN50121-4, ODVA Industrial Ethernet/IP, PROFINET v2.3 |
| Safety Certifications | UL/CSA 60950-1, UL/CSA 62368-1, IEC 62368-1, UL/CSA 61010-2-201, UL121201 Class I Div 2, ATEX, IECEx |
[/specifications]
[accesories]
| Optional Power Supplies | PWR-IE50W-AC=, PWR-IE50W-AC-L=, PWR-IE50W-AC-IEC=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L= |
| Optional SD Cards | SD-IE-1GB=, SD-IE-16GB= |
| Optional Mounting Kit | STK-RACK-DINRAIL= (19-inch DIN Rail mount kit) |
| Rugged SFP Modules | GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD, GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD= |
| 1000BASE-T SFP Modules | GLC-T=, GLC-TE=, GLC-T-RGD= |
| Gigabit Fiber SFP Modules | GLC-SX-MMD=, GLC-LH-SMD=, GLC-EX-SMD=, GLC-ZX-SMD=, GLC-BX-D=, GLC-BX-U=, GLC-BX-D-I=, GLC-BX-U-I=, SFP-GE-S=, SFP-GE-L=, SFP-GE-Z= |
[/accesories]
Rugged Gigabit PoE Switching for Industrial Edge Networks
The Cisco IE-3100-3P1U2S-E Catalyst IE3100 Rugged Series switch brings secure, high-performance Gigabit Ethernet connectivity to harsh industrial and extended enterprise environments. Purpose-built for space-constrained deployments, this compact, fixed-form factor switch delivers reliable PoE-powered edge access, high-speed fiber uplinks, and the intelligence of Cisco IOS XE software, ensuring robust uptime for demanding operational networks.
Key Benefits and Features
- Industrial PoE connectivity: Supports 3 Gigabit Ethernet PoE+ ports and 1 Gigabit Ethernet 4PPoE port, powering critical industrial endpoints such as IP cameras, sensors, wireless access points, and PTZ devices.
- Flexible fiber-ready uplinks: Includes 2 Gigabit SFP uplink ports, providing resilient, high-bandwidth fiber connectivity for extended industrial, warehouse, utility, and outdoor network infrastructures.
- Rugged fanless design: Engineered to withstand extreme conditions with convection-based cooling, vibration and shock resistance, surge protection, and wide-temperature operation from -40C to 75C.
- Advanced industrial resiliency: Supports critical redundancy protocols including REP, MRP, and G.8032 Ethernet Ring Protection, alongside industrial automation standards like PROFINET, Modbus, EtherNet/IP, SCADA, and IEEE 1588v2 Precision Time Protocol.
- Secure Cisco IOS XE platform: Features the Network Essentials software suite, providing robust security through 802.1X, DHCP snooping, Dynamic ARP Inspection, SSH, NETCONF, RESTCONF, and modern WebUI management.
Ideal Use Cases
- Industrial automation and manufacturing control networks
- Warehouses and distribution centers with space-constrained edge cabinets
- Outdoor, utility, mining, oil and gas, and smart city infrastructure deployments
- Aggregation of PoE-powered endpoints (IP cameras, wireless APs, industrial sensors)
- Operational Technology (OT) access switching requiring rugged reliability
Technical Specifications
- SKU: IE-3100-3P1U2S-E
- Product Series: Cisco Catalyst IE3100 Rugged Series
- Software License: Network Essentials
- Total Ports: 6
- Copper Ports: 3 x 10/100/1000 PoE+ and 1 x 10/100/1000 4PPoE
- Uplink Ports: 2 x 1GE SFP
- PoE Budget: 120W
- Forwarding Bandwidth: 6 Gbps
- Forwarding Rate: 8.928 Mpps
- Memory: 4 GB DRAM, 1.5 GB user-accessible flash
- Power Input: Dual DC inputs, 12V to 54V nominal
- Power Consumption: 22.5W (excluding PoE)
- Mounting: DIN rail
- Dimensions: 5.00 x 2.55 x 5.08 in.
- Weight: 2.0 lb
- Operating Temperature: -40C to 75C
Deploy Rugged Cisco PoE Switching with Confidence
Choose the Cisco IE-3100-3P1U2S-E for secure, compact, industrial-grade Gigabit PoE connectivity. Order today to upgrade your industrial network infrastructure.
