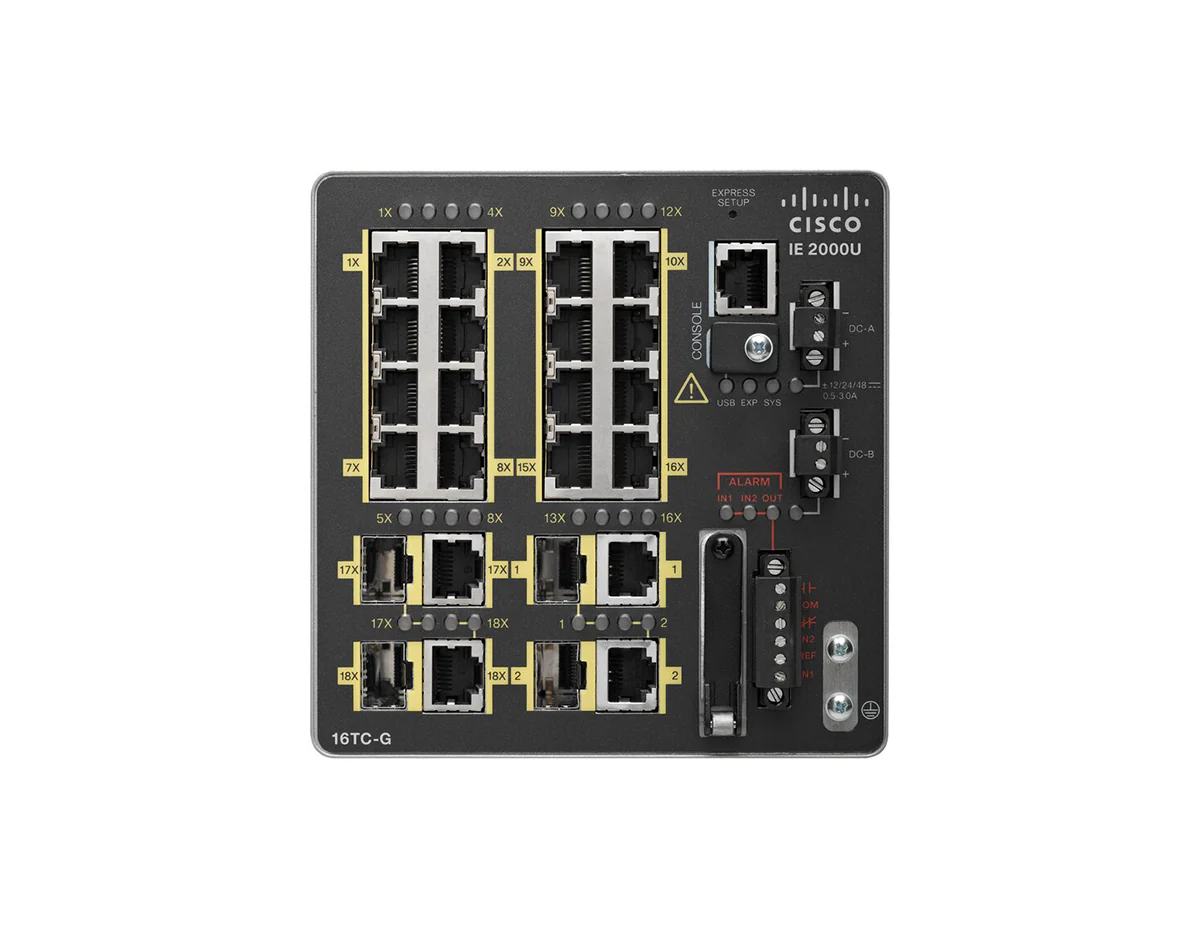

Cisco IE-2000U-16TC-G Switch
[shortdesc]
- Switch
- Managed, 16 x 10/100 + 2 x combo Gigabit SFP + 2 x combo Fast Ethernet/Gigabit SFP
- DIN Rail Mountable
[properties]
| Properties | Cisco IE-2000U-16TC-G |
| Description | High-Performance Industrial Ethernet Switch featuring 16 Fast Ethernet 10/100BASE-T RJ-45 ports and 2 Gigabit combo uplinks (RJ-45/SFP) plus 2 Fast/Gigabit combo uplinks, built for harsh utility environments and reliable performance; supports IEC 61850-3 and IEEE 1613 substation compliance. |
| Product Family | Industrial Ethernet 2000U |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 20 |
| RJ45 Ports | 16 FE |
| Combo Ports (SFP or RJ45) | 2 GE + 2 FE |
| SFP Ports | - |
| Manufacturing License | LAN Base |
| IEEE 1588 | X |
| PRP | X |
| PoE(+) | - |
| Software Features | |
| LAN Base license | Features |
| Per port per VLAN ingress policing | Resilient Ethernet Protocol |
| SCADA protocol classification using ACLs | FlexLink |
| Per GOOSE VLAN classification/statistics | Link-state tracking |
| Configurable egress buffers/thresholds | xSTP: 802.1s/802.1w |
| Strict priority queuing with optional policer | EtherChannel/LACP/Port Aggregation Protocol (PAgP) |
| Web- and MAC-based authentication | External alarm contacts |
| Port security plus Cisco enhancements | Modbus memory map support |
| DHCP snooping, dynamic ARP inspection, IP source guard | FEFI |
| Spanning Tree Protocol security mechanisms | Cisco Configuration Professional |
| Storm control | Utility-specific Smartport macros |
| Wire-speed L2-L4 ACLs | DHCP autoconfig/image upgrade UL60950-1 and CSA60950-1 |
| Private VLAN | Config rollback/replace |
| Secure connectivity: SSH/SSL/SCP | SPAN/RSPAN |
| RADIUS/TACACS+ | Layer 3 IP SLA |
| SNMPv3 crypto | GOLD |
| Configuration file security | OBFL |
| UNI/ENI and NNI port types (configurable on all ports) | Time Domain Reflectometry (copper ports) |
| Configurable per VLAN MAC learning | Digital Optical Monitoring (DOM), optical ports |
| MAC address learning and aging notifications | Ethernet OAM |
| Configurable control plane security | Connectivity Fault Management (CFM) |
| IEEE 802.1x and identity-based network services | IEEE 802.1ag Ethernet in the first mile (EFM) |
| IEEE 802.1AR for hardware-based security | IEEE 802.3ah Ethernet LMI (PE) -MEF |
| Ethernet LMI (CE): MEF | CFM to E-LMI Interworking |
| CFM to EFM Interworking | 802.1ag plus IPSLA (Ethernet SLAs) |
| Parallel Redundancy Protocol (PRP) | - |
| Utility | MODBUS TCP/IP Server |
| Note: The following routing features require the IP Services license (SIEUISK9T-15002EK=). | |
| Static routing, Inter-VLAN routing | HSRP |
| Multi-VRF CE (VRF-lite) | Multicast routing: PIM (SM, DM) |
| Policy-based routing | Source Specific Multicast |
| RIP Versions 1 and 2 | Source Specific Multicast mapping |
| EIGRP, OSPF, and IS-IS | Bidirectional Forwarding Detection |
| BGPv4 | Multicast support for VRF (mVRF-Lite) |
| IPv6 routing | VRF-aware services (ARP, ping, SNMP, HSRP, uRPF syslog, traceroute, FTP, and TFTP) |
| Dimensions (H x W x D) | 5.1 x 5.0 x 5.26 in (130 x 127 x 134 mm) |
| Weight | 4.35 lbs (1.97 kg) |
[/properties]
[specifications]
| Specifications | IE-2000U-16TC-G |
| DRAM | 256 MB DRAM with ECC memory |
| Flash / Removable Storage | 1 GB removable SD flash memory card (CG swap drive) – 128 MB usable space |
| Hardware | Mini-USB connector; dual DC inputs; alarm I/O (two inputs, one relay output) |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Management Protocol (IGMP) Multicast Groups | 1000 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 375 (default TCAM template) |
| Power Consumption | 13–20 W |
| Connectors and Cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km); SFP/CWDM SFP ports use LC; 10/100/1000BASE-T ports: RJ-45, Category 5 UTP (4-pair) |
| Mean Time Between Failure (MTBF) | 535,190 hours (16-port models) |
| Operating Temperature | -40°C to +75°C; -40°C to +70°C (vented, 40 LFM); -40°C to +60°C (sealed, 0 LFM); -34°C to +75°C (fan/blower, 200 LFM); -40°C to +85°C (IEC 60068-2-2 environmental type testing, 100 hours); Relative humidity 5%–95% non-condensing |
| Operating Altitude | -60 m (-200 ft) to 3,000 m (10,000 ft) |
| Storage Temperature | -50°C to +85°C (Storage altitude up to 15,100 ft / 4600 m) |
| Safety Certifications | UL 60950-1; CSA 60950-1; EN 60950-1; IEC 60950-1 (CB) |
| Substation Compliance | IEC 61850-3; IEEE 1613 |
| Standard Electromagnetic Emissions Certifications | FCC Part 15 Class A; EN 55022/CISPR22 Class A; ICES-003 Class A; EN 300 386; VCCI Class A; AS/NZS CISPR22 Class A; CNS 13438 Class A; KN 22 Class A; CE Marking |
| Industrial Control Safety | UL508; CSA C22.2 No. 142 |
| Hazard Locations | ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) (requires cabinet enclosure); UL/CSA 60079-0, -15 (Class 1, Zone 2, Group II gases, requires cabinet enclosure); EN 60079-0, -15 ATEX (Class I, Zone 2, Group II gases, requires cabinet enclosure); IEC 60079-0, -15 (Class I Zone 2, Group II gases, requires cabinet enclosure); CSA 213 |
| EMC Interface Immunity | EN 55024 (CISPR 24); AS/NZS CISPR 24; KN 24; IEC61000-4-2 (Criteria A - Class 2); IEC61000-4-3/ENV50204 (Criteria A); IEC61000-4-4 (Criteria A/B); IEC61000-4-5 (Criteria B); IEC61000-4-6 (Criteria A) |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs | |
| Product Number | |
| IE-SW-SPARE | Spare IOS upgrade part number (L2 to L3 features) |
| MEM-SD-1GB-RGD | 1 GB industrial-grade Secure Digital (SD) memory card |
| STK-RACKMNT-2955 | 19 in. DIN rail mount kit |
| SIEUISK9T-15002EK= | IP Services Software License for IE-2000U switches |
| IE 2000U Series Power Supplies | |
| PWR-IE50W-AC= | 50W AC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC Power Supply (IEC) |
| PWR-IE65W-PC-AC= | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC= | 65W PC-DC Power Supply |
| PWR-IE170W-PC-AC= | 170W PC-AC Power Supply |
| PWR-IE170W-PC-DC= | 170W PC-DC Power Supply |
| SFPs | |
| GLC-FE-100FX-RGD= | 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX-RGD | 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-T-I= | 100BASE-T for Fast Ethernet SFP Ports |
| GLC-FE-100FX= | 100BASE-FX SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX= | 100BASE-LX10 SFP for Fast Ethernet SFP Ports |
| GLC-FE-100EX= | 100BASE-EX for Fast Ethernet SFP Ports |
| GLC-FE-100ZX= | 100BASE-ZX for Fast Ethernet SFP Ports |
| GLC-FE-100BX-D= | 100BASE-BX10-D SFP for Fast Ethernet SFP Ports |
| GLC-FE-100BX-U= | 100BASE-BX10-U SFP for Fast Ethernet SFP Ports |
| GLC-SX-MM-RGD= | 1000BASE-SX short wavelength; rugged |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH long wavelength; rugged |
| GLC-ZX-SM-RGD= | 1000BASE-ZX extended distance; rugged |
| GLC-BX40-U-I= | 1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-D-I= | 1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-DA-I= | 1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-U-I= | 1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-D-I= | 1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-SX-MMD= | 1000BASE-SX short wavelength; with DOM |
| GLC-LH-SMD= | 1000BASE-LX/LH long-wavelength; with DOM |
| GLC-EX-SMD= | 1000BASE-EX long-wavelength; with DOM |
| GLC-ZX-SMD= | 1000BASE-ZX extended distance; with DOM |
| GLC-BX-D= | 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| GLC-BX-U= | 1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
| CWDM-SFP-xxxx= (8 freq) | Longwave xxxx-nm laser, single mode |
| DWDM-SFP-xxxx= (40 freq) | 1000BASE-DWDM SFP |
| SFP-GE-S= | Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range. |
| SFP-GE-L= | Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range. |
| SFP-GE-Z= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range. |
| GLC-SX-MM= | Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, commercial operating temperature range. |
| GLC-LH-SM= | Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, commercial operating temperature range. |
| GLC-ZX-SM= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range. |
| GLC-TE= | 1000BASE-T standard |
| GLC-T= | 1000BASE-T SFP transceiver module for copper networks, commercial operating temperature range. |
[/accesories]
Cisco IE-2000U-16TC-G Industrial Ethernet Switch
The Cisco IE-2000U-16TC-G is a rugged, highly reliable industrial Ethernet switch designed to meet the needs of utility networks and demanding environments. This switch features 16 Fast Ethernet ports and 2 Gigabit combo ports (Ethernet/SFP), plus 2 additional Fast/Gigabit combo uplinks, making it ideal for connecting a wide variety of industrial devices such as sensors, controllers, and IP cameras. The IE-2000U-16TC-G is engineered to operate under extreme conditions, ensuring continuous operation in challenging environments while offering advanced Layer 2 management features for effective network segmentation and traffic control.
Key Features:
- 16 x Fast Ethernet Ports: Provides reliable data connectivity for a variety of industrial devices, ensuring stable and efficient communication in utility networks.
- 2 x Gigabit Combo Ports + 2 x FE/GE Combo Ports: Offers flexible uplink options with Ethernet and SFP connectivity, ensuring high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand harsh industrial environments, including extreme temperatures, shock, and vibration, with substation compliance (IEC 61850-3, IEEE 1613).
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, allowing for enhanced control over network traffic.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for small enclosures and industrial cabinets.
Technical Overview:
- Recommended for: Utility networks and industrial environments requiring reliable, scalable Ethernet connectivity with flexible uplink options.
- Ports: 16 x Fast Ethernet ports, 2 x Gigabit combo ports (Ethernet/SFP), plus 2 x Fast/Gigabit combo uplinks.
- Operating Temperature: Designed to operate in a wide temperature range suitable for industrial applications.
- Management: Managed through GUI (Cisco Configuration Professional), CLI, and SNMP for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial and utility environments.
You can check the related tab for the Cisco IE-2000U-16TC-G datasheet.
