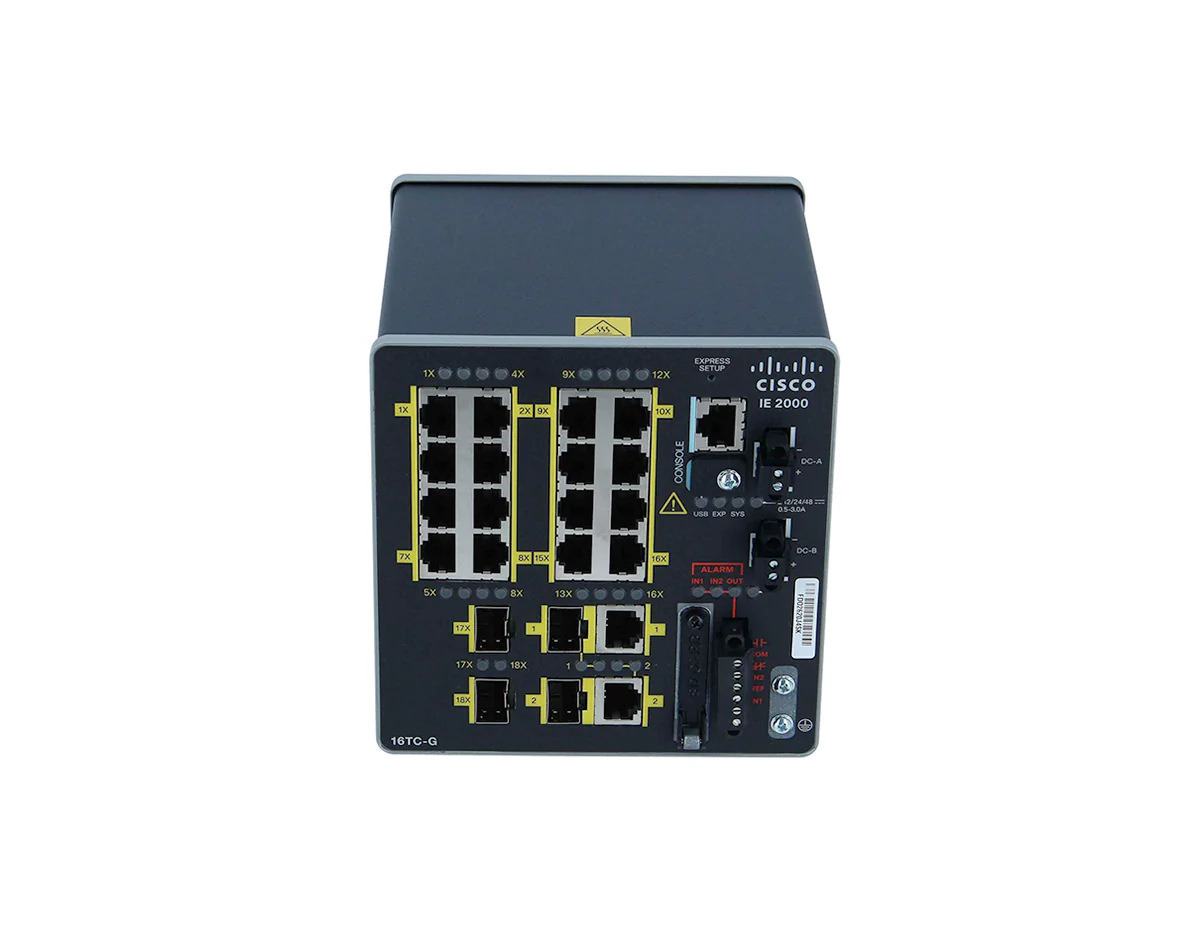

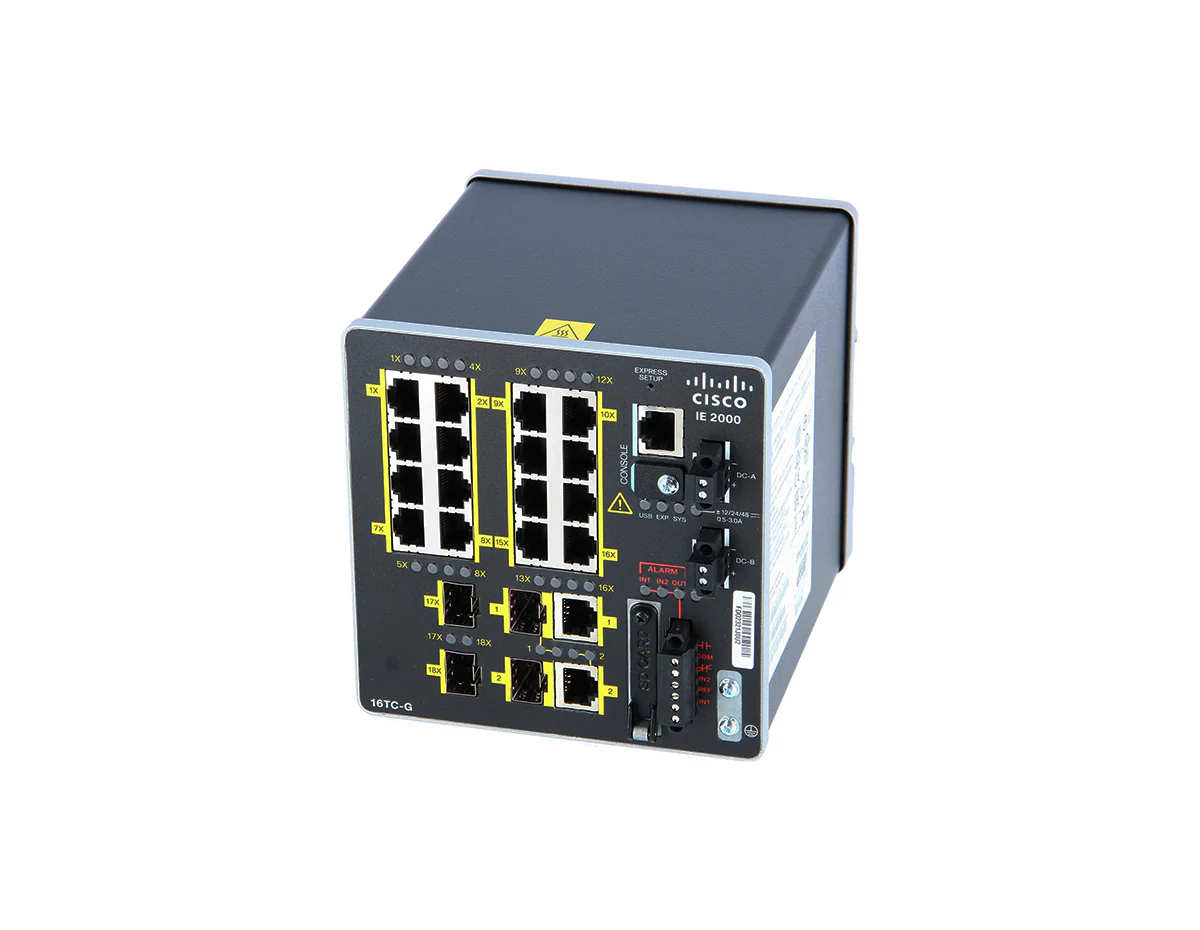

Cisco IE-2000-16TC-G-X Switch
[shortdesc]
- Switch
- Managed
- 16 x 10/100 + 2 x combo GE (SFP/RJ-45) + 2 x FE SFP
- DIN Rail Mountable
[properties]
| Properties | Cisco IE-2000-16TC-G-X |
| Description | IE2000 with 16FE copper, 2GE SFP/RJ-45 combo, and 2FE SFP (LAN Base), conformal coating |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 20 |
| RJ-45 Ports | 16 FE |
| Combo Ports (SFP or RJ-45) | 2 GE |
| SFP Ports | 2 FE |
| Manufacturing License | LAN Base |
| Type of Possible Upgrade | 1, 2, 4 |
| IEEE 1588 | Yes |
| NAT | U |
| PoE(+) | - |
| Conformal Coating | Yes |
| Type of possible upgrade legend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced LAN Base or IP Lite license |
| Software Features | |
| LAN Base license | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, FlexLink |
| Security | IPv4 Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1X, Guest VLAN, MAC Authentication Bypass, 802.1X Multi-Domain Authentication, Storm Control, Trust Boundary, Access Control Lists (ACL) |
| Quality of Service | IPv4 ingress policing, rate limit, egress queuing/shaping, AutoQoS, PROFINET QoS |
| Management | Port-based DHCP, Storm Control (unicast/multicast/broadcast), SPAN sessions, RSPAN, DHCP server, customized TCAM/SDM size configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Utility | MODBUS TCP/IP |
| Dimensions (H x W x D) | 5.1"H x 5.0"W x 5.26"D (130 mm H x 127 mm W x 134 mm D) |
| Weight | 4.35 lb (1.97 kg) |
[/properties]
[specifications]
| Specifications | IE-2000-16TC-G-X |
| DRAM | 256 MB DRAM with ECC memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Management Protocol (IGMP) multicast groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) bidirectional 128 NAT translation entries |
| IPv4 routing | 3500 |
| IPv6 routing | 1750 |
| Alarm | Alarm I/O: two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power Consumption | 21–30 W |
| Connectors and cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40°C to +70°C (vented enclosure, 40 LFM airflow) -40°C to +60°C (sealed enclosure, 0 LFM airflow) -34°C to +75°C (fan/blower-equipped enclosure, 200 LFM airflow) -40°C to +85°C (IEC 60068-2-2 Environmental Type Testing, 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1 (with country deviations); NOM to NOM-019-SCF1 (through partners and distributors); CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS compliance; AS/NZS CISPR 22 Class A, AS/NZS CISPR 24; CISPR 11 Class A, CISPR 22 Class A; ICES-003 Class A; KCC (Korea); CE Marking; C-Tick (Australia); Russia and Brazil certifications; IEC/EN 61000-4-2 (ESD) 15 kV/8 kV contact; IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m); IEC/EN 61000-4-4 (Fast Transients, 4 kV power line, 4 kV data line); IEC/EN 61000-4-5 (Surge 2 kV/1 kV); IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf); IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity); IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity); IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity); IEC/EN 61000-4-11 (AC Power Voltage Immunity); IEC/EN 61000-4-29 (Voltage Dips Immunity); IEC/EN 61000-6-1 (Immunity for Light Industrial Environments); IEC/EN 61000-6-2 (Immunity for Industrial Environments); IEC/EN 61000-6-4 Class A; EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (operational shock: 30G 11 ms, half sine); IEC 60068-2-27 (non-operational shock 55–70G, trapezoidal); IEC 60068-2-6, IEC 60068-2-64, EN 61373 (operational vibration and non-operational vibration) |
| Industry Standards | UL508; CSA C22.2 No. 142; EN 61131-2 (EMC/EMI, environmental, mechanical); protective coating (specific models only); Marine DNV; Substation KEMA (IEEE 1613, IEC 61850-3); Railway EN 50155 (EMI/EMC, environmental, mechanical); EN 50121-3-2; EN 50121-4; NEMA TS-2 (EMC, environmental, mechanical); ABB Industrial IT certification; IP30; ODVA EtherNet/IP support; PROFINET v2.3 support |
| Hazard Locations (* cabinet enclosure required) | ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) *; EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A–D) * |
| Humidity | IEC 60068-2-52 (salt fog/mist, test Kb) marine environments; IEC 60068-2-3; IEC 60068-2-30; relative humidity: 5% to 95% non-condensing |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB | 1 GB ruggedized SD memory card (must be ordered, not included by default) |
| STK-RACK-DINRAIL | 19 in. DIN rail mount kit |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features, MRP ring, etc.) |
| L-IE2000-L-B | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L | IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
| LIC-IE2000-L-IP | IE2000 LAN Lite to IP Lite e-license |
| LIC-MRP-MANAGER | MRP Ring Manager license |
| LIC-MRP-Client | MRP Ring Client license |
| Wallmount-IE2k-16 | Wall-mount kit accessory for IE2000 16-port downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC-DC Power Supply |
| PWR-IE170W-PC-AC | 170W PC-AC Power Supply |
| PWR-IE170W-PC-DC | 170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PC-AC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PC-AC-L Power Supply |
[/accesories]
Cisco IE-2000-16TC-G-X Industrial Ethernet Switch
The Cisco IE-2000-16TC-G-X is a rugged industrial Ethernet switch designed to provide reliable and secure network connectivity in demanding environments. This switch features 16 Fast Ethernet ports, 2 Gigabit combo uplinks (Ethernet/SFP), and 2 additional Fast Ethernet SFP uplinks, making it an ideal choice for connecting industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16TC-G-X is built to withstand extreme conditions, ensuring continuous operation in challenging industrial settings while offering essential Layer 2 management features for network segmentation and traffic control.
Key Features:
- 16 x Fast Ethernet Ports: Delivers reliable and efficient data connectivity for a wide range of industrial devices.
- 2 x Gigabit Combo Uplinks: Flexible Ethernet/SFP options enable high-speed backhaul and network scalability.
- 2 x Fast Ethernet SFP Uplinks: Adds additional fiber uplink flexibility for diverse topologies.
- Ruggedized Design: Engineered for harsh environments with extended temperature, shock, and vibration tolerance.
- Layer 2 Management: Includes VLANs, QoS, and IGMP snooping for fine-grained traffic control.
Technical Overview:
- Recommended for: Industrial networks requiring flexible uplinks and basic Layer 2 management with conformal coating.
- Ports: 16 x 10/100 FE, 2 x combo GE (SFP/RJ-45), 2 x FE SFP.
- Operating Temperature: Wide industrial operating range as listed above.
- Management: Web UI, CLI, and SNMP for simplified deployment and monitoring.
- Form Factor: Compact DIN-rail chassis.
You can check the related tab for the Cisco IE-2000-16TC-G-X datasheet.
