[shortdesc]

• Switch
• Managed
• 16 × 10/100 + 2 × combo Gigabit (RJ-45/SFP) + 2 × Fast Ethernet SFP
• DIN-rail mountable

[/shortdesc]

[properties]

Properties	Cisco IE-2000-16TC-G-N
Description	IE2000 with 16FE Copper, 2GE SFP/T and 2FE SFP (Enhanced LAN Base)
Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Total Ports	20
RJ45 Ports	16 FE
Combo Ports (SFP or RJ45)	2 GE
SFP Ports	2 FE
Manufacturing License	Enhanced LAN Base
Type of Possible Upgrade	1, 2
IEEE 1588	Yes
L2 NAT	Yes
PoE(+)	—
Conformal Coating	—
Software Features	Enhanced LAN Base license
Additional features	Layer 2 switching with 1:1 static Network Address Translation (NAT)
Dimensions (H×W×D) Inches	5.1"H × 5.0"W × 5.26"D (130 mm H × 127 mm W × 134 mm D)
Weight	4.35 lb (1.97 kg)

[/properties]

[specifications]

Specifications	IE-2000-16TC-G-N
DRAM	256 MB DRAM with ECC memory
Flash Memory	64 MB
Hardware	IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	255
Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) bidirectional 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Power Consumption	21–30 W
Connectors and Cabling	100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Operating Temperature	-40°C to +70°C (vented enclosure – 40 LFM) -40°C to +60°C (sealed enclosure – 0 LFM) -34°C to +75°C (fan/blower-equipped enclosure – 200 LFM) -40°C to +85°C (IEC 60068-2-2 type test, 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1; NOM-019-SCF1; CE Marking
EMI Emissions and Immunity Compliance	FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS; AS/NZS CISPR 22/24; CISPR11/22 Class A; ICES-003 Class A; KCC; CE; C-Tick; Russia & Brazil certifications; IEC/EN 61000-4-2/3/4/5/6/8/9/10/11/29; IEC/EN 61000-6-1/2/4; EN 61326
Shock and Vibration	IEC 60068-2-27 (Operational 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational 55–70G, trapezoidal); IEC 60068-2-6/-2-64; EN 61373
Industry Standards	UL508; CSA C22.2 No. 142; EN 61131-2; Protective coating (specific models only); Marine DnV; IEEE 1613/IEC 61850-3; EN 50155; EN 50121-3-2/-4; NEMA TS-2; ABB Industrial IT; IP30; ODVA EtherNet/IP; PROFINET v2.3
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class 1, Div 2 A-D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A-D) *
Humidity	IEC 60068-2-52 (salt fog mist) marine environments; IEC 60068-2-3; IEC 60068-2-30; relative humidity: 5%–95% non-condensing

[/specifications]

[accesories]

Accessories and License Upgrade PIDs
SD-IE-1GB=	1 GB ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL=	19 in. DIN-rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc.)
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IP Lite e-license
LIC-MRP-MANAGER=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license
IE 2000 Series Power Supplies
Product Number	Description
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W AC Power Supply
PWR-IE65W-PC-DC=	65W DC Power Supply
PWR-IE170W-PC-AC=	170W AC Power Supply
PWR-IE170W-PC-DC=	170W DC Power Supply
PWR-IE240W-PCAC-L=	240W AC-L Power Supply
PWR-IE480W-PCAC-L=	480W AC-L Power Supply

[/accesories]

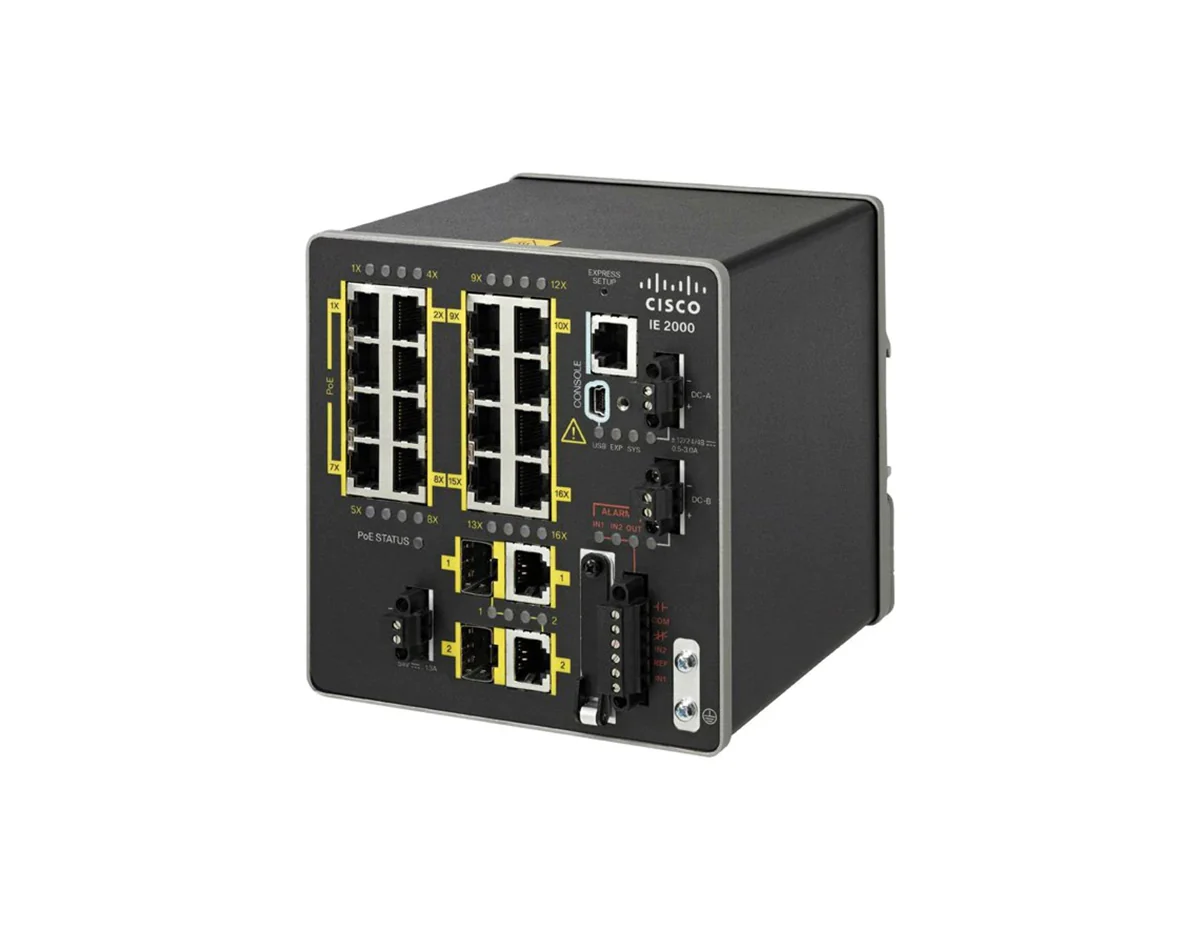

Cisco IE-2000-16TC-G-N Industrial Ethernet Switch

The Cisco IE-2000-16TC-G-N is a rugged industrial Ethernet switch designed to deliver reliable network connectivity in harsh environments. This switch features 16 Fast Ethernet downlinks, 2 Gigabit combo uplinks (RJ-45/SFP), and 2 Fast Ethernet SFP uplinks. It is engineered to withstand extreme conditions, ensuring continuous operation in demanding industrial settings while offering Enhanced LAN Base features including Layer 2 switching and 1:1 static NAT for effective segmentation and traffic control.

Key Features:

• 16 × Fast Ethernet downlinks for stable device connectivity in OT networks.
• 2 × Gigabit combo + 2 × Fast Ethernet SFP uplinks for flexible fiber/copper backhaul.
• PTPv2 (IEEE 1588) support via integrated FPGA for precise time sync.
• Enhanced LAN Base feature set with static 1:1 L2 NAT.
• Compact, DIN-rail design for space-constrained cabinets.

You can check the related tab for the Cisco IE-2000-16TC-G-N datasheet.
