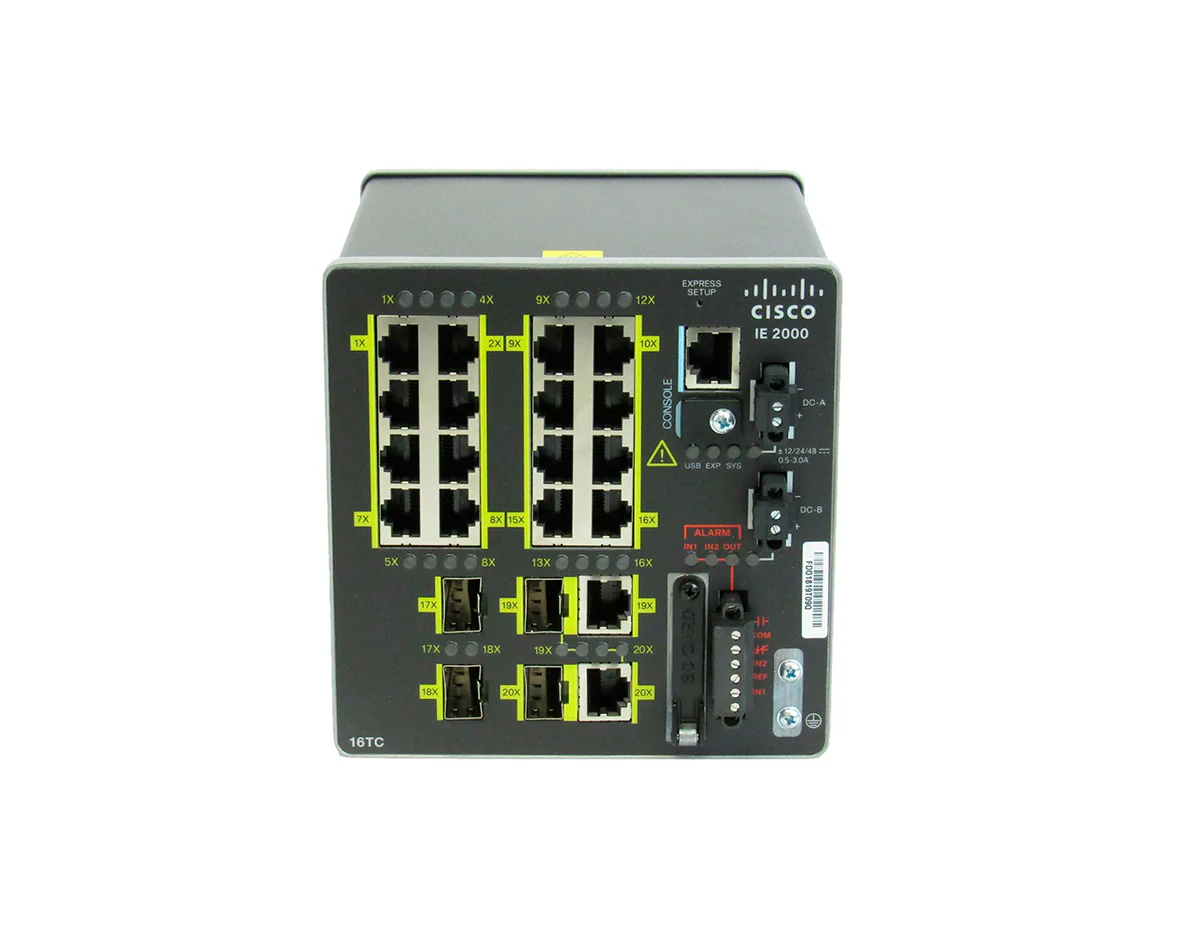

Cisco IE-2000-16TC-B Switch
[shortdesc]
- Switch
- Managed
- 16 x 10/100 + 2 x combo Fast Ethernet (RJ-45/SFP) + 2 x Fast Ethernet SFP
- DIN Rail Mountable
[properties]
| Properties | Cisco IE-2000-16TC-B |
| Description | IE2000 with 16 FE Copper, 2 FE combo (SFP/RJ-45) and 2 FE SFP uplinks (LAN Base) |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 20 |
| RJ45 Ports | 16 FE |
| Combo Ports (SFP or RJ45) | 2 FE |
| SFP Ports | 2 FE |
| Manufacturing License | LAN Base |
| Type of Possible Upgrade | 1 |
| IEEE 1588 | Yes |
| NAT | - |
| PoE(+) | - |
| Conformal Coating | - |
| Type of possible upgrade legend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced LAN Base or IP Lite license |
| Software Features | |
| LAN Base license | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1X, Guest VLAN, MAC Authentication Bypass, 802.1X Multi-Domain Authentication, Storm Control, Trust Boundary, Access Lists (ACL) |
| Quality of service | IPv4 Ingress Policing, Rate Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Utility | MODBUS TCP/IP |
| Dimensions (HxWxD) Inches | 5.1"H x 5.0"W x 5.26"D (130 mm H x 127 mm W x 134 mm D) |
| Weight | 4.35 lb (1.97 kg) |
[/properties]
[specifications]
| Specifications | IE-2000-16TC-B |
| DRAM | 256 MB DRAM with ECC Memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Management Protocol (IGMP) Multicast Groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) bidirectional 128 NAT translation entries |
| IPv4 Routing | 3500 |
| IPv6 Routing | 1750 |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power consumption | 21–30 W |
| Connectors and cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40°C to +70°C (vented enclosure – 40 LFM air flow) -40°C to +60°C (sealed enclosure – 0 LFM air flow) -34°C to +75°C (fan or blower-equipped enclosure – 200 LFM air flow) -40°C to +85°C (IEC 60068-2-2 environmental type testing, 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC (Korea) CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN/EN61000-4-2 (Electrostatic Discharge), 15 kV/8 kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m) IEC/EN 61000-4-4 (Fast Transients – 4 kV power line, 4 kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (Operational Shock: 30G 11 ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55–70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Industry Standards | UL508 CSA C22.2 No. 142 EN 61131-2 (EMC/EMI, environmental, mechanical) Protective coating (specific models only) Marine DnV Substation KEMA (IEEE 1613, IEC 61850-3) Railway EN 50155 (EMI/EMC, environmental, mechanical) EN50121-3-2 EN50121-4 NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification IP30 ODVA Industrial Ethernet/IP support PROFINET v2.3 support |
| Hazard Locations (* Cabinet enclosure required) | ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A–D) * |
| Humidity | IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068-2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB= | 1 GB ruggedized SD memory card (must be ordered, not included by default) |
| STK-RACK-DINRAIL= | 19 in. DIN rail mount kit |
| IE-LICENSE-SPARE= | Spare license for software upgrade (L2 to L3 features, MRP ring, etc.) |
| L-IE2000-L-B= | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E= | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L= | IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
| LIC-IE2000-L-IP= | IE2000 LAN Lite to IP Lite e-license |
| LIC-MRP-MANAGER= | MRP Ring Manager license |
| LIC-MRP-CLIENT= | MRP Ring Client license |
| WALLMOUNT-IE2K-16= | Wall mount kit accessory for IE2000 16-port downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC= | 50W AC Power Supply |
| PWR-IE50W-AC-L= | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC= | 65W AC Power Supply |
| PWR-IE65W-PC-DC= | 65W DC Power Supply |
| PWR-IE170W-PC-AC= | 170W AC Power Supply |
| PWR-IE170W-PC-DC= | 170W DC Power Supply |
| PWR-IE240W-PCAC-L= | 240W AC-L Power Supply |
| PWR-IE480W-PCAC-L= | 480W AC-L Power Supply |
[/accesories]
Cisco IE-2000-16TC-B Industrial Ethernet Switch
The Cisco IE-2000-16TC-B is a rugged industrial Ethernet switch designed to provide reliable network connectivity in demanding environments. This switch features 16 Fast Ethernet downlinks plus 2 Fast Ethernet combo uplinks (RJ-45/SFP) and 2 dedicated Fast Ethernet SFP uplinks, making it ideal for connecting a variety of industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16TC-B is engineered to withstand harsh conditions, ensuring continuous operation in industrial settings while offering essential Layer 2 management features for effective network segmentation and traffic control.
Key Features:
- 16 x Fast Ethernet Ports: Provides stable and efficient data connectivity for a wide range of industrial devices, ensuring reliable network communication.
- 2 x FE Combo + 2 x FE SFP Uplinks: Offers flexible uplink options with copper and fiber connectivity for scalable backhaul.
- Ruggedized Design: Built to operate in challenging industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
- Compact Form Factor: Designed for space-constrained installations, suitable for small enclosures and industrial cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring reliable Ethernet connectivity with flexible FE uplinks and basic management features.
- Ports: 16 x FE downlinks, 2 x FE combo (RJ-45/SFP) uplinks, 2 x FE SFP uplinks.
- Operating Temperature: Wide industrial temperature range supported per specifications.
- Management: Managed through a web interface, CLI, and SNMP for easy setup and monitoring.
- Form Factor: DIN rail mountable, compact long-chassis design.
You can check the related tab for the Cisco IE-2000-16TC-B datasheet.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Cisco IE-2000-16TC-B Switch
Cisco IE-2000-16TC-B Switch
[shortdesc]
- Switch
- Managed
- 16 x 10/100 + 2 x combo Fast Ethernet (RJ-45/SFP) + 2 x Fast Ethernet SFP
- DIN Rail Mountable
[properties]
| Properties | Cisco IE-2000-16TC-B |
| Description | IE2000 with 16 FE Copper, 2 FE combo (SFP/RJ-45) and 2 FE SFP uplinks (LAN Base) |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 20 |
| RJ45 Ports | 16 FE |
| Combo Ports (SFP or RJ45) | 2 FE |
| SFP Ports | 2 FE |
| Manufacturing License | LAN Base |
| Type of Possible Upgrade | 1 |
| IEEE 1588 | Yes |
| NAT | - |
| PoE(+) | - |
| Conformal Coating | - |
| Type of possible upgrade legend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced LAN Base or IP Lite license |
| Software Features | |
| LAN Base license | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1X, Guest VLAN, MAC Authentication Bypass, 802.1X Multi-Domain Authentication, Storm Control, Trust Boundary, Access Lists (ACL) |
| Quality of service | IPv4 Ingress Policing, Rate Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Utility | MODBUS TCP/IP |
| Dimensions (HxWxD) Inches | 5.1"H x 5.0"W x 5.26"D (130 mm H x 127 mm W x 134 mm D) |
| Weight | 4.35 lb (1.97 kg) |
[/properties]
[specifications]
| Specifications | IE-2000-16TC-B |
| DRAM | 256 MB DRAM with ECC Memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Management Protocol (IGMP) Multicast Groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) bidirectional 128 NAT translation entries |
| IPv4 Routing | 3500 |
| IPv6 Routing | 1750 |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power consumption | 21–30 W |
| Connectors and cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40°C to +70°C (vented enclosure – 40 LFM air flow) -40°C to +60°C (sealed enclosure – 0 LFM air flow) -34°C to +75°C (fan or blower-equipped enclosure – 200 LFM air flow) -40°C to +85°C (IEC 60068-2-2 environmental type testing, 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC (Korea) CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN/EN61000-4-2 (Electrostatic Discharge), 15 kV/8 kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m) IEC/EN 61000-4-4 (Fast Transients – 4 kV power line, 4 kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (Operational Shock: 30G 11 ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55–70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Industry Standards | UL508 CSA C22.2 No. 142 EN 61131-2 (EMC/EMI, environmental, mechanical) Protective coating (specific models only) Marine DnV Substation KEMA (IEEE 1613, IEC 61850-3) Railway EN 50155 (EMI/EMC, environmental, mechanical) EN50121-3-2 EN50121-4 NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification IP30 ODVA Industrial Ethernet/IP support PROFINET v2.3 support |
| Hazard Locations (* Cabinet enclosure required) | ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A–D) * |
| Humidity | IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068-2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB= | 1 GB ruggedized SD memory card (must be ordered, not included by default) |
| STK-RACK-DINRAIL= | 19 in. DIN rail mount kit |
| IE-LICENSE-SPARE= | Spare license for software upgrade (L2 to L3 features, MRP ring, etc.) |
| L-IE2000-L-B= | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E= | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L= | IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
| LIC-IE2000-L-IP= | IE2000 LAN Lite to IP Lite e-license |
| LIC-MRP-MANAGER= | MRP Ring Manager license |
| LIC-MRP-CLIENT= | MRP Ring Client license |
| WALLMOUNT-IE2K-16= | Wall mount kit accessory for IE2000 16-port downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC= | 50W AC Power Supply |
| PWR-IE50W-AC-L= | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC= | 65W AC Power Supply |
| PWR-IE65W-PC-DC= | 65W DC Power Supply |
| PWR-IE170W-PC-AC= | 170W AC Power Supply |
| PWR-IE170W-PC-DC= | 170W DC Power Supply |
| PWR-IE240W-PCAC-L= | 240W AC-L Power Supply |
| PWR-IE480W-PCAC-L= | 480W AC-L Power Supply |
[/accesories]
Cisco IE-2000-16TC-B Industrial Ethernet Switch
The Cisco IE-2000-16TC-B is a rugged industrial Ethernet switch designed to provide reliable network connectivity in demanding environments. This switch features 16 Fast Ethernet downlinks plus 2 Fast Ethernet combo uplinks (RJ-45/SFP) and 2 dedicated Fast Ethernet SFP uplinks, making it ideal for connecting a variety of industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16TC-B is engineered to withstand harsh conditions, ensuring continuous operation in industrial settings while offering essential Layer 2 management features for effective network segmentation and traffic control.
Key Features:
- 16 x Fast Ethernet Ports: Provides stable and efficient data connectivity for a wide range of industrial devices, ensuring reliable network communication.
- 2 x FE Combo + 2 x FE SFP Uplinks: Offers flexible uplink options with copper and fiber connectivity for scalable backhaul.
- Ruggedized Design: Built to operate in challenging industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
- Compact Form Factor: Designed for space-constrained installations, suitable for small enclosures and industrial cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring reliable Ethernet connectivity with flexible FE uplinks and basic management features.
- Ports: 16 x FE downlinks, 2 x FE combo (RJ-45/SFP) uplinks, 2 x FE SFP uplinks.
- Operating Temperature: Wide industrial temperature range supported per specifications.
- Management: Managed through a web interface, CLI, and SNMP for easy setup and monitoring.
- Form Factor: DIN rail mountable, compact long-chassis design.
You can check the related tab for the Cisco IE-2000-16TC-B datasheet.
$586.25
Original: $1,675.00
-65%Cisco IE-2000-16TC-B Switch—
$1,675.00
$586.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc]
- Switch
- Managed
- 16 x 10/100 + 2 x combo Fast Ethernet (RJ-45/SFP) + 2 x Fast Ethernet SFP
- DIN Rail Mountable
[properties]
| Properties | Cisco IE-2000-16TC-B |
| Description | IE2000 with 16 FE Copper, 2 FE combo (SFP/RJ-45) and 2 FE SFP uplinks (LAN Base) |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 20 |
| RJ45 Ports | 16 FE |
| Combo Ports (SFP or RJ45) | 2 FE |
| SFP Ports | 2 FE |
| Manufacturing License | LAN Base |
| Type of Possible Upgrade | 1 |
| IEEE 1588 | Yes |
| NAT | - |
| PoE(+) | - |
| Conformal Coating | - |
| Type of possible upgrade legend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced LAN Base or IP Lite license |
| Software Features | |
| LAN Base license | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1X, Guest VLAN, MAC Authentication Bypass, 802.1X Multi-Domain Authentication, Storm Control, Trust Boundary, Access Lists (ACL) |
| Quality of service | IPv4 Ingress Policing, Rate Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Utility | MODBUS TCP/IP |
| Dimensions (HxWxD) Inches | 5.1"H x 5.0"W x 5.26"D (130 mm H x 127 mm W x 134 mm D) |
| Weight | 4.35 lb (1.97 kg) |
[/properties]
[specifications]
| Specifications | IE-2000-16TC-B |
| DRAM | 256 MB DRAM with ECC Memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Management Protocol (IGMP) Multicast Groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) bidirectional 128 NAT translation entries |
| IPv4 Routing | 3500 |
| IPv6 Routing | 1750 |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power consumption | 21–30 W |
| Connectors and cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40°C to +70°C (vented enclosure – 40 LFM air flow) -40°C to +60°C (sealed enclosure – 0 LFM air flow) -34°C to +75°C (fan or blower-equipped enclosure – 200 LFM air flow) -40°C to +85°C (IEC 60068-2-2 environmental type testing, 16 hours) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC (Korea) CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN/EN61000-4-2 (Electrostatic Discharge), 15 kV/8 kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m) IEC/EN 61000-4-4 (Fast Transients – 4 kV power line, 4 kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (Operational Shock: 30G 11 ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55–70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Industry Standards | UL508 CSA C22.2 No. 142 EN 61131-2 (EMC/EMI, environmental, mechanical) Protective coating (specific models only) Marine DnV Substation KEMA (IEEE 1613, IEC 61850-3) Railway EN 50155 (EMI/EMC, environmental, mechanical) EN50121-3-2 EN50121-4 NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification IP30 ODVA Industrial Ethernet/IP support PROFINET v2.3 support |
| Hazard Locations (* Cabinet enclosure required) | ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone 2 A–D) * |
| Humidity | IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068-2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing |
[/specifications]
[accesories]
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB= | 1 GB ruggedized SD memory card (must be ordered, not included by default) |
| STK-RACK-DINRAIL= | 19 in. DIN rail mount kit |
| IE-LICENSE-SPARE= | Spare license for software upgrade (L2 to L3 features, MRP ring, etc.) |
| L-IE2000-L-B= | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E= | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L= | IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license |
| LIC-IE2000-L-IP= | IE2000 LAN Lite to IP Lite e-license |
| LIC-MRP-MANAGER= | MRP Ring Manager license |
| LIC-MRP-CLIENT= | MRP Ring Client license |
| WALLMOUNT-IE2K-16= | Wall mount kit accessory for IE2000 16-port downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC= | 50W AC Power Supply |
| PWR-IE50W-AC-L= | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC= | 65W AC Power Supply |
| PWR-IE65W-PC-DC= | 65W DC Power Supply |
| PWR-IE170W-PC-AC= | 170W AC Power Supply |
| PWR-IE170W-PC-DC= | 170W DC Power Supply |
| PWR-IE240W-PCAC-L= | 240W AC-L Power Supply |
| PWR-IE480W-PCAC-L= | 480W AC-L Power Supply |
[/accesories]

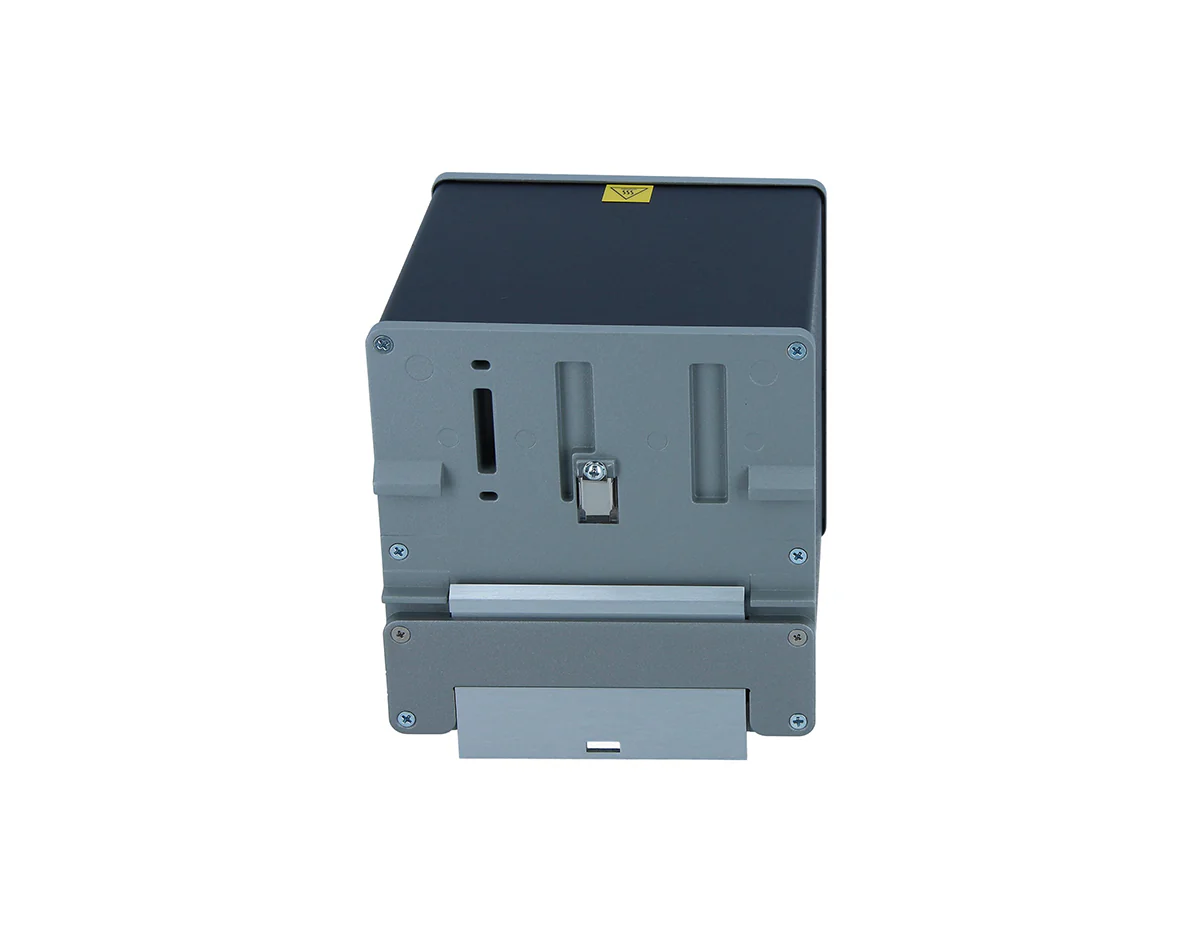

Cisco IE-2000-16TC-B Industrial Ethernet Switch
The Cisco IE-2000-16TC-B is a rugged industrial Ethernet switch designed to provide reliable network connectivity in demanding environments. This switch features 16 Fast Ethernet downlinks plus 2 Fast Ethernet combo uplinks (RJ-45/SFP) and 2 dedicated Fast Ethernet SFP uplinks, making it ideal for connecting a variety of industrial devices such as IP cameras, sensors, and controllers. The IE-2000-16TC-B is engineered to withstand harsh conditions, ensuring continuous operation in industrial settings while offering essential Layer 2 management features for effective network segmentation and traffic control.
Key Features:
- 16 x Fast Ethernet Ports: Provides stable and efficient data connectivity for a wide range of industrial devices, ensuring reliable network communication.
- 2 x FE Combo + 2 x FE SFP Uplinks: Offers flexible uplink options with copper and fiber connectivity for scalable backhaul.
- Ruggedized Design: Built to operate in challenging industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
- Compact Form Factor: Designed for space-constrained installations, suitable for small enclosures and industrial cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring reliable Ethernet connectivity with flexible FE uplinks and basic management features.
- Ports: 16 x FE downlinks, 2 x FE combo (RJ-45/SFP) uplinks, 2 x FE SFP uplinks.
- Operating Temperature: Wide industrial temperature range supported per specifications.
- Management: Managed through a web interface, CLI, and SNMP for easy setup and monitoring.
- Form Factor: DIN rail mountable, compact long-chassis design.
You can check the related tab for the Cisco IE-2000-16TC-B datasheet.
