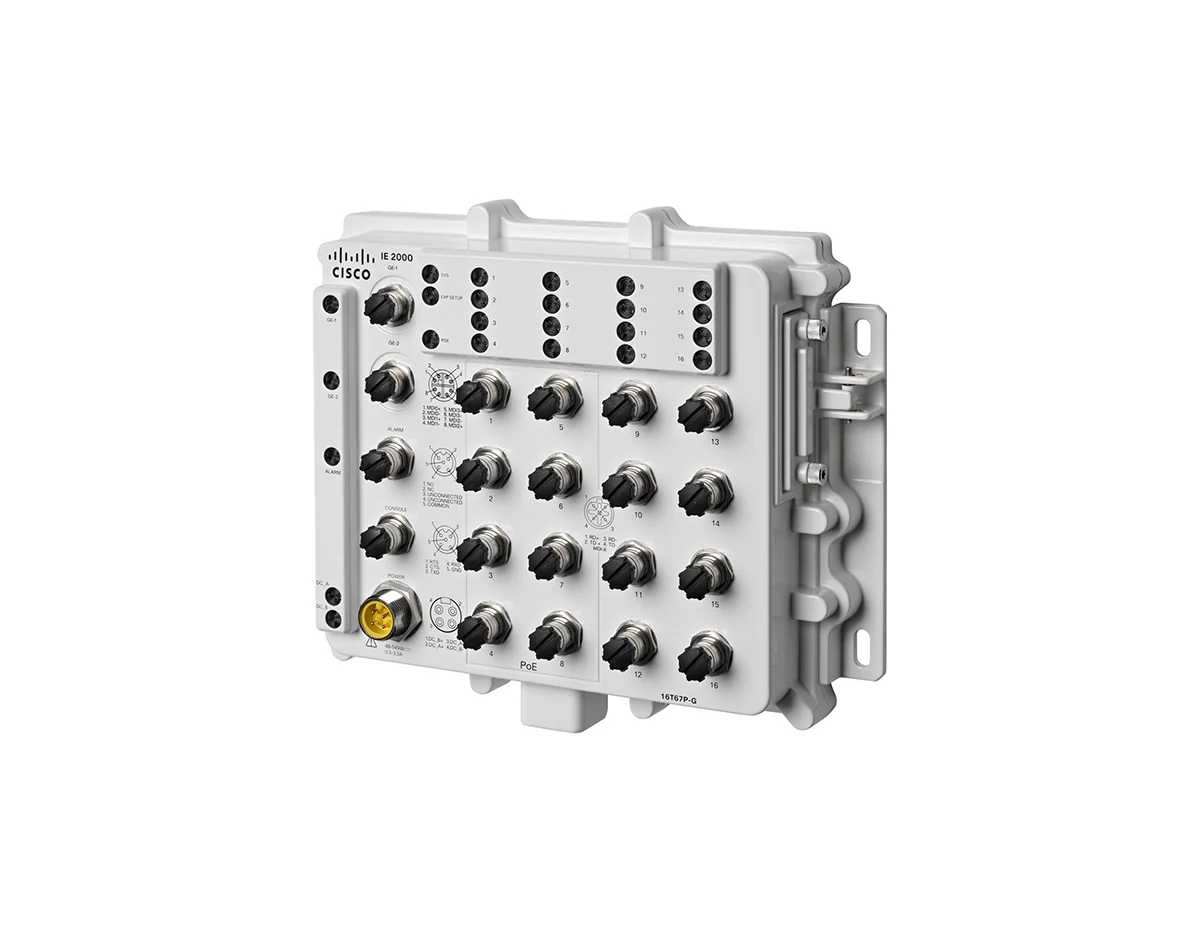

Cisco IE-2000-16T67P-G-E Switch
[shortdesc]
- Switch
- Managed, 16 x 10/100 (M12 D-coded) + 2 x 1G (M12 X-coded)
- IP67, wall-mountable enclosure
- PoE/PoE+ capable on FE downlinks
[properties]
| Properties | Cisco IE-2000-16T67P-G-E Switch |
| Description | The Cisco IE-2000-16T67P-G-E is an IP67-rated industrial Ethernet switch with 18 total ports: 16 Fast Ethernet (10/100) M12 D-coded downlinks and 2 Gigabit Ethernet M12 X-coded uplinks. The model supports PoE/PoE+ on Fast Ethernet downlinks (up to 12 powered ports: 8 PoE + 4 PoE+, with the appropriate power supply), making it well-suited for demanding deployments in manufacturing, transportation, and utilities. |
| Product Family | Cisco Industrial Ethernet 2000 IP67 Series Switches |
| Product Type | Ethernet Switch |
| IE 2000 IP67 product highlights | |
| Certified IP67 rating | The solution is IP67-rated to protect against dust and submersion in water. It meets the most rigorous industrial and safety standards for extreme temperature and vibration, humidity, electromagnetic emissions, and other factors. |
| Compliant with industrial automation standards |
The rugged switch supports EtherNet/IP (CIP) and PROFINET so you can easily integrate it with any Ethernet-based industrial equipment and management system. It also supports Precision Time Protocol (PTP) v2 for demanding synchronized applications. |
| Easy deployment | With zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and sub-60-second boot-up times, you can easily migrate to an all-IP-over-Ethernet networking environment. |
| Strong endpoint security | Support for the following: ● 802.1x ● Port security ● Dynamic port-based authentication using DHCP ● Encrypted administrative traffic ● Centralized authentication |
| Resiliency | Cisco brings recovery mechanisms such as Flex Links and Cisco Resilient Ethernet Protocol (REP) to the factory floor or other industrial site. PROFINET MRP ring provides the open standard industrial resiliency. |
| Manageability | Cisco DNA Center enables centralized automation and assurance at scale with a Cisco DNA Essentials 3-year, 5-year, or 7-year term-based subscription license. ● The solution is easy for operations staff to configure and manage. Cisco Auto Smart Port lets you configure the right Quality of Service (QoS) settings for any port in seconds. It also allows for secure web-based administration and easy integration with your network management system. |
| Network Address Translation (NAT) |
The switches provide line-rate, hardware-enabled static address translation to easily connect complex Layer-2/machine node networks. |
| Industrial Power-over-Ethernet (PoE) | Select switch models let you connect and power endpoints with a single cable in compliance with PoE and PoE+ standards. |
| Removable SD flash memory |
With tightly secured swappable SD cards, you can quickly replace switches in the field with minimal disruption. |
| Platform flexibility | The Cisco IE2000 IP67 Series is available with 8, 16, or 24 10/100 Base-T fixed-configuration Ethernet ports and 2x Gigabit Ethernet ports. It provides M12 D-coded, X-coded, and a mini-change dual-power connector in an industrial-hardened, wall-mountable form factor. |
[/properties] [specifications]
| Specifications | Cisco IE-2000-16T67P-G-E Switch |
| Total ports | 18 |
| 100 MB D-code | 16 |
| GE X-code ports | 2 GE |
| Manufacturing license | LAN Base |
| IEEE1588 | X |
| NAT | X (Requires LAN Base to LAN Enhanced image to enable Layer 2 NAT) |
| PoE (+) | X |
| Hardware | ● 256MB DRAM with ECC memory |
| ● IEEE 1588v2 FPGA | |
| ● 64MB on-board flash memory | |
| ● 1GB removable SD flash memory card (optional) | |
| Alarm | ● One alarm output relay using an M12 A-coded 5-pin connector (Max. rated: 24VDC @ 1A / 48VDC @ 0.5A) |
| Input voltage supported | With PoE: 44–57VDC; with PoE+: 50–57VDC |
| Dimensions (H x W x D) | 9.5” x 11.84” x 3.2” (241.7 x 300.7 x 81.5 mm) |
| Weight | 7.28 lbs (3.30 kg) |
| Cisco IE 2000 software features - LAN Base license (Default) | |
| Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standards, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session (1), Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary |
| Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| QoS | IPv4 Ingress Policing, Rate-Limiting, Egress Queuing/Shaping, AutoQoS |
| Management | Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog, Port-Based DHCP, Storm Control—Unicast/Multicast/Broadcast, SPAN Sessions (2), RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration |
| Industrial Ethernet | EtherNet/IP, PROFINET, PROFINET MRP, IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Industrial Management (Enhanced LAN Base) | Layer 2 Switching with 1:1 static NAT |
| (IP Lite license) IPv4 Routing | RIP, OSPF, EIGRP, VRF Lite |
| (IP Lite license) IPv6 Routing | IPv6 Static routing, OSPFv3 |
[/specifications] [accesories]
| Connectors and cabling | |
| Data cable | ● Copper 100 Base-T M12 D-coded 4-pole (pin) cable connector ● Copper GE M12 X-coded 8-pole (pin) cable connector |
| Alarm cable | ● M12 A-coded 5-pin cable |
| Console cable | ● M12 A-coded 5-pin connector |
| Power supply cables | ● Power cable for power source, Mini-Change A-size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable. Molex part #130006-0737 ● Power cable to IE2000 IP67 switch: Mini-Change A-size double-ended cordset, 4 poles male to female, 16 AWG TPE cable. Molex part #130010-0863 ● Power cable for AC-DC power source, Mini-Change A-size single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG PVC cable, Molex part #130006-2419 ● Power cord from power source to power supply: 2-hole female power cord to open for input DC connector. Molex part #130006-2419 |
| Cisco IE 2000 Cisco DNA license | |
| IE2000-DNA-E-L | Cisco DNA Essentials license (up to 12 ports) |
| IE2000-DNA-E-L-3Y | Cisco DNA Essentials 3-year term license (up to 12 ports) option |
| IE2000-DNA-E-L-5Y | Cisco DNA Essentials 5-year term license (up to 12 ports) option |
| IE2000-DNA-E-L-7Y | Cisco DNA Essentials 7-year term license (up to 12 ports) option |
| IE2000-DNA-E-M | Cisco DNA Essentials license (up to 24 ports) |
| IE2000-DNA-E-M-3Y | Cisco DNA Essentials 3-year term license (up to 24 ports) option |
| IE2000-DNA-E-M-5Y | Cisco DNA Essentials 5-year term license (up to 24 ports) option |
| IE2000-DNA-E-M-7Y | Cisco DNA Essentials 7-year term license (up to 24 ports) option |
[/accesories]
Cisco IE-2000-16T67P-G-E Industrial Ethernet Switch
The Cisco IE-2000-16T67P-G-E is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This model offers 16 Fast Ethernet (10/100) M12 D-coded downlinks and 2 Gigabit Ethernet M12 X-coded uplinks, with PoE/PoE+ support available on Fast Ethernet downlinks to power field devices when used with the appropriate power supply.
Key Features:
- 16 x Fast Ethernet Downlinks + 2 x Gigabit Uplinks: Downlinks use M12 D-coded connectors (10/100); uplinks use M12 X-coded Gigabit for high-speed backhaul.
- PoE/PoE+ Capability: Supports powering endpoints on Fast Ethernet downlinks (up to 12 powered ports: 8 PoE + 4 PoE+ on the 16-port PoE model).
- Ruggedized Design: IP67 enclosure engineered for extreme temperatures, shock, and vibration.
- Layer 2 Management: VLANs, QoS, IGMP snooping, REP, EtherChannel, and more for deterministic industrial networking.
- Fast Deployment: Zero-touch DHCP, express setup, and sub-60-second boot help speed rollouts.
Technical Overview:
- Recommended for: Harsh industrial environments requiring durable switching with PoE/PoE+ support.
- Ports: 16 x 10/100 (M12 D-coded) + 2 x 1G (M12 X-coded).
- Operating Temperature: -40°C to +75°C (with additional rated modes per enclosure/airflow).
- Management: Web UI, CLI, SNMP; Cisco DNA Center support with DNA Essentials licensing.
- Form Factor: Wall-mountable IP67 chassis, 9.5” x 11.84” x 3.2”, 7.28 lb.
You can check the related tab for the Cisco IE-2000-16T67P-G-E datasheet.
