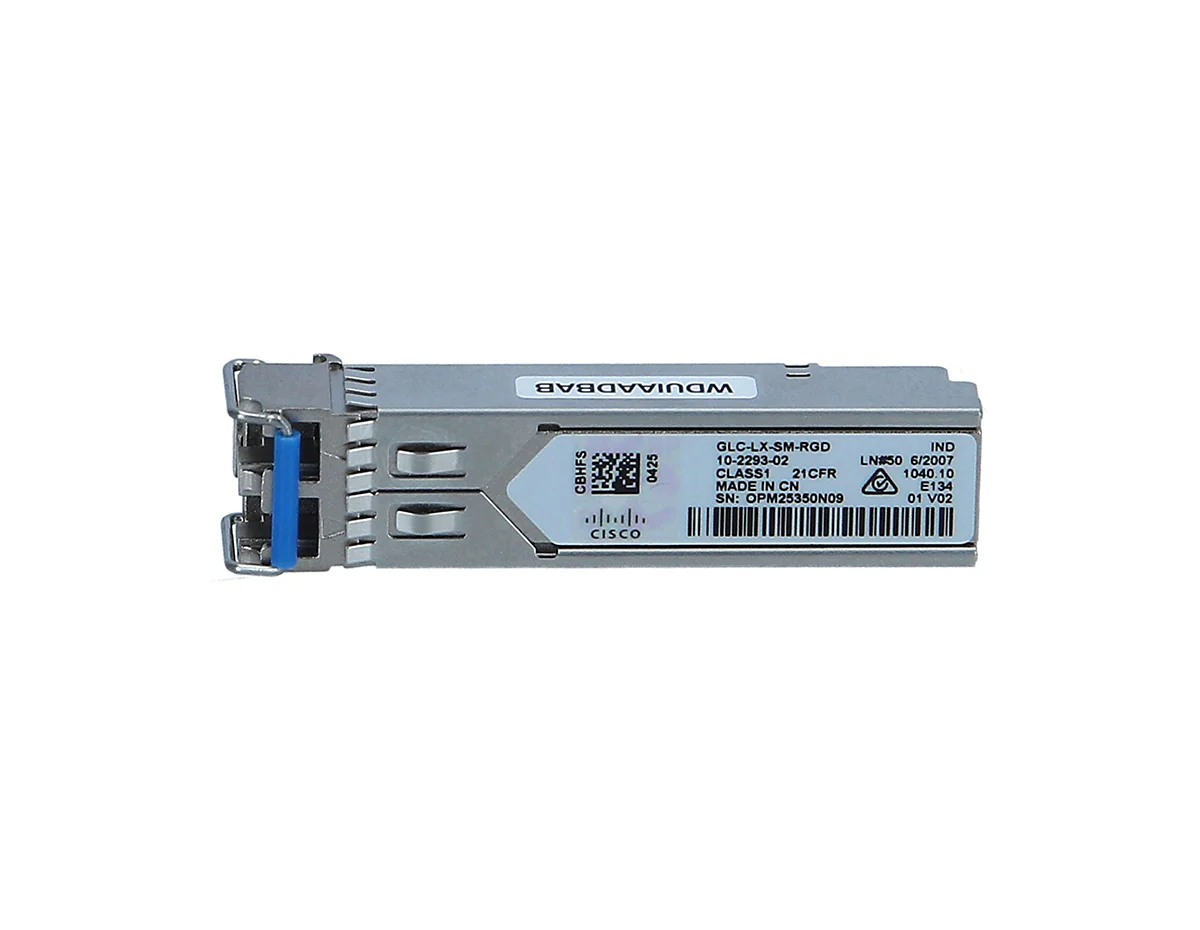

Cisco GLC-LX-SM-RGD 1000BASE-LX/LH Rugged SFP Transceiver – 10km, DOM
- SFP (mini-GBIC) transceiver module
- GigE
- 1000Base-LX
- 1000Base-LH
- LC single-mode
- 1310 nm
[specifications]
| Specifications | GLC-LX-SM-RGD |
| Description | 1000BASE-LX/LH SFP for singlemode fiber and multimode fiber compatible with the IEEE 802.3z 1000BASE-LX standard, rugged |
| Product Type | Transceiver |
| Connector | Dual LC |
| Data Links | 1.25Gb/s |
| Form Factor | SFP |
| Transmit Power Range (dBm) | -3 to -9.5 |
| Receive Power Range (dBm) | -3 to -20 |
| Maximum Channel insertion loss in dB (by fiber type) | 2.4 (any MMF) 6 (G.652 SMF) |
| Transmit and Receive Wavelength Range (nm) | 1270 to 1355 (1310nm) |
| DOM | No |
| Temperature Range | -40 to 85°C (-40 to 185°F) |
| Wavelength (nm) | Fiber Type | Core Size (μm) | Modal Bandwidth (MHz* Km) |
Operating Distance (m) |
|---|---|---|---|---|
| 1310 | MMF* | 62.5 | 500 | 550 (1,804 ft) |
| 400 | 550 (1,804 ft) | |||
| 500 | 550 (1,804 ft) | |||
| SMF | - | - | 10,000 (32,821 ft) |
[/specifications]
Industrial-Grade Performance: Cisco GLC-LX-SM-RGD SFP Overview
Ensure uncompromising network performance in the harshest environments with the genuine Cisco GLC-LX-SM-RGD. This rugged 1000BASE-LX/LH SFP module is designed to deliver Gigabit Ethernet over single-mode fiber up to 10 km, even in extreme temperatures from -40 °C to 85 °C.
It includes DOM (Digital Optical Monitoring) for real-time diagnostics and is fully compliant with IEEE 802.3z and SFP MSA standards. Engineered for long-term deployment in outdoor and industrial settings, the GLC-LX-SM-RGD integrates seamlessly with Cisco Catalyst, Nexus, and ISR platforms.
Technical Features
- Speed: 1 Gbps (1000BASE-LX/LH)
- Reach: 10 km SMF | ≈ 550 m MMF + MCC
- Optics: 1310 nm laser, LC duplex
- Diagnostics: DOM (Tx/Rx power, temperature, voltage)
- Hot-Swappable: Yes
- Operating Temp: -40 °C → 85 °C
- Compliance: IEEE 802.3z, SFP-MSA, NEBS/IND rated
-
Ideal For: Traffic cabinets, substations, outdoor switches, harsh environments
For complete technical details, check the Specifications tab above.
