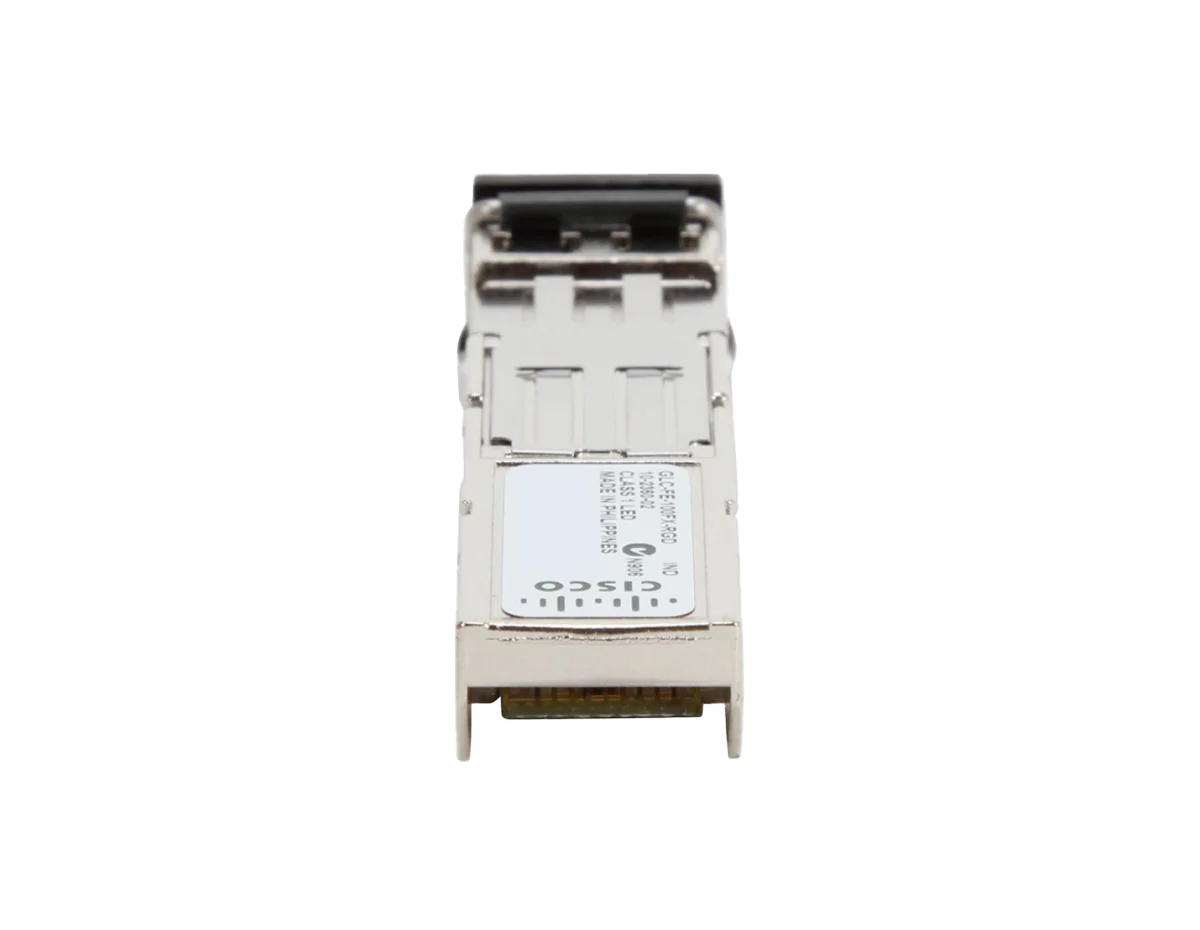

Cisco GLC-FE-100FX-RGD Transceiver Module
- SFP (mini-GBIC) transceiver module
- 100Mb LAN
- 100Base-FX
- LC multi-mode
- Up to 1.2 miles
- 1310 nm
- for Aironet 1522; Catalyst 2960
[specifications]
| Specifications | GLC-FE-100FX-RGD |
| Description | GLC-FE-100FX-RGD 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports that operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports of Cisco Industrial Ethernet and SmartGrid switches and routers. |
| Product Family | Cisco Fast Ethernet Applications |
| Product Type | Transceiver Module |
| Connectors | Dual LC connector |
| Wavelength (nm) | 1300 |
| Fiber Type | MMF |
| Cable Distance | 2 km (6,562 ft) |
| Fiber-loss budgets: Transmit (dBm) (Min-Max) | (-20) - (-14) |
| Fiber-loss budgets: Receive (dBm) (Min-Max) | (-31) - (-14) |
| Power consumption | Up to 1 per port |
| Temperature Range | -40 to 85°C (-40 to 185°F) |
| Safety | ● Laser Class 1 21CFR1040 LN#50 7/2001 |
| ● Laser Class I IEC 60825 | |
| Standards | ● IEEE 802.3u |
| ● IEEE 802.3z | |
| ● IEEE 802.3ah | |
| ● GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable | |
| ● GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies | |
| ● GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors | |
| ● RoHS 5 |
[/specifications]
Cisco GLC-FE-100FX-RGD Transceiver
The Cisco 100BASE-X Small Form-Factor Pluggable (SFP) is a hot-swappable input/output device that enables connecting the port with the fiber cabling network. The SFP also supports the Cisco quality ID feature, which enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP. Furthermore, the GLC-FE-100FX-RGD rugged modules operate in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports.
Key Features:
- "pay-as-you-populate" model
- Rugged SFP
- Cisco IE and SmartGrid switches and routers
For detailed specifications, refer to the GLC-FE-100FX-RGD datasheet in the tabs.
