[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax) and 128GB onboard SSD, powered by SP4 ASIC, delivering up to 10/10/7 Gbps firewall throughput and including a 3-Year Enterprise Protection bundle[/shortdesc]

[properties]

SKU	FWF-81F-2R-A-BDL-809-36
Form Factor	Desktop/Wall Mount/Rack Tray
Wireless Standard	802.11a/b/g/n/ac/ax (Wi-Fi 6)
Internal Storage	1x 128 GB SSD
Firewall Throughput	10/10/7 Gbps (1518/512/64 byte UDP)
Interfaces	2x GE RJ45/SFP Shared Media Pairs, 6x GE RJ45 Internal Ports, 2x GE RJ45 FortiLink Ports (Default)
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.5 kg (3.3 lbs)
Power Input	12V DC, 5A (dual redundancy optional)
Bundle Included	3-Year Enterprise Protection Bundle

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
System Performance & Capacity
IPv4 Firewall Throughput	10/10/7 Gbps (1518/512/64 byte UDP)
Firewall Latency	3.23 μs
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput	6.5 Gbps
SSL-VPN Throughput	950 Mbps
SSL Inspection Throughput	715 Mbps
Wireless Specifications
Radio	Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
MU-MIMO	2x2
Max WiFi Speeds	574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz
Antenna Ports (SMA)	3
Hardware Specifications
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
USB Ports 3.0	1
Console (RJ45)	1
Trusted Platform Module (TPM)	Yes
Environment & Power
Power Consumption (Avg / Max)	24.79 W / 30.29 W
Heat Dissipation	103.29 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	24.14 dBA
Operating Altitude	Up to 7400 ft (2250 m)
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), SFP Transceiver Modules (FN-TRAN-GC, FN-TRAN-SX, FN-TRAN-LX, FR-TRAN-ZX)

[/accesories]

High-Performance Wi-Fi 6 Security with Onboard SSD Storage

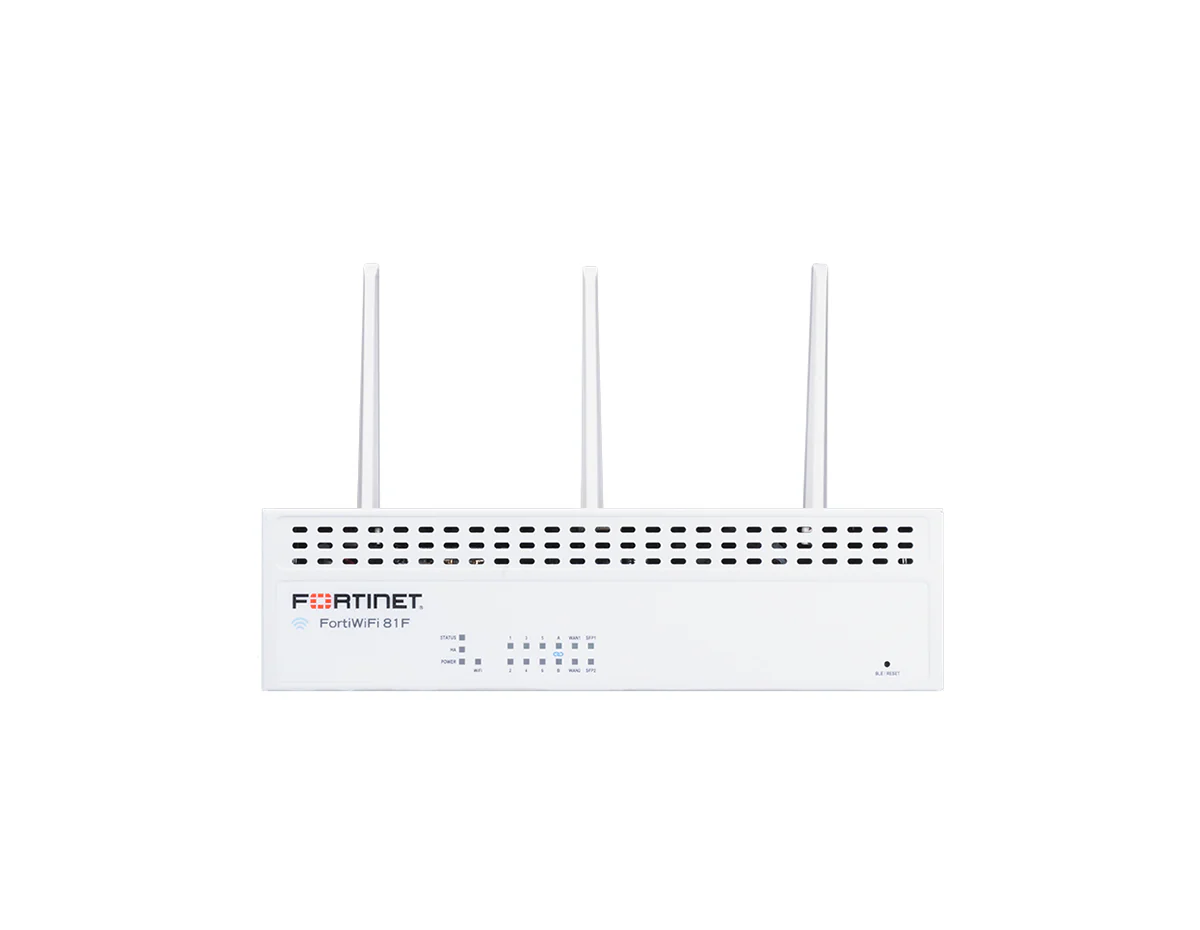

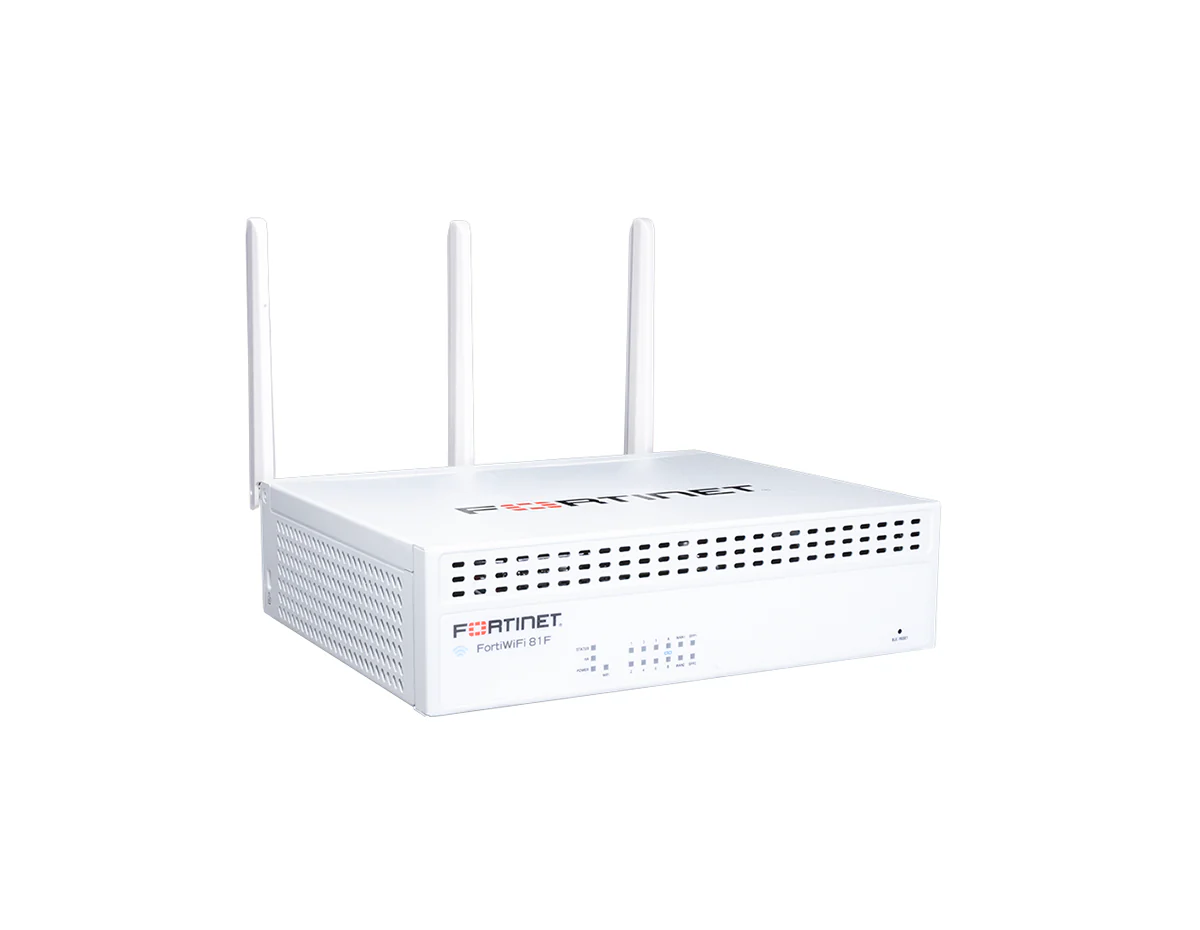

The FortiWiFi 81F-2R (FWF-81F-2R-A) is an advanced Secure SD-WAN appliance featuring 128GB of internal SSD storage and integrated dual-band Wi-Fi 6 (802.11ax) connectivity. This 3-Year Enterprise Protection bundle supports unified security and simplified operations for distributed enterprise sites. Built on the high-performance SP4 ASIC, it delivers up to 10/10/7 Gbps firewall throughput (1518/512/64 byte UDP) and accelerated IPsec VPN performance up to 6.5 Gbps.

This model offers deployment flexibility with 2x GE RJ45/SFP shared media pairs for fiber or copper uplinks. The combination of internal SSD storage, accelerated performance, and integrated Wi-Fi 6 helps deliver unified protection and reliable connectivity across the network edge.

Key Benefits

• 3-Year Enterprise Protection: Licensed Enterprise Protection bundle for unified security and threat protection.
• 128GB Onboard SSD: Integrated internal SSD storage for on-box storage requirements.
• High-Speed Wi-Fi 6: Features integrated dual-band 802.11ax wireless with a dedicated scanning radio for secure, high-speed access.
• Flexible SFP Uplinks: Includes 2x GE RJ45/SFP shared media pairs, enabling fiber or copper uplink options.
• Powered by SP4 ASIC: Delivers up to 10/10/7 Gbps firewall throughput (1518/512/64 byte UDP) and accelerates IPsec VPN performance up to 6.5 Gbps.
• SD-Branch Ready: Includes 2x FortiLink ports (default) to integrate and manage FortiSwitch and FortiAP devices from the FortiGate platform.

Ideal Use Cases

• Retail & Branch Offices: Secure connectivity with integrated Wi-Fi 6 and internal SSD storage in a compact form factor.
• Distributed Enterprise Sites: Unified firewalling and SD-WAN with integrated wireless to simplify deployment at remote locations.
• Small to Medium Businesses (SMB): All-in-one networking, security, and Wi-Fi solution that reduces hardware footprint.

Technical Specifications Summary

• Firewall Throughput (IPv4): 10/10/7 Gbps (1518/512/64 byte UDP)
• IPS Throughput: 1.4 Gbps
• NGFW Throughput: 1 Gbps
• Threat Protection Throughput: 900 Mbps
• IPsec VPN Throughput: 6.5 Gbps (512 byte)
• SSL-VPN Throughput: 950 Mbps
• SSL Inspection Throughput: 715 Mbps
• Wireless Interface: Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
• Maximum Wi-Fi Speeds: 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz

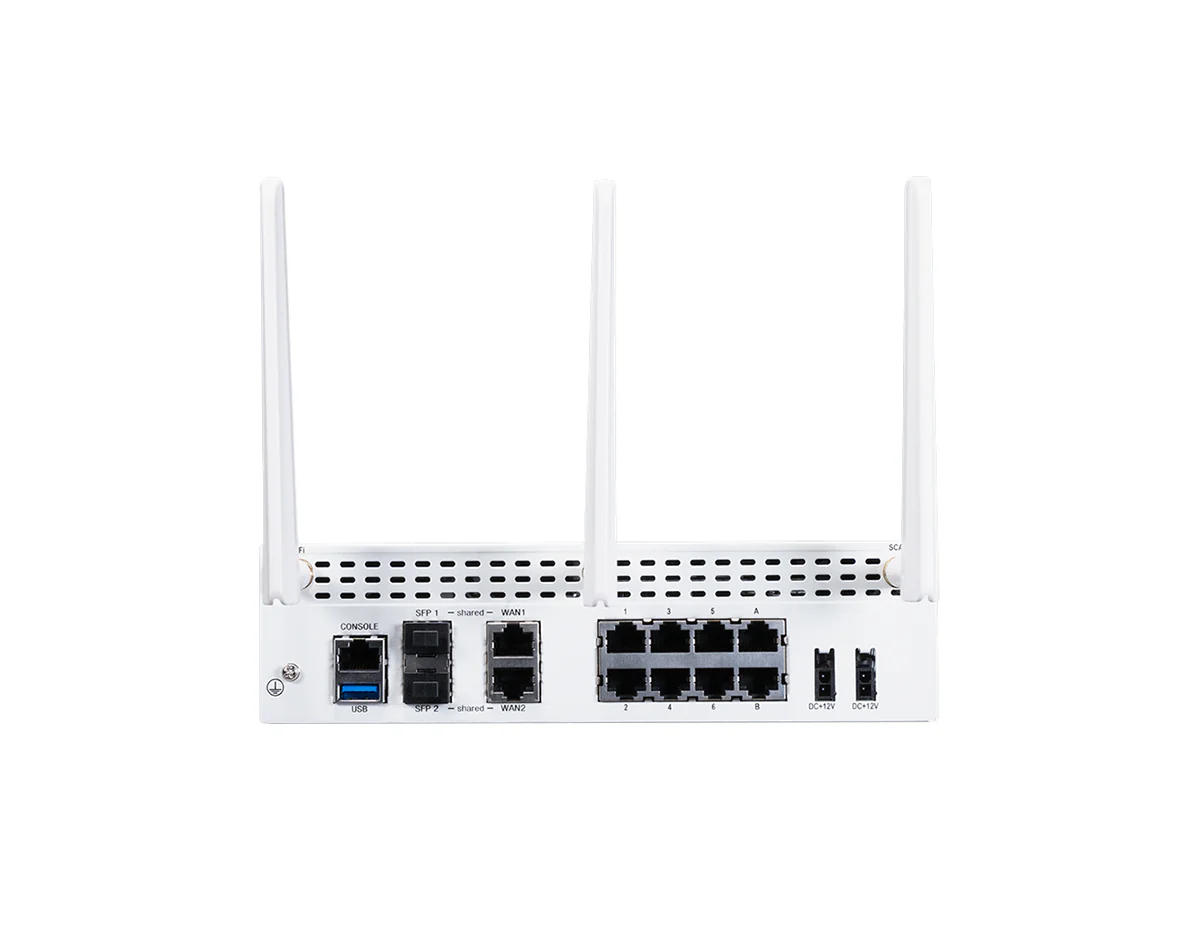

• Ports: 2x GE RJ45/SFP shared media pairs; 6x GE RJ45 internal ports; 2x GE RJ45 FortiLink ports (default)
• Dimensions / Weight: 60 x 216 x 178 mm; 1.5 kg (3.3 lbs)

Upgrade Your Network Security

Enhance your branch capabilities with the storage-optimized FortiWiFi 81F-2R and 3-Year Enterprise Protection bundle.
