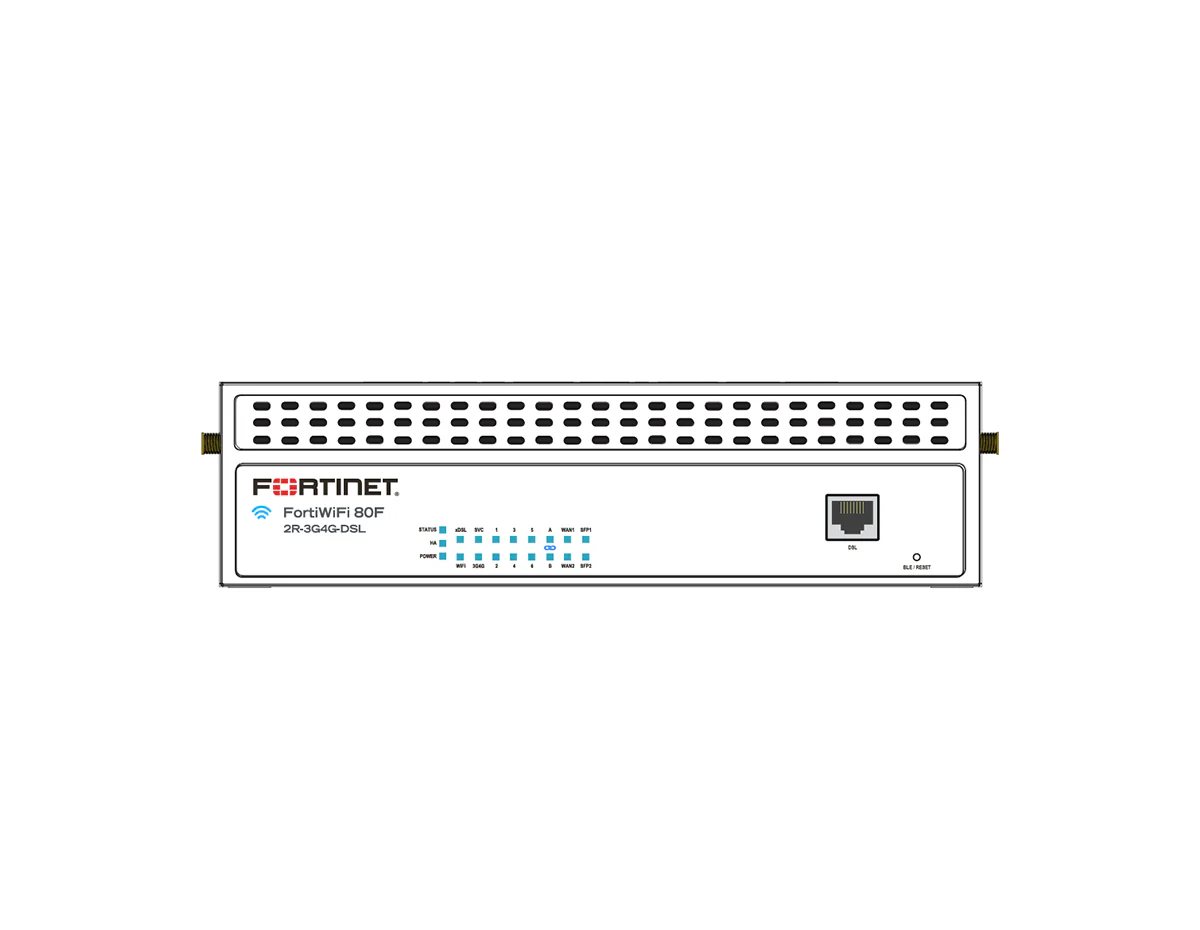

Fortinet FortiWiFi FWF-81F-2R-3G4G-DSL-A Secure SD-WAN Firewall
[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6, embedded DSL and 3G/4G/LTE (dual Nano SIM), plus 128 GB onboard SSD, powered by SP4 ASIC, delivering up to 10/10/7 Gbps IPv4 firewall throughput for resilient multi-access WAN connectivity [/shortdesc]
[properties]
| SKU | FWF-81F-2R-3G4G-DSL-A |
| Regional Code | A |
| Form Factor | Desktop / Wallmount (optional) |
| Wireless Standard | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Wireless Architecture | Dual WiFi Radio (5 GHz, 2.4 GHz) + 1 Scanning Radio |
| Internal Storage | 1x 128 GB SSD |
| WAN Interfaces | DSL (RJ11), 3G/4G/LTE (2x Nano SIM), 2x GE RJ45/SFP Shared Media Pairs |
| Firewall Throughput | 10/10/7 Gbps (1518/512/64 byte, UDP) |
| Dimensions (H x W x L) | 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches) |
| Weight | 1.6 kg (3.5 lbs) |
| Power Input | 12V DC, 5A |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 900 Mbps |
| System Performance & Capacity | |
| IPv4 Firewall Throughput | 10/10/7 Gbps (1518/512/64 byte UDP) |
| Firewall Latency | 3.23 µs (64 byte, UDP) |
| Firewall Throughput (Packets per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput | 6.5 Gbps (512 byte) |
| SSL-VPN Throughput | 950 Mbps |
| SSL Inspection Throughput | 715 Mbps (IPS, avg HTTPS) |
| Application Control Throughput | 1.8 Gbps (HTTP 64K) |
| CAPWAP Throughput | 9 Gbps (HTTP 64K) |
| Wireless Specifications | |
| Wireless Interface | Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio |
| Antenna Ports (SMA) | 6 |
| Multiple User (MU) MIMO | 3x3 |
| Maximum Wi-Fi Speeds | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | 20 dBm |
| Antenna Gain | 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz |
| Hardware Specifications | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| DSL RJ11 Port | 1 |
| Cellular Modem | 3G4G / LTE |
| SIM Slots (Nano SIM) | 2 |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| 3G4G Modem Details | |
| Modem Model | Sierra Wireless EM7565 (2 SIM Slots, Active/Passive) |
| LTE Category | CAT-12 |
| Regions Supported | All Regions |
| xDSL Modem Support | |
| Supported Modes | VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite |
| Supported Annex Types | Annex A, B, I, J, M, L |
| Environment & Power | |
| Power Consumption (Avg / Max) | 29.2 W / 35.6 W |
| Heat Dissipation | 121.5 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | 24.14 dBA |
| Operating Altitude | Up to 7400 ft (2250 m) |
| Certifications | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC), 1 GE SFP SX Transceiver Module (FN-TRAN-SX), 1 GE SFP LX Transceiver Module (FN-TRAN-LX), 1GE SFP Transceiver 90km Range (FR-TRAN-ZX) |
[/accesories]
Ultimate Branch Continuity with Integrated Multi-WAN and Wi-Fi 6
The FortiWiFi 81F-2R-3G4G-DSL-A is a converged desktop appliance built for secure branch connectivity. It integrates firewalling, Secure SD-WAN, and Wi-Fi 6, and includes embedded DSL (RJ11) plus an embedded 3G/4G/LTE modem with dual Nano SIM slots for resilient multi-access WAN connectivity.
With 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, and 2x GE RJ45 FortiLink ports (default), it supports flexible WAN and LAN designs while simplifying the branch security stack into a single platform.
Key Benefits
- Secure SD-WAN performance: Powered by SP4 ASIC, supporting up to 10/10/7 Gbps IPv4 firewall throughput and up to 6.5 Gbps IPsec VPN throughput.
- Multi-access WAN resiliency: Embedded DSL plus embedded 3G/4G/LTE with 2 Nano SIM slots, alongside 2x GE RJ45/SFP shared media pairs.
- Integrated Wi-Fi 6: Dual-band 802.11ax with a dedicated scanning radio for secure wireless access.
- 128GB onboard storage: Includes 1x 128 GB SSD onboard storage.
- SD-Branch ready: 2x FortiLink ports (default) to extend secure access to compatible FortiSwitch and FortiAP deployments.
Ideal Use Cases
- Remote and Branch Offices: Integrated DSL, cellular failover, and Wi-Fi 6 in one Secure SD-WAN appliance.
- Temporary Sites: Rapid deployments that require embedded 3G/4G/LTE connectivity in addition to fixed-line access.
- Distributed Networks: Consistent security policy enforcement and centralized operations across multiple locations.
Upgrade Your Network Security
Ensure resilient branch connectivity with the FortiWiFi 81F-2R-3G4G-DSL-A, combining embedded DSL, 3G/4G/LTE, and Wi-Fi 6 in a single Secure SD-WAN appliance.
