[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax) and 2x GE SFP/RJ45 shared media ports, powered by SP4 ASIC, delivering up to 10/10/7 Gbps firewall throughput and including a 1-Year Enterprise Protection bundle[/shortdesc]

[properties]

SKU	FWF-80F-2R-A-BDL-809-12
Form Factor	Desktop/Wall Mount/Rack Tray
Wireless Standard	802.11a/b/g/n/ac/ax (Wi-Fi 6)
Firewall Throughput	10/10/7 Gbps (1518/512/64 byte UDP)
Interfaces	10x GE Ports total (2x GE RJ45/SFP Shared, 6x GE RJ45 Internal, 2x GE RJ45 FortiLink)
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.5 kg (3.3 lbs)
Power Input	12V DC, 5A (dual redundancy optional)
Bundle Included	1 Year Enterprise Protection

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
System Performance & Capacity
Firewall Latency	3.23 μs
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput	6.5 Gbps
SSL-VPN Throughput	950 Mbps
SSL Inspection Throughput	715 Mbps
Wireless Specifications
Radio	Dual WiFi Radio (5 GHz, 2.4 GHz) + 1 Scanning Radio
MU-MIMO	2x2
Max WiFi Speeds	574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz
Antenna Ports	3x SMA (External)
Hardware Specifications
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
USB Ports	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
Power Consumption (Avg / Max)	22.9 W / 27.9 W
Heat Dissipation	95.26 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	24.14 dBA
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), SFP Transceiver Modules (FN-TRAN-GC, FN-TRAN-SX, etc.)

[/accesories]

Integrated SFP, Wi-Fi 6, and Enterprise Protection for Branch Offices

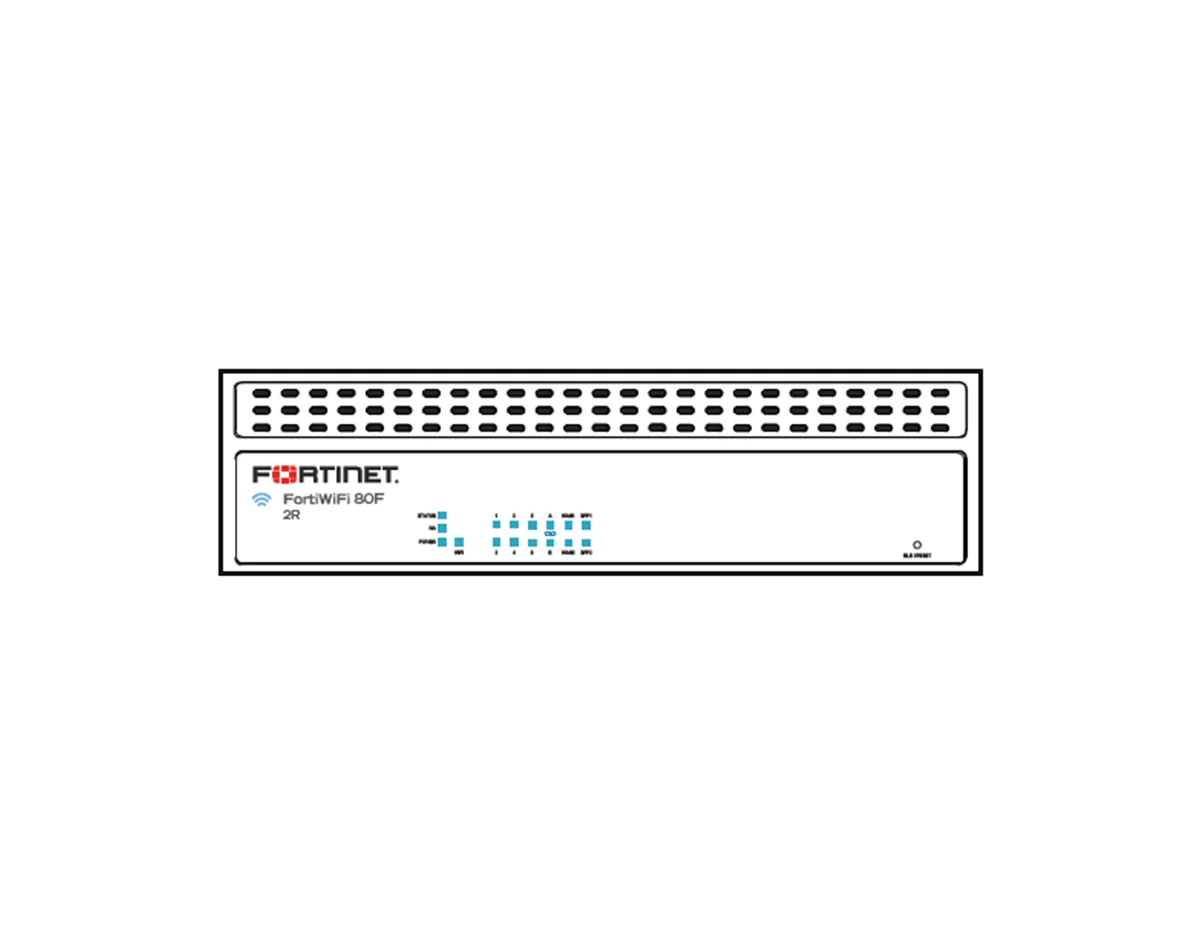

The FortiWiFi 80F-2R (FWF-80F-2R-A-BDL-809-12) is a high-performance branch firewall designed to deliver flexible connectivity, integrated wireless, and centralized security management. Powered by the Fortinet SP4 ASIC, this compact appliance combines wired, fiber-ready, and Wi-Fi 6 networking to support modern distributed environments.

This model features 2x GE RJ45/SFP shared media ports, allowing seamless deployment with either copper or fiber uplinks for WAN or LAN connectivity. Integrated dual-band Wi-Fi 6 (802.11ax), combined with a dedicated scanning radio, enables reliable wireless access while supporting secure SD-WAN and branch network operations.

Key Benefits

• 1-Year Enterprise Protection: FortiGuard security services provided in alignment with the Enterprise Protection bundle entitlement.
• Flexible SFP Connectivity: Two GE RJ45/SFP shared media pairs support copper or fiber connections for adaptable branch deployments.
• Integrated Wi-Fi 6: Dual-band 802.11ax wireless with an additional scanning radio delivers reliable and high-speed wireless connectivity.
• Powered by SP4 ASIC: Hardware acceleration supports consistent firewall and SD-WAN performance for branch environments.
• SD-Branch Ready: Includes two GE RJ45 FortiLink ports (default) to extend network access and centralized management.
• Hardware-Based Security: Integrated Trusted Platform Module (TPM) enhances device integrity and cryptographic key protection.

Ideal Use Cases

• Branch Offices: Consolidates firewall, SD-WAN, wired, and wireless connectivity into a single edge device.
• Retail Locations: Supports flexible WAN options and secure Wi-Fi connectivity for distributed sites.
• Small to Medium Businesses: Enterprise-grade firewall hardware with integrated Wi-Fi 6 in a compact form factor.

Technical Specifications Summary

• Firewall Throughput (UDP): 10/10/7 Gbps (1518/512/64 byte)
• IPS Throughput: 1.4 Gbps
• NGFW Throughput: 1 Gbps
• Threat Protection Throughput: 900 Mbps
• IPsec VPN Throughput (512 byte): 6.5 Gbps
• SSL-VPN Throughput: 950 Mbps
• Wireless: Dual Wi-Fi radio (2.4 GHz and 5 GHz) with 802.11a/b/g/n/ac/ax support plus a dedicated scanning radio
• Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default)
• Physical: 60 x 216 x 178 mm, 1.5 kg

Upgrade Your Network Security

Deploy flexible wired and wireless connectivity at the network edge with the FortiWiFi 80F-2R and 1-Year Enterprise Protection bundle.
