[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi, embedded DSL and 3G/4G/LTE, plus 2x GE SFP/RJ45 shared media ports, powered by SP4 ASIC, delivering up to 10 Gbps firewall throughput and including a 5-Year Enterprise Protection bundle[/shortdesc]

[properties]

SKU	FWF-80F-2R-3G4G-DSL-A-BDL-809-60
Form Factor	Desktop / Wallmount (optional)
Wireless Standard	802.11a/b/g/n/ac/ax
WAN Interfaces	DSL, 3G/4G/LTE, 2x GE RJ45/SFP Shared Media
Firewall Throughput	10 Gbps
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.6 kg (3.5 lbs)
Power Input	12V DC, 5A
Bundle Included	5 Year Enterprise Protection Bundle

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
System Performance & Capacity
IPv4 Firewall Throughput	10/10/7 Gbps (1518/512/64 byte UDP)
Firewall Latency	3.23 μs
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput	6.5 Gbps
SSL-VPN Throughput	950 Mbps
SSL Inspection Throughput	715 Mbps
Wireless Specifications
Wireless Interface	802.11a/b/g/n/ac/ax
Antenna Ports (SMA)	6
Hardware Specifications
GE RJ45/SFP Shared Media Pairs	2
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
DSL RJ11 Port	1
Cellular Modem	3G4G/LTE
SIM Slots (Nano SIM)	2
USB Ports	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
Power Consumption (Avg / Max)	28.07 W / 34.31 W
Heat Dissipation	117.0 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	20% to 90% non-condensing
Noise Level	24.14 dBA
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), SFP Transceiver Modules (FN-TRAN-GC, FN-TRAN-SX, etc.)

[/accesories]

Ultimate Branch Continuity with Integrated Multi-WAN and Wi-Fi

The FortiWiFi 80F-2R-3G4G-DSL is Fortinet's most highly converged desktop appliance, designed for resilient Secure SD-WAN at branch offices. This 5-Year Enterprise Protection bundle maximizes security with comprehensive FortiGuard AI-Powered Security Services. Powered by the SP4 ASIC, it integrates multiple WAN connectivity options: two flexible GE RJ45/SFP shared media ports, an embedded DSL modem, and a redundant 3G/4G/LTE cellular modem with dual SIM slots.

This appliance eliminates the need for external modems, cellular routers, and wireless access points, drastically simplifying the infrastructure stack. It ensures maximum uptime and business continuity through automatic failover across fiber, broadband, and cellular networks, all while providing integrated wireless access and comprehensive security protection.

Key Benefits

• 5-Year Enterprise Protection: Includes a 5-year Enterprise Protection bundle for FortiGuard AI-Powered Security Services.
• Quad-WAN Resiliency: Integrates 2x GE RJ45/SFP shared media ports, a dedicated DSL (RJ11) port, and an embedded 3G/4G/LTE cellular modem with two SIM slots for strong connectivity redundancy.
• Integrated Wireless: Built-in wireless interface supporting 802.11a/b/g/n/ac/ax for branch connectivity.
• Powered by SP4 ASIC: Delivers up to 10 Gbps firewall throughput and accelerates IPsec VPN performance up to 6.5 Gbps for efficient direct internet access.
• Simplified SD-Branch: Reduces complexity and footprint by consolidating a firewall, SD-WAN, DSL modem, 3G/4G/LTE modem, and wireless into one device.
• Trusted Platform Module (TPM): Features dedicated hardware to protect cryptographic keys and harden physical security.

Ideal Use Cases

• Remote/Branch Offices: Ideal for branches requiring DSL connectivity with automatic 3G/4G/LTE failover and integrated wireless.
• Temporary Sites: Suitable for pop-up stores or temporary sites where fixed broadband may be unavailable, relying on cellular connectivity.
• Distributed Enterprises: Strong fit for organizations standardizing on Secure SD-WAN with consistent security and centralized operations.

Technical Specifications Summary

• IPv4 Firewall Throughput: 10/10/7 Gbps (1518/512/64 byte UDP)
• IPS Throughput (Enterprise Mix): 1.4 Gbps
• NGFW Throughput (Enterprise Mix): 1 Gbps
• Threat Protection Throughput (Enterprise Mix): 900 Mbps
• IPsec VPN Throughput (512 byte): 6.5 Gbps
• SSL-VPN Throughput: 950 Mbps

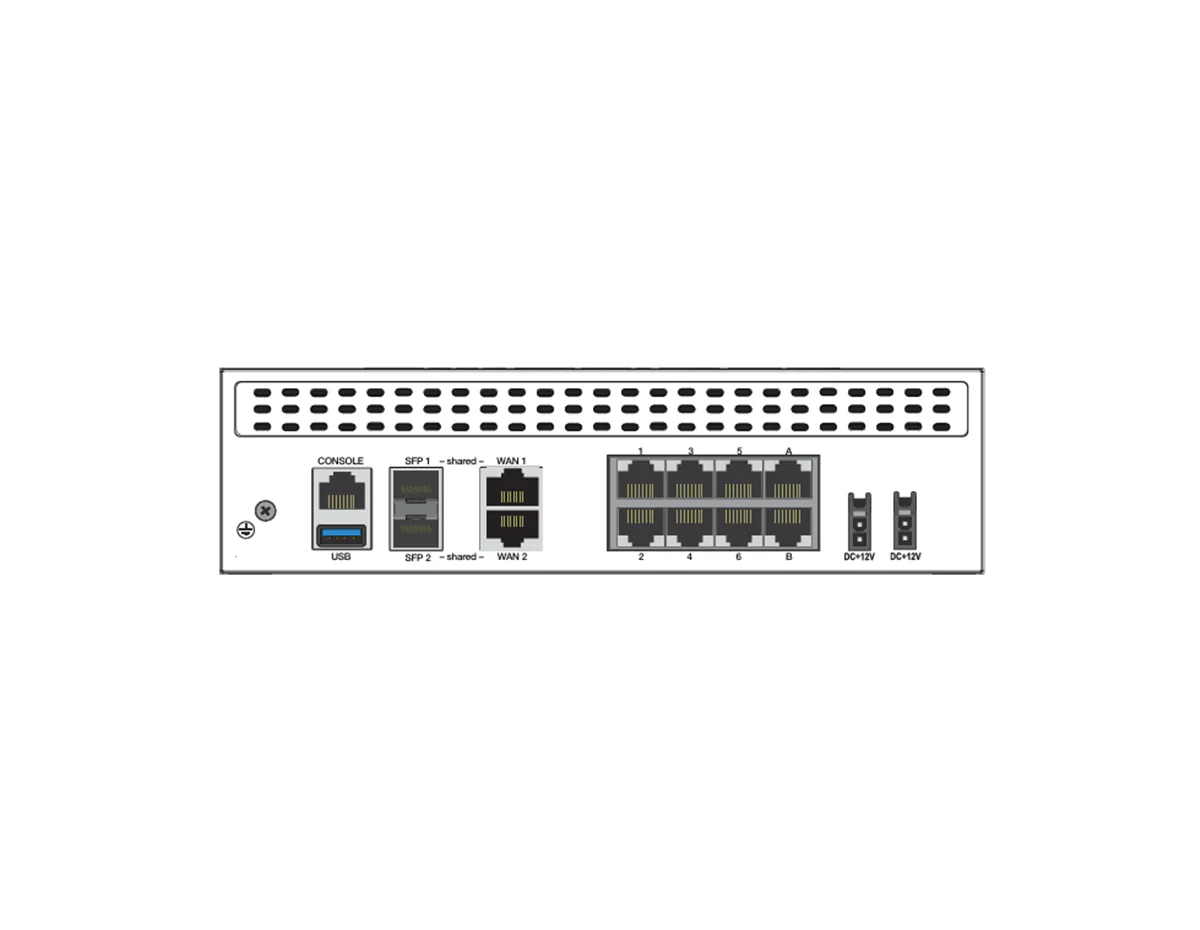

• Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default), 1x DSL RJ11, 3G/4G/LTE modem, 2x Nano SIM slots, 1x USB 3.0, 1x RJ45 console
• Maximum Wi-Fi Speeds: 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
• Dimensions (H x W x L): 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
• Power / Acoustics: 12V DC, 5A input; 28.07 W avg / 34.31 W max; 24.14 dBA noise level

Upgrade Your Network Security

Ensure maximum uptime and convergence with the FortiWiFi 80F-2R-3G4G-DSL and 5-Year Enterprise Protection bundle.
