[shortdesc] Secure SD-WAN firewall with integrated wireless, embedded DSL and 3G/4G/LTE, plus 2x GE SFP/RJ45 shared media ports, powered by SP4 ASIC and delivering up to 10/10/7 Gbps firewall throughput for resilient branch connectivity[/shortdesc]

[properties]

SKU	FWF-80F-2R-3G4G-DSL-A
Form Factor	Desktop / Wallmount (optional)
Wireless Standard	802.11a/b/g/n/ac-W2 (Single Radio, 2.4 GHz/5 GHz)
WAN Interfaces	DSL (RJ11), 3G/4G/LTE, 2x GE RJ45/SFP Shared Media
Firewall Throughput	10/10/7 Gbps (1518/512/64 byte UDP)
Dimensions (H x W x L)	60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
Weight	1.6 kg (3.5 lbs)
Power Input	12V DC, 5A
Noise Level	24.14 dBA

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
System Performance & Capacity
IPv4 Firewall Throughput	10/10/7 Gbps (1518/512/64 byte UDP)
Firewall Latency	3.23 μs
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput	6.5 Gbps
SSL-VPN Throughput	950 Mbps
SSL Inspection Throughput	715 Mbps
Wireless Specifications
Antenna Ports (SMA)	6 (for WiFi, 3G/4G)
Hardware Specifications
GE RJ45 Internal Ports	6
GE RJ45 FortiLink Ports (Default)	2
SIM Slots (Nano SIM)	2
USB Ports	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
Power Consumption (Avg / Max)	28.07 W / 34.31 W
Heat Dissipation	117.0 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	20% to 90% non-condensing
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FWF80F-PDC-5), SFP Transceiver Modules (FN-TRAN-GC, FN-TRAN-SX, etc.)

[/accesories]

Ultimate Branch Continuity with Integrated Multi-WAN and Wireless

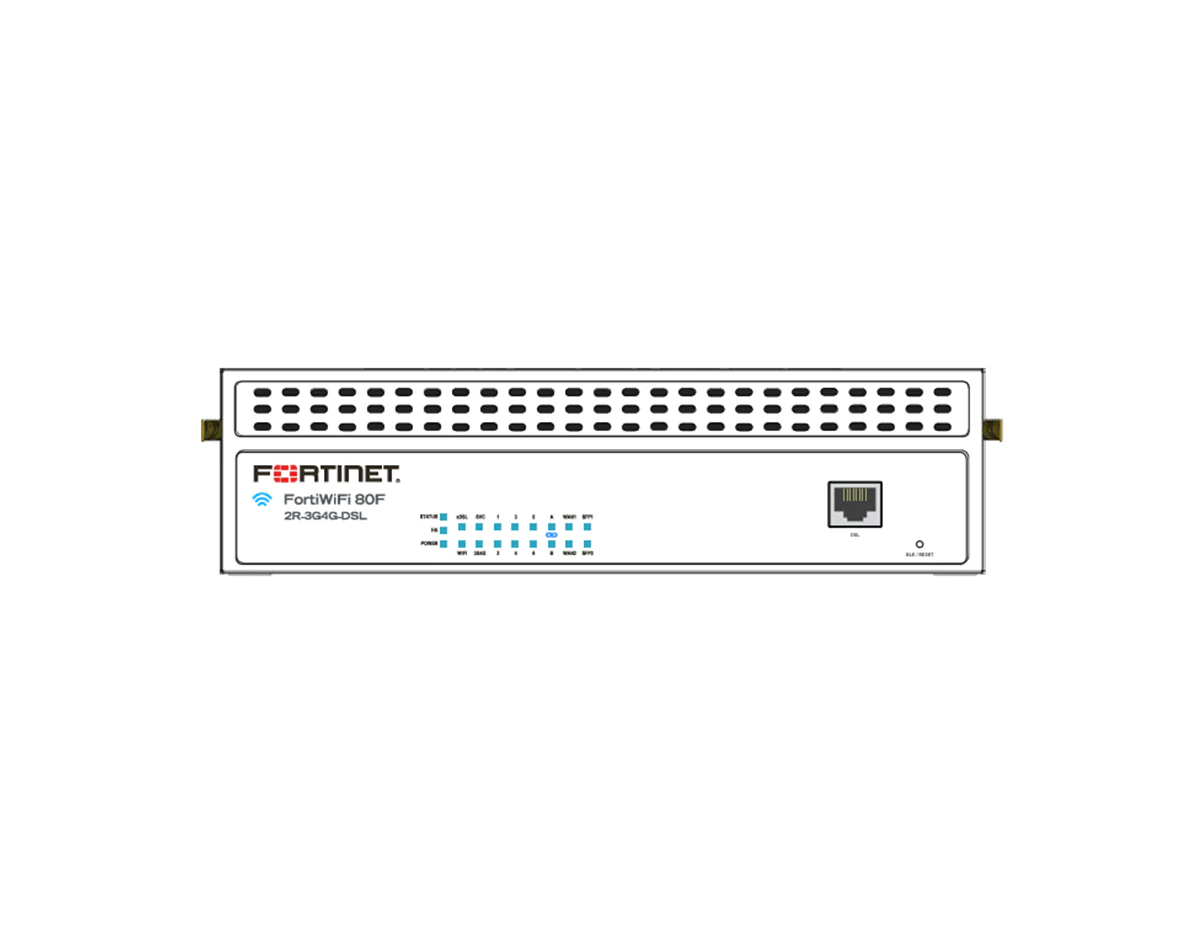

The FortiWiFi 80F-2R-3G4G-DSL is a highly converged desktop appliance, designed for resilient Secure SD-WAN at branch offices. Powered by the SP4 ASIC, it delivers up to 10/10/7 Gbps IPv4 firewall throughput and integrates distinct WAN connectivity options: two flexible GE RJ45/SFP shared media ports, an embedded DSL modem, and a redundant 3G/4G/LTE cellular modem with dual Nano-SIM slots.

This appliance reduces the need for external modems and cellular routers, simplifying the branch infrastructure stack. It supports business continuity through automatic failover across broadband and cellular connections while delivering comprehensive security services for distributed sites.

Key Benefits

• Multi-WAN Resiliency: Integrates GE RJ45/SFP shared media ports, a dedicated DSL (RJ11) interface, and an embedded 3G/4G/LTE cellular modem with two Nano-SIM slots for connectivity redundancy.
• Integrated Wireless: Built-in single-radio wireless supporting 2.4 GHz/5 GHz with 802.11a/b/g/n/ac-W2 for flexible branch connectivity.
• Powered by SP4 ASIC: Delivers up to 10/10/7 Gbps IPv4 firewall throughput and accelerates IPsec VPN performance up to 6.5 Gbps for efficient direct internet access.
• Simplified SD-Branch: Consolidates firewalling, SD-WAN, embedded DSL, and embedded cellular connectivity into one compact appliance.
• Comprehensive Security: Provides 1.4 Gbps IPS throughput and 900 Mbps Threat Protection throughput for strong, branch-ready defense.
• Trusted Platform Module (TPM): Features dedicated hardware to protect cryptographic keys and harden physical security.

Ideal Use Cases

• Remote/Branch Offices: Well-suited for branches requiring DSL access with automatic 3G/4G/LTE failover and integrated wireless.
• Temporary Sites: Ideal for pop-up locations where reliable fixed broadband may be limited, leveraging embedded cellular connectivity.
• SD-Branch Deployments: Uses 2 FortiLink ports (default) to extend secure connectivity and centralized control to supported FortiSwitch and FortiAP deployments.

Technical Specifications Summary

• IPS Throughput (Enterprise Mix): 1.4 Gbps
• NGFW Throughput (Enterprise Mix): 1 Gbps
• Threat Protection Throughput (Enterprise Mix): 900 Mbps
• IPv4 Firewall Throughput: 10/10/7 Gbps (1518/512/64 byte UDP)
• IPsec VPN Throughput: 6.5 Gbps (512 byte, AES256-SHA256 test)
• SSL-VPN Throughput: 950 Mbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps

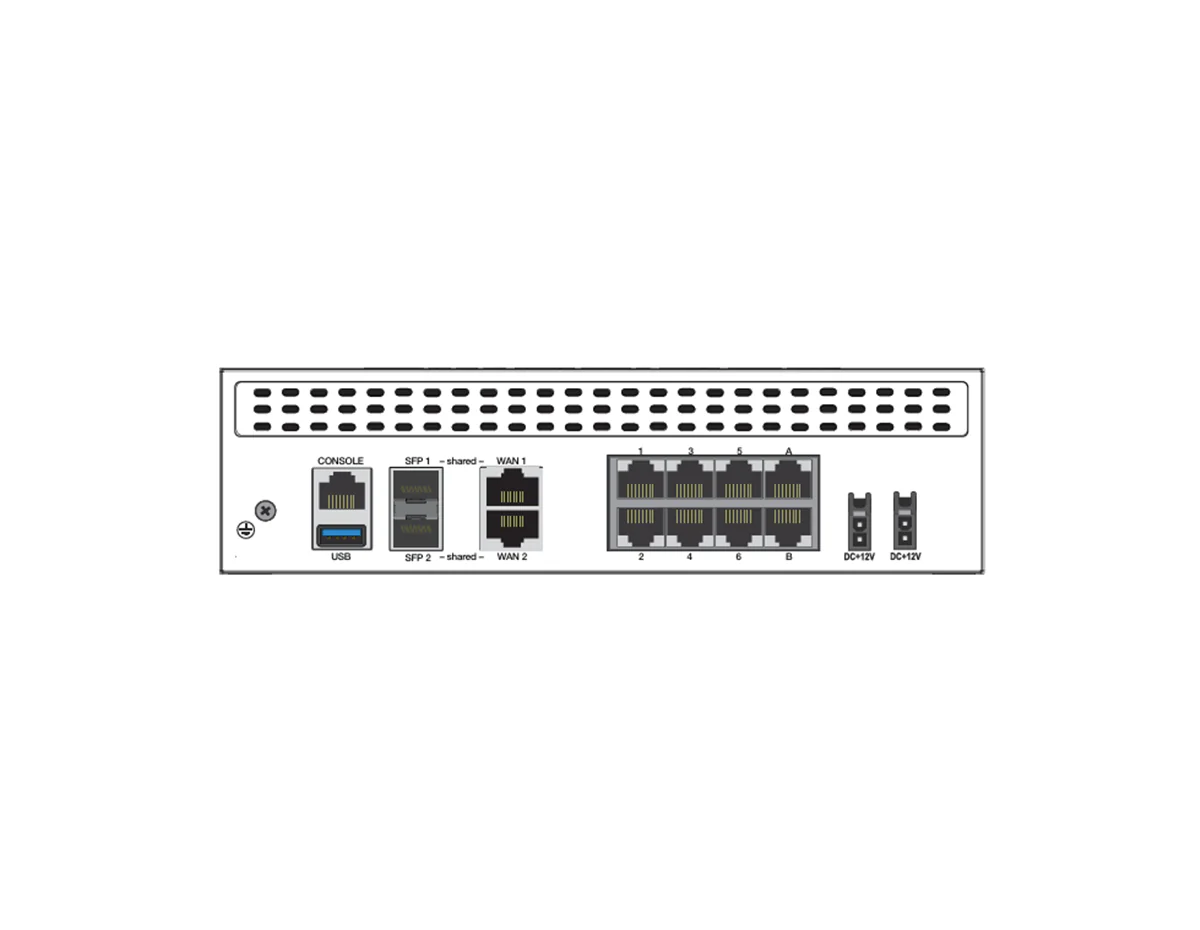

• Interfaces: 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 internal ports, 2x GE RJ45 FortiLink ports (default), 1x DSL RJ11, embedded 3G/4G/LTE, 2x Nano-SIM, 1x USB 3.0, 1x RJ45 console
• Physical & Power: 60 x 216 x 178 mm; 1.6 kg; 12V DC 5A; 28.07 W avg / 34.31 W max; 24.14 dBA
• Operating Environment & Compliance: 0°C to 40°C operating; FCC/ICES/CE/RCM/VCCI/BSMI/UL/cUL/CB; USGv6/IPv6

Upgrade Your Network Security

Ensure maximum uptime and convergence with the feature-rich FortiWiFi 80F-2R-3G4G-DSL.
