[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax) and 4x PoE+ ports, powered by SP5 ASIC, delivering up to 10 Gbps firewall throughput and including a 5-Year Unified Threat Protection bundle[/shortdesc]

[properties]

SKU	FWF-70G-POE-A-BDL-950-60
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
PoE Interfaces	4x GE RJ45 PoE/+ Ports
Firewall Throughput	10 Gbps

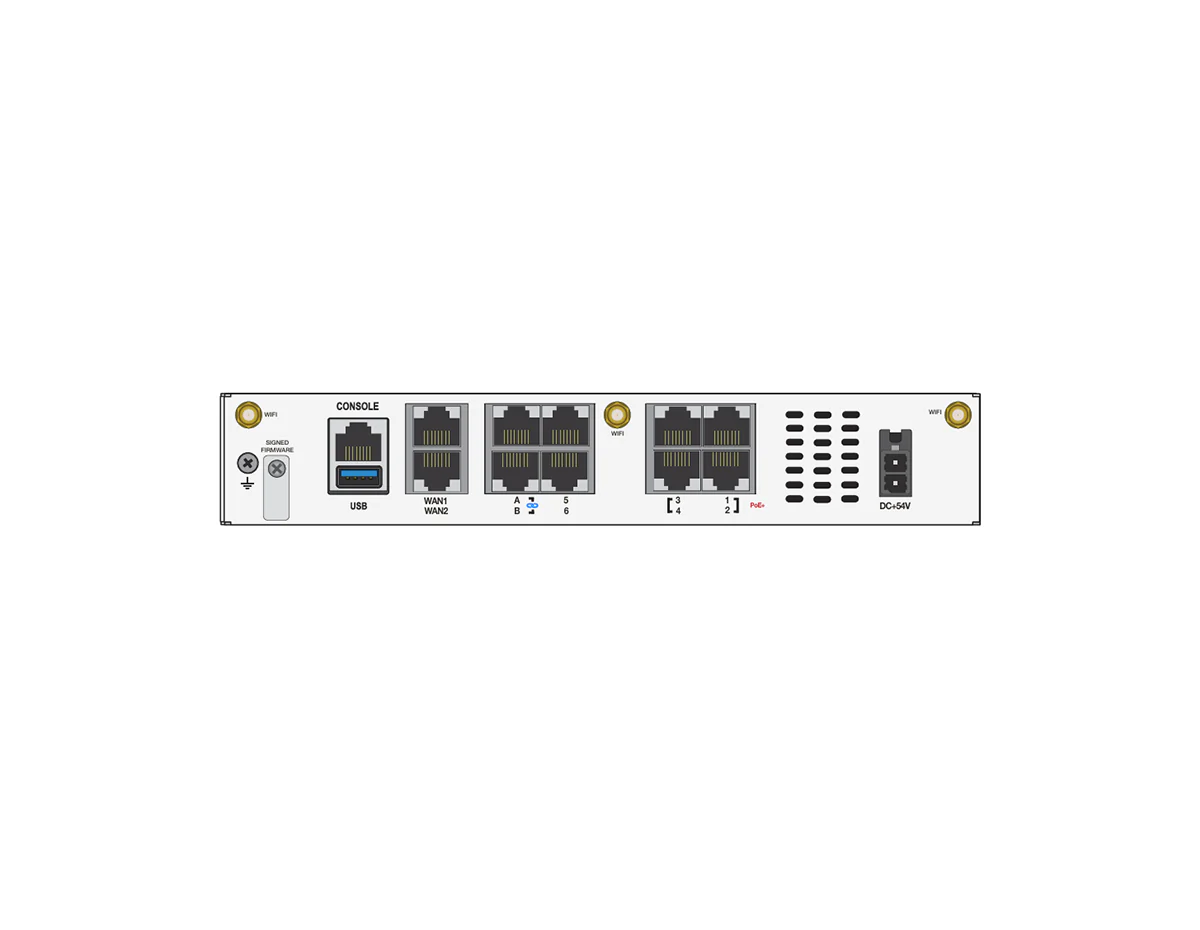

Interfaces	2x GE WAN, 4x GE Internal, 4x GE PoE/+, 1x USB, 1x Console
Dimensions (H x W x L)	40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches)
Weight	1.07 kg (2.36 lbs)
Power Input	54V DC (External Adapter)
Bundle Included	5 Year Unified Threat Protection (IPS, AMP, Web Filtering, Anti-Spam)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.5 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps
System Performance & Capacity
IPv4 Firewall Throughput	10 Gbps (1518/512/64 byte UDP)
Firewall Latency	2.46 μs
Concurrent Sessions (TCP)	1.4 Million
New Sessions/Second (TCP)	100,000
Firewall Policies	5,000
IPsec VPN Throughput	7.1 Gbps
SSL Inspection Throughput	1.4 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
Antenna Ports	3x SMA (External)
Hardware Specifications
USB Port	1x USB Port
Console Port	1x RJ45 Console Port
Total Available PoE Power Budget	60 W
Environment & Power
Power Consumption (Avg / Max)	74.9 W / 77.7 W
Heat Dissipation	264.96 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	17.75 dBA
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG50G-POE-PDC-5)

[/accesories]

Integrated PoE+ and Wi-Fi 6 Security with Unified Threat Protection

The FortiWiFi 70G-POE (FWF-70G-POE-A-BDL-950-60) is a converged security solution designed to simplify branch office infrastructure. This 5-Year Unified Threat Protection (UTP) bundle provides essential defense against web-based attacks, malware, and intrusions. Powered by the Fortinet SP5 ASIC, it combines 10 Gbps firewall throughput, integrated Wi-Fi 6, and 4x PoE+ ports to power downstream devices like cameras and IP phones.

This all-in-one appliance reduces the need for separate switches and power injectors, lowering total cost of ownership. With its integrated dual-band Wi-Fi 6 radio and Secure SD-WAN capabilities, the FWF-70G-POE ensures secure, high-performance connectivity for both wired and wireless users.

Key Benefits

• 5-Year Unified Threat Protection: Includes industry-leading security services: IPS, Advanced Malware Protection, URL Filtering, and Anti-Spam.
• Integrated PoE+ Ports: Features 4x GE RJ45 PoE/+ ports with a 60W budget to power IP phones, cameras, or access points directly.
• Powered by SP5 ASIC: Delivers industry-leading performance with 10 Gbps firewall throughput and 7.1 Gbps IPsec VPN throughput.
• Integrated Wi-Fi 6: Built-in dual-band 802.11ax access point provides secure, high-speed wireless coverage.
• Unified Management: Consolidates security, Wi-Fi, switching, and PoE power management into a single FortiOS console.
• Secure SD-WAN: Integrated SD-WAN capabilities ensure optimal application performance and secure direct internet access.

Ideal Use Cases

• Retail Branches: Powers POS systems and cameras while securing Wi-Fi and SD-WAN connectivity with enterprise-grade protection.
• Small Offices: All-in-one networking solution that eliminates the need for separate switches, access points, and power injectors.
• Distributed Enterprises: Scalable, secure connectivity with centralized management for remote locations.

Technical Specifications Summary

• Firewall Throughput: 10 Gbps (1518/512/64 byte UDP)
• IPS Throughput: 2.5 Gbps (Enterprise Traffic Mix)
• NGFW Throughput: 1.5 Gbps (Enterprise Traffic Mix)
• Threat Protection Throughput: 1.3 Gbps (Enterprise Traffic Mix)
• IPsec VPN Throughput: 7.1 Gbps (512 byte)
• SSL Inspection Throughput: 1.4 Gbps (IPS, avg. HTTPS)
• Concurrent Sessions (TCP): 1.4 Million
• Interfaces: 10x GE RJ45 Ports (4x PoE/+, 4x Internal, 2x WAN) + 1x USB + 1x RJ45 Console
• Wireless: Dual Radio (2.4 GHz / 5 GHz), 802.11 a/b/g/n/ac/ax (Wi-Fi 6), 3x SMA antenna ports
• Total PoE Budget: 60 W (max 30 W per PoE/+ port, 802.3at)
• Power Consumption (Avg / Max): 74.9 W / 77.7 W
• Dimensions / Weight: 40.5 x 216 x 160 mm; 1.07 kg

Upgrade Your Network Security

Simplify your branch deployment with the FortiWiFi 70G-POE and 5-Year Unified Threat Protection bundle.
