Fortinet FortiWiFi 70G Firewall + 1 Year UTP Bundle
[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax), powered by SP5 ASIC, delivering up to 10 Gbps firewall throughput and including a 1-Year Unified Threat Protection bundle [/shortdesc]
[properties]
| SKU | FWF-70G-A-BDL-950-12 |
| Form Factor | Desktop |
| Wireless Standard | 802.11 a/b/g/n/ac/ax (Wi-Fi 6) |
| Firewall Throughput | 10 Gbps |

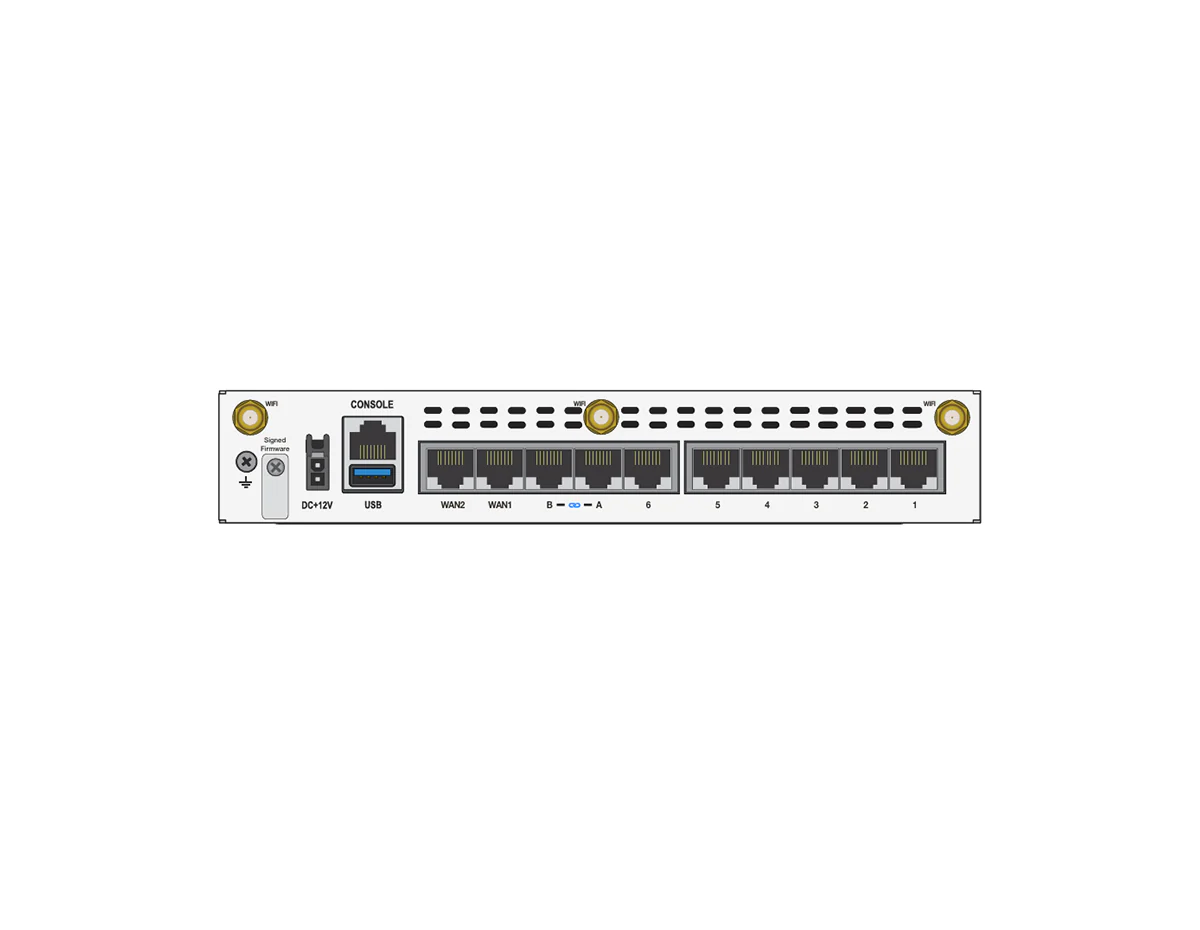

| Interfaces | 2x GE WAN, 2x GE FortiLink, 6x GE Internal, 1x USB, 1x Console |
| Dimensions (H x W x L) | 40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches) |
| Weight | 1.01 kg (2.23 lbs) |
| Power Input | 12V DC, 3A (External Adapter) |
| Bundle Included | 1 Year Unified Threat Protection (IPS, AMP, Web Filtering, Anti-Spam) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 2.5 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| System Performance & Capacity | |
| Firewall Latency | 2.46 μs |
| Concurrent Sessions (TCP) | 1.4 Million |
| New Sessions/Second (TCP) | 100,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput | 7.1 Gbps |
| SSL Inspection Throughput | 1.4 Gbps |
| Wireless Specifications | |
| Radio | Dual Radio (2.4 GHz / 5 GHz) |
| Antenna Ports | 3x SMA (External) |
| Hardware Specifications | |
| USB Port | 1x USB Port |
| Console Port | 1x RJ45 Console Port |
| Trusted Platform Module (TPM) | Yes |
| Environment & Power | |
| Power Consumption (Avg / Max) | 16.9 W / 17.6 W |
| Heat Dissipation | 60.02 BTU/hr |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | — (not specified for non-PoE desktop model) |
| Certifications | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG60E-PDC-5) |
[/accesories]
High-Performance Wireless Security with Unified Threat Protection
The FortiWiFi 70G (FWF-70G-A-BDL-950-12) integrates next-generation firewalling, Secure SD-WAN, and Wi-Fi 6 (802.11ax) into a single compact appliance powered by the Fortinet SP5 ASIC. This 1-Year Unified Threat Protection (UTP) bundle fortifies your network with essential security services, including IPS, Anti-Malware, URL Filtering, and Anti-Spam.
Designed for distributed enterprise sites, the FWF-70G eliminates the need for multiple devices by consolidating networking and security. With 10 Gbps firewall throughput and integrated dual-band Wi-Fi 6, it ensures high-speed connectivity and robust protection against sophisticated cyber threats.
Key Benefits
- 1-Year Unified Threat Protection: Includes core security services: IPS, Advanced Malware Protection, URL Filtering, and Anti-Spam.
- Powered by SP5 ASIC: Delivers industry-leading performance with 10 Gbps firewall throughput and 7.1 Gbps IPsec VPN throughput.
- Integrated Wi-Fi 6: Features a built-in dual-band 802.11ax access point for superior wireless coverage and throughput.
- Unified Management: Consolidates networking, security, and Wi-Fi management into a single FortiOS console.
- Secure SD-WAN: Integrated SD-WAN capabilities ensure optimal application performance and secure direct internet access.
- Hardware-Based Security: Includes a Trusted Platform Module (TPM) to harden physical security and authenticate cryptographic keys.
Ideal Use Cases
- Branch Offices: All-in-one security and Wi-Fi 6 solution for connecting remote sites securely.
- Retail Locations: Secure, high-speed wireless for POS systems and guest access with enterprise-grade protection.
- Small Businesses: Enterprise-grade security and reliable connectivity in a cost-effective package.
Technical Specifications Summary
- Firewall Throughput: 10 Gbps (1518/512/64 byte UDP packets)
- IPS Throughput: 2.5 Gbps (Enterprise Traffic Mix)
- NGFW Throughput: 1.5 Gbps (Enterprise Traffic Mix)
- Threat Protection Throughput: 1.3 Gbps (Enterprise Traffic Mix)
- IPsec VPN Throughput: 7.1 Gbps (512 byte)
- SSL Inspection Throughput: 1.4 Gbps (IPS, avg. HTTPS)
- Firewall Latency: 2.46 μs (64 byte UDP packets)
- Concurrent Sessions (TCP): 1.4 Million
- New Sessions/Second (TCP): 100,000
- Power Consumption (Avg / Max): 16.9 W / 17.6 W
Upgrade Your Network Security
Secure your network with the FortiWiFi 70G and 1-Year Unified Threat Protection bundle.
