[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax), powered by SP5 ASIC, delivering up to 10 Gbps firewall throughput and including a 3-Year Enterprise Protection bundle [/shortdesc]

[properties]

SKU	FWF-70G-A-BDL-809-36
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Firewall Throughput	10 Gbps (1518/512/64 byte UDP packets)

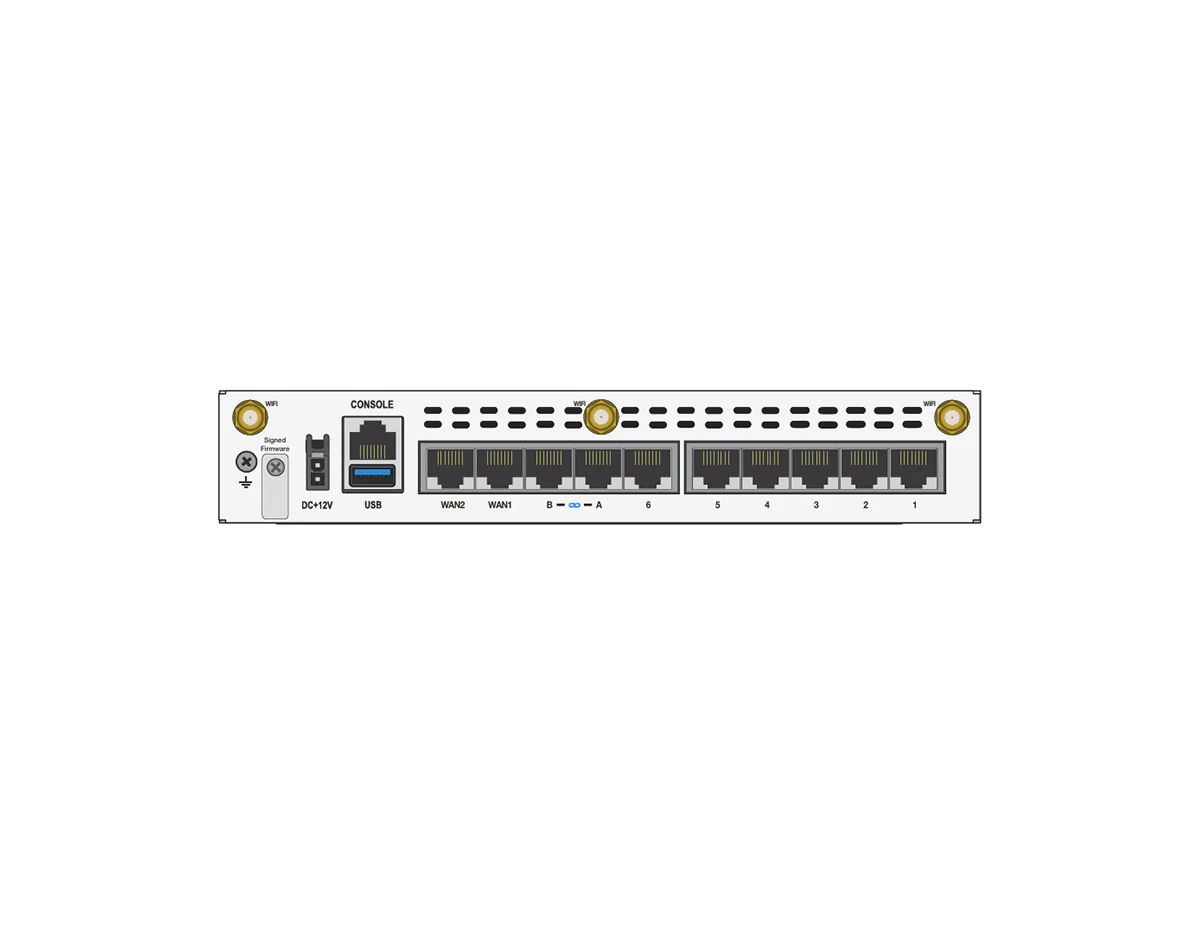

Interfaces	10x GE RJ45 (2x WAN, 1x DMZ, 7x internal; 2x FortiLink ports by default), 1x USB, 1x RJ45 console
Dimensions (H x W x L)	40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches)
Weight	1.01 kg (2.23 lbs)
Power Input	12V DC, 3A (External Adapter)
Bundle Included	3 Year Enterprise Protection (IPS, Anti-Malware Protection, URL/DNS/Video Filtering, Anti-Spam, AI-based Inline Malware Prevention, Data Loss Prevention, Attack Surface Security)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.5 Gbps
NGFW Throughput	1.5 Gbps
Threat Protection Throughput	1.3 Gbps
System Performance & Capacity
Firewall Latency	2.46 μs
Concurrent Sessions (TCP)	1.4 Million
New Sessions/Second (TCP)	100,000
Firewall Policies	5,000
IPsec VPN Throughput	7.1 Gbps
SSL Inspection Throughput	1.4 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
Antenna Ports	3x SMA (External)
Hardware Specifications
Trusted Platform Module (TPM)	Yes
Environment & Power
Power Consumption (Avg / Max)	16.9 W / 17.6 W
Heat Dissipation	60.02 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG60E-PDC-5), AC Power Adaptor (SP-FG50G-POE-PDC-5)

[/accesories]

High-Performance Wireless Security with Enterprise Protection

The FortiWiFi 70G (FWF-70G-A-BDL-809-36) integrates next-generation firewalling, Secure SD-WAN, and Wi-Fi 6 (802.11ax) into a single compact appliance powered by the Fortinet SP5 ASIC. This 3-Year Enterprise Protection bundle strengthens security coverage with services including IPS, Anti-Malware Protection, URL/DNS/Video Filtering, Anti-Spam, AI-based Inline Malware Prevention, Data Loss Prevention, and Attack Surface Security.

Designed for distributed enterprise sites, the FWF-70G eliminates the need for multiple devices by consolidating networking and security. With up to 10 Gbps firewall throughput and integrated dual-band Wi-Fi 6, it enables high-speed connectivity and robust protection against modern cyber threats.

Key Benefits

• 3-Year Enterprise Protection: Security services including IPS, Anti-Malware Protection, URL/DNS/Video Filtering, Anti-Spam, AI-based Inline Malware Prevention, Data Loss Prevention, and Attack Surface Security.
• Powered by SP5 ASIC: Delivers industry-leading performance with up to 10 Gbps firewall throughput and 7.1 Gbps IPsec VPN throughput.
• Integrated Wi-Fi 6: Features a built-in dual-band 802.11ax access point for strong wireless coverage and throughput.
• Unified Management: Consolidates networking, security, and Wi-Fi management into a single FortiOS console.
• Secure SD-WAN: Integrated SD-WAN capabilities support optimal application performance and secure direct internet access.
• Hardware-Based Security: Includes a Trusted Platform Module (TPM) to help harden the appliance and protect cryptographic material.

Ideal Use Cases

• Branch Offices: All-in-one security and Wi-Fi 6 solution for connecting remote sites securely.
• Retail Locations: Secure, high-speed wireless for POS systems and guest access with enterprise-grade protection.
• Highly Regulated Environments: Enterprise Protection supports security requirements with capabilities such as Data Loss Prevention and Attack Surface Security services.

Technical Specifications Summary

• Firewall Throughput: 10 Gbps (1518/512/64 byte UDP packets)
• IPS Throughput (Enterprise Traffic Mix): 2.5 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 1.5 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 1.3 Gbps
• IPsec VPN Throughput (512 byte): 7.1 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 1.4 Gbps
• Concurrent Sessions (TCP): 1.4 million
• New Sessions/Second (TCP): 100,000
• Wireless Interface: Dual Radio (2.4 GHz / 5 GHz), 802.11 a/b/g/n/ac/ax (Wi-Fi 6) with 3x SMA antenna ports
• Power Consumption (Average / Maximum): 16.9 W / 17.6 W

Upgrade Your Network Security

Secure your network with the FortiWiFi 70G and 3-Year Enterprise Protection bundle.
