Fortinet FortiWiFi FWF-70G-A Secure SD-WAN Firewall
[shortdesc] Secure SD-WAN NGFW with integrated Wi-Fi 6 (802.11ax), powered by SP5 ASIC, delivering up to 10 Gbps firewall throughput in a compact desktop form factor [/shortdesc]
[properties]
| SKU | FWF-70G-A |
| Form Factor | Desktop |
| Wireless Standard | Dual Radio (2.4 GHz / 5 GHz), 802.11 a/b/g/n/ac/ax (Wi-Fi 6 / 802.11ax) |
| Firewall Throughput | 10 Gbps |

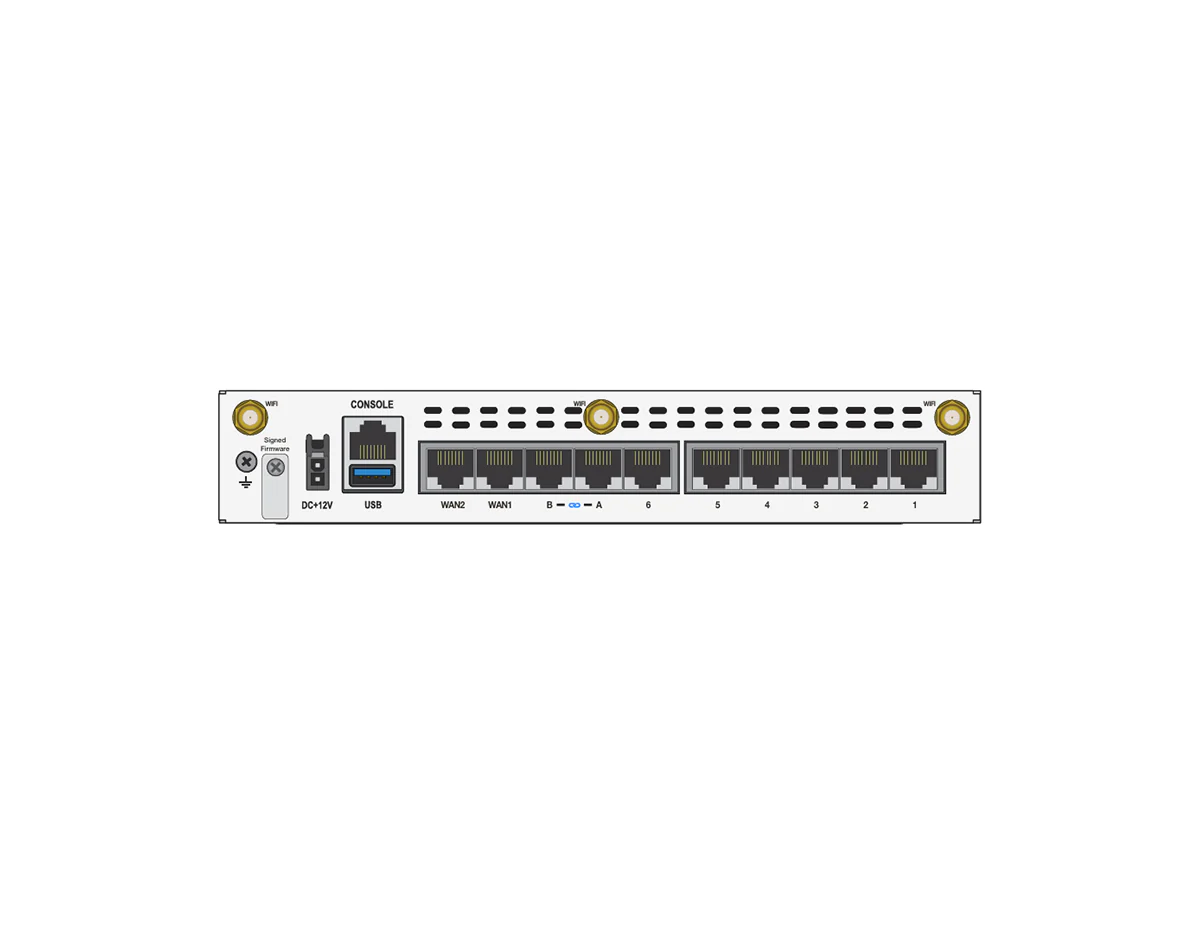

| Interfaces | 10x GE RJ45 Ports (including 2x WAN, 1x DMZ, 7x Internal; 2 internal ports are FortiLink by default), 1x USB, 1x RJ45 Console, 3x SMA Antenna Ports |
| Dimensions (H x W x L) | 40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches) |
| Weight | 1.01 kg (2.23 lbs) |
| Power Input | 12V DC, 3A (External Adapter) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
| IPS Throughput | 2.5 Gbps |
| NGFW Throughput | 1.5 Gbps |
| Threat Protection Throughput | 1.3 Gbps |
| System Performance & Capacity | |
| IPv4 Firewall Throughput | 10 Gbps (1518/512/64 byte UDP) |
| Firewall Latency | 2.46 μs |
| Concurrent Sessions (TCP) | 1.4 Million |
| New Sessions/Second (TCP) | 100,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput | 7.1 Gbps |
| SSL Inspection Throughput | 1.4 Gbps |
| Wireless Specifications | |
| Radio | Dual Radio (2.4 GHz / 5 GHz) |
| Antenna Ports | 3x SMA (External) |
| Hardware Specifications | |
| USB Port | 1x USB Port |
| Console Port | 1x RJ45 Console Port |
| Trusted Platform Module (TPM) | Yes |
| Environment & Power | |
| Power Consumption (Avg / Max) | 16.9 W / 17.6 W |
| Heat Dissipation | 60.02 BTU/hr |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | — |
| Certifications | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG60E-PDC-5) |
[/accesories]
Unified Security and Wi-Fi 6 Performance
The FortiWiFi 70G (FWF-70G-A) is a next-generation desktop firewall designed to secure modern distributed networks. Powered by Fortinet's patented SP5 ASIC, it converges high-performance networking, 10 Gbps firewall throughput, and integrated Wi-Fi 6 (802.11ax) capabilities into a single, compact appliance. This integration simplifies deployment and management for distributed locations.
Ideal for branch offices and small-to-medium businesses, the FWF-70G provides dual-band Wi-Fi 6 access for high-speed wireless connectivity while simultaneously inspecting encrypted traffic with strong performance. It delivers robust protection against advanced threats through AI-powered security services, including malware prevention, DNS filtering, and intrusion prevention.
Key Benefits
- Powered by SP5 ASIC: Delivers significant performance improvements over traditional CPUs, enabling 10 Gbps firewall throughput and 7.1 Gbps IPsec VPN throughput.
- Integrated Wi-Fi 6: Features a built-in dual-band Wi-Fi 6 access point for superior wireless coverage and throughput without extra hardware.
- Unified Management: Consolidates networking, security, and Wi-Fi management into a single FortiOS console for streamlined operations.
- Secure SD-WAN: Integrated SD-WAN capabilities ensure optimal application performance and secure direct internet access.
- Hardware-Based Security: Includes a Trusted Platform Module (TPM) to harden physical security and authenticate cryptographic keys.
- Low Latency: Achieves ultra-low firewall latency of 2.46 μs, critical for delay-sensitive applications.
Ideal Use Cases
- Branch Offices: All-in-one security and Wi-Fi 6 solution for connecting remote sites securely.
- Retail Locations: Secure, high-speed wireless for POS systems and guest access in a compact form factor.
- Small Businesses: Enterprise-grade protection and unified networking for environments with limited IT resources.
Technical Specifications Summary
- Firewall Throughput: 10 Gbps (1518/512/64 byte UDP)
- IPS Throughput (Enterprise Mix): 2.5 Gbps
- NGFW Throughput (Enterprise Mix): 1.5 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.3 Gbps
- IPsec VPN Throughput: 7.1 Gbps (512 byte)
- SSL Inspection Throughput (IPS, avg. HTTPS): 1.4 Gbps
- Concurrent Sessions (TCP): 1.4 Million
- New Sessions/Second (TCP): 100,000
- Wireless: Dual Radio 2.4/5 GHz, 802.11 a/b/g/n/ac/ax (Wi-Fi 6 / 802.11ax), 3x SMA antenna ports
- Power (Avg / Max): 16.9 W / 17.6 W
- Dimensions: 40.5 x 216 x 160 mm
Upgrade Your Network Security
Secure your edge with the power of SP5 ASIC and Wi-Fi 6 in the FortiWiFi 70G.
