[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 5, powered by SoC4 ASIC, delivering up to 10 / 10 / 6 Gbps firewall throughput and including a 1-Year Enterprise Protection bundle [/shortdesc]

[properties]

SKU	FWF-61F-A-BDL-809-12
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac-W2 (WiFi 5)
Internal Storage	1x 128 GB SSD
Firewall Throughput	10/10/6 Gbps (1518/512/64 byte UDP packets)

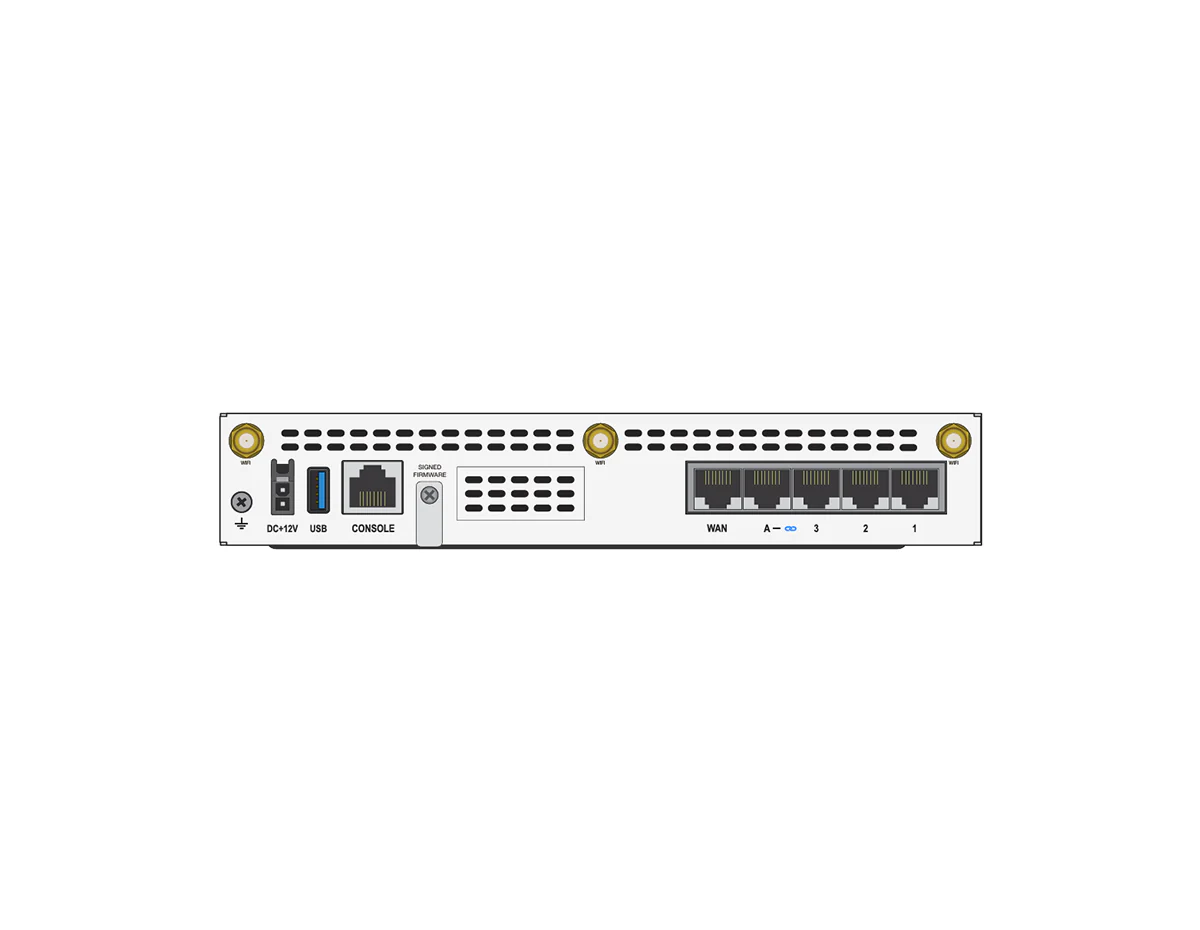

Interfaces	2x GE WAN, 1x GE DMZ, 2x GE FortiLink, 5x GE Internal
Dimensions (H x W x L)	38.5 x 216 x 160 mm (1.5 x 8.5 x 6.3 inches)
Weight	1.01 kg (2.23 lbs)
Power Input	12Vdc, 3A (External Adapter)
Bundle Included	1 Year Enterprise Protection

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	700 Mbps
System Performance & Capacity
IPv4 Firewall Throughput	10/10/6 Gbps (1518/512/64 byte UDP packets)
Firewall Latency	3.3 μs
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	2,000
IPsec VPN Throughput	6.5 Gbps
SSL-VPN Throughput	900 Mbps
SSL Inspection Throughput	630 Mbps
Wireless Specifications
Radio	Single Radio (2.4GHz/5GHz)
MIMO	3x3 MU-MIMO
Max WiFi Speeds	1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Antenna Gain	3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz
Hardware Specifications
USB Port	1x USB Port
Console Port	1x RJ45 Console Port
Environment & Power
Power Consumption (Avg / Max)	17.5 W / 19.0 W
Heat Dissipation	64.8 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Certifications
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), AC Power Adaptor (SP-FG60E-PDC-5), Wall Mount Kit (SP-FG60F-MOUNT-20)

[/accesories]

Secure SD-WAN with Storage and Enterprise Protection

The FortiWiFi 61F (FWF-61F-A-BDL-809-12) is an enhanced desktop security appliance designed for businesses that require high performance and local data retention. This 1-Year Enterprise Protection bundle maximizes your security posture with advanced services.

Featuring 128GB of internal SSD storage, the FWF-61F allows for local logging and reporting directly on the device. Powered by the SoC4 ASIC, it delivers up to 10/10/6 Gbps firewall throughput (1518/512/64 byte UDP packets) and integrated 802.11ac-W2 Wi-Fi, all within a silent, fanless form factor.

Key Benefits

• 1-Year Enterprise Protection: Includes FortiGuard security services such as IPS, Anti-Malware Protection (AMP), Web and URL Filtering, Application Control, and AI-powered threat intelligence to protect against known and emerging threats.
• 128GB Onboard SSD: Enables local logging and on-box report storage for improved visibility and compliance support.
• Powered by SoC4 ASIC: Delivers up to 10/10/6 Gbps firewall throughput (1518/512/64 byte UDP packets) and accelerates SD-WAN application identification.
• Integrated Wireless: Built-in 802.11ac-W2 Wi-Fi with 3x3 MU-MIMO technology eliminates the need for separate access points.
• Fanless Operation: Silent 0 dBA design enables deployment in noise-sensitive environments like retail floors and offices.
• Unified Management: FortiOS consolidates storage, Wi-Fi, and security management into a single console.

Ideal Use Cases

• Retail & Branch Offices: Perfect for sites needing local log retention for compliance and secure Wi-Fi for operations.
• Small Businesses: All-in-one networking, security, and storage solution reducing hardware footprint.
• Highly Regulated Environments: Enterprise Protection bundle meets strict security standards, supported by local data retention capabilities.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 10/10/6 Gbps
• IPS Throughput (Enterprise Mix): 1.4 Gbps
• NGFW Throughput: 1 Gbps
• Threat Protection Throughput: 700 Mbps
• IPsec VPN Throughput (512 byte): 6.5 Gbps
• SSL-VPN Throughput: 900 Mbps
• Interfaces: 2x GE RJ45 WAN, 1x GE RJ45 DMZ, 2x GE RJ45 FortiLink (default), 5x GE RJ45 internal
• Wireless: Single Radio (2.4GHz/5GHz) 802.11 a/b/g/n/ac-W2; 3x3 MU-MIMO; 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
• Internal Storage: 1x 128 GB SSD
• Power / Noise: 12Vdc, 3A; Fanless 0 dBA (avg/max power consumption 17.5 W / 19.0 W)

Upgrade Your Network Security

Protect your business with the storage-optimized FortiWiFi 61F and 1-Year Enterprise Protection bundle today.
