[shortdesc] NGFW firewall, integrated Wi-Fi 5 Wave 2, secure SD-WAN, fanless desktop design, FortiOS platform [/shortdesc]

[properties]

Model	FortiWiFi 60F
SKU	FWF-60F-A
Product Type	Next Generation Firewall Security Appliance
Form Factor	Desktop
Processor	Fortinet FortiASIC SoC4
Firewall Throughput	10 Gbps
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	700 Mbps
Concurrent Sessions	700,000
New Sessions per Second	35,000
Wireless Standard	802.11 a/b/g/n/ac Wave 2
Wi-Fi Bands	2.4 GHz and 5 GHz
Maximum Wi-Fi Speed	1300 Mbps (5 GHz), 450 Mbps (2.4 GHz)
Ethernet Interfaces	2 x GE RJ45 WAN, 1 x GE RJ45 DMZ, 5 x GE RJ45 Internal, 2 x GE RJ45 FortiLink
USB Ports	1 x USB
Console Port	1 x RJ45
Internal Storage	None
Noise Level	Fanless (0 dBA)
Power Supply	External DC Power Adapter
Dimensions (H x W x D)	38.5 x 216 x 160 mm
Weight	1.01 kg

[/properties]

[specifications]

Firewall Latency	3.3 microseconds (64 byte UDP)
Firewall Throughput (Packets)	9 Mpps
IPsec VPN Throughput	6.5 Gbps
Gateway-to-Gateway VPN Tunnels	200
Client-to-Gateway VPN Tunnels	500
SSL VPN Throughput	900 Mbps
Concurrent SSL VPN Users	200
SSL Inspection Throughput	630 Mbps
Application Control Throughput	18 Gbps
CAPWAP Throughput	8 Gbps
Virtual Domains	10
Maximum FortiSwitches Supported	24
Maximum FortiAPs Supported	64 (32 in Tunnel Mode)
Power Consumption	17.2 W average, 18.7 W maximum
Operating Temperature	0 C to 40 C
Storage Temperature	-35 C to 70 C
Operating Humidity	10% to 90% non-condensing
Operating Altitude	Up to 2250 m
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, USGv6/IPv6

[/specifications]

[accesories]

Included	External DC Power Adapter
Optional	Rack Mount Tray SP-RACKTRAY-02; Wall Mount Kit SP-FG60F-MOUNT-20; AC Power Adapter SP-FG60E-PDC-5

[/accesories]

Secure Branch Connectivity with Integrated Wireless

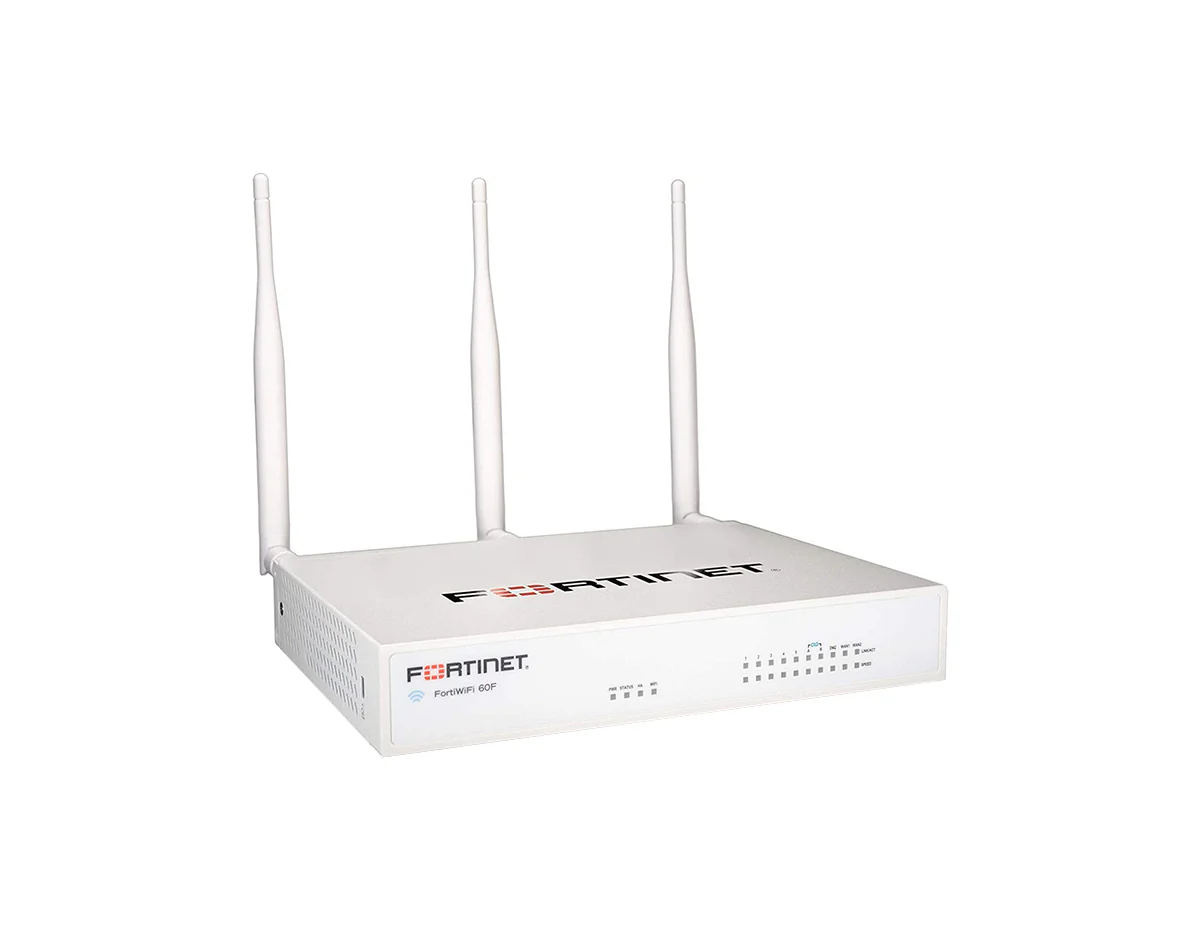

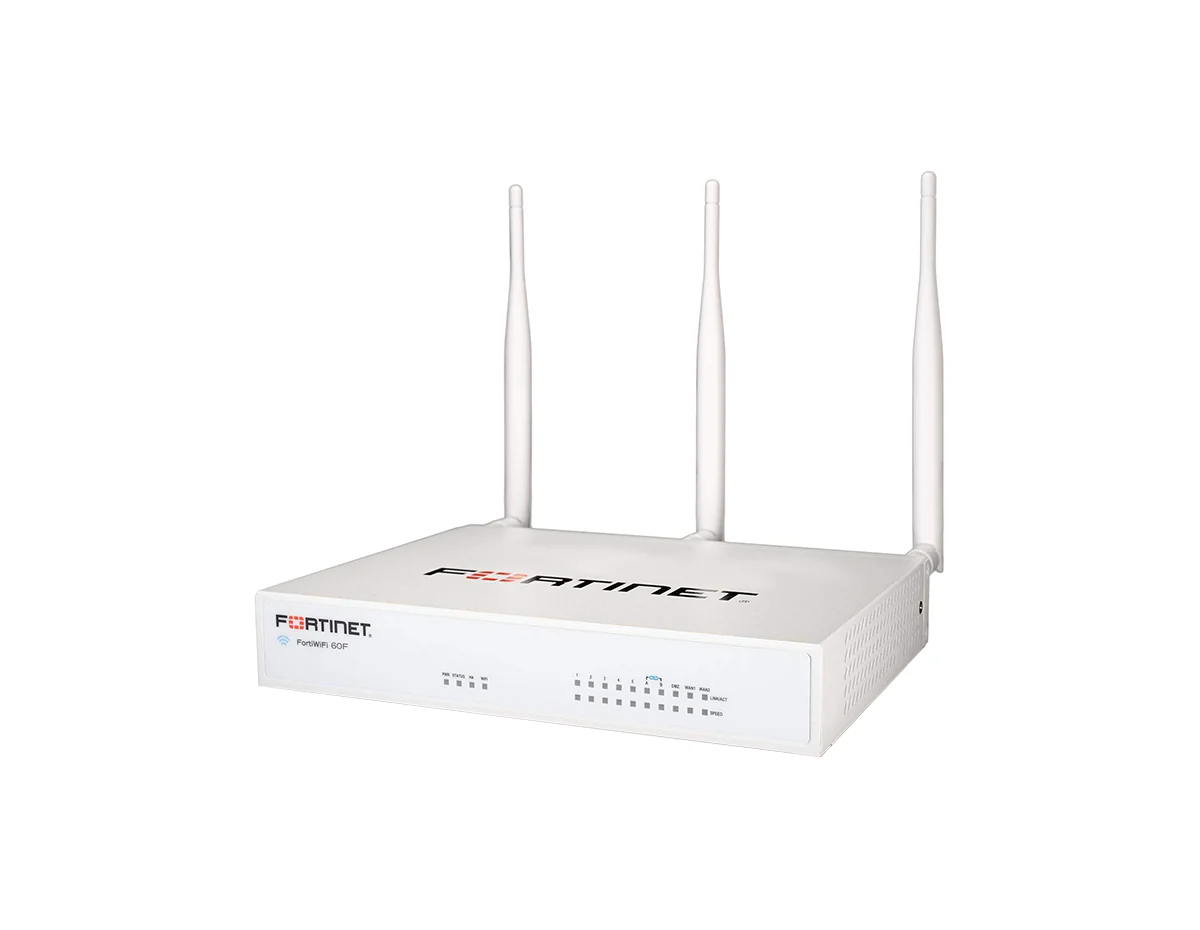

The Fortinet FortiWiFi 60F (FWF-60F-A) is a compact next-generation firewall designed for branch offices and small to mid-size businesses that need strong security and built-in wireless connectivity. Powered by FortiOS and Fortinet purpose-built SOC4 ASIC, it combines firewalling, SD-WAN, and Wi-Fi 5 in a single appliance to reduce complexity while maintaining enterprise-grade protection.

This all-in-one platform enables secure wired and wireless access, high-speed threat inspection, and centralized management without requiring additional controllers or access points.

Key Benefits & Features

• Integrated Next-Generation Firewall: Delivers advanced firewall, IPS, application control, and threat protection in one device.
• Built-in Wi-Fi 5 Wave 2: Single-radio 802.11a/b/g/n/ac Wave 2 wireless supports both 2.4 GHz and 5 GHz bands for secure office connectivity.
• High-Performance SOC4 ASIC: Hardware acceleration enables up to 1 Gbps NGFW throughput and 700 Mbps threat protection.
• Secure SD-WAN Capabilities: Optimizes application traffic across WAN links with integrated SD-WAN at no extra cost.
• Fanless Desktop Form Factor: Silent operation and compact design ideal for offices, retail, and remote sites.

Ideal Use Cases

• Branch offices requiring unified security and wireless access
• Retail stores and franchises with limited IT space
• Small to mid-size enterprises deploying secure SD-WAN
• Remote sites needing centralized security management
• Organizations consolidating firewall and Wi-Fi infrastructure

Technical Specifications

• Firewall Throughput: Up to 10 Gbps
• NGFW Throughput: Up to 1 Gbps
• Threat Protection Throughput: Up to 700 Mbps
• Wireless Standard: 802.11a/b/g/n/ac Wave 2
• Ethernet Ports: 10x GE RJ45 total including WAN, DMZ, internal, and FortiLink ports
• Concurrent Sessions: Up to 700,000
• Form Factor: Desktop, fanless
• Operating System: FortiOS
