[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 and 64 GB onboard SSD storage, delivering up to 5 / 5 / 4 Gbps firewall throughput and including a 3-Year Unified Threat Protection bundle [/shortdesc]

[properties]

SKU	FWF-51G-A-BDL-950-36
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Internal Storage	64 GB SSD
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)

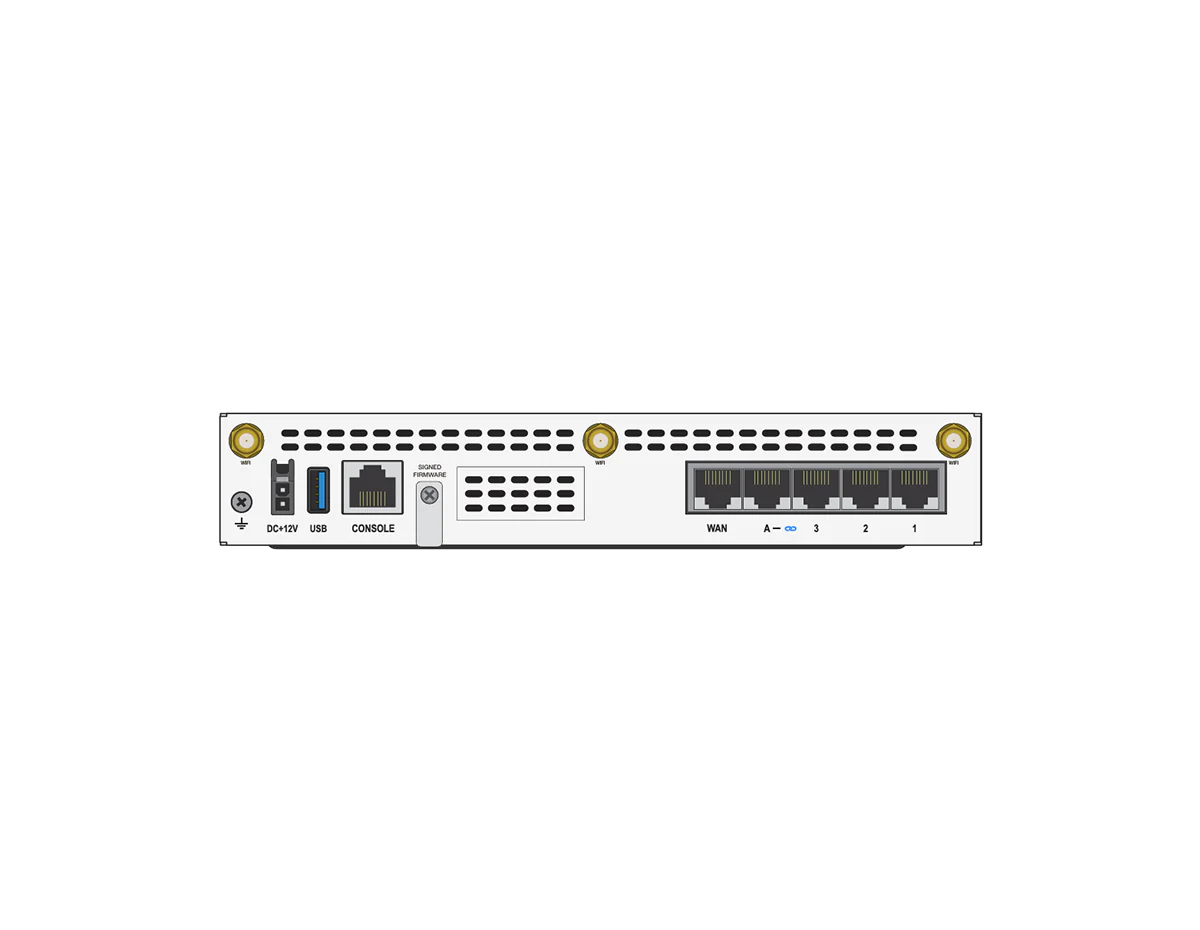

Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console
Dimensions (H x W x L)	42 x 216 x 178 mm (1.7 x 8.5 x 7.0 inches)
Weight	1.1 kg (2.4 lbs)
Power Input	12Vdc, 3A (External Adapter)
Bundle Included	3 Year Unified Threat Protection (IPS, AMP, URL/DNS/Video Filtering, Anti-Spam)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
IPv4 Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps
SSL Inspection Throughput	1.3 Gbps (IPS, avg. HTTPS)
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
MIMO	2x2 MU-MIMO
Max WiFi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Antennas	3x External SMA Antenna Ports
Hardware Specifications
USB Port	1x USB Port
Console Port	1x RJ45 Console Port
Network Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet
Environment & Power
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Certifications
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10-XX)

[/accesories]

Secure SD-WAN with Storage and Unified Threat Protection

The FortiWiFi 51G (FWF-51G-A-BDL-950-36) is a powerhouse desktop security appliance that integrates Next-Generation Firewall (NGFW) capabilities, Wi-Fi 6, and 64GB of onboard SSD storage. This 3-Year Unified Threat Protection (UTP) bundle fortifies your network with essential security services, including IPS, Anti-Malware, URL/DNS/Video Filtering, and Anti-Spam.

Powered by the Fortinet SP5 ASIC, the FWF-51G delivers exceptional performance with up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets). The dedicated internal storage supports local log retention and on-box visibility for branch offices that require strong security and practical operational reporting.

Key Benefits

• 3-Year Unified Threat Protection: Includes core security services like IPS, Anti-Malware, URL/DNS/Video Filtering, and Anti-Spam to protect against web-based threats.
• 64GB Onboard SSD: Dedicated internal storage supports local logging and on-box visibility for operational reporting.
• Powered by SP5 ASIC: Delivers 1.25 Gbps NGFW throughput and accelerated VPN performance.
• Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MU-MIMO for secure and high-speed wireless connectivity.
• Fanless Operation: Silent 0 dBA noise level ensures suitability for retail counters and quiet office environments.
• Unified Management: Consolidates storage, Wi-Fi, and security management into a single console, reducing operational complexity.

Ideal Use Cases

• Retail & Branch Offices: Perfect for locations requiring local log storage for compliance and secure Wi-Fi for operations.
• Small Businesses: All-in-one security, storage, and connectivity solution in a compact form factor.
• Remote Workforce: Enterprise-grade security and reliable connectivity for home offices.

Technical Specifications Summary

• Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
• IPS Throughput: 2.25 Gbps
• NGFW Throughput: 1.25 Gbps
• Threat Protection Throughput: 1.1 Gbps
• IPsec VPN Throughput: 4.5 Gbps
• SSL Inspection Throughput: 1.3 Gbps (IPS, avg. HTTPS)
• Concurrent Sessions (TCP): 720,000
• New Sessions/Second (TCP): 85,000
• Wireless: Dual radio (2.4/5 GHz), 2x2 MU-MIMO; 1201 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz; 3x SMA antenna ports
• Ports: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet; 1x USB; 1x RJ45 console
• Physical & Power: 42 x 216 x 178 mm; 1.1 kg; 12VDC, 3A (external adapter)

Upgrade Your Network Security

Deploy the FortiWiFi 51G and 3-Year Unified Threat Protection bundle for robust security, storage, and speed.
