[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 and 64 GB onboard SSD storage, delivering up to 5 Gbps firewall throughput and including a 1-Year Enterprise Protection bundle [/shortdesc]

[properties]

SKU	FWF-51G-A-BDL-809-12
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Internal Storage	64 GB SSD
Firewall Throughput	5 Gbps

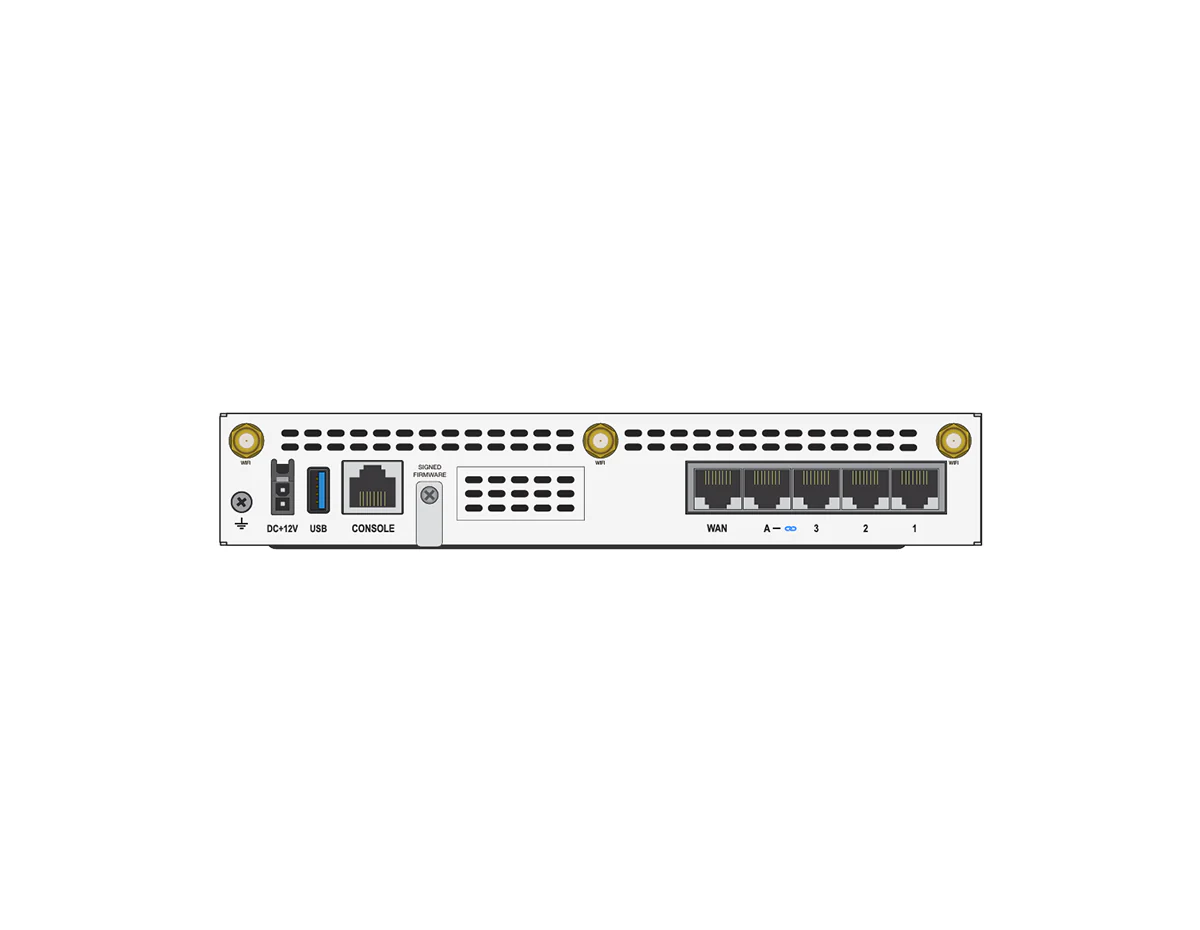

Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 Console, 3x SMA antenna ports
Dimensions (H x W x L)	42 x 216 x 178 mm (1.7 x 8.5 x 7.0 inches)
Weight	1.1 kg (2.4 lbs)
Power Input	12VDC, 3A (External Adapter; 100–240V AC, 50/60 Hz input)
Bundle Included	1 Year Enterprise Protection (FortiGuard security services such as IPS and Anti-Malware Protection; entitlements vary by contract)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps
SSL Inspection Throughput	1.3 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
MIMO	2x2 MU-MIMO
Max WiFi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Antennas	3x External SMA Antenna Ports
Hardware Specifications
Environment & Power
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Certifications
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX))

[/accesories]

Secure SD-WAN with Storage and Enterprise Protection

The FortiWiFi 51G (FWF-51G-A-BDL-809-12) is a powerhouse desktop security appliance that integrates Next-Generation Firewall (NGFW) capabilities, Wi-Fi 6, and 64GB of onboard SSD storage. This 1-Year Enterprise Protection bundle enhances security with FortiGuard services such as IPS and Anti-Malware Protection (entitlements vary by contract).

Powered by the Fortinet SP5 ASIC, the FWF-51G delivers exceptional performance with 5 Gbps firewall throughput. The dedicated internal storage supports local log retention and reporting, making it well-suited for branch offices that require strong visibility and compliance without relying solely on cloud logging.

Key Benefits

• 1-Year Enterprise Protection: FortiGuard security services such as IPS and Anti-Malware Protection (entitlements vary by contract).
• 64GB Onboard SSD: Dedicated internal storage supports local logging and reporting for improved visibility.
• Powered by SP5 ASIC: Delivers 1.25 Gbps NGFW throughput and accelerated VPN performance.
• Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MU-MIMO for secure and high-speed wireless connectivity.
• Fanless Operation: Silent 0 dBA noise level ensures suitability for retail counters and quiet office environments.
• Unified Management: Consolidates storage, Wi-Fi, and security management into a single console, reducing operational complexity.

Ideal Use Cases

• Retail & Branch Offices: Suitable for locations requiring local log storage for compliance and secure Wi-Fi for operations.
• Highly Regulated Environments: Supports security and auditing needs with local data retention and reporting capabilities.
• Remote Workforce: All-in-one security, storage, and connectivity solution for demanding home office users.

Technical Specifications Summary

• Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
• IPS Throughput: 2.25 Gbps (Enterprise Traffic Mix)
• NGFW Throughput: 1.25 Gbps (Enterprise Traffic Mix)
• Threat Protection Throughput: 1.1 Gbps (Enterprise Traffic Mix)
• IPsec VPN Throughput: 4.5 Gbps (512 byte)
• SSL Inspection Throughput: 1.3 Gbps (IPS, avg. HTTPS)
• Session Capacity: 720,000 concurrent sessions (TCP); 85,000 new sessions/second (TCP)
• Wired Interfaces: 1x GE WAN, 1x GE FortiLink, 3x GE RJ45; plus 1x USB and 1x RJ45 Console
• Wireless: Dual radio (2.4/5 GHz), 2x2 MU-MIMO; up to 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz
• Power / Environment / Compliance: 12VDC, 3A (external adapter); 0°C to 40°C operating; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiWiFi 51G and 1-Year Enterprise Protection bundle for robust security, storage, and speed.
