[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 and 64 GB onboard SSD storage, delivering up to 5 / 5 / 4 Gbps firewall throughput powered by the SP5 ASIC [/shortdesc]

[properties]

SKU	FWF-51G-A
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Internal Storage	64 GB SSD
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP)

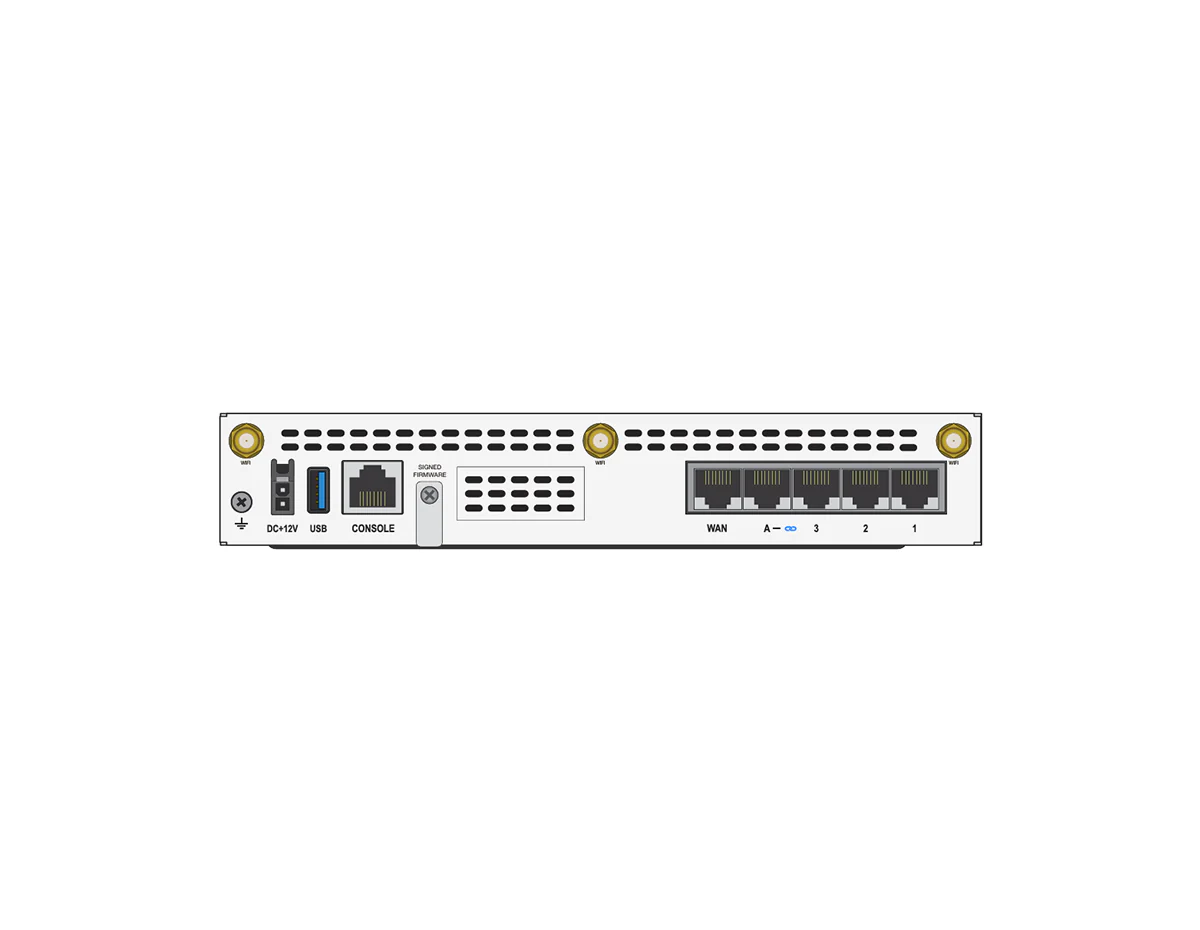

Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 Console, 3x WiFi Antenna Ports (SMA)
Dimensions (H x W x L)	42 x 216 x 178 mm (1.7 x 8.5 x 7.0 inches)
Weight	1.1 kg (2.4 lbs)
Power Input	12Vdc, 3A (External Adapter)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps
SSL Inspection Throughput	1.3 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
MIMO	2x2 MU-MIMO
Max WiFi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Antennas	3x External SMA Antenna Ports
Environment & Power
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Certifications
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX))

[/accesories]

Secure SD-WAN with Onboard SSD Storage

The FortiWiFi 51G (FWF-51G-A) is an advanced desktop firewall that integrates Next-Generation Firewall (NGFW) capabilities, Wi-Fi 6 (802.11ax), and 64GB of internal SSD storage into a single appliance. Powered by the Fortinet SP5 ASIC, it delivers high-performance networking and security without the noise, thanks to its fanless design.

The FortiWiFi 51G combines dual-band wireless (2.4 GHz / 5 GHz) with enterprise traffic mix performance up to 2.25 Gbps IPS throughput, 1.25 Gbps NGFW throughput, and 1.1 Gbps threat protection throughput—ideal for secure connectivity at distributed sites.

Key Benefits

• 64GB Onboard SSD: Includes 64 GB SSD onboard storage.
• Powered by SP5 ASIC: Delivers high-performance NGFW and SD-WAN acceleration.
• Integrated Wi-Fi 6: Dual-band 802.11ax with 2x2 MU-MIMO and maximum Wi-Fi speeds of 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz.
• Fanless Operation: Silent 0 dBA noise level ensures suitability for quiet office environments and retail counters.
• Unified Management: Consolidates wired, wireless, and security management into a single FortiOS-based platform.
• Secure SD-WAN: Optimizes application performance and secures direct internet access for improved user experience.

Ideal Use Cases

• Retail & Branch Offices: Compact NGFW and Wi-Fi 6 connectivity for distributed sites.
• Small Businesses: All-in-one security and wireless solution in a compact form factor.
• Remote Workforce: Enterprise-grade security and reliable connectivity for home offices.

Technical Specifications Summary

• Firewall Throughput (UDP): 5 / 5 / 4 Gbps (1518/512/64 byte)
• IPS Throughput (Enterprise Mix): 2.25 Gbps
• NGFW Throughput (Enterprise Mix): 1.25 Gbps
• Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
• IPsec VPN Throughput (512 byte): 4.5 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
• Concurrent Sessions (TCP): 720,000
• New Sessions/Second (TCP): 85,000
• Wireless Interface: Dual Radio (2.4 GHz / 5 GHz), 802.11 a/b/g/n/ac/ax
• Max Wi-Fi Speeds: 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
• Interfaces: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 Console, 3x SMA antenna ports
• Physical: 42 x 216 x 178 mm; 1.1 kg (2.4 lbs)

Upgrade Your Network Security

Enhance your branch capabilities with the FortiWiFi 51G today.
