[shortdesc] Secure SD-WAN firewall with dedicated GE SFP fiber port and integrated Wi-Fi 6, delivering up to 5 Gbps firewall throughput and including a 3-Year Unified Threat Protection bundle [/shortdesc]

[properties]

SKU	FWF-50G-SFP-A-BDL-950-36
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Fiber Interface	1x GE SFP Slot
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)

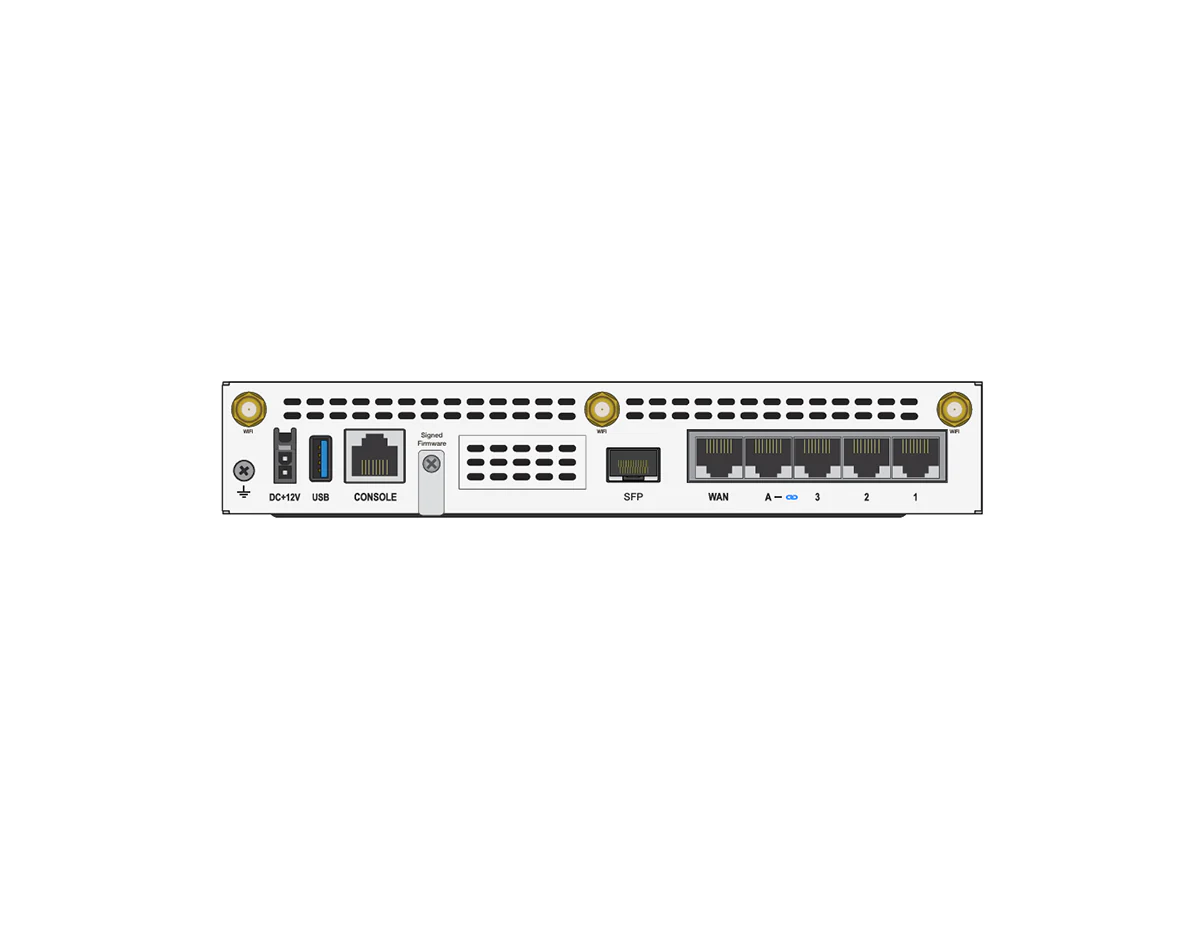

Interfaces	1x GE SFP, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 3x WiFi Antenna Ports, 1x USB, 1x Console
Dimensions (H x W x L)	40.5 x 216 x 160 mm (1.6 x 8.5 x 6.3 inches)
Weight	1.0 kg (2.2 lbs)
Power Input	12Vdc, 3A (External Adapter)
Bundle Included	3 Year Unified Threat Protection (IPS, AMP, Web Filtering, Anti-Spam)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps
SSL Inspection Throughput	1.3 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
MIMO	2x2 MU-MIMO
Max WiFi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Antennas	3x External SMA Antenna Ports
Hardware Specifications
USB Port	1x USB Port
Console Port	1x RJ45 Console Port
Environment & Power
Power Consumption (Avg / Max)	12.5 W / 13.9 W
Heat Dissipation	47.4 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Certifications
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10-XX)

[/accesories]

Secure Fiber Connectivity with Unified Threat Protection

The FortiWiFi 50G-SFP (FWF-50G-SFP-A-BDL-950-36) is a high-performance desktop firewall designed for locations requiring direct fiber connectivity. This 3-Year Unified Threat Protection (UTP) bundle fortifies your network with essential security services, including IPS, Anti-Malware, URL Filtering, and Anti-Spam.

Powered by the Fortinet SP5 ASIC, the FWF-50G-SFP integrates a dedicated SFP port, Next-Generation Firewall (NGFW) capabilities, and Wi-Fi 6 (802.11ax) into a single fanless appliance. It delivers up to 5 Gbps of firewall throughput while ensuring silent operation, making it perfect for noise-sensitive office environments.

Key Benefits

• 3-Year Unified Threat Protection: Includes core security services like IPS, Anti-Malware, URL Filtering, and Anti-Spam to protect against web-based threats.
• SFP Fiber Connectivity: Integrated GE SFP slot enables direct fiber connection, reducing hardware clutter and failure points.
• Powered by SP5 ASIC: Delivers industry-leading 1.25 Gbps NGFW throughput and accelerated VPN performance.
• Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MU-MIMO for fast and reliable wireless coverage.
• Fanless Operation: Silent 0 dBA noise level makes it ideal for retail counters, medical offices, and small branches.
• Unified Management: Consolidates fiber WAN, Wi-Fi, and security management into a single console, reducing operational complexity.

Ideal Use Cases

• Fiber-Connected Branches: Perfect for locations utilizing fiber-to-the-premise (FTTP) internet without needing extra media converters.
• Retail & Small Business: All-in-one security, fiber WAN, and Wi-Fi 6 solution in a compact, silent form factor.
• Remote Offices: Enterprise-grade security and reliable connectivity for distributed workforce locations.

Technical Specifications Summary

• IPS Throughput (Enterprise Mix): 2.25 Gbps
• NGFW Throughput (Enterprise Mix): 1.25 Gbps
• Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
• IPv4 Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
• IPsec VPN Throughput: 4.5 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
• Concurrent Sessions (TCP): 720,000
• New Sessions/Second (TCP): 85,000
• Wireless: Dual Radio (2.4/5 GHz), 2x2 MU-MIMO; up to 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz
• Interfaces: 1x GE SFP, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 3x WiFi Antenna Ports, 1x USB, 1x RJ45 Console
• Power Consumption (Avg/Max): 12.5 W / 13.9 W
• Operating Temperature: 0°C to 40°C (32°F to 104°F)

Upgrade Your Network Security

Deploy the FortiWiFi 50G-SFP and 3-Year Unified Threat Protection bundle for robust fiber connectivity and security.
