[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 and VDSL2 ADSL2+ modem, up to 5 Gbps firewall throughput, 1.1 Gbps threat protection, includes 3-Year Unified Threat Protection bundle [/shortdesc]

[properties]

SKU	FWF-50G-DSL-A-BDL-950-36
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Integrated Modem	VDSL2 / ADSL2+ (RJ11 Port)
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)

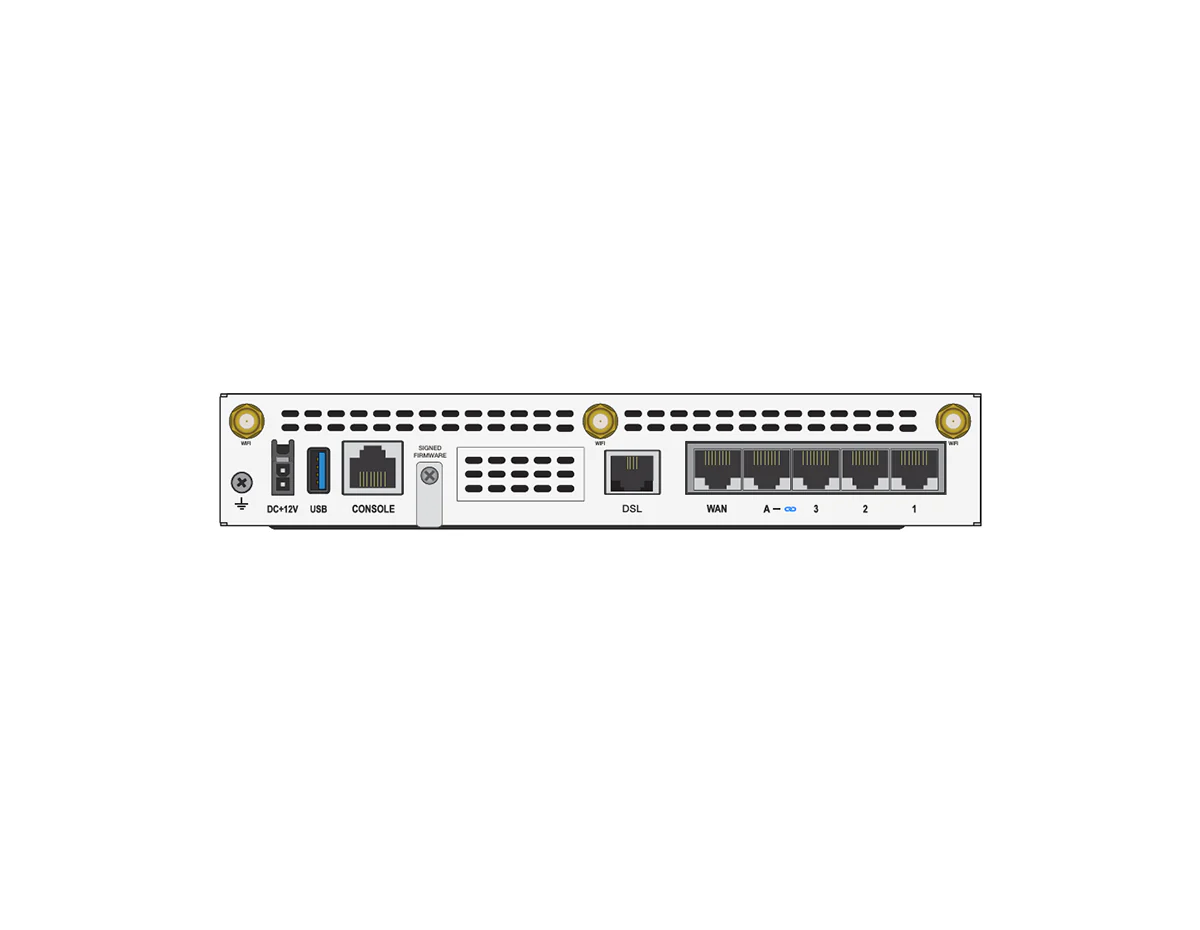

Interfaces	1x DSL RJ11, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 Console
Dimensions (H x W x L)	42 x 216 x 178 mm (1.7 x 8.5 x 7.0 inches)
Weight	1.0 kg (2.2 lbs)
Power Input	12Vdc, 3A (External Adapter)
Bundle Included	3 Year Unified Threat Protection (IPS, Anti-Malware Protection (AMP), URL/DNS Filtering, Anti-Spam)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps (512 byte)
SSL Inspection Throughput	1.3 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
MIMO	2x2 MU-MIMO
Max WiFi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Antennas	3x External SMA Antenna Ports
DSL Specifications
Supported Modes	VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, G.Lite
Supported Types	Annex A, B, I, J, M, L
Hardware Specifications
Environment & Power
Power Consumption (Avg / Max)	17.74 W / 19.0 W
Heat Dissipation	64.79 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Certifications
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10-XX)

[/accesories]

Converged DSL Security with Unified Threat Protection

The FortiWiFi 50G-DSL (FWF-50G-DSL-A-BDL-950-36) offers a streamlined solution for distributed enterprises by integrating Next-Generation Firewall (NGFW) capabilities, Secure SD-WAN, and a VDSL2/ADSL2+ modem into a single appliance. This 3-Year Unified Threat Protection (UTP) bundle fortifies your network with essential security services, including IPS, Anti-Malware Protection (AMP), URL/DNS Filtering, and Anti-Spam.

Powered by the Fortinet SP5 ASIC, the FWF-50G-DSL eliminates performance bottlenecks with up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP packets). Its fanless design ensures silent operation suitable for office environments, while the integrated Wi-Fi 6 (802.11ax) radio provides secure, high-speed wireless connectivity for employees and guests without additional access points.

Key Benefits

• 3-Year Unified Threat Protection: Includes core security services like IPS, Anti-Malware Protection (AMP), URL/DNS Filtering, and Anti-Spam to protect against web-based threats.
• Integrated DSL Modem: Built-in RJ11 port supports VDSL2 and ADSL2+, eliminating the need for external bridge modems.
• Powered by SP5 ASIC: Delivers up to 1.25 Gbps NGFW throughput and accelerated VPN performance.
• Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MU-MIMO for fast and reliable wireless coverage.
• Fanless Operation: Silent 0 dBA noise level makes it ideal for retail counters, small offices, and office environments.
• Unified Management: Consolidates DSL WAN, Wi-Fi, and security management into a single console, reducing operational complexity.

Ideal Use Cases

• Branch Offices with DSL: All-in-one security and connectivity solution for locations relying on broadband DSL lines.
• Retail Locations: Secure, silent, and compact solution protecting POS systems and customer data.
• Small Businesses: Enterprise-grade security and reliable DSL/Wi-Fi connectivity in a cost-effective package.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
• IPS Throughput (Enterprise Mix): 2.25 Gbps
• NGFW Throughput (Enterprise Mix): 1.25 Gbps
• Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
• IPsec VPN Throughput (512 byte): 4.5 Gbps
• Firewall Latency (64 byte UDP): 2.42 μs
• Concurrent Sessions (TCP): 720,000
• New Sessions/Second (TCP): 85,000
• Wi-Fi Performance: 1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz (2x2 MU-MIMO)
• Power (Avg/Max): 17.74 W / 19.0 W (Heat Dissipation: 64.79 BTU/h)

Upgrade Your Network Security

Streamline connectivity and maximize security with the FortiWiFi 50G-DSL and 3-Year Unified Threat Protection bundle.
