[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 (802.11ax), compact desktop form factor, SP5 ASIC acceleration, and up to 5 Gbps firewall throughput for branch and remote offices [/shortdesc]

[properties]

SKU	FWF-50G-A
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)

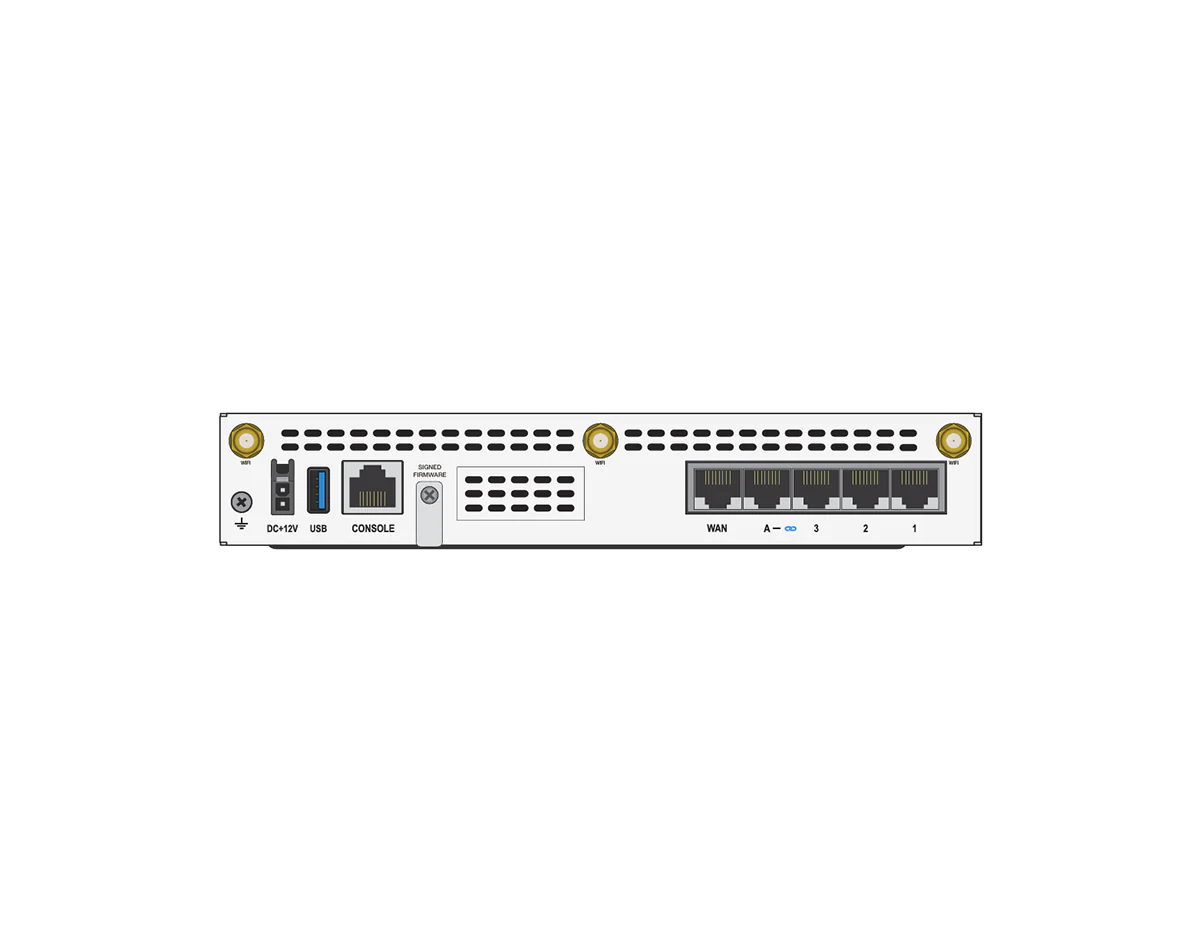

Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console
Dimensions (H x W x L)	42 x 216 x 178 mm (1.7 x 8.5 x 7.0 inches)
Weight	1.1 kg (2.4 lbs)
Power Input	12VDC, 3A (External DC Power Adapter; 100–240V AC, 50/60 Hz)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps
SSL Inspection Throughput	1.3 Gbps
Wireless Specifications
Radio	Dual Radio (2.4 GHz / 5 GHz)
MIMO	2x2 MU-MIMO
Max WiFi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Antennas	3x External SMA Antenna Ports
Hardware Specifications
Environment & Power
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Certifications
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kits (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX))

[/accesories]

Next-Generation Security with Wi-Fi 6

The FortiWiFi 50G series represents a significant leap in desktop security performance, powered by Fortinet's patented SP5 (Security Processing Unit) ASIC. This device integrates a Next-Generation Firewall (NGFW) with a high-speed Wi-Fi 6 (802.11ax) access point, offering a converged networking and security solution for small businesses, branch offices, and retail environments.

With the SP5 ASIC, the FWF-50G delivers high firewall throughput and fast threat detection compared to traditional CPU-based firewalls. The integrated Wi-Fi 6 radio ensures robust wireless connectivity with higher throughput and better capacity for connecting multiple devices, eliminating the need for separate wireless hardware.

Key Benefits

• Powered by SP5 ASIC: Delivers industry-leading performance with up to 5 / 5 / 4 Gbps firewall throughput and 1.3 Gbps SSL inspection throughput.
• Integrated Wi-Fi 6: Built-in 802.11ax dual-band radio provides high-speed wireless access (up to 1201 Mbps on 5 GHz).
• Compact Desktop Form Factor: Ideal for space-constrained environments where silent or unobtrusive operation is required.
• Unified Management: FortiOS provides a single console to manage both wired and wireless security policies, reducing operational complexity.
• Enterprise-Grade Security: Protects against malware, exploits, and malicious websites with FortiGuard AI-Powered Security Services.
• Secure SD-WAN: Integrated SD-WAN capabilities enable optimized application performance and secure direct internet access.

Ideal Use Cases

• Small Business & Retail: Secure, high-performance connectivity for POS systems and guest Wi-Fi in a single device.
• Branch Offices: Connects distributed sites securely to the corporate network via high-speed VPN and SD-WAN.
• Home Offices: Enterprise-level security and Wi-Fi 6 performance for remote workers.

Technical Specifications Summary

• Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
• IPS Throughput: 2.25 Gbps (Enterprise Traffic Mix)
• NGFW Throughput: 1.25 Gbps (Enterprise Traffic Mix)
• Threat Protection Throughput: 1.1 Gbps (Enterprise Traffic Mix)
• IPsec VPN Throughput: 4.5 Gbps (512 byte)
• SSL Inspection: 1.3 Gbps throughput; 699 CPS; 74,000 concurrent sessions (IPS, avg. HTTPS)
• Firewall Latency: 2.42 μs (64 byte UDP) with 6 Mpps firewall throughput (packets per second)
• Session Capacity: 720,000 concurrent TCP sessions; 85,000 new sessions/second; 2,000 firewall policies
• Wireless: Dual radio (2.4 GHz / 5 GHz), 2x2 MU-MIMO; 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz; max TX power 21.0 dBm (2.4 GHz) and 19.5 dBm (5 GHz) per chain
• Ports & Antennas: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink (default), 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 console; 3x WiFi antenna ports (SMA)
• Physical & Compliance: 42 x 216 x 178 mm; 1.1 kg; 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% non-condensing; FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6
