[shortdesc] Secure SD-WAN firewall with integrated Wi-Fi 6 and embedded 5G, desktop form factor, up to 5 Gbps firewall throughput, 1.1 Gbps threat protection, designed for high-performance branch connectivity [/shortdesc]

[properties]

SKU	FWF-50G-5G-II
Form Factor	Desktop
Wireless Standard	802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Cellular Modem	Embedded 3G/4G/LTE/5G (Dual SIM, Active/Passive)
Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console
Antenna Ports	3x SMA (Wi-Fi), 5x SMA (WWAN/5G)
Dimensions (H x W x L)	42 x 216 x 178 mm (1.7 x 8.5 x 7.0 inches)
Weight	1.1 kg (2.4 lbs)
Power Input	12VDC, 3A (External Adapter)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
System Performance & Capacity
IPv4 Firewall Throughput	5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput	4.5 Gbps
SSL Inspection Throughput	1.3 Gbps
Wireless & 5G Specifications
Wi-Fi Radio	Dual Radio (2.4 GHz / 5 GHz), 802.11 a/b/g/n/ac/ax, 2x2 MU-MIMO
Max Wi-Fi Speeds	1201 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
Modem Model	Telit Cinterion FN990A28-HP
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
SIM Slots	2x Nano SIM Slots
Hardware Specifications
USB Port	1x USB Port
Console Port	1x RJ45 Console Port
Network Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet
Environment & Power
Power Consumption (Avg / Max)	20.43 W / 23.59 W
Heat Dissipation	80.44 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	21.73 dBA
Certifications
Compliance	FCC, IC, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Tray (SP-RACKTRAY-02), Mounting Ear Bracket (SP-EAR-FG90G-10), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10 (-XX))

[/accesories]

Converged 5G Wireless WAN and Wi-Fi 6 Security

The FortiWiFi 50G-5G-II (FWF-50G-5G-II) is a next-generation desktop appliance designed for the modern distributed enterprise. It uniquely integrates an embedded 3G/4G/LTE/5G wireless WAN module and a Wi-Fi 6 (802.11ax) access point directly into the firewall. Powered by Fortinet's patented SP5 ASIC, it eliminates the need for multiple devices by providing firewalling, SD-WAN, and wireless connectivity in a single compact unit.

This model is ideal for locations requiring redundant connectivity or primary wireless WAN. The embedded dual-SIM 5G modem supports a wide range of 5G and LTE bands, while the integrated Wi-Fi 6 radio delivers high-throughput local wireless access. With enterprise-grade threat protection and unified management via FortiOS, the FWF-50G-5G-II simplifies network architecture while enhancing security and performance.

Key Benefits

• Embedded 5G Connectivity: Integrated high-performance modem with dual-SIM slots ensures reliable primary or failover WAN connectivity.
• Powered by SP5 ASIC: Delivers up to 5 / 5 / 4 Gbps firewall throughput and accelerated VPN performance, significantly faster than traditional CPU-based firewalls.
• Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MIMO, providing secure and fast wireless access for staff and guests.
• Unified Management: Manage 5G WAN, Wi-Fi 6, and security policies from a single console, reducing operational complexity.
• Secure SD-WAN: Application-aware traffic steering optimizes performance across 5G, wired WAN, and internet links.
• High Availability: Dual-SIM support enables carrier redundancy for improved connectivity resilience.

Ideal Use Cases

• Remote Sites & Branches: All-in-one connectivity solution (5G + Wi-Fi + Security) perfect for locations with limited wired internet options.
• Retail & Pop-up Stores: Rapid deployment using 5G as the primary link, with secure Wi-Fi for POS systems and customers.
• Mission-Critical Failover: Provides an automatic, high-speed 5G backup link to ensure uninterrupted operations during wired outage.

Technical Specifications Summary

• Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
• IPS / NGFW / Threat Protection: 2.25 Gbps / 1.25 Gbps / 1.1 Gbps
• VPN Capacity & Performance: 4.5 Gbps IPsec; 200 gateway-to-gateway tunnels; 250 client-to-gateway tunnels
• Wi-Fi 6 Radio: Dual Radio 2.4 GHz/5 GHz (802.11 a/b/g/n/ac/ax), 2x2 MU-MIMO; up to 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz
• 5G/LTE Modem: Telit Cinterion FN990A28-HP; 2x Nano SIM (active/passive); max Tx power 23 dBm (Power Class 3) / 26 dBm (Power Class 2 in B41/n41)

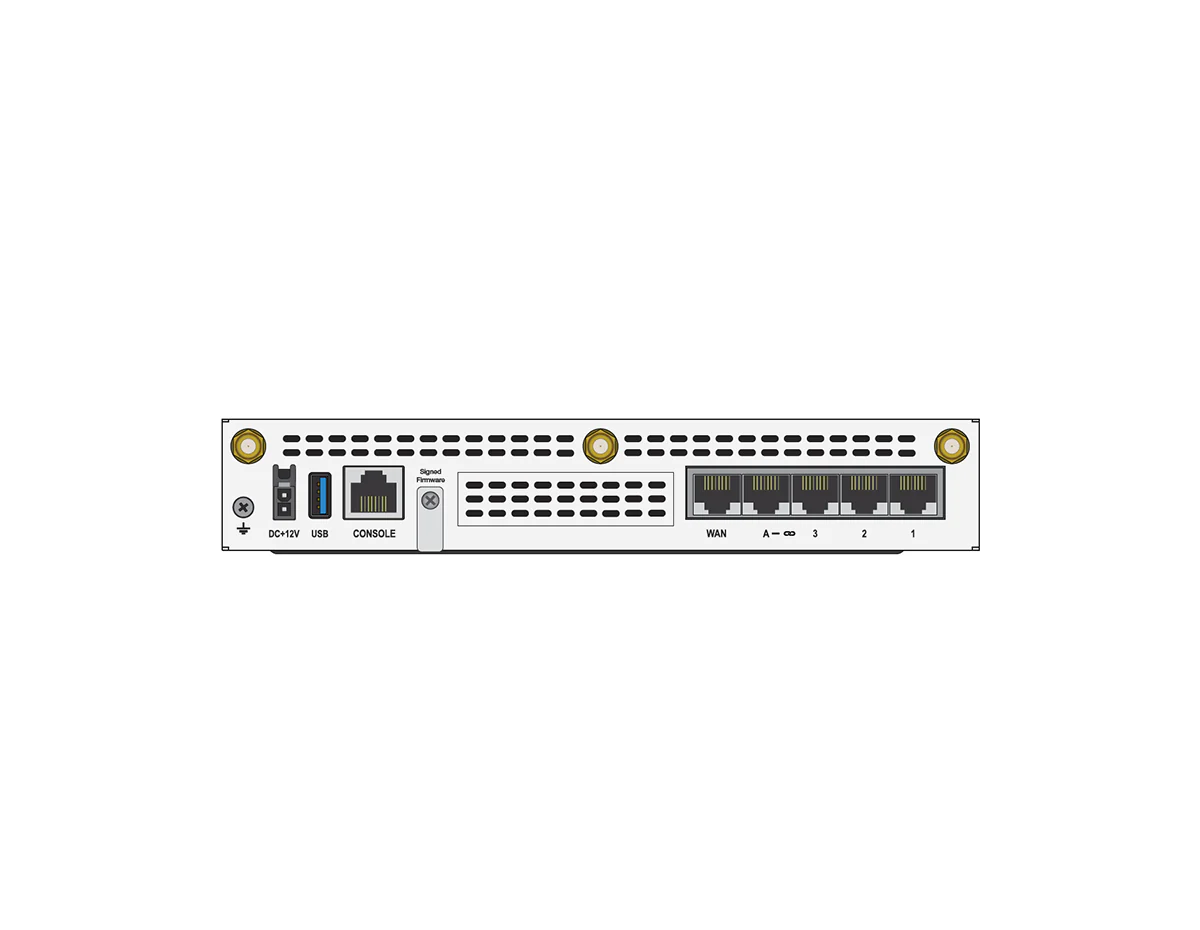

• Interfaces & Physical: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x LAN) + 1x USB + 1x RJ45 console; 42 x 216 x 178 mm; 1.1 kg; 12VDC, 3A; 20.43 W avg / 23.59 W max; 21.73 dBA

Upgrade Your Network Security

Ensure reliable connectivity anywhere with the power of 5G and SP5 in the FortiWiFi 50G-5G-II.
