[properties]

Properties	FWF-40F-A
Description	5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports), Wireless (802.11a/b/g/n/ac-W2)
Product Family	Early Level Fortigate Firewalls
Product Type	Firewall
GE RJ45 Internal Ports	3
GE RJ45 FortiLink Ports (Default)	1
GE RJ45 WAN Port	1
USB Port	1
Console (RJ45)	1
Wireless Interface	Single Radio (2.4GHz/5GHz) 802.11 /a/b/g/n/ac-W2
Antenna Ports (SMA)	3
Dimensions in.	1.5 x 8.5 x 6.3
Form Factor	Desktop
Power Required	100–240V AC, 60–50 Hz (External DC Power Adapter)
Maximum Current	100V AC / 0.2A, 240V AC / 0.1A
Power Consumption (Average / Maximum)	14.6 W / 16.6 W

[/properties][specifications]

Firewall Throughput (1518 / 512 / 64 byte, UDP)	5 / 5 / 5 Gbps
Firewall Latency (64 byte UDP packets)	2.97 μs
Firewall Throughput (Packets Per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700.000
New Sessions/Second (TCP)	35.000
Firewall Policies	5.000
IPsec VPN Throughput (512 byte packets)	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	200
IPS Throughput	1 Gbps
SSL Inspection Throughput	310 Mbps
Application Control Throughput	990 Mbps
NGFW Throughput	800 Mbps
Threat Protection Throughput	600 Mbps
CAPWAP Throughput	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	16 / 8
Maximum Number of FortiTokens	500
Maximum Number of FortiSwitches Supported	8
High Availability Configurations	Active/Active, Active/Passive, Clustering
Multiple (MU) MIMO	3 x 3
Maximum Wi-Fi Speeds	1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power	20 dBm
Antenna Gain	3.5 dBi @ 5GHz, 5 dBi @ 2.4 GHz
Operating Temperature	32–104°F (0–40°C)
Regulatory Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	Certifications USGv6/IPv6

[/specifications][accesories]

SP-RACKTRAY-02	Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01.
SP-FG-40F-PA-10(-XX	Pack of 10 AC power adaptors for FG/FWF-40F, come with interchangeable power plugs. (XX=various countries code)
SP-FG60F-MOUNT-20	Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass

[/accesories]

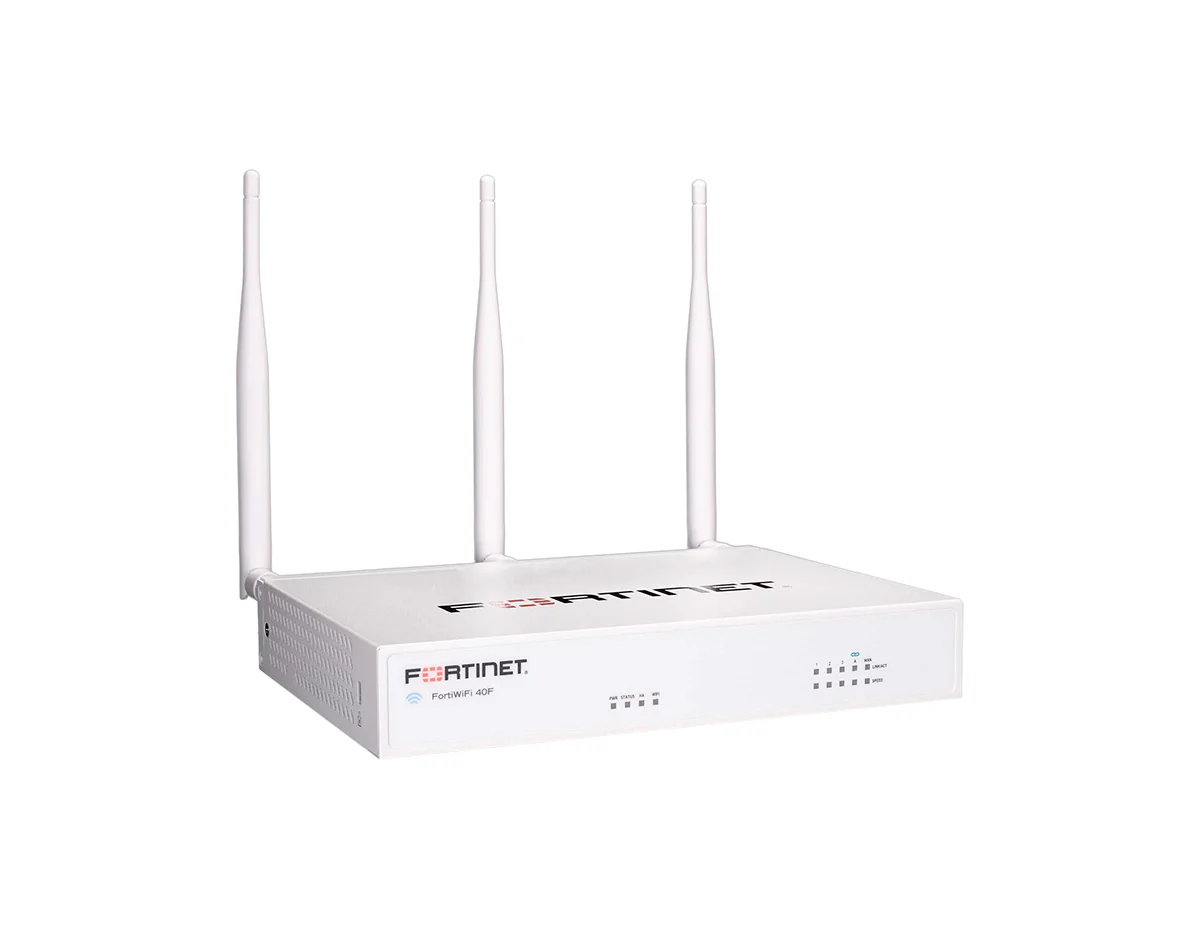

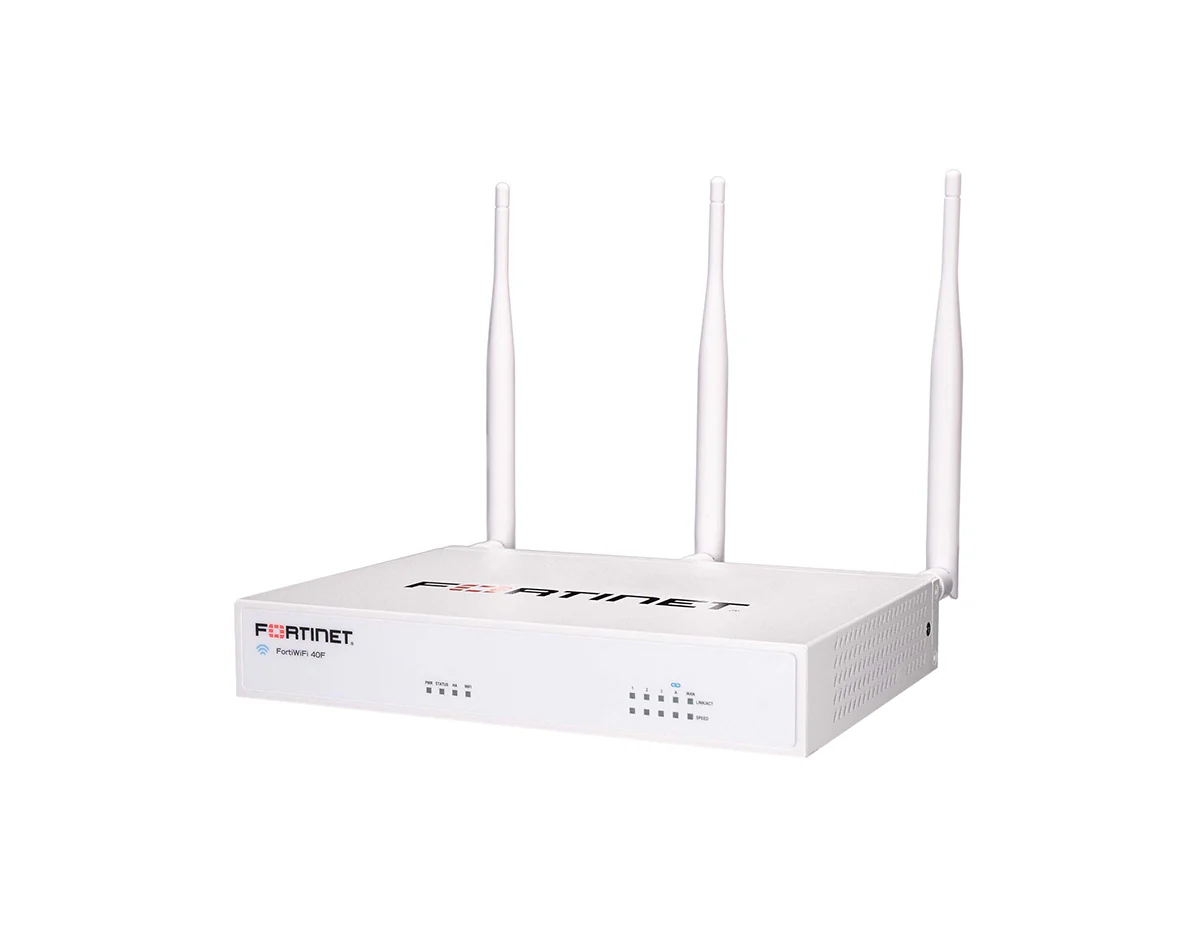

Fortinet FWF-40F-A Firewall

The Fortinet FWF-40F-A is a member of the FortiWifi family. This product is considered to be a top choice for small and medium-sized businesses due to its high performance and user-friendly management interface. This firewall is designed for use by 1-10 users and offers a firewall throughput of 1 Gbps and a VPN throughput of 4.4 Gbps. It utilizes the Fortinet Security Fabric to effectively address security threats and provides comprehensive network visibility to enhance risk management.

Quick Specs:

• Fanless Design
• 5 x GE RJ45 ports (including 3x Internal Ports, 1x WAN Port and 1x FortiLink Port)
• Wireless Interface: Single Radio (2.4GHz/5GHz) 802.11 /a/b/g/n/ac-W2
• 3 Antenna Ports (SMA)

Please see the related tabs for the FWF-40F-A datasheet and compatible accessories.
