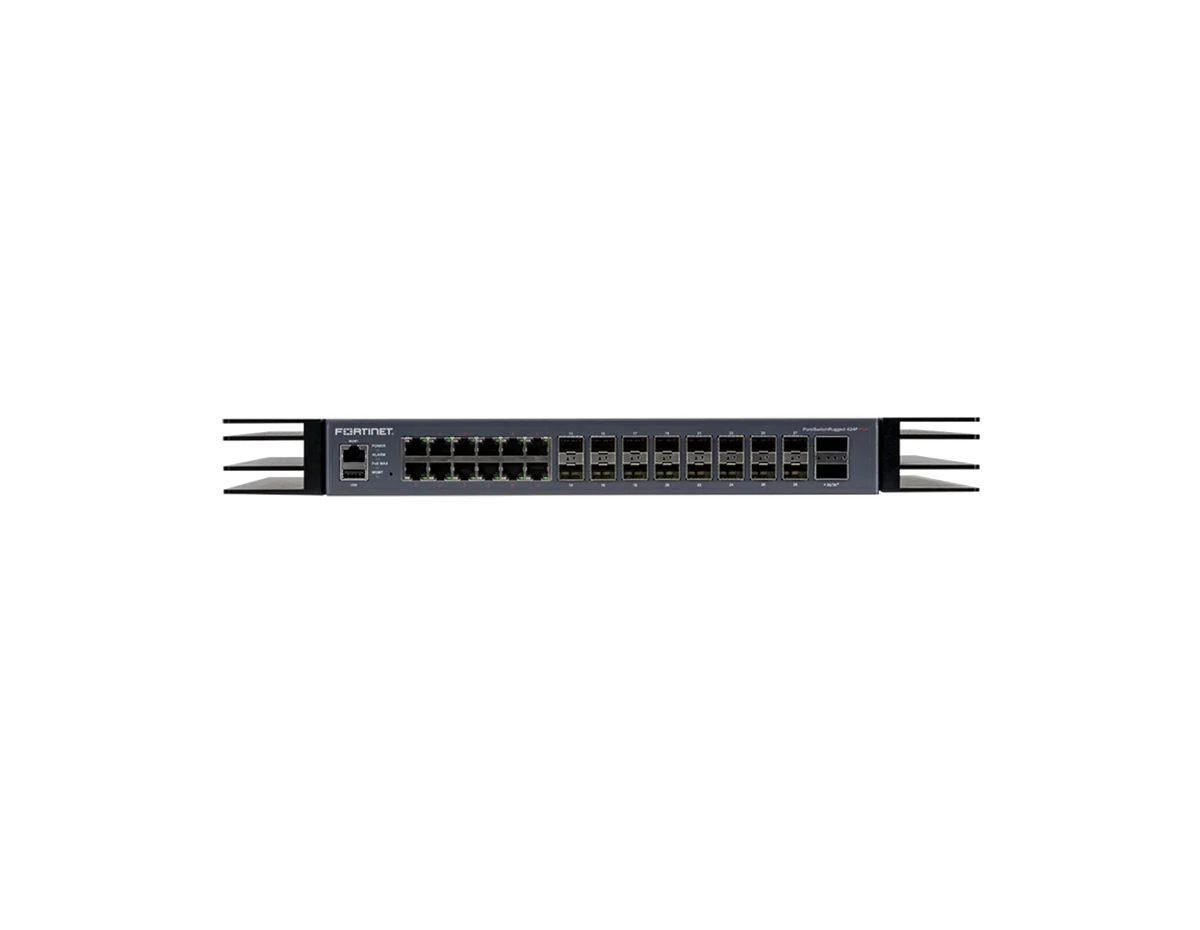

Fortinet FortiSwitch FSR-424F-POE Ethernet Switch
[shortdesc] Layer 2/3 managed switch, 24 ports, 2.5GbE access, 40GbE uplinks, 421W PoE budget, IP40 rugged fanless design [/shortdesc]
[properties]
| SKU | FSR-424F-POE |
| Product Line | FortiSwitch Rugged |
| Product Type | Managed Ethernet Switch |
| Layer Support | Layer 2 / Layer 3 |
| Total Ports | 24 |
| RJ-45 Ports | 12 × 1/2.5GBase-T (UPOE) |
| SFP+ Ports | 12 × 1/2.5G SFP+, 4 × 10G SFP+ |
| QSFP+ Ports | 2 × 40G QSFP+ |
| PoE Standard | IEEE 802.3af / 802.3at / 4-pair 60W |
| PoE Budget | 421 W |
| Switching Capacity | 360 Gbps |
| Forwarding Rate | 536 Mpps |
| MAC Address Table | 32K entries |
| Packet Buffer | 4 MB |
| Memory | 1 GB RAM |
| Flash Storage | 256 MB |
| Form Factor | Rack-mountable |
| Cooling | Fanless |
| Ingress Protection | IP40 |
| Redundant Power Input | Yes |
[/properties]
[specifications]
| Network Latency | < 1 µs |
| VLAN Support | Up to 4,000 VLANs |
| Link Aggregation | Up to 24 groups (LACP) |
| Queues per Port | 8 |
| IPv4/IPv6 Routing | Hardware-based |
| Routing Protocols | OSPF, OSPFv2, BGP, IS-IS, RIP-2, VRRP, ECMP, Static Routing |
| Multicast Support | IGMP Snooping, IGMP Proxy, MLD Snooping, PIM-SSM |
| High Availability | MRP, PRP, HSR, MC-LAG |
| Time Synchronization | IEEE 1588v2 PTP (Transparent & Boundary Clock) |
| Management Interfaces | CLI, Web GUI, SNMP v1/v2c/v3, REST API, SSH, HTTPS, Syslog |
| Security Features | 802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, MAC Filtering |
| Operating Temperature | -40 °C to 70 °C (PoE dependent) |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| MTBF | > 30 years |
| Dimensions (H × W × D) | 44 × 440 × 410 mm |
| Weight | 6.3 kg |
[/specifications]
[accesories]
| Included | Rack mount brackets, rubber feet, USB-to-RJ45 console cable, terminal block (included in the box) |
| Optional Power Supply | FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS) |
| Transceivers | Compatible with Fortinet SFP+, QSFP+ transceiver modules |
[/accesories]
Industrial-Grade Switching for Harsh Environments
The Fortinet FortiSwitch Rugged FSR-424F-POE is a high-performance Layer 2/3 Ethernet switch engineered for mission-critical networks operating in extreme conditions. Designed for industrial, operational technology, and outdoor deployments, it delivers enterprise-class switching, high PoE power, and advanced routing capabilities in a hardened, fanless chassis.
With native integration into the Fortinet Security Fabric via FortiLink, the FSR-424F-POE simplifies network operations by enabling centralized management, policy enforcement, and visibility when paired with FortiGate appliances. Its rugged construction, extended temperature tolerance, and redundant power inputs ensure consistent uptime where standard switches fail.
Key Benefits & Features
- High-Density Multi-Gigabit Access: 12 x 2.5GbE RJ45 ports and 12 x 2.5GbE SFP ports support modern edge devices and industrial workloads.
- Powerful PoE Delivery: 421W PoE budget with up to 60W per port supports cameras, sensors, and wireless access points.
- Ultra-High-Speed Uplinks: 4 x 10GbE SFP+ and 2 x 40GbE QSFP+ ports enable high-capacity aggregation and core connectivity.
- Rugged Fanless Design: IP40-rated enclosure, no moving parts, and extended temperature operation for harsh environments.
- Advanced Layer 3 Routing: Supports OSPF, BGP, VRRP, multicast routing, and hardware-based IPv4/IPv6 routing.
Ideal Use Cases
- Industrial automation and OT networks
- Transportation, energy, and utility infrastructure
- Outdoor surveillance and smart city deployments
- Manufacturing floors and control systems
- Harsh enterprise edge environments
Technical Specifications
- Total Ports: 24 access ports
- Access Interfaces: 12 x 2.5GbE RJ45 PoE, 12 x 2.5GbE SFP
- Uplink Interfaces: 4 x 10GbE SFP+, 2 x 40GbE QSFP+
- PoE Budget: 421W total, up to 60W per port
- Switching Capacity: 360 Gbps
- Forwarding Rate: Up to 536 Mpps
- MAC Address Table: 32,000 entries
- Latency: Less than 1 microsecond
- Operating Temperature: -40°C to +70°C
- Form Factor: Rack-mountable, fanless
Deploy Rugged Switching with Confidence
The Fortinet FortiSwitch Rugged FSR-424F-POE delivers the performance, resilience, and security required for demanding industrial networks. Order today and build a network designed to endure.
