[shortdesc] Layer 2/3 managed switch, 16x Gigabit PoE++ ports, 4x 10G SFP+ uplinks, 360W PoE budget, fanless IP40 rugged design [/shortdesc]

[properties]

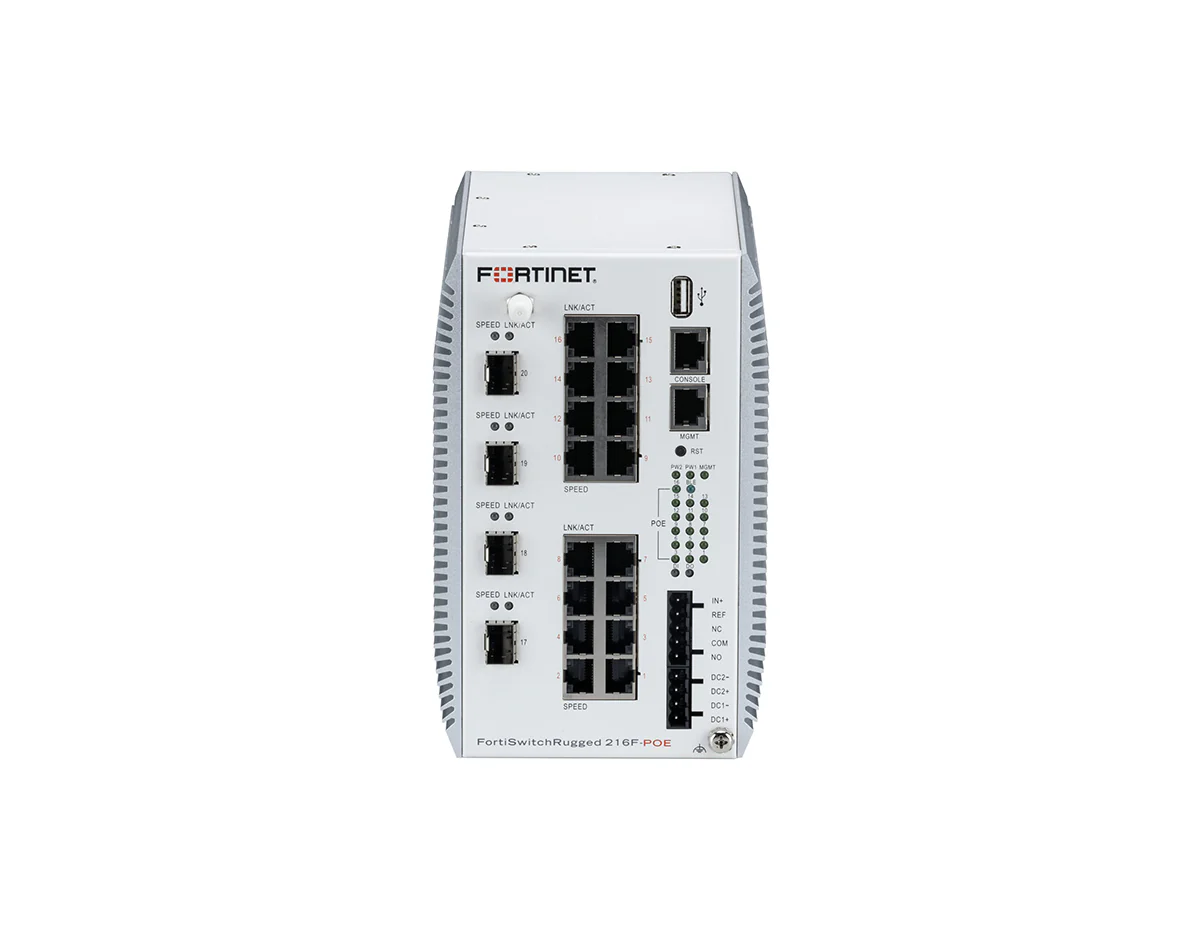

Model	FortiSwitch Rugged 216F-POE
SKU	FSR-216F-POE
Product Type	Managed Industrial Ethernet Switch
Switching Layer	Layer 2 / Layer 3
Total Ports	16 × 10/100/1000Base-T RJ45 (PoE++)
Uplink Ports	4 × 1G / 10G SFP+
PoE Standard	IEEE 802.3af / 802.3at / 802.3bt (Type 4)
PoE Ports	16 ports
Total PoE Budget	360 W
Switching Capacity	112 Gbps
Forwarding Rate	166 Mpps
MAC Address Table	16K entries
Form Factor	DIN-rail mountable
Cooling	Fanless
Ingress Protection	IP40
Operating Temperature	-40°C to 75°C
Operating Humidity	5% to 95% RH non-condensing
Power Input	Redundant DC input terminals
Reverse Power Protection	Yes
Mean Time Between Failures	> 30 years
Dimensions (H × W × D)	180 × 116.4 × 170 mm
Weight	6.6 lbs (3.0 kg)

[/properties]

[specifications]

Network Interfaces	16 × 10/100/1000 RJ45, 4 × 1G/10G SFP+
PoE Output per Port	Up to 90 W (PoE++)
Packet Buffer	1.5 MB
DRAM	1 GB DDR4
Flash Memory	32 MB SPI + 1 GB NAND
VLAN Support	Up to 4,000 VLANs
Link Aggregation Groups	Up to number of ports, group size 8
Spanning Tree Instances	32
Network Latency	< 1 µs
Routing Protocols	OSPFv2, OSPFv3, RIP, RIP-2, BGP, IS-IS, VRRP
Management Protocols	CLI, Web GUI, SNMP v1/v2c/v3, SSH, HTTPS, Telnet, Syslog
High Availability	HSR, PRP, MRP, MC-LAG
Standards Compliance	IEEE 802.3, 802.3af, 802.3at, 802.3bt, 802.1Q, 802.1X, 802.1D, 802.1w
Certifications	IEC 62368-1, IEC 61850-3, IEEE 1613, FCC Class A, CE, RoHS, UL

[/specifications]

[accesories]

Optional Power Supply	FortiPSU Rugged DIN Rail 240W PSU (SP-RGDIN-240-PS)
Optional Transceivers	Fortinet SFP and SFP+ transceiver modules (refer to Fortinet Transceivers datasheet)

[/accesories]

Industrial-Grade Switching for Harsh Environments

The Fortinet FortiSwitch Rugged 216F-POE is engineered for mission-critical networks operating in extreme and industrial conditions. Designed to deliver enterprise-grade switching with rugged durability, this model combines high-performance Layer 2 and Layer 3 capabilities with advanced PoE++ power delivery. When deployed standalone or managed through FortiLink with FortiGate, it becomes a secure, centrally managed extension of the Fortinet Security Fabric.

Key Benefits & Features

• High-Power PoE++ Deployment: Sixteen IEEE 802.3bt PoE++ ports deliver up to 90W per port with a total 360W budget, ideal for cameras, sensors, and wireless access points.
• High-Speed Fiber Uplinks: Four 1G/10G SFP+ ports provide scalable backbone connectivity for aggregation or core uplinks.
• Rugged Fanless Design: IP40-rated, fanless architecture supports continuous operation from -40°C to 75°C with zero moving parts.
• Advanced Layer 2 and Layer 3 Switching: Supports VLANs, ACLs, dynamic routing protocols, multicast, and high availability features.
• FortiLink Centralized Management: Seamless integration with FortiGate enables unified policy control, monitoring, and zero-touch deployment.

Ideal Use Cases

• Industrial automation and OT networks
• Transportation, rail, and roadside infrastructure
• Outdoor surveillance and security deployments
• Utilities, substations, and energy facilities
• Remote or harsh-environment branch locations

Technical Specifications

• Switching Capacity: 112 Gbps
• Forwarding Rate: 166 Mpps
• Ports: 16x 10/100/1000 RJ45 PoE++, 4x 1G/10G SFP+
• PoE Standard: IEEE 802.3af, 802.3at, 802.3bt
• Total PoE Budget: 360W
• MAC Address Table: 16K entries
• Operating Temperature: -40°C to 75°C
• Form Factor: DIN-rail mountable
• Cooling: Fanless
• Ingress Protection: IP40
