Fortinet FSR-112D-POE Switch

Product image 1
Product image 2

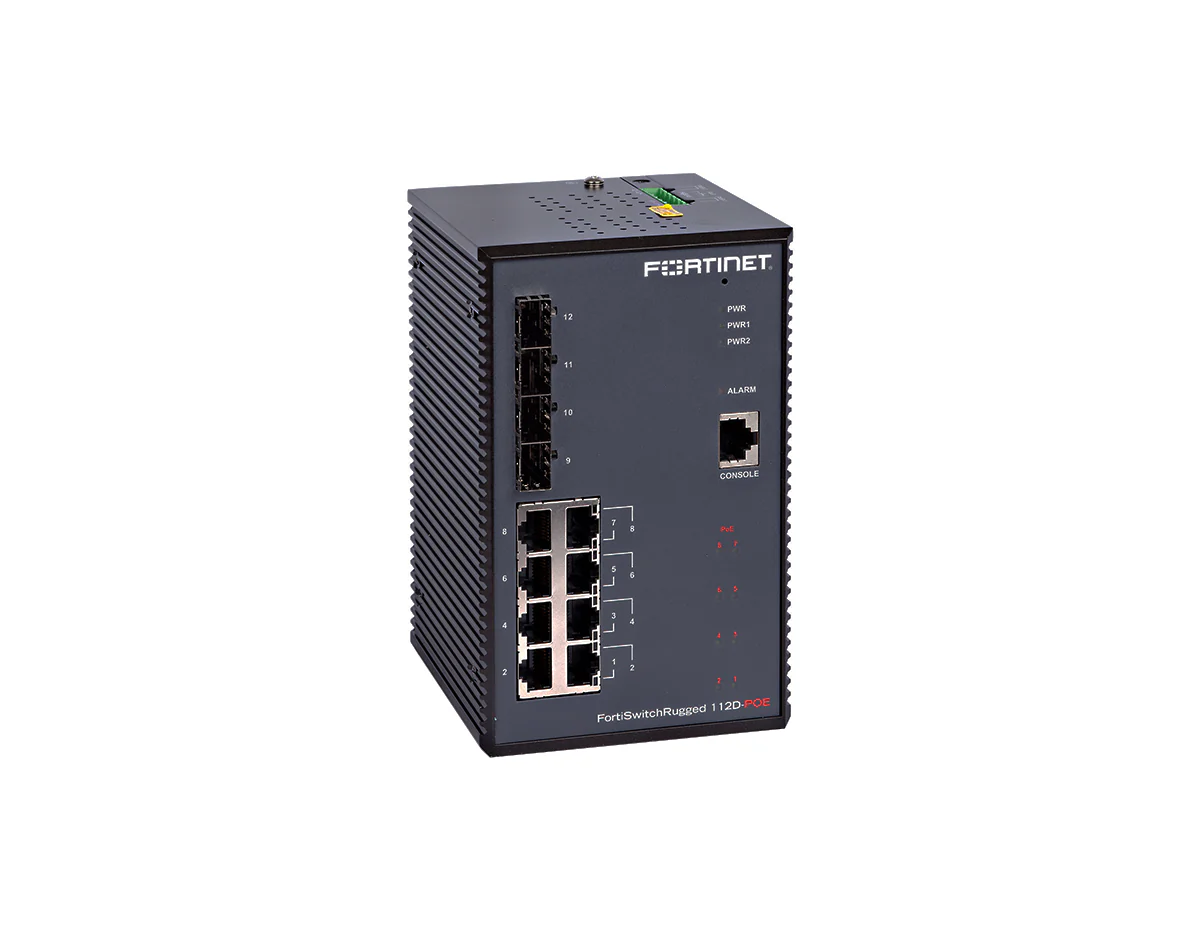

Fortinet FSR-112D-POE Switch

Fortinet FSR-112D-POE Switch

[shortdesc]
  • Layer 2 ruggedized FortiGate switch controller compatible PoE+ switch with 8 x GE RJ45 ports
[/shortdesc]

[properties]

Properties FSR-112D-POE
Description Ruggedized L2 PoE Switch 8x GE RJ45 (including 8x PoE/PoE+ capable ports), 4x GE SFP slots, FortiGate switch controller compatible.
Product Family FortiSwitch Rugged
Product Type Switch
Ethernet interface 8x GE RJ45 (including 8x PoE/PoE+ capable ports), 4x GE SFP slots
PoE is 802.3 af PoE+ is 802.3at
Operating mode Store and forward, L2/L3 wire-speed/non-blocking switching engine
Speed 10/100/1000 Mbps
PoE+ (PSE) IEEE 802.3at, up to 30 W per RJ45 GE port (up to 8 PoE+ ports)

[/properties]

[specifications]

Dimensions in. 3.8 x 4.15 x 6.06
Input voltage range 4457V DC (for PoE model), 1257 V (non-PoE model), 4449V input voltage can support PoE (802.3af) on all ports, 5057V input voltage can support PoE+ (802.3at) on all ports
MAC addresses 8K
Switch power With 8x PoE+ sources, the switch itself draws 10.4 W
Heat dissipation The switch dissipates 69.6 BTU/h with 8x PoE+ devices attached
Operating temperature -40167°F (-4075°C)
EMI Radiated Emission: CISPR 22, EN55022 Class B Conducted Emission: EN55022 Class B
EMS ESD: IEC61000-4-2
Radiated RF (RS): IEC61000-4-3 EFT: IEC61000-4-4
Surge: IEC61000-4-5
Conducted RF (CS): IEC61000-4-6

[/specifications]


[accesories]

FG-TRAN-LX 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
FG-TRAN-GC 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
FG-TRAN-SX 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
FR-TRAN-SX 1 GE SFP SX transceiver module, -4085°C, over MMF, for all systems with SFP and SFP/SFP+ slots.
FR-TRAN-LX 1 GE SFP LX transceiver module, -4085°C, over SMF, for all systems with SFP and SFP/SFP+ slots.
FR-TRAN-ZX 1 GE SFP ZX transceiver module, -4085°C, 90 km range, for all systems with SFP and SFP/SFP+ slots.

[/accesories]

Fortinet FSR-112D-POE Switch

The Fortinet FSR-112D-POE is a member of the FortiSwitch Rugged family. The FortiSwitch Rugged FSR-112D-POE switch offers all the performance and security features of the proven FortiSwitch range. This product is additionally reinforced, making it ideal for operation in outdoor environments. It is generally very resilient and robust and can withstand severe temperature fluctuations. It ensures the integrity and performance of mission-critical networks in even the most challenging environments.

Quick Specs:

  • 8x GE RJ45 ports
  • 4x GE SFP ports uplink
  • 8 PoE ports
  • Switching Capacity (Duplex): 24 Gbps

Please see the related tabs for the FSR-112D-POE datasheet and compatible accessories.

$699.30

Original: $1,998.00

-65%
Fortinet FSR-112D-POE Switch—

$1,998.00

$699.30
