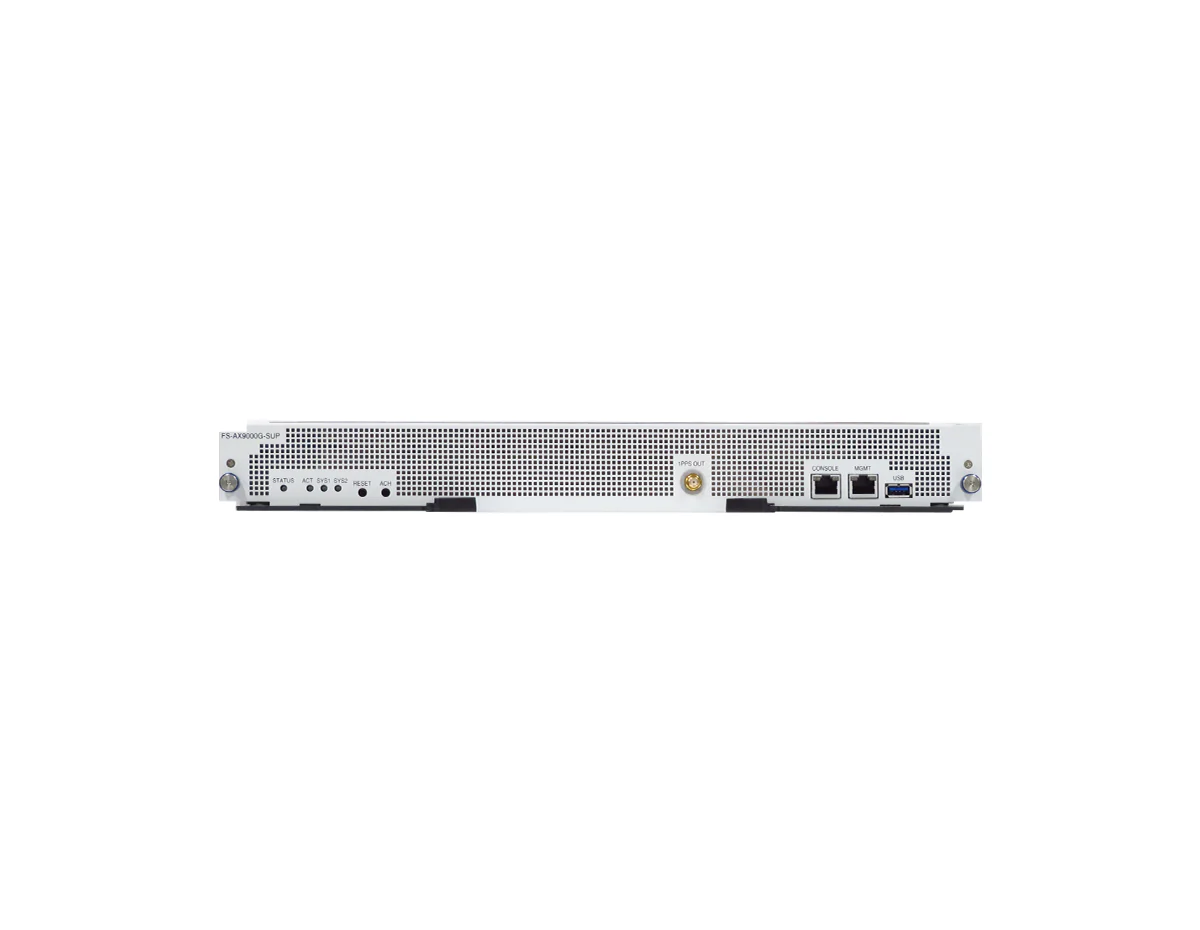

Fortinet FortiSwitch FS-AX9000G-SUP Supervisor Module
[shortdesc] Supervisor control module, hot swappable design, chassis management, 12.8 Tbps packet forwarding engine, redundant support [/shortdesc]
Centralized Intelligence for AX9000G Chassis Switching
The FortiSwitch-AX9000G-SUP is the core control and forwarding module for the FortiSwitch AX9000G series chassis. Designed to manage system operations and perform high-speed packet forwarding with a 12.8 Tbps switching capacity, this supervisor module ensures stable, scalable, and resilient switching at the data center core. With support for active and standby deployment, it enables continuous operation and simplified maintenance in mission-critical environments.
Key Benefits & Features
- Chassis Control Engine: Acts as the primary control module, managing system operations and coordination across line cards.
- High-Performance Forwarding: Delivers 12.8 Tbps switching capacity per supervisor to ensure deterministic performance.
- Hot-Swappable Architecture: Supports live replacement without powering down the chassis, reducing downtime.
- Redundant Supervisor Support: Enables active and standby supervisor configurations (1+1) for high availability designs with ACH (Active Chassis Handler) support.
- Dedicated Management Interfaces: Includes RS-232C console, 10/100/1000BASE-T management Ethernet, and USB-A ports for secure access.
Ideal Use Cases
- Enterprise and data center core switching architectures
- High-availability FortiSwitch AX9000G deployments
- Large campus or aggregation layer switching
- Environments requiring non-disruptive maintenance
- Scalable modular switch chassis installations
Technical Specifications
- Product Type: Supervisor module
- Compatible Chassis: FortiSwitch AX9000G series (e.g., AX9004G)
- Switching Capacity: 12.8 Tbps
- Management Ports: 1x RS-232C Console, 1x 10/100/1000BASE-T MGMT, 1x USB-A
- Hot Swap Support: Yes
- Max Power Consumption: 614 W (Input Power Base)
- Dimensions: 2.0 x 17.2 x 19.8 in (50.7 x 436 x 500.5 mm)
- Weight: 18.5 lbs (8.4 kg)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Build a Resilient Switching Core
Deploy the FortiSwitch-AX9000G-SUP to ensure reliable control, high availability, and scalable performance at the heart of your network. Order today.
